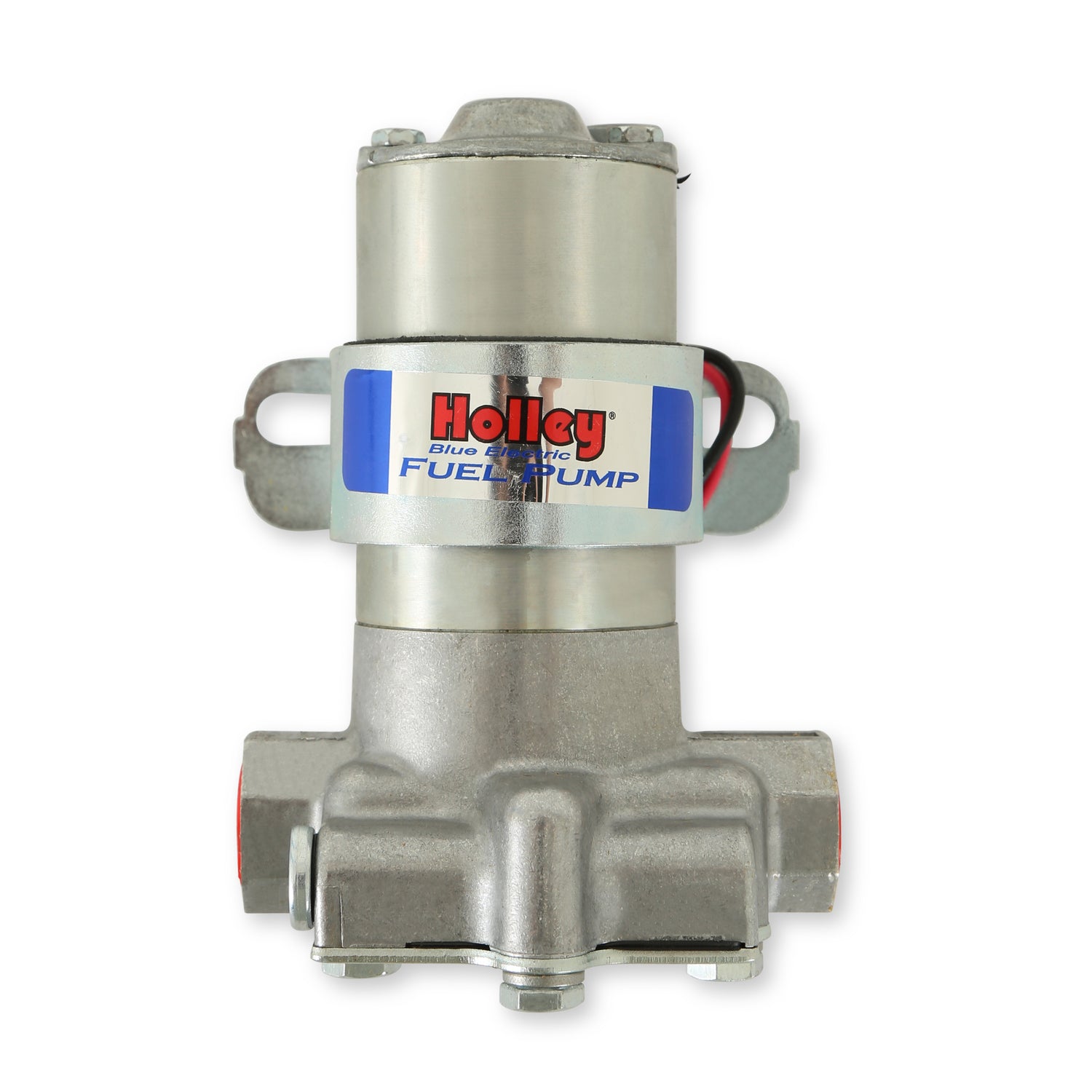

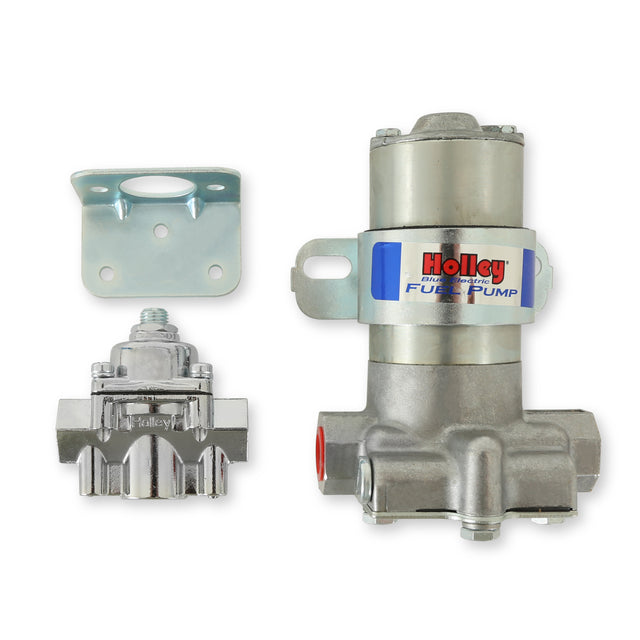

Holley 12-802-1 110 GPH Blue® Electric Fuel Pump With Regulator

Street/Strip Carbureted Applications Gasoline Only

Part Number: 12-802-1

The world famous Red®, Blue® and Black® fuel pumps are the most recognized performance pumps of all time. They have been powering racing legends and street enthusiasts alike since the early 70s. Their time proven rotor/vane design is known to get the job done in an affordable package.

Features and Benefits

• Tumble polished billet look
• Lower housing casting designed for enhanced fuel flow
• Motor draws only 3 amps current
• Relay kit P/N 12-753 & 7 1/2 amp fuse recommended
• Improved design for street/strip applications
• Not designed for use on aircraft of any type
• Distinctive “Blue” logo

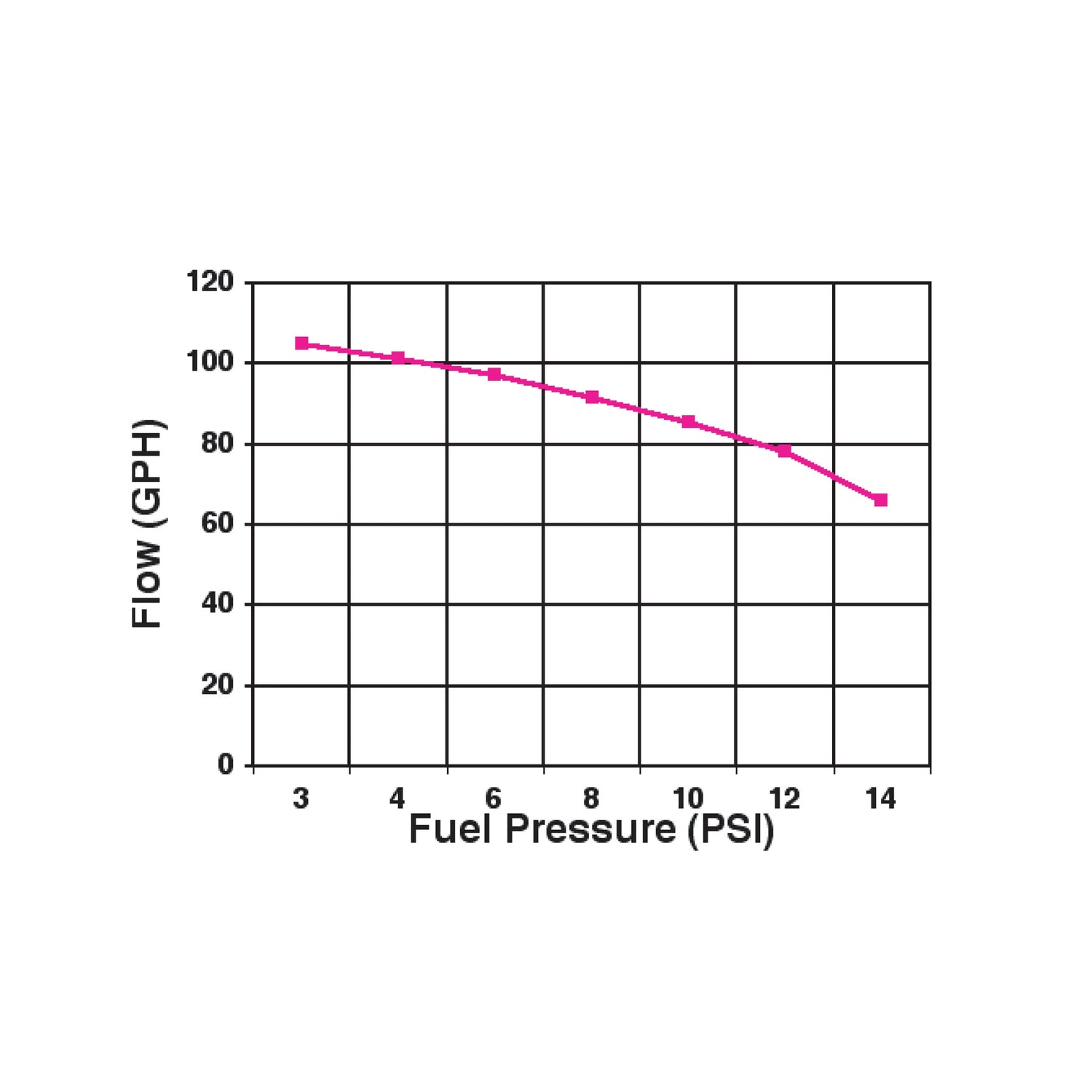

• Flows 110 GPH (free flow)
• Flows 88 GPH at 9 psi
• Maximum pressure is 14 psi

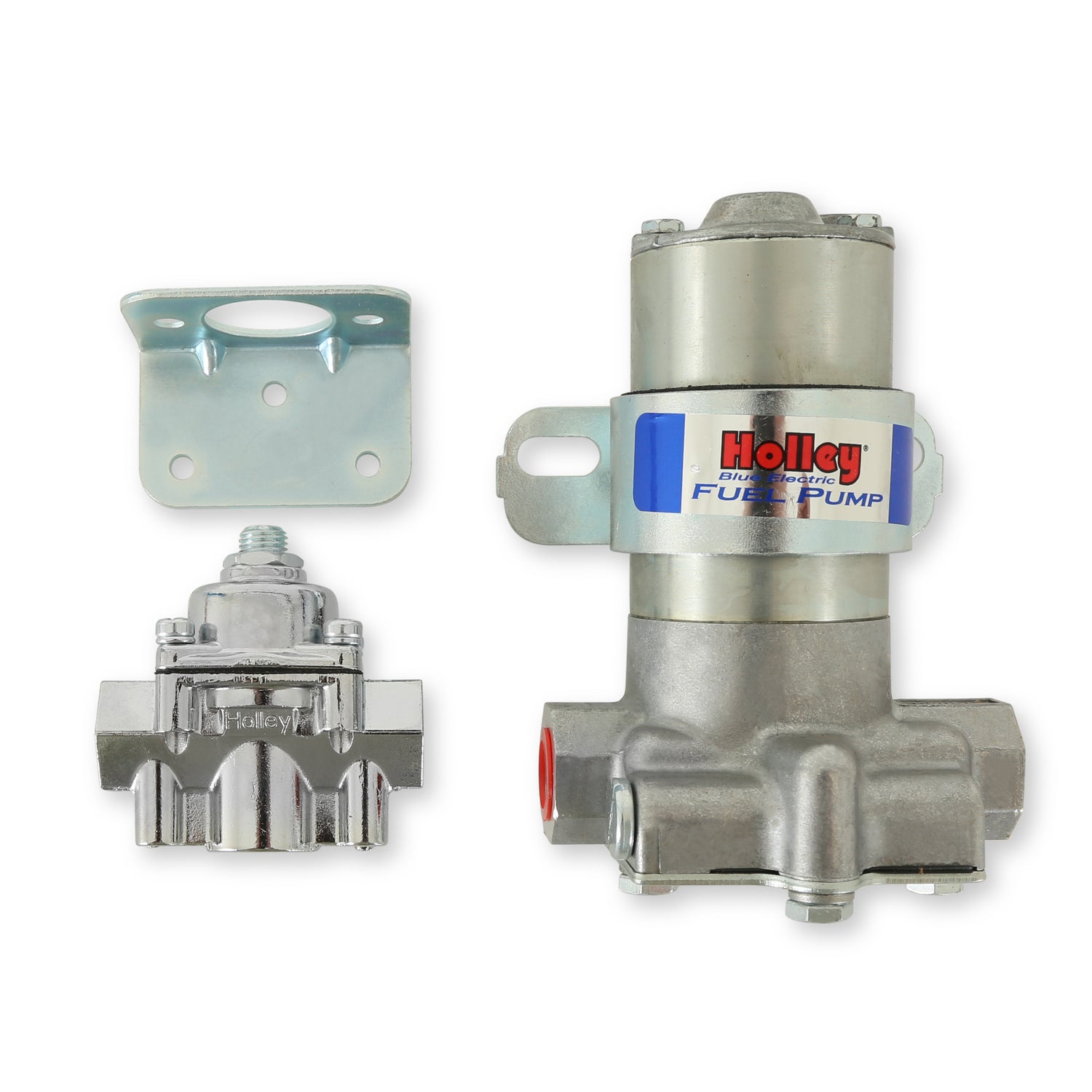

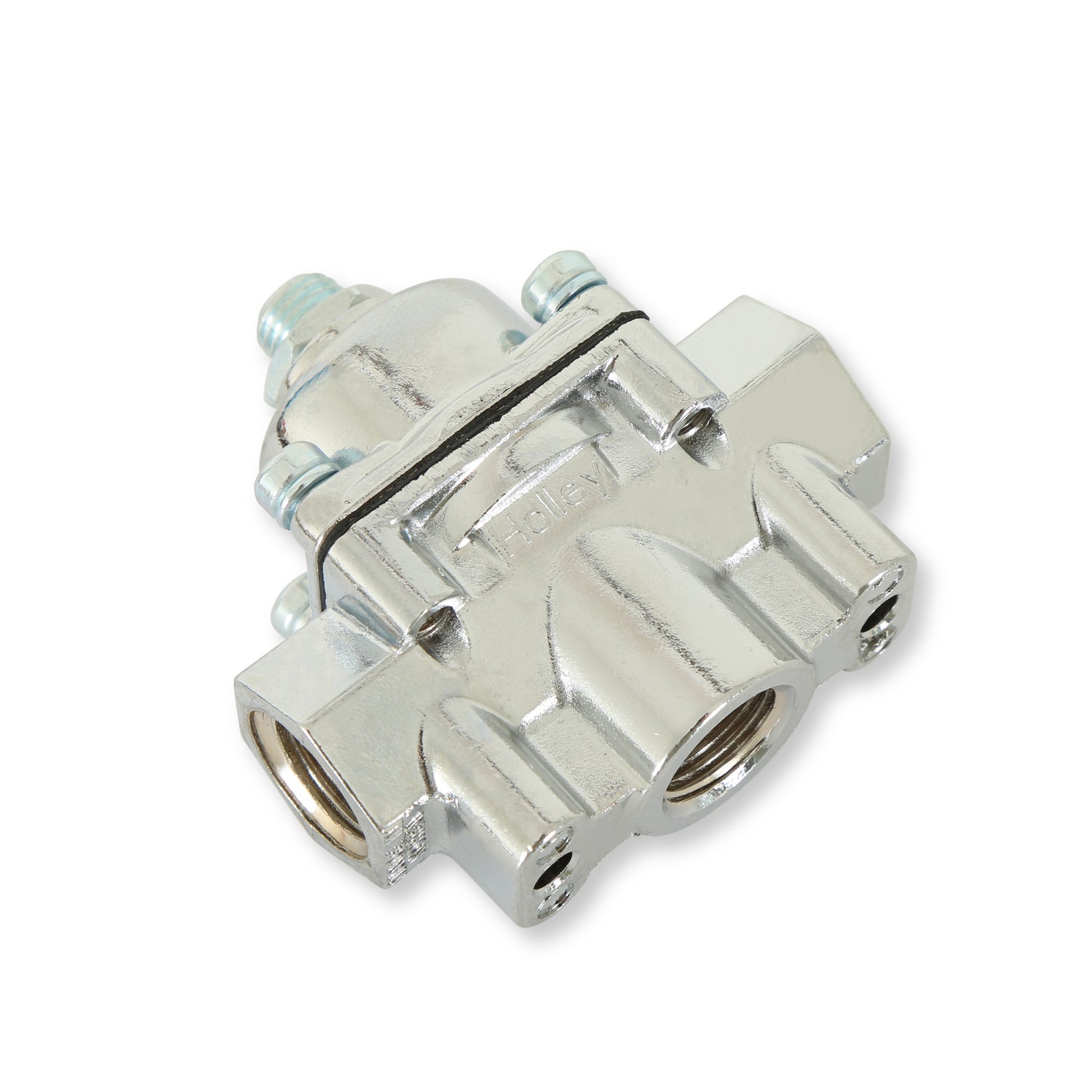

• Includes P/N 12-803 fuel pressure regulator
• Provides constant fuel flow with no pulsation
• Has externally accessible pressure relief valve (max 14 psi)
• Rotor/vane pump design is more tolerant of contaminated fuels
• Weighs only 3 lbs

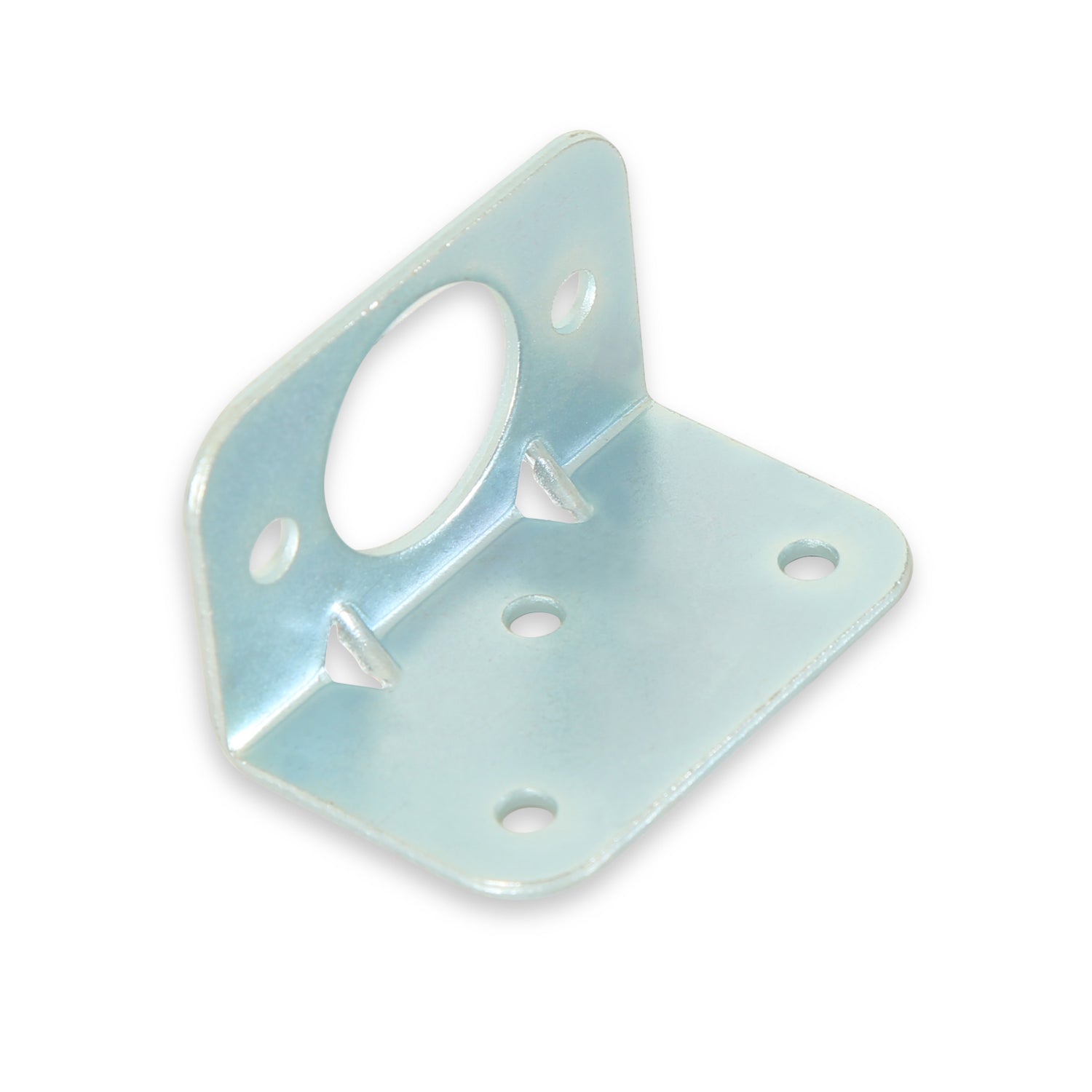

• Includes mounting bracket
• Repair kits are readily available
• Can be serviced from the pump end
• Not compatible with alcohol or methanol fuels
• Use of safety shut-off switch, P/N 12-810, strongly recommended
• Not designed or recommended for use with fuel injection systems

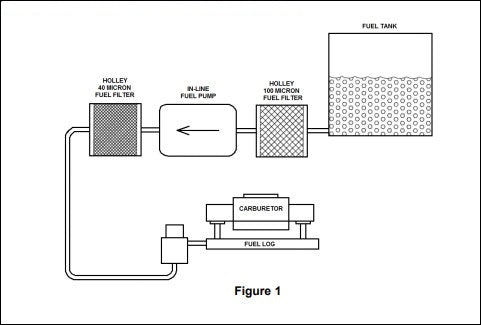

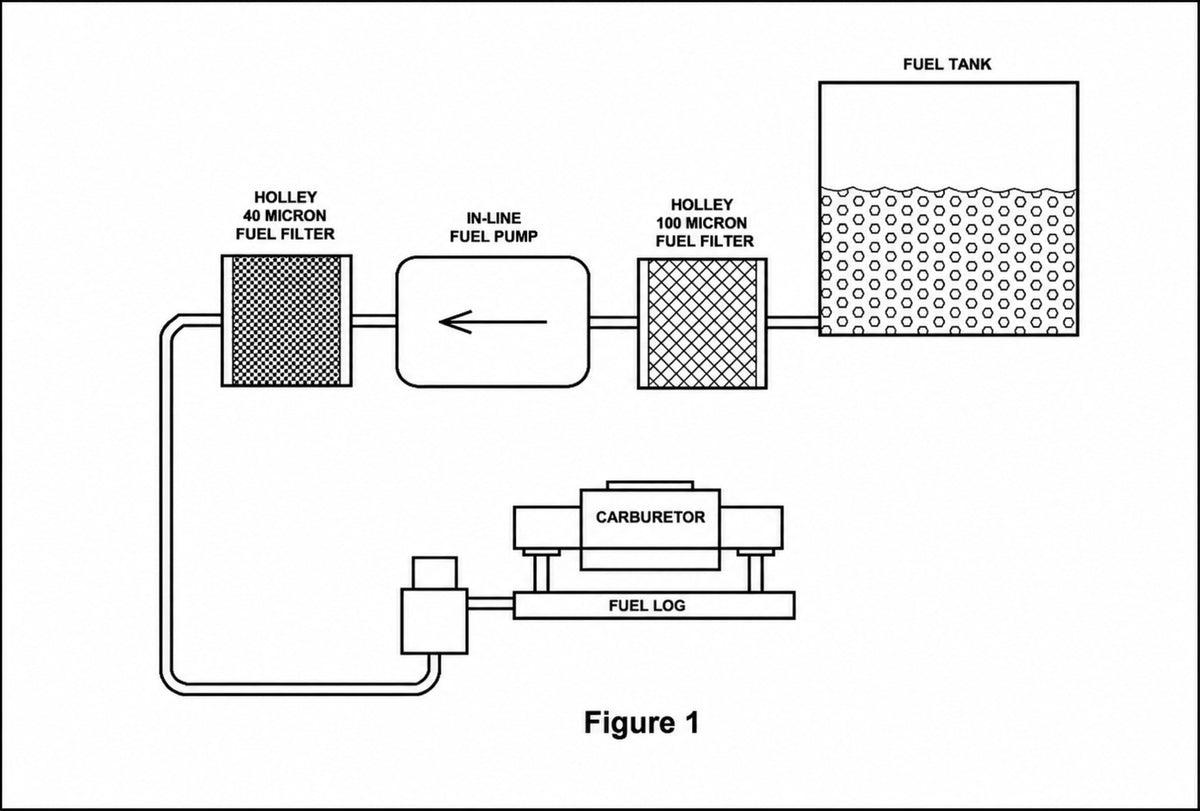

Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. Relay kit P/N 12-753 recommended. These are to be used with 12 volt systems only.
