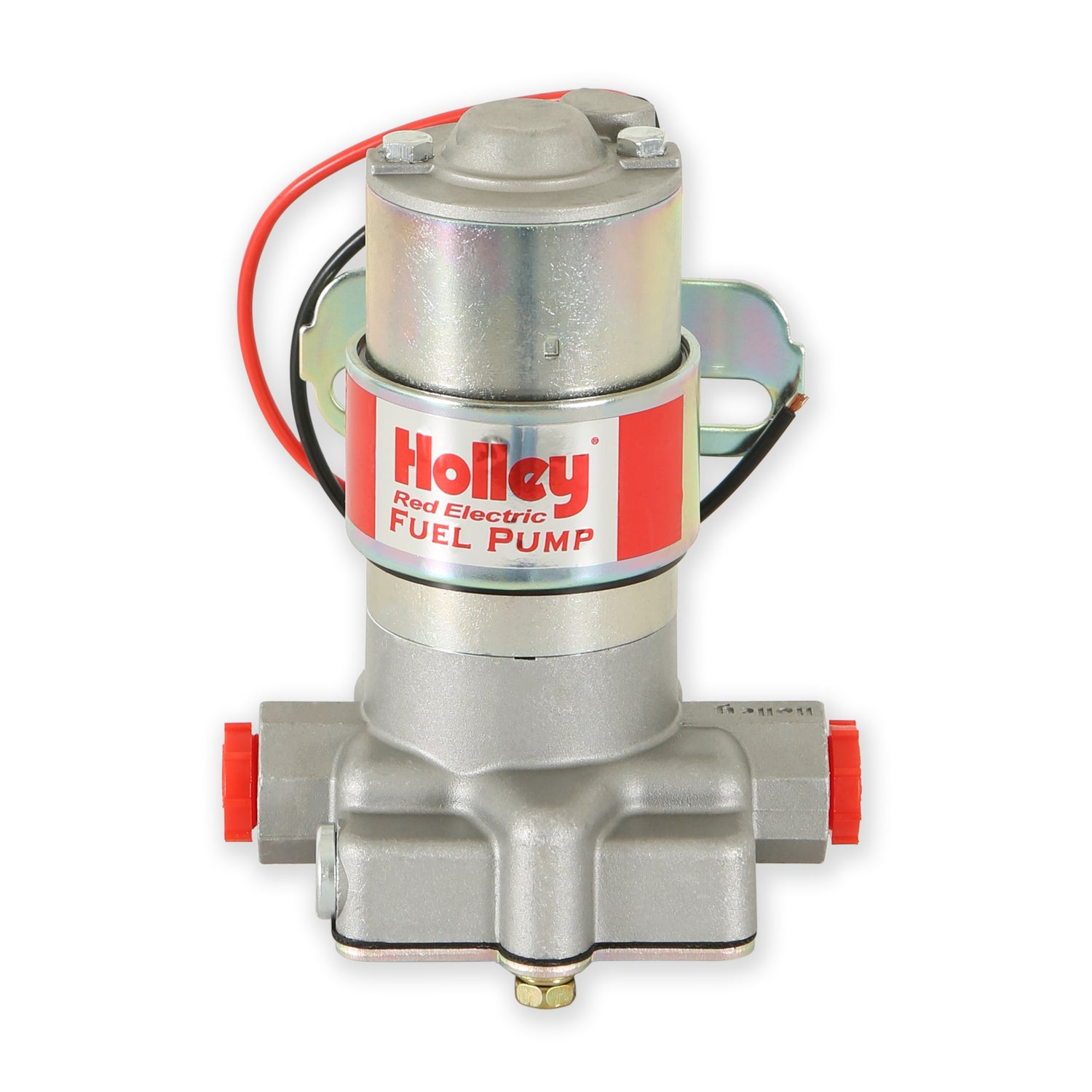

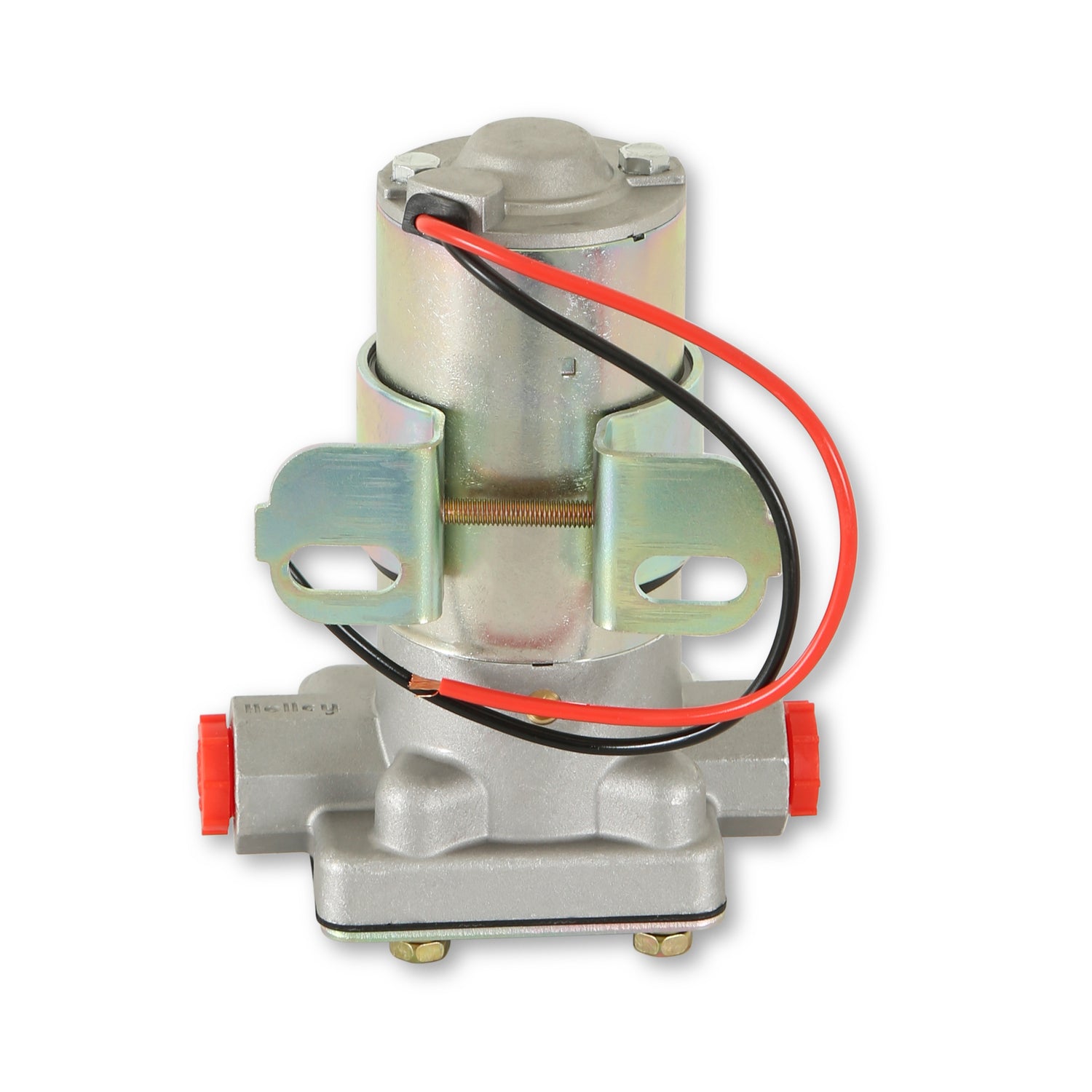

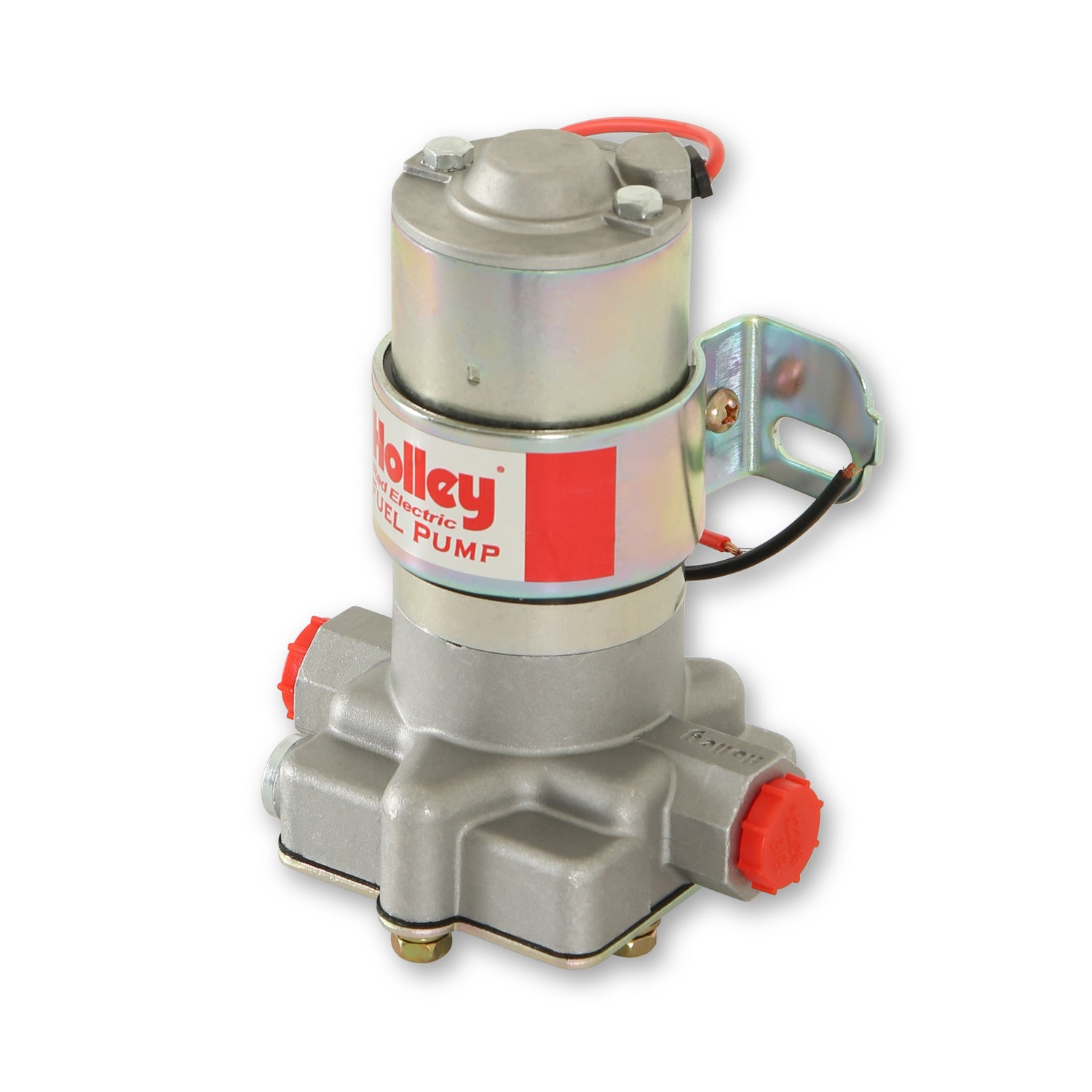

Holley 12-801-1 97 GPH RED® Electric Fuel Pump

Street/Strip Carbureted Applications Compatible with Gasoline Only

Part Number: 12-801-1

The world famous Red®, Blue® and Black® fuel pumps are the most recognized performance pumps of all time. They have been powering racing legends and street enthusiasts alike since the early 70s. Their time proven rotor/vane design is known to get the job done in an affordable package.

Features and Benefits

• Tumble polished billet look
• Lower housing casting designed for enhanced fuel flow
• Maximum pressure is 7 psi
• Motor draws 2 amps current
• Relay kit P/N 12-753 & 7 1/2 amp fuse recommended
• Constant fuel flow with no pulsation
• Improved design for street/strip applications
• Not designed to be used on aircraft of any type
• Distinctive “Red” logo

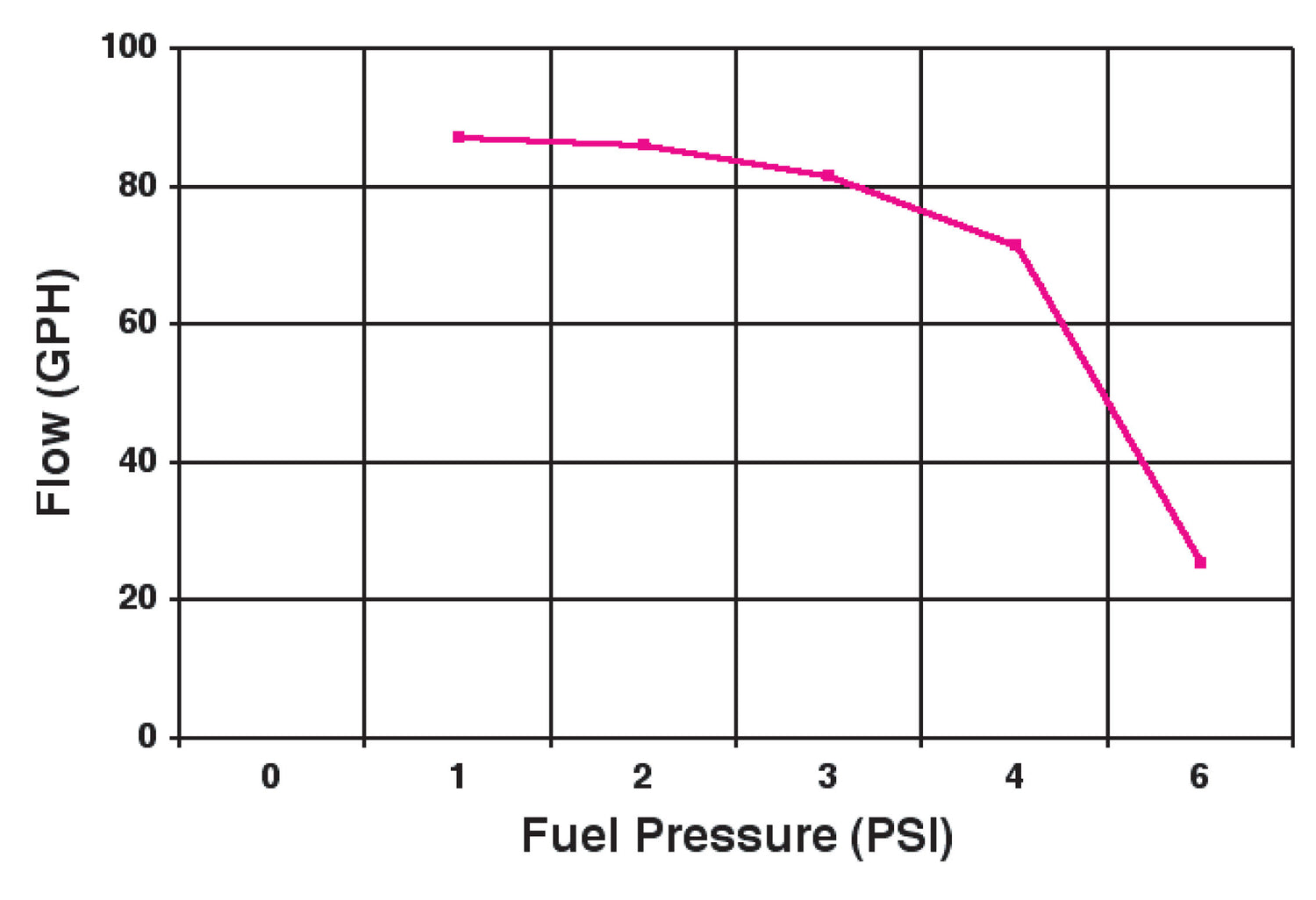

• Flows 97 GPH (free flow)
• Flows 71 GPH at 4 psi
• Regulator is not required
• Has externally accessible pressure relief valve (max 7 psi)
• Rotor/vane pump design is more tolerant of contaminated fuels
• Weighs only 2.88 lbs
• Not designed or recommended for use with fuel injection systems

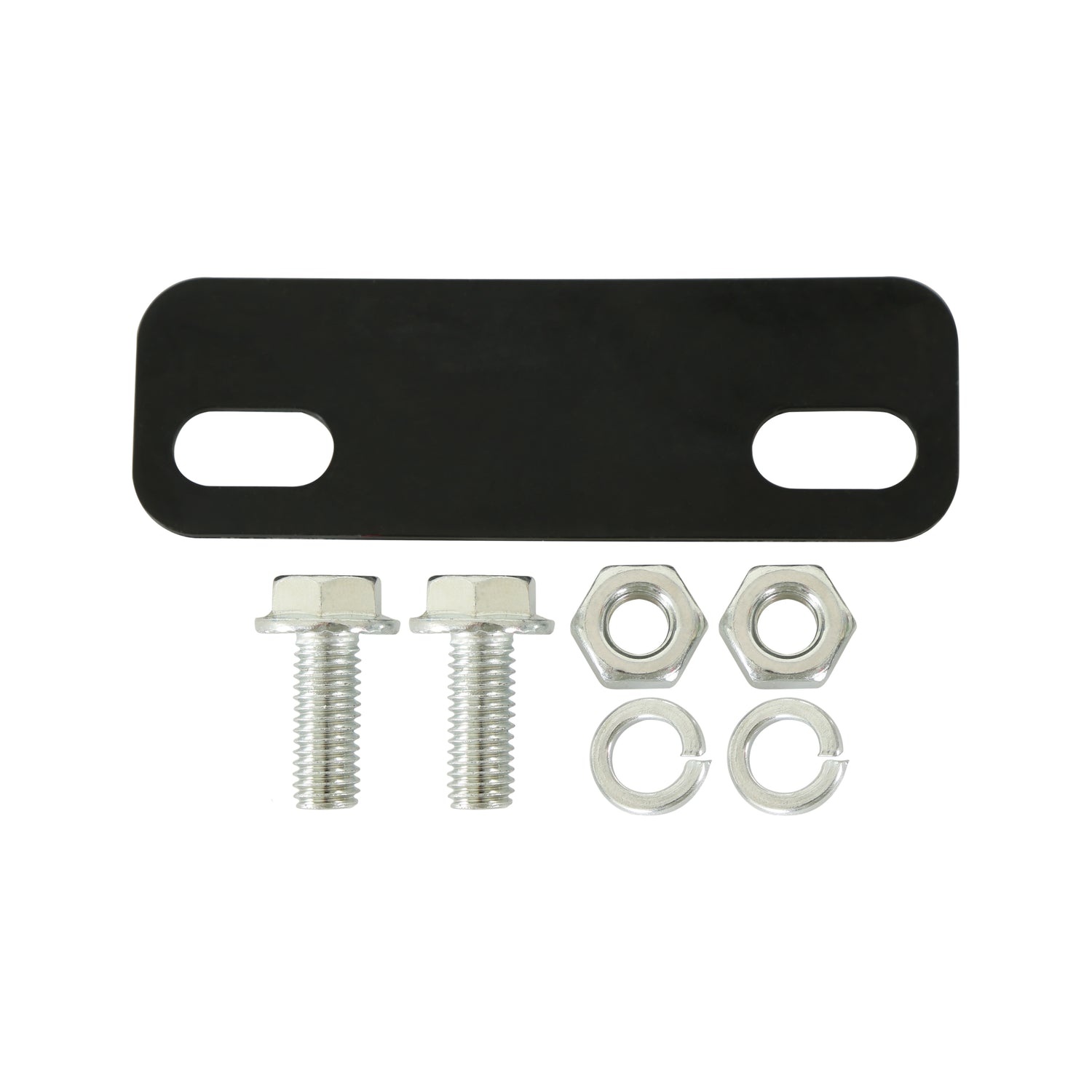

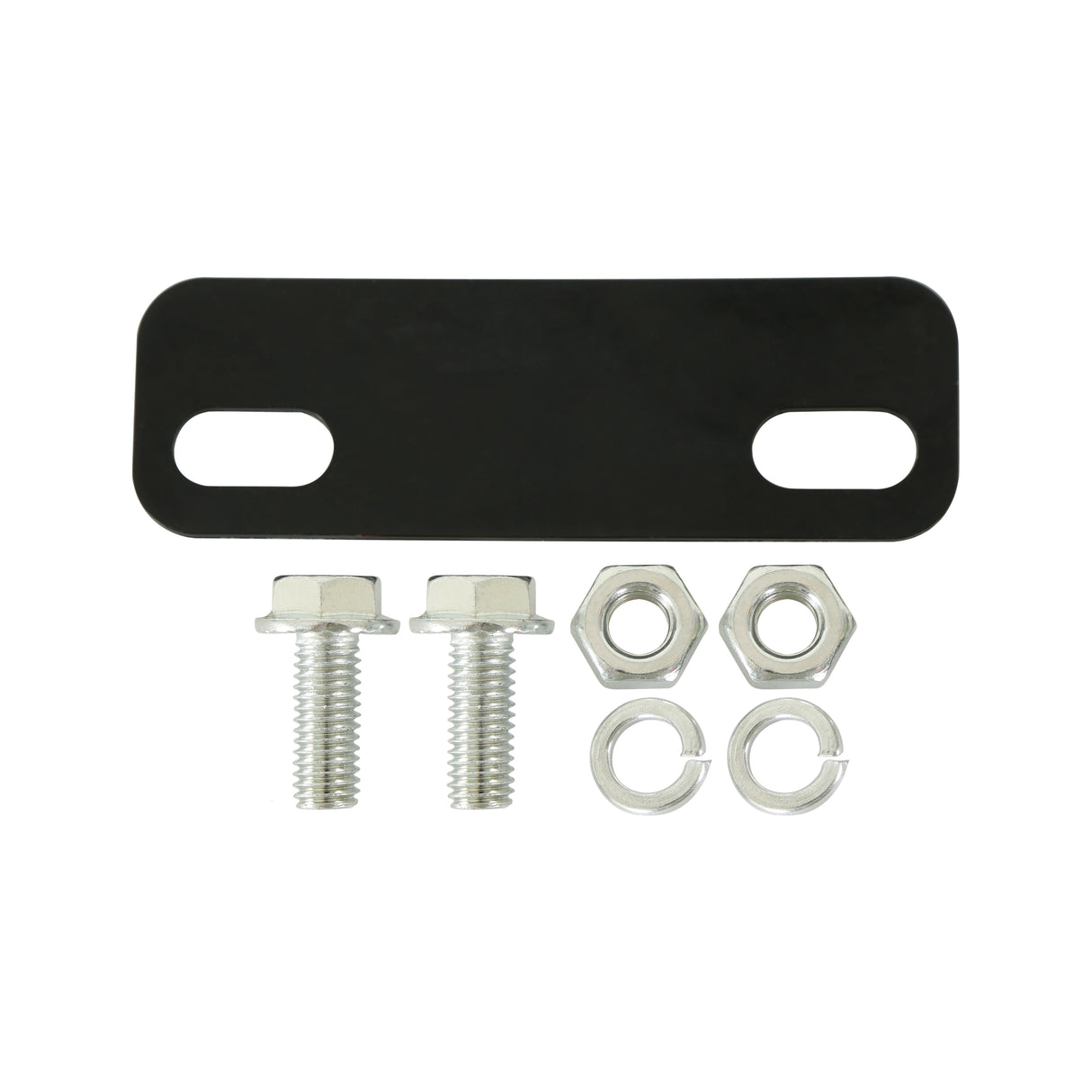

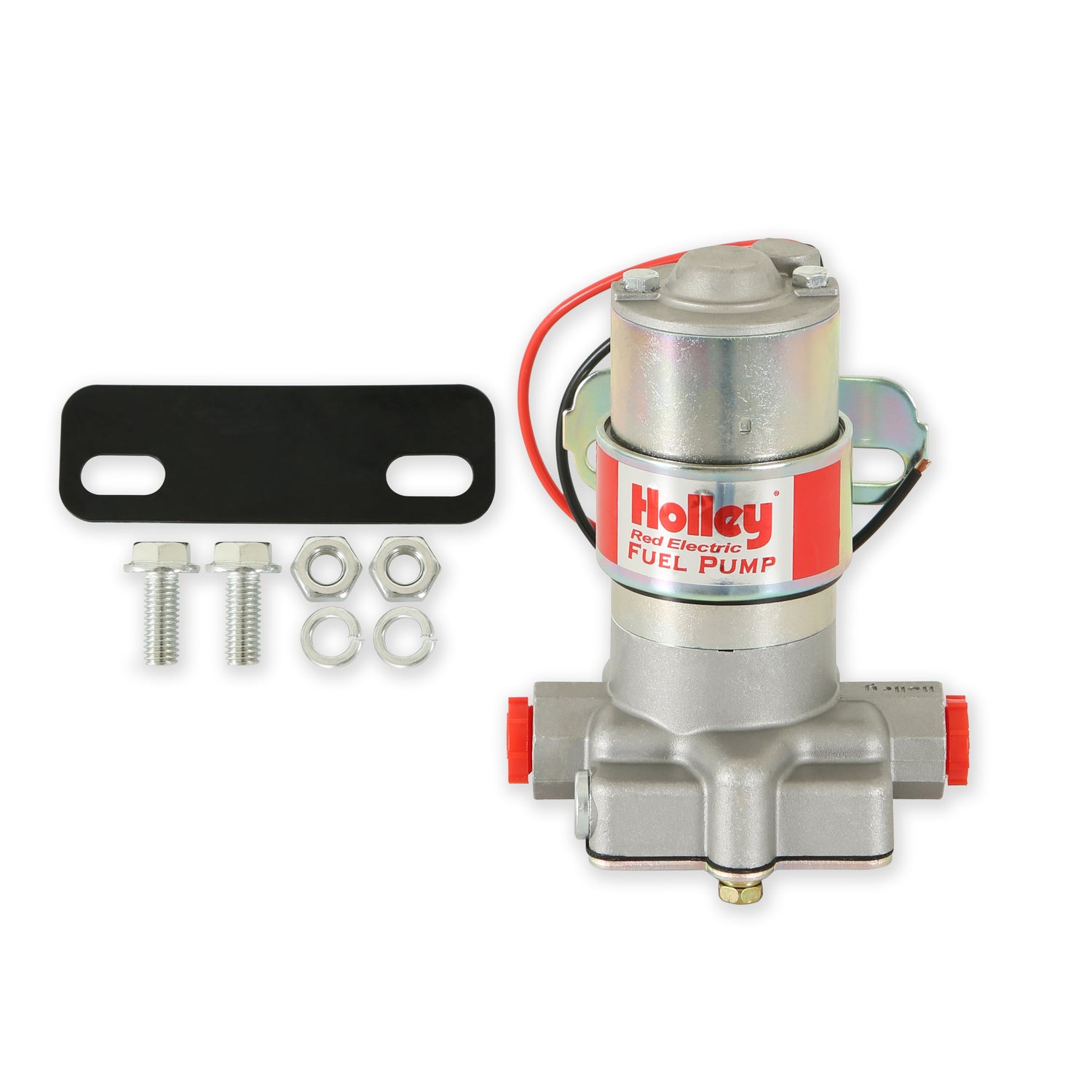

• Includes mounting bracket
• Repair kits are readily available
• Can be serviced from the pump end
• Not compatible with alcohol or methanol fuels
• Use of safety shut-off switch, P/N 12-810, strongly recommended

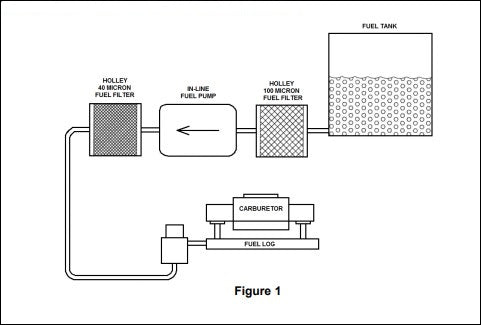

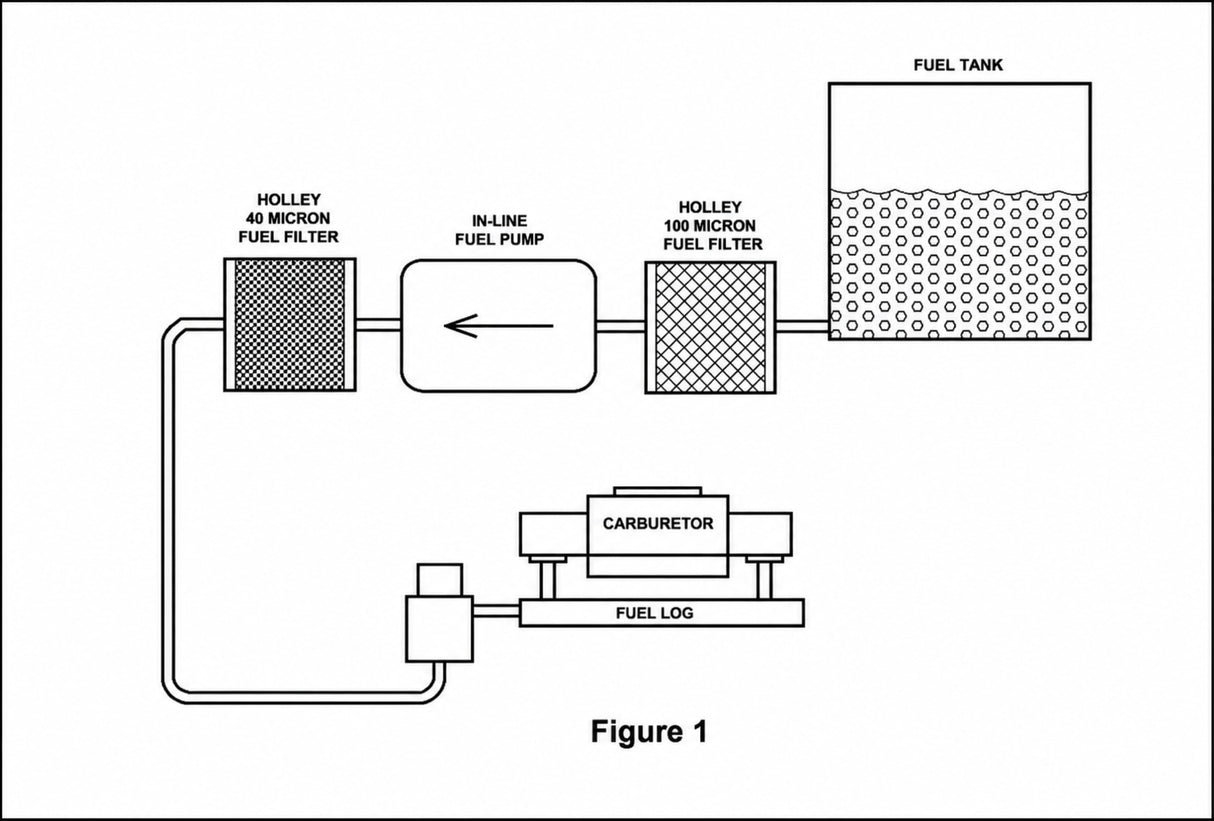

Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. Relay kit P/N 12-753 recommended. These are to be used with 12 volt systems only.
