Holley | SKU:
12-704

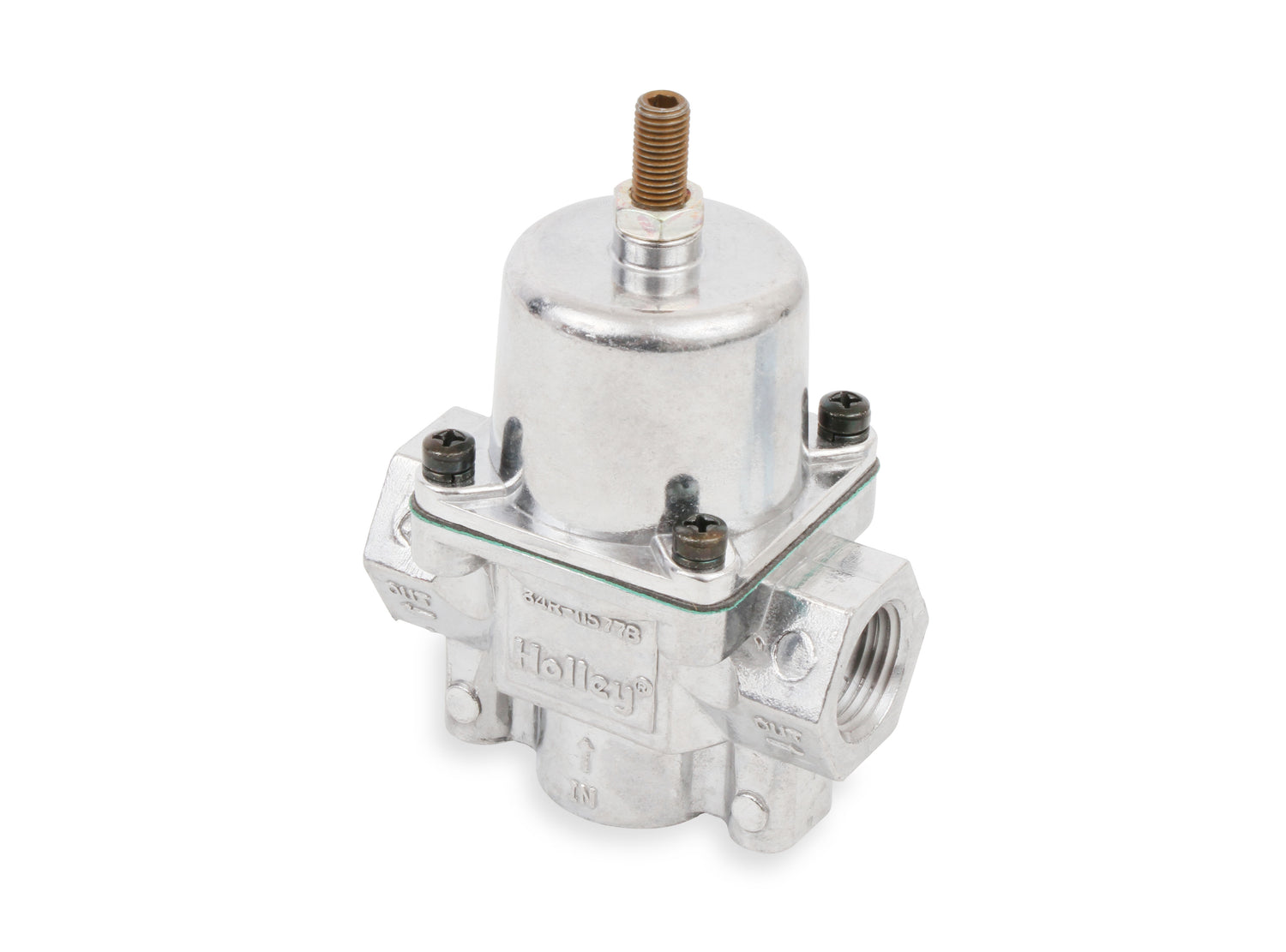

Holley 12-704 Carbureted Fuel Pressure Regulator
Street/Strip Carbureted Applications _x000D_Two Port_x000D_Adjustable from 4.5 to 9 PSI
Sold out
Regular price
$341.60 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 12-704 Carbureted Fuel Pressure Regulator is not in stock at Fast Lane Spares and will ship direct from supplier
Stock Status:
Description
Description
Street/Strip Carbureted Applications _x000D_
Two Port_x000D_
Adjustable from 4.5 to 9 PSI
Part Number: 12-704

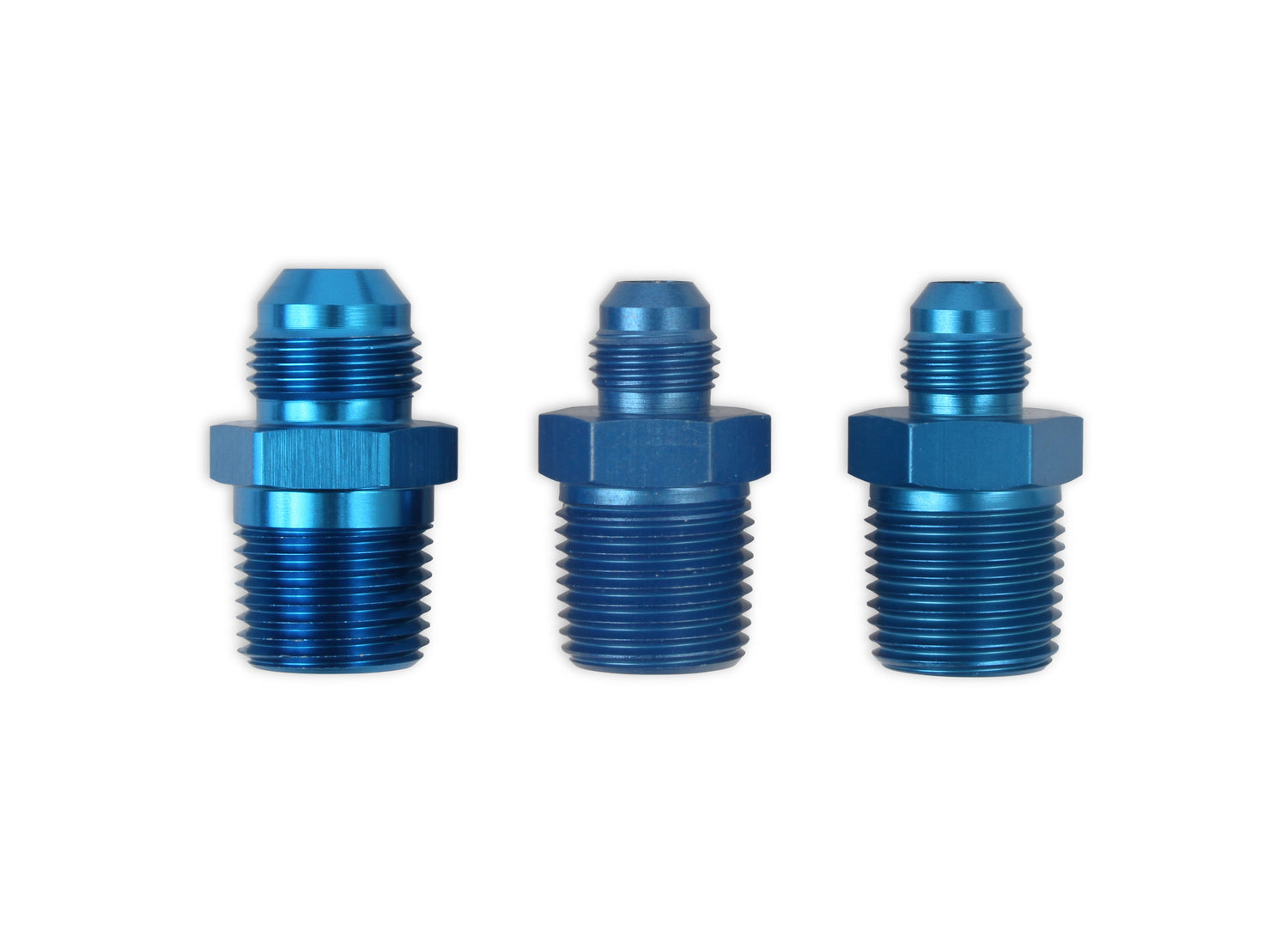

Holley fuel pressure regulators are designed to precisely control the fuel pressure from the fuel pump to the carburetor. Too much fuel pressure for a given needle and seat assembly can overload the needle and seat and may cause flooding or drivability problems. Each Holley fuel pressure regulator is fully adjustable so regulating the fuel pressure to your engines needs is a simple task. All Holley regulators are pre-set at the factory so there is no guesswork when first installing the regulator. The Holley 12-704 fuel pressure regulator features 1/2" NPT in/out ports. *** 1 1/2 NPT to AN -8 and 2 1/2 NPT to AN -6 For AN style fittings included
Features and Benefits
• Adjustable fuel regulation from 4-1/2 to 9 psi
• One 1/2" NPT inlet and two 1/2" NPT outlet ports
• .437" (7/16") restriction

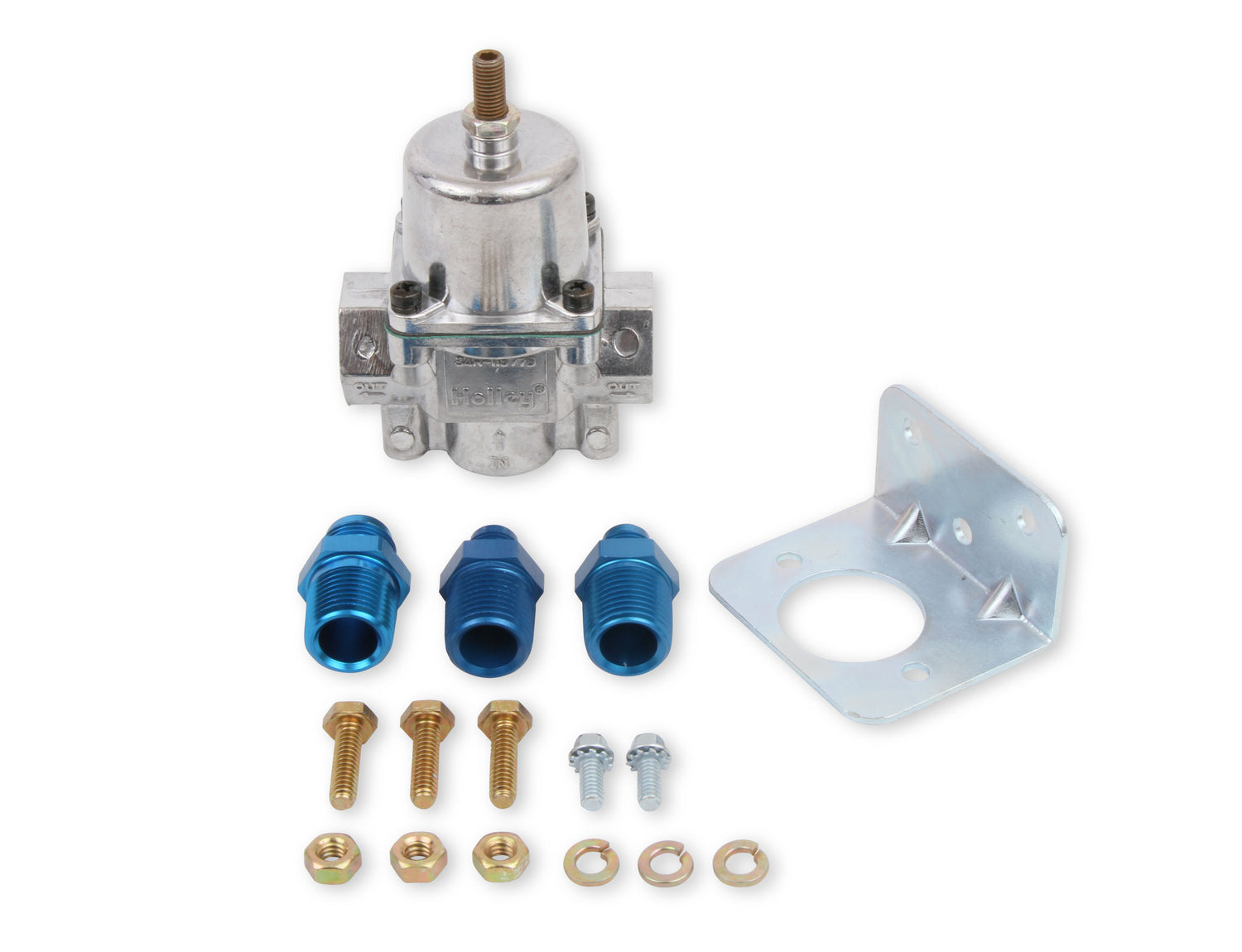

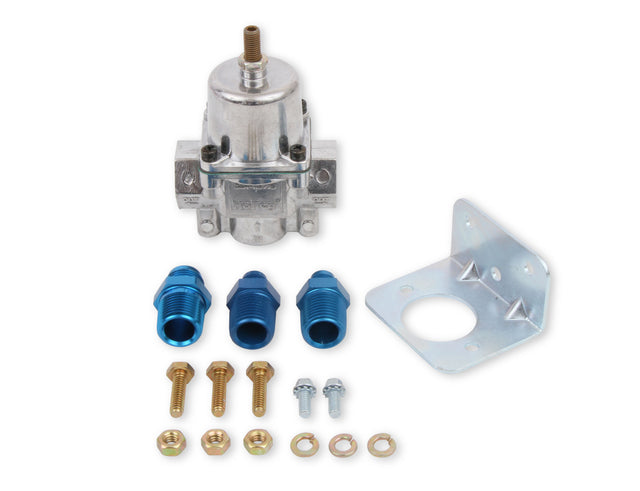

• Includes mounting hardware and an style fittings
• Alcohol compatible
Regulator is compatible with Diesel #1 and Diesel #2.
Part Number: 12-704
Holley fuel pressure regulators are designed to precisely control the fuel pressure from the fuel pump to the carburetor. Too much fuel pressure for a given needle and seat assembly can overload the needle and seat and may cause flooding or drivability problems. Each Holley fuel pressure regulator is fully adjustable so regulating the fuel pressure to your engines needs is a simple task. All Holley regulators are pre-set at the factory so there is no guesswork when first installing the regulator. The Holley 12-704 fuel pressure regulator features 1/2" NPT in/out ports. *** 1 1/2 NPT to AN -8 and 2 1/2 NPT to AN -6 For AN style fittings included
Features and Benefits
• Adjustable fuel regulation from 4-1/2 to 9 psi
• One 1/2" NPT inlet and two 1/2" NPT outlet ports
• .437" (7/16") restriction
• Includes mounting hardware and an style fittings
• Alcohol compatible
Regulator is compatible with Diesel #1 and Diesel #2.
Specifications
Specifications
-
Specifications
Adjustable Yes Brand Holley Category Air and Fuel Delivery Color Shiny Emission Code 5 Fuel System Gasoline Fuel Type Gasoline Fuel Type Diesel Gauge Included No Gauge Port Included Yes Grade Type Performance Inlet Gender Female Inlet Port Diameter 1/2 NPT Inlet Port Quantity 1 Inlet Size 1/2 inch NPT Inlet Type NPT Material Aluminum Maximum Pressure 9 Minimum Pressure 4.5 Mounting Bracket Included Yes Mounting Type Inline Outlet Gender Female Outlet Port Diameter 1/2 NPT Outlet Port Quantity 2 Outlet Size 1/2 inch NPT Outlet Type NPT part type Fuel Pressure Regulator Port Quantity 2 Pressure Range 4.5-9 PSI Product Type Fuel Pressure Regulator Rebuildable Yes Style Non-Return Sub Category Carburetion Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
