Holley | SKU:
12-362

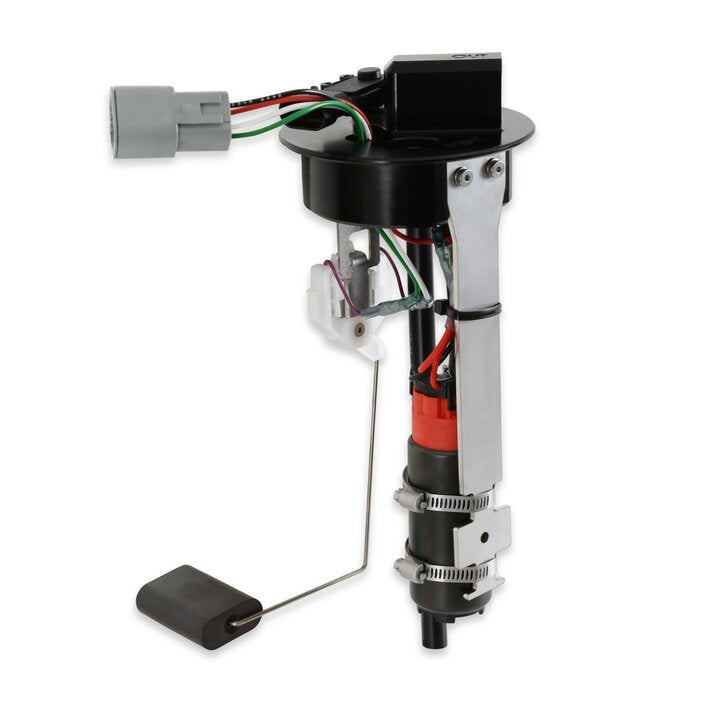

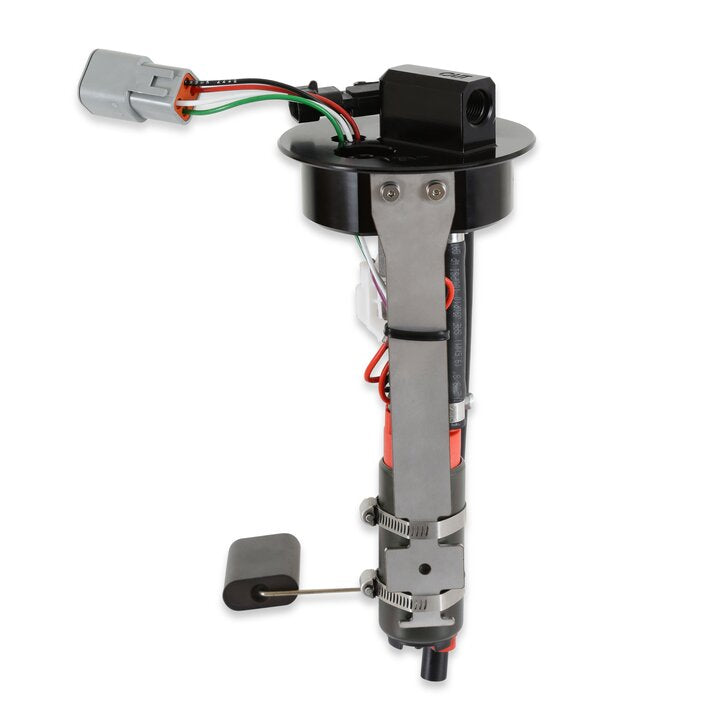

Holley PUMP MODULE SYSTEM - Single 340 LPH - 12-362
Fits 1999-2002 Camaro / Firebird w/ Plastic Tank - Single 340 LPH Pump Module
Regular price
$1,099.20 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley PUMP MODULE SYSTEM - Single 340 LPH - 12-362
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Fits 1999-2002 Camaro / Firebird w/ Plastic Tank - Single 340 LPH Pump Module
Part Number: 12-362
If you are looking to make some serious power with your 1999-2002 4th Gen F-body, the Holley modules feature billet pump flanges that connect to either single or dual 340 or 450 LPH pumps. All four of these options are compatible with gasoline and E85 and come pre-installed with new level and tank pressure sensors as well as provisions to connect to the factory EVAP system for EPA compliance.

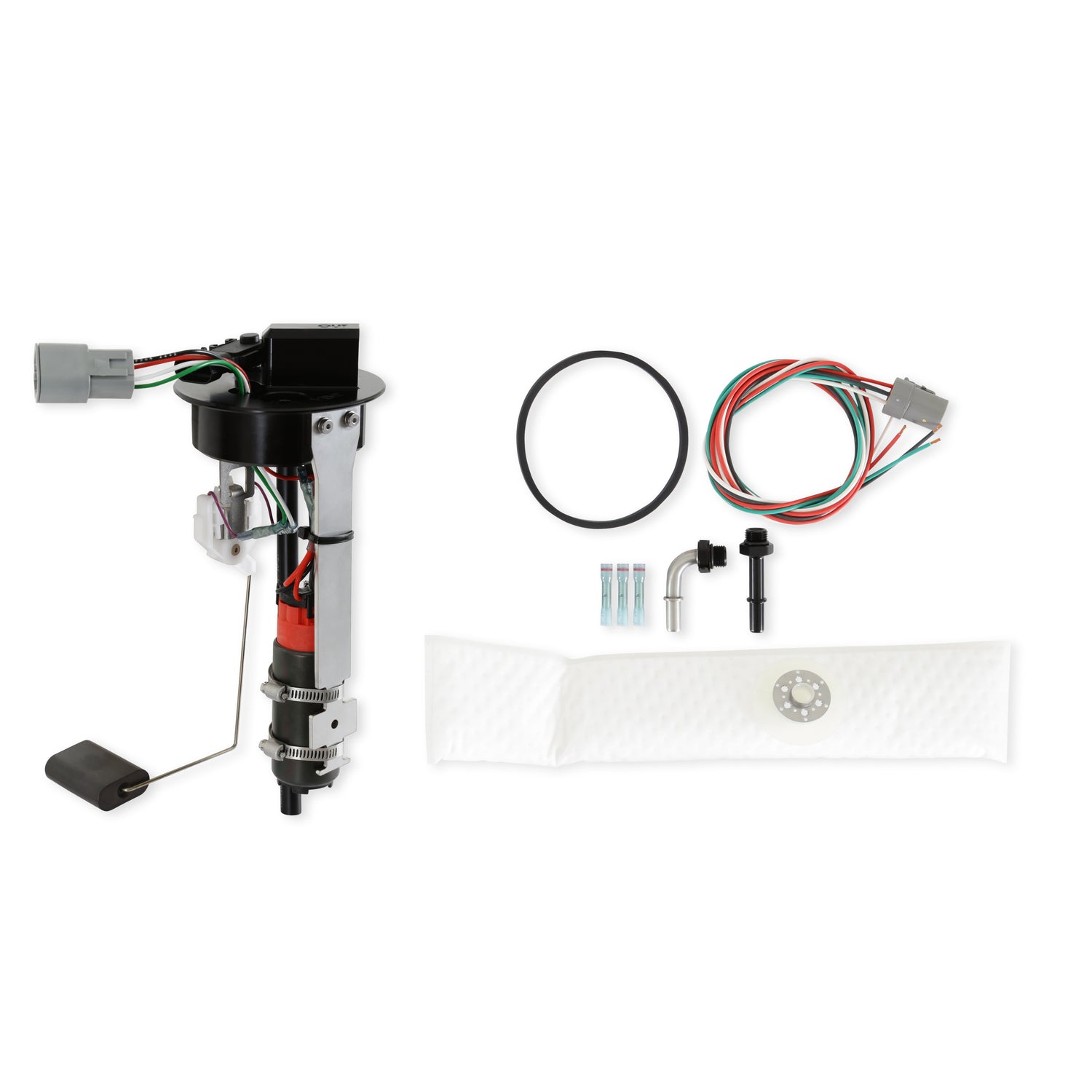

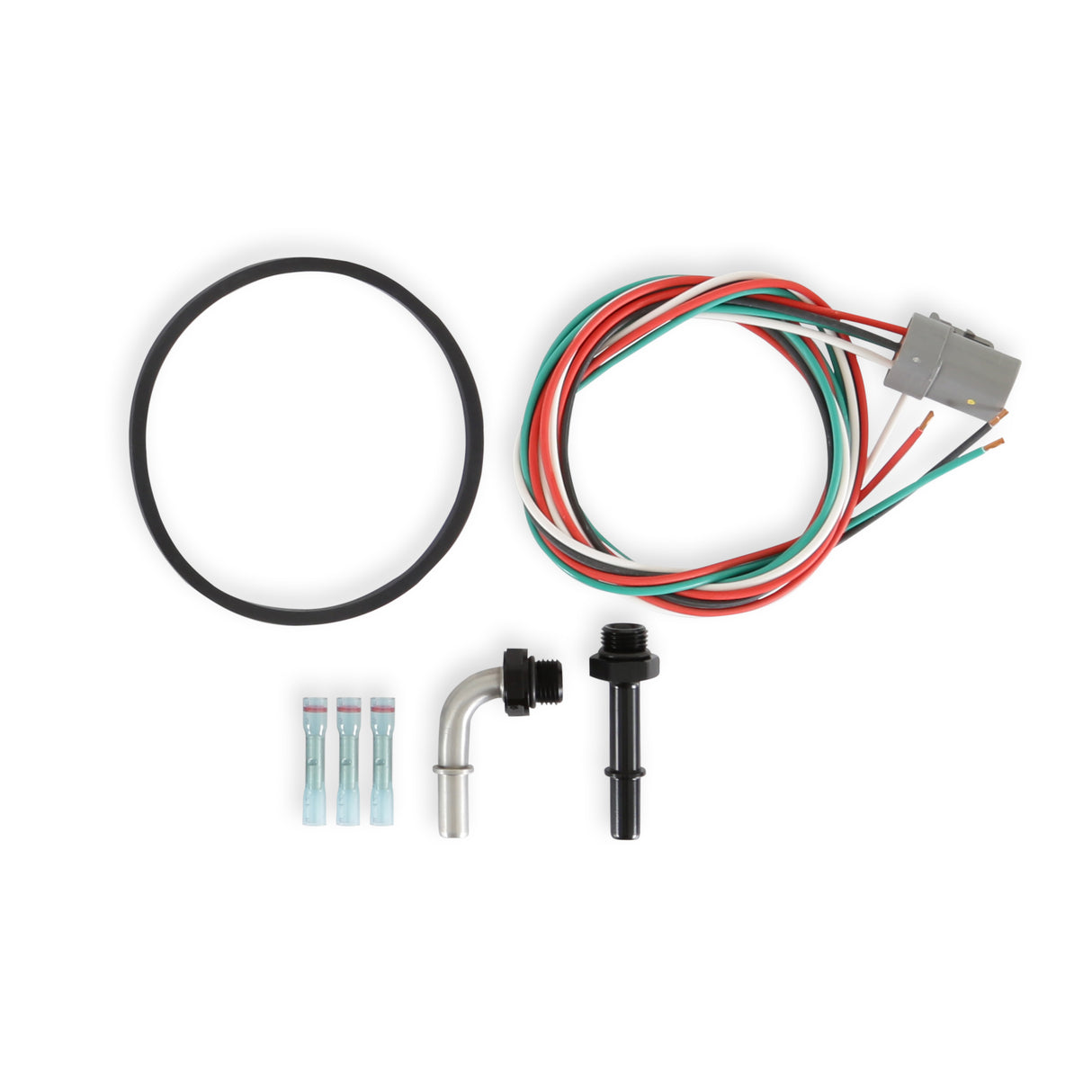

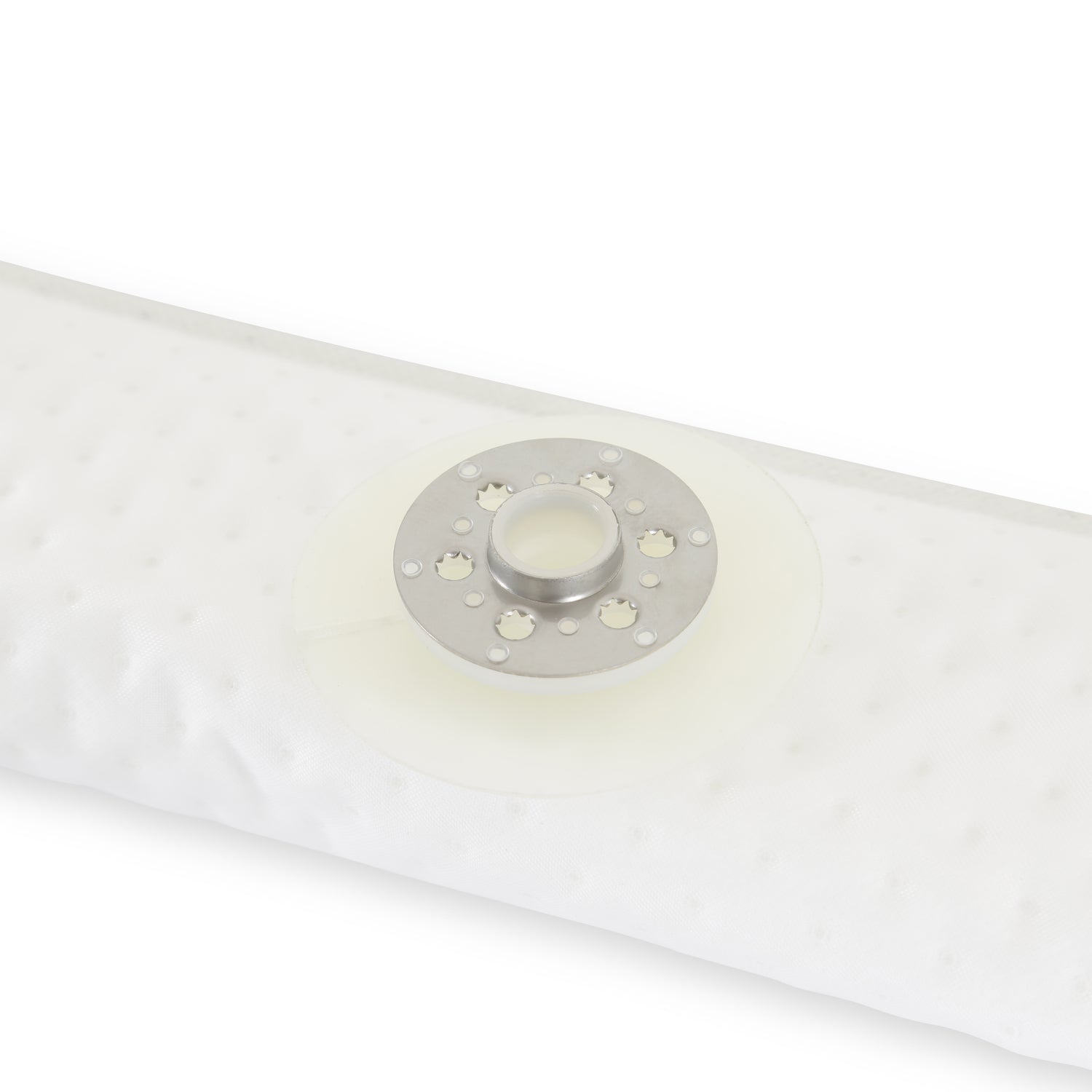

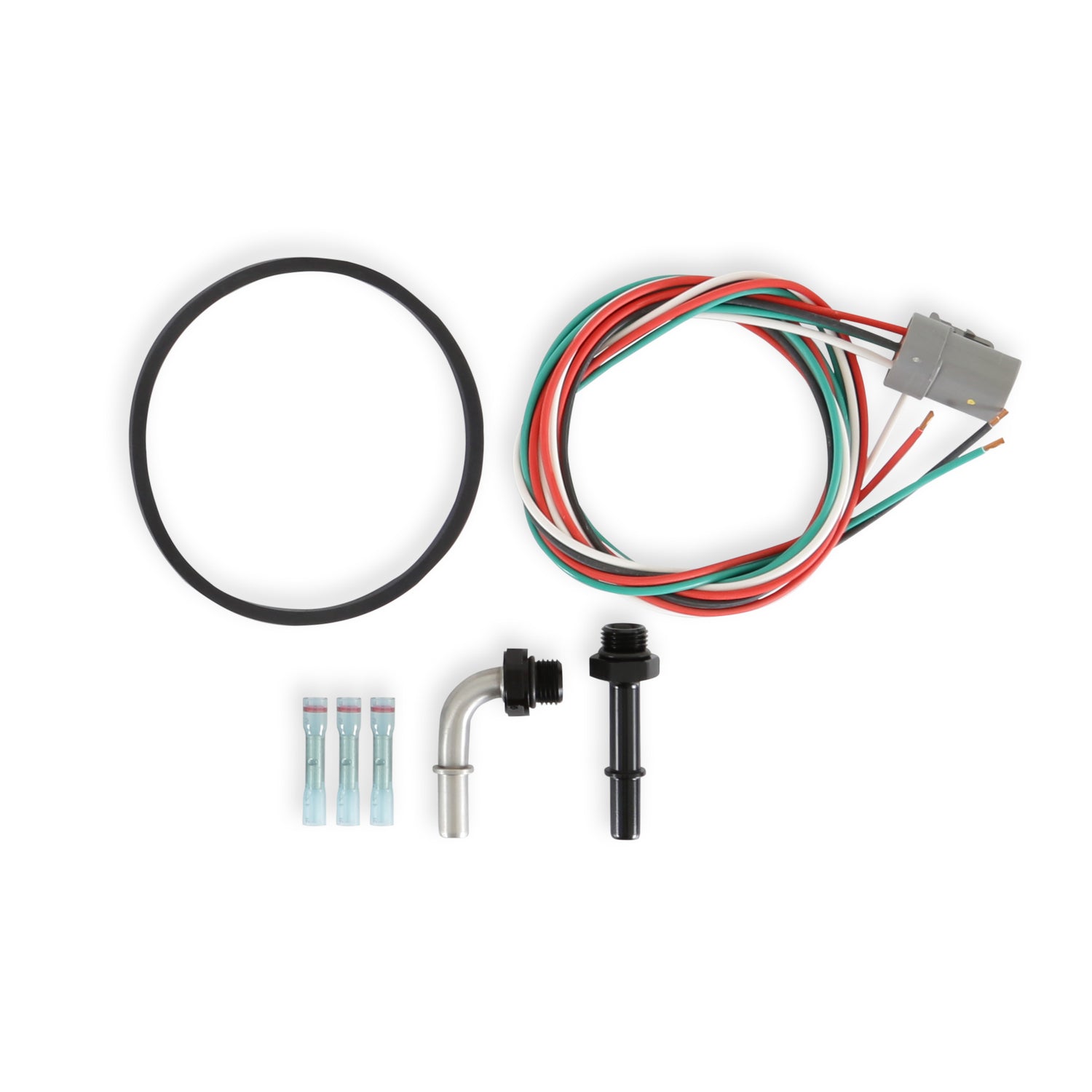

Each module comes with all the parts and pieces necessary to complete the installation. Included is a 3" x 11" Hydramat filter that leverages surface tension to draw from nearly any area that has contact with fuel eliminating starvation under hard acceleration or cornering. Also included is a new fuel pump gasket, wiring pigtails for the level sender and fuel pump, and fittings to connect to the factory quick connect feed and return lines. The modules are all return style, so don't forget to pick up an EFI pressure regulator (such as the 19-392 or 19-395) to complete your installation.
Part numbers in this series:
Part #: 12-362 - Single 340LPH Pump Module
Part #: 12-363 - Single 450LPH Pump Module
Part #: 12-364 - Twin 340LPH Pump Module
Part #: 12-365 - Twin 450LPH Pump Module
For 1999-2002 4th Gen F-Body plastic fuel tanks. Will not work with 1993-1998 metal tanks.
Features and Benefits

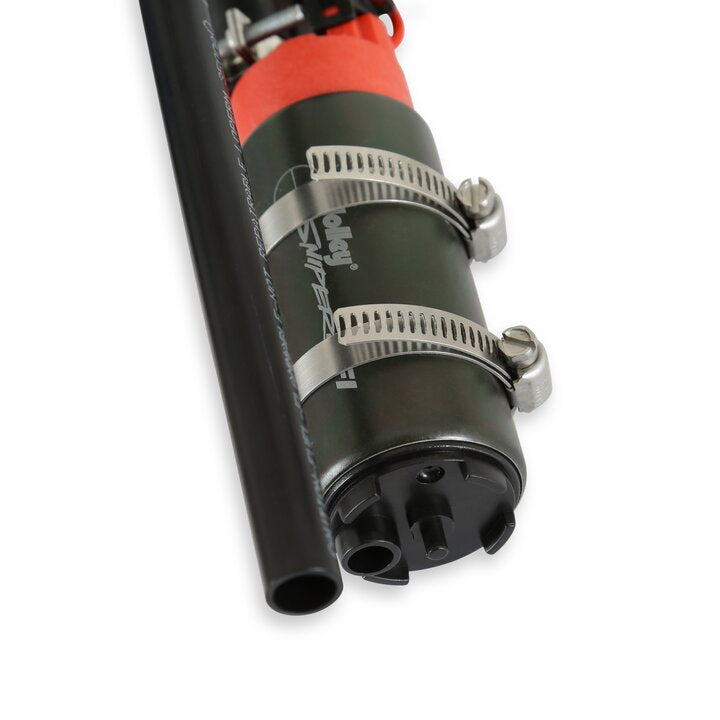

• Single 340LPH Fuel Pump Module

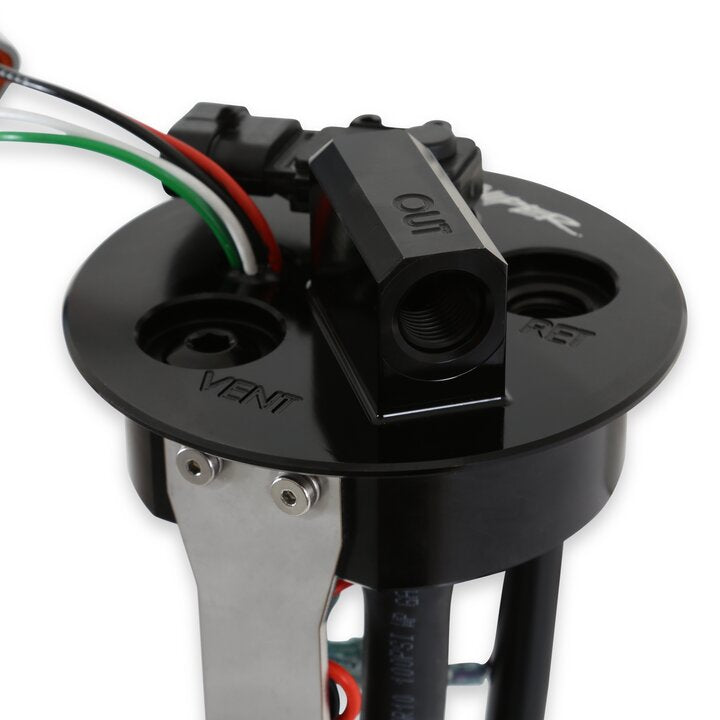

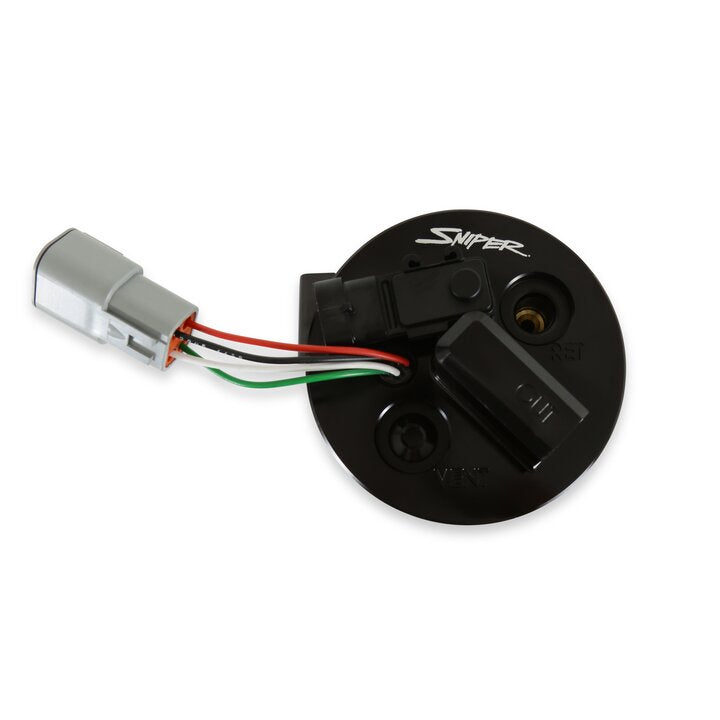

• Anodized and laser-etched billet 6061-T6 flange with 6AN ORB ports for feed, return, and vent
• Compatible with Gasoline AND E85
• Comes pre-installed with new pre-calibrated fuel level (33 – 240 Ω) and tank pressure sensors
• Includes new gasket to complete installation

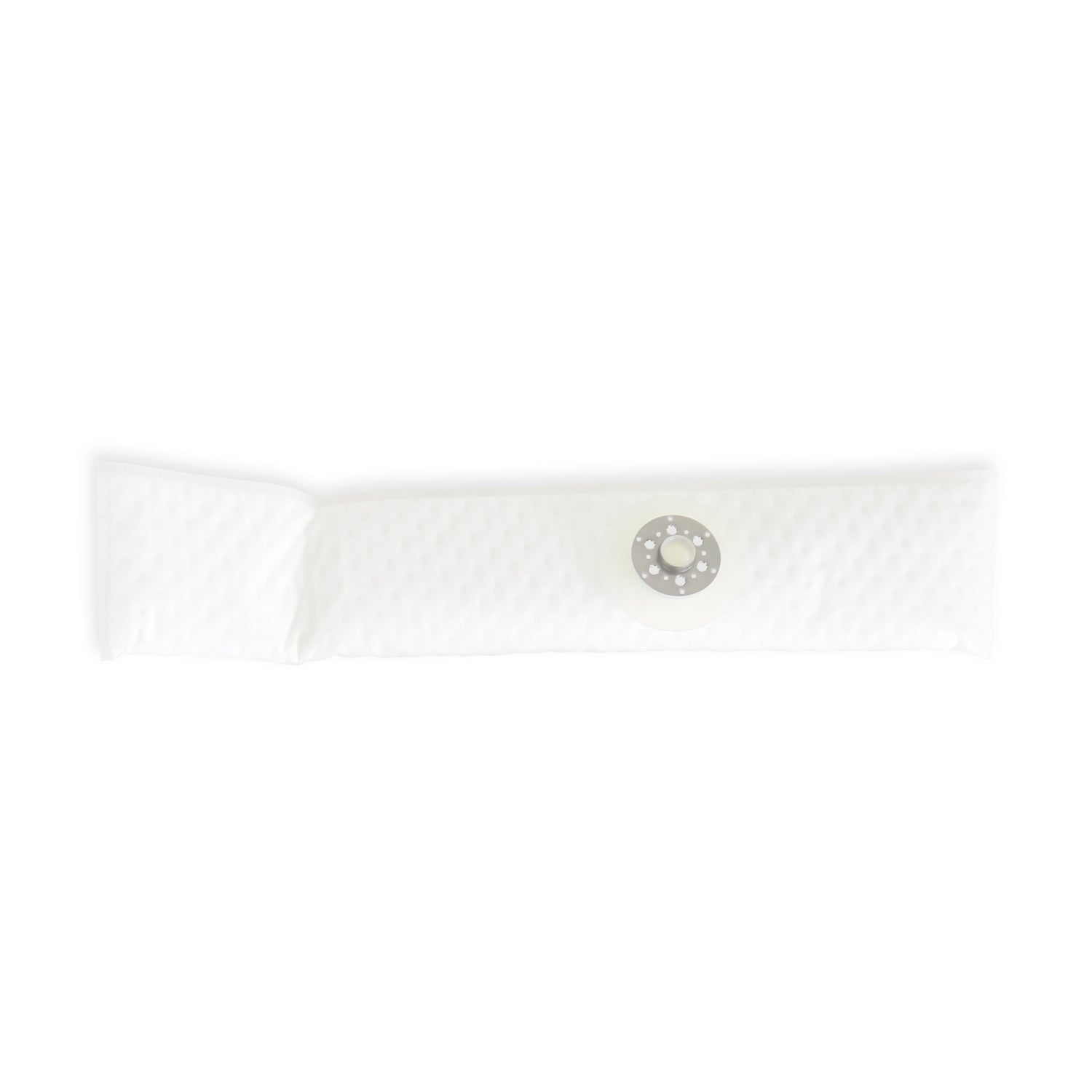

• 3 x 11-inch HydraMat is included for each pump
• Fittings included allowing connection to the factory 3/8 quick connect feed and return lines
• Flanges have been designed to be compatible with feed and return line sizes up to -8AN
• Step-down butt connectors included to wire level sensor
• Can be connected to factory EVAP system (w/ use of 12-874 and 935056ERL - sold separately)
• Kit includes vehicle pigtail harness - All connectors used are DTM style
• Fits factory plastic tank used in LS1 99-02 Camaro / Firebird or an earlier 4th Gen F-body with 99+ plastic fuel tank upgrade - check compatibility before purchase
• Will not fit 93-98 metal tank
For 1999-2002 4th Gen F-Body plastic fuel tanks. Will not work with 1993-1998 metal tanks.
Part Number: 12-362
If you are looking to make some serious power with your 1999-2002 4th Gen F-body, the Holley modules feature billet pump flanges that connect to either single or dual 340 or 450 LPH pumps. All four of these options are compatible with gasoline and E85 and come pre-installed with new level and tank pressure sensors as well as provisions to connect to the factory EVAP system for EPA compliance.
Each module comes with all the parts and pieces necessary to complete the installation. Included is a 3" x 11" Hydramat filter that leverages surface tension to draw from nearly any area that has contact with fuel eliminating starvation under hard acceleration or cornering. Also included is a new fuel pump gasket, wiring pigtails for the level sender and fuel pump, and fittings to connect to the factory quick connect feed and return lines. The modules are all return style, so don't forget to pick up an EFI pressure regulator (such as the 19-392 or 19-395) to complete your installation.
Part numbers in this series:
Part #: 12-362 - Single 340LPH Pump Module
Part #: 12-363 - Single 450LPH Pump Module
Part #: 12-364 - Twin 340LPH Pump Module
Part #: 12-365 - Twin 450LPH Pump Module
For 1999-2002 4th Gen F-Body plastic fuel tanks. Will not work with 1993-1998 metal tanks.
Features and Benefits
• Single 340LPH Fuel Pump Module
• Anodized and laser-etched billet 6061-T6 flange with 6AN ORB ports for feed, return, and vent
• Compatible with Gasoline AND E85
• Comes pre-installed with new pre-calibrated fuel level (33 – 240 Ω) and tank pressure sensors
• Includes new gasket to complete installation
• 3 x 11-inch HydraMat is included for each pump
• Fittings included allowing connection to the factory 3/8 quick connect feed and return lines
• Flanges have been designed to be compatible with feed and return line sizes up to -8AN
• Step-down butt connectors included to wire level sensor
• Can be connected to factory EVAP system (w/ use of 12-874 and 935056ERL - sold separately)
• Kit includes vehicle pigtail harness - All connectors used are DTM style
• Fits factory plastic tank used in LS1 99-02 Camaro / Firebird or an earlier 4th Gen F-body with 99+ plastic fuel tank upgrade - check compatibility before purchase
• Will not fit 93-98 metal tank
For 1999-2002 4th Gen F-Body plastic fuel tanks. Will not work with 1993-1998 metal tanks.
Specifications
Specifications
-
Specifications
Application 1999-2002 Chevrolet Camaro / Pontiac Firebird Average Current Draw 14.5 68 Average Flow Rating 340 LPH Brand Holley Category Air and Fuel Delivery Connector Color Gray Connector Gender Female Connector Quantity 1 Emission Code 5 Finish Anodized Black Free Flow GPH 108 Free Flow LPH 410 Fuel Filter Included Yes Fuel Sending Unit Included Yes Fuel System EFI Fuel Tank Pressure Sensor Included No Fuel Type Gasoline/E85 Compatible Gasket Or Seal Included Yes Gasket Or Seal Material Rubber Grade Type Performance Height Standard Housing Material Aluminum In Tank or External In Tank Inlet Quantity One Inlet Size 6 AN ORB Inlet Type 6 AN ORB Internal Or External Strainer External Lock Ring Included No Material Billet Alluminum 6061-T6 Maximum Pressure 60 Mounting Hardware Included Yes Negative Ground Yes Outlet Quantity One Outlet Size 6 AN ORB Outlet Type 6 AN ORB part type Fuel Pump Module Assembly Product Type Fuel Pump Module Pump Type Electric Regulator Included No Resistance Ohms Empty 33 82 Resistance Ohms Full 240 82 Single Or Dual Pump Single Sub Category Fuel Pumps and Related Components Universal Or Specific Fit Specific Voltage 12 Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty Wire Quantity 4 -
