Holley | SKU:
12-350

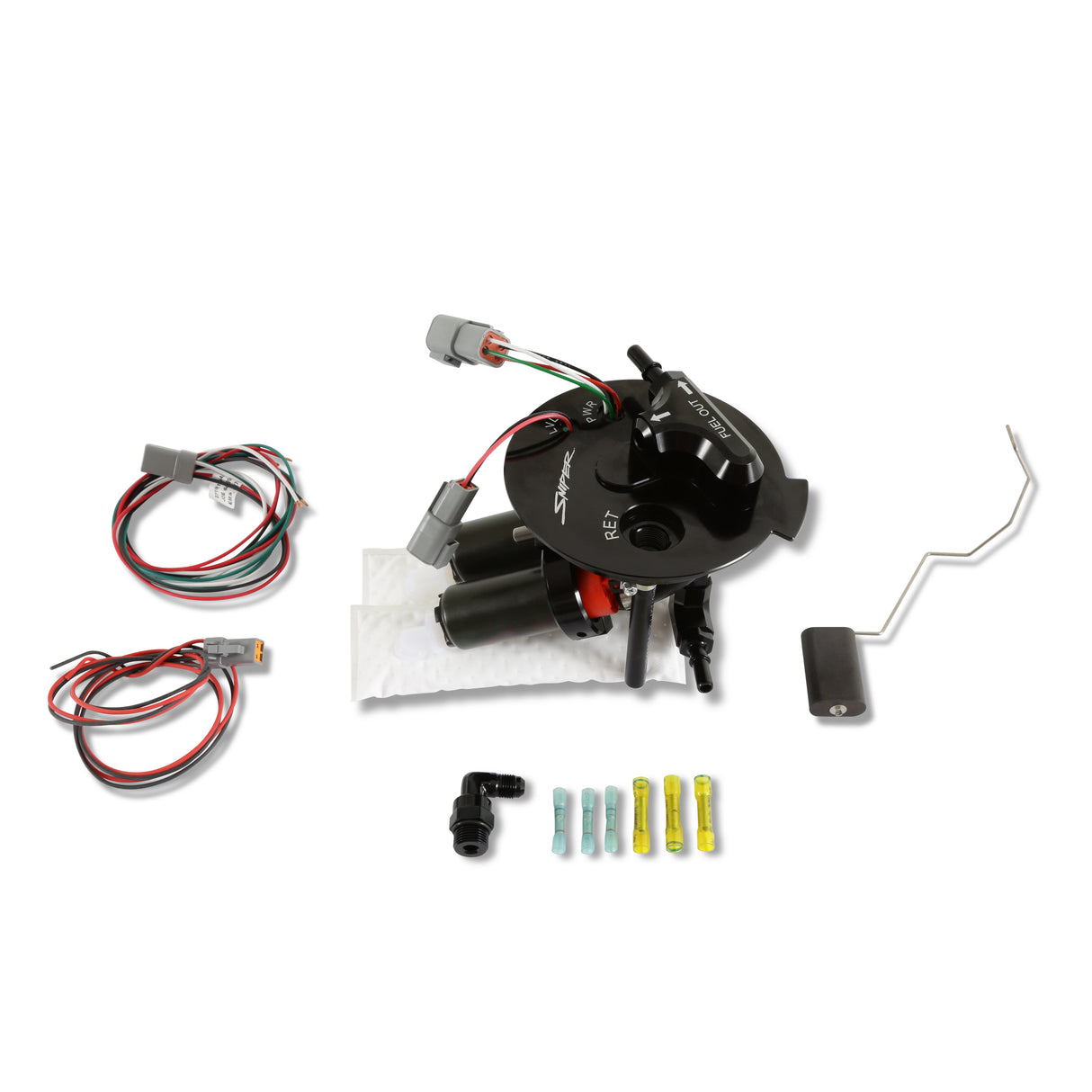

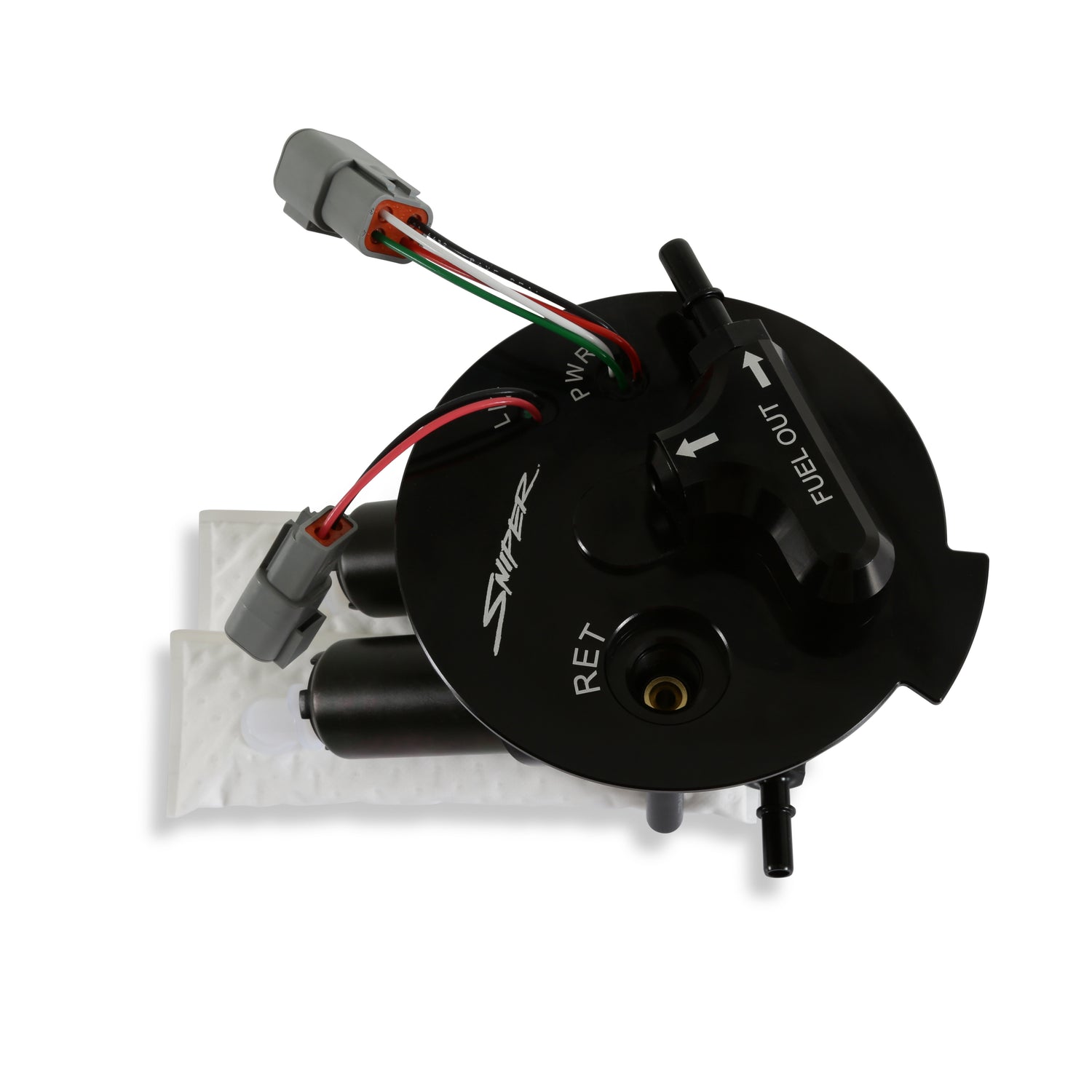

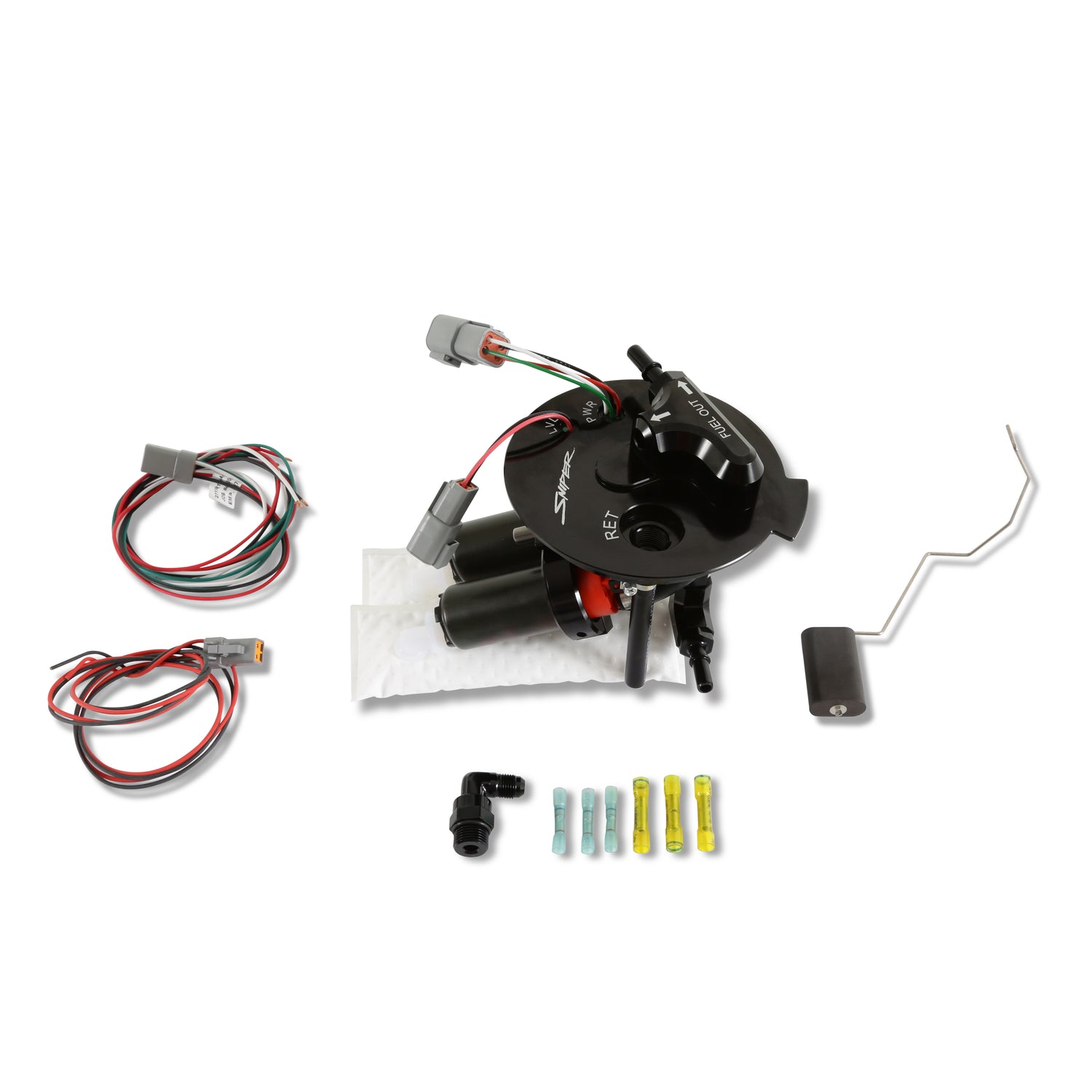

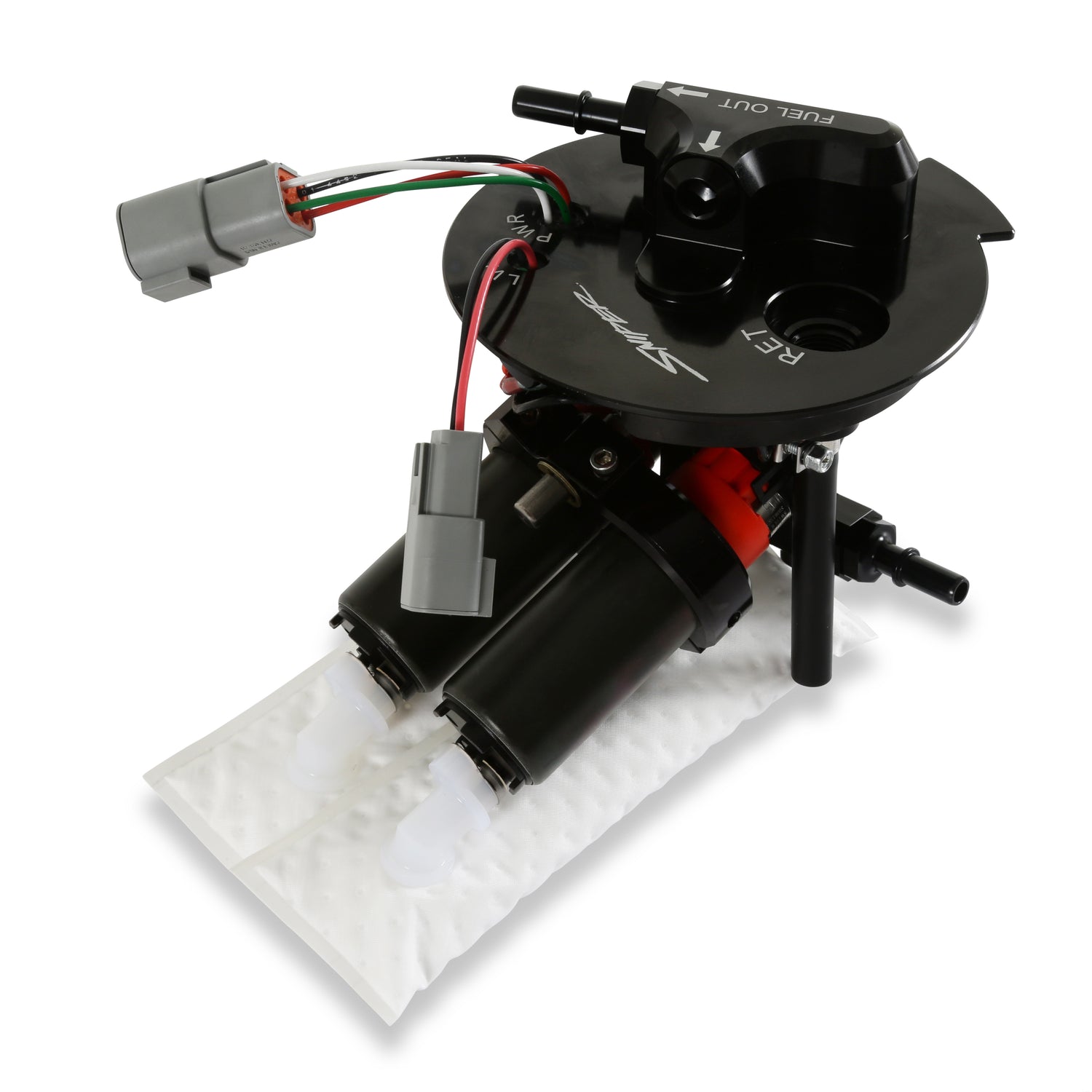

Holley 12-350 HOLLEY DUAL 340 LPH PUMP MODULE SYSTEM
2010-2015 Camaro Dual 340 LPH Pump Module
Regular price
$1,902.80 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 12-350 HOLLEY DUAL 340 LPH PUMP MODULE SYSTEM is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description

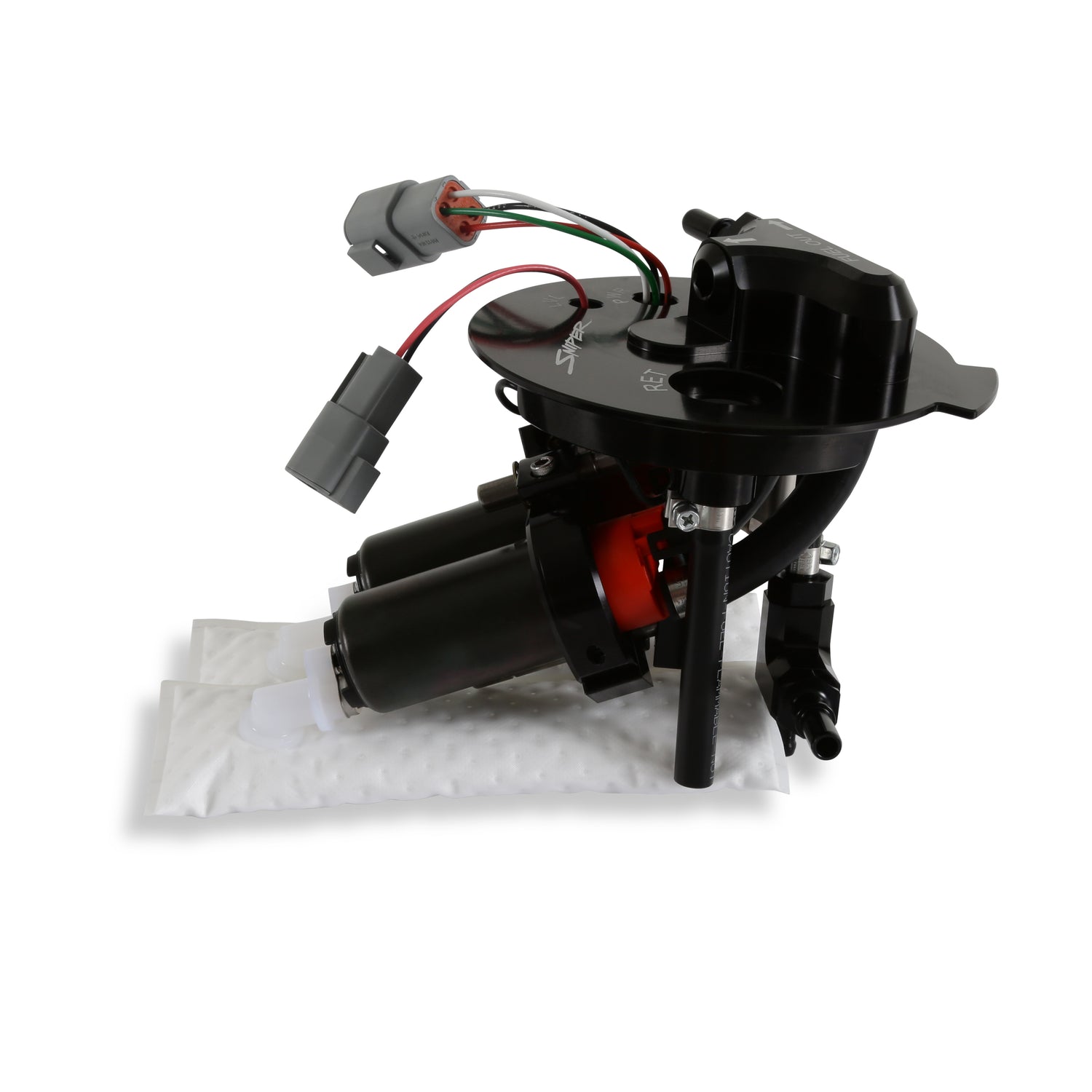

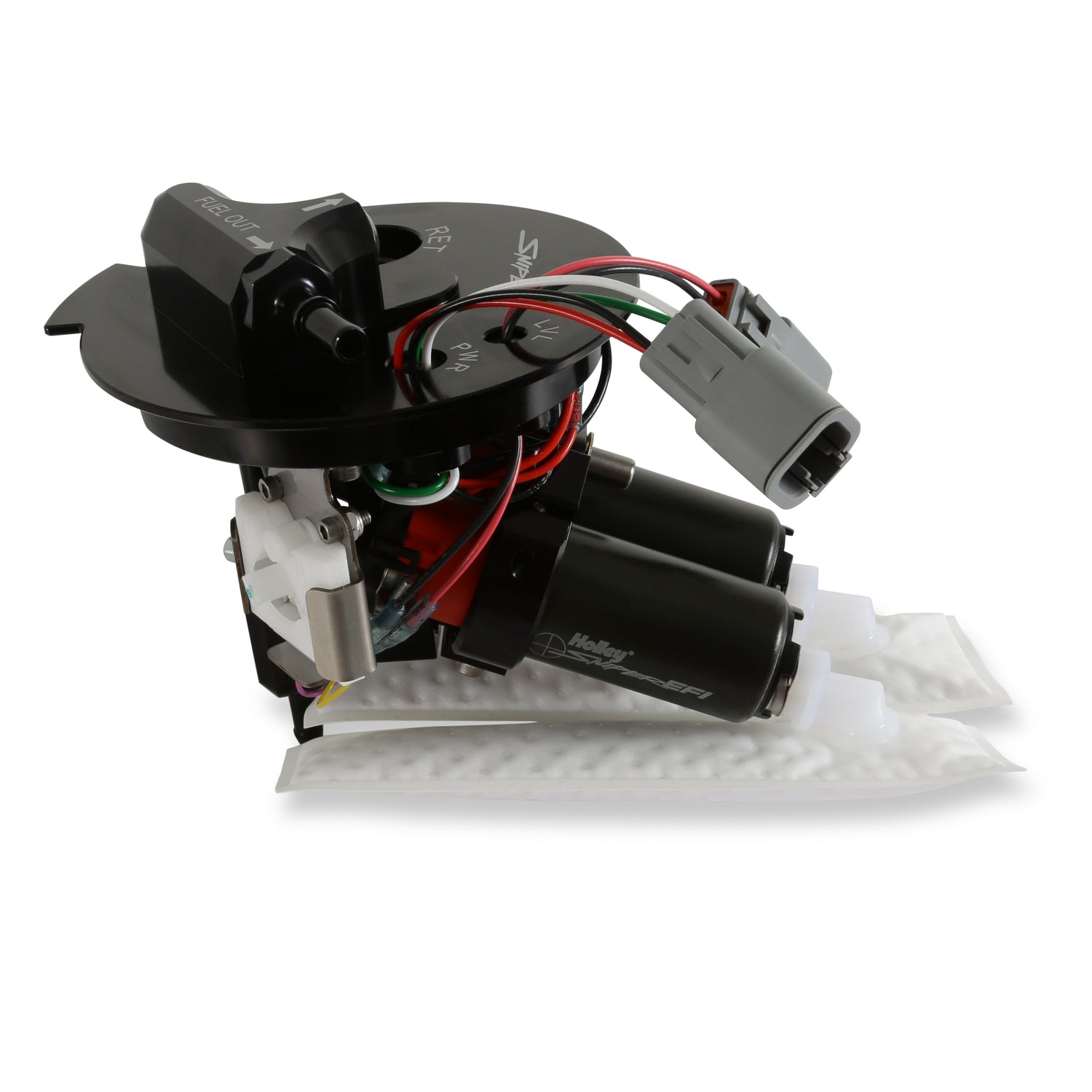

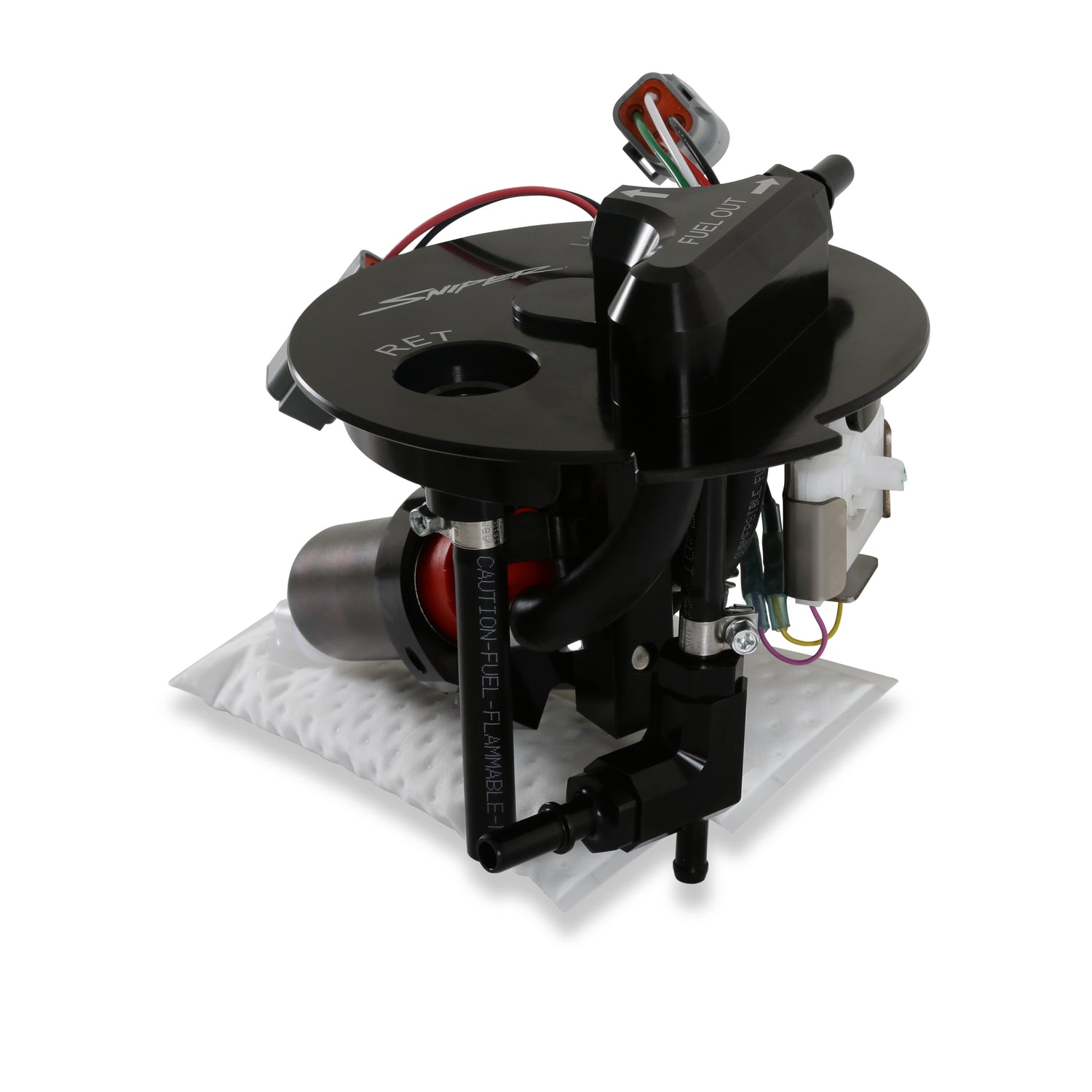

2010-2015 Camaro Dual 340 LPH Pump Module
Part Number: 12-350
If you are adding nitrous or boost to your 2010-2015 Camaro race car, Holley has the fuel pump upgrades for you! The fuel pump module design starts with a billet pump flange assembly and connects it to dual 340 or 450 LPH fuel pumps for maximum fuel delivery of gasoline or E85. The fuel pump module design starts with a billet pump flange assembly and connects it to dual 340 or 450 LPH fuel pumps for maximum fuel delivery. The module also includes two HydraMats to eliminate fuel starvation under hard acceleration or cornering. The Integrated Jet pump assembly allows retention of factory drivers side fuel pickup. A new level sensor is included and pre-installed. Installation is as simple as removing factory module and replacing with Holley module. Outlet fitting included to connect to factory feed line. Secondary ORB port machined into flange for easy AN plumbing of feed line if you so desire. The module is a return style only so a regulator such as the 12-895 will be needed to complete the return portion of your system. The dual 340 LPH module will support up to 1400 HP while the dual 450 LPH will support up to 1750 HP.
Features and Benefits
• -8AN ORB inlets and outlets (return fitting included)
• Dual 340 (1400 hp) @ 60 psi at 13.5 volts / 14.5 amp draw

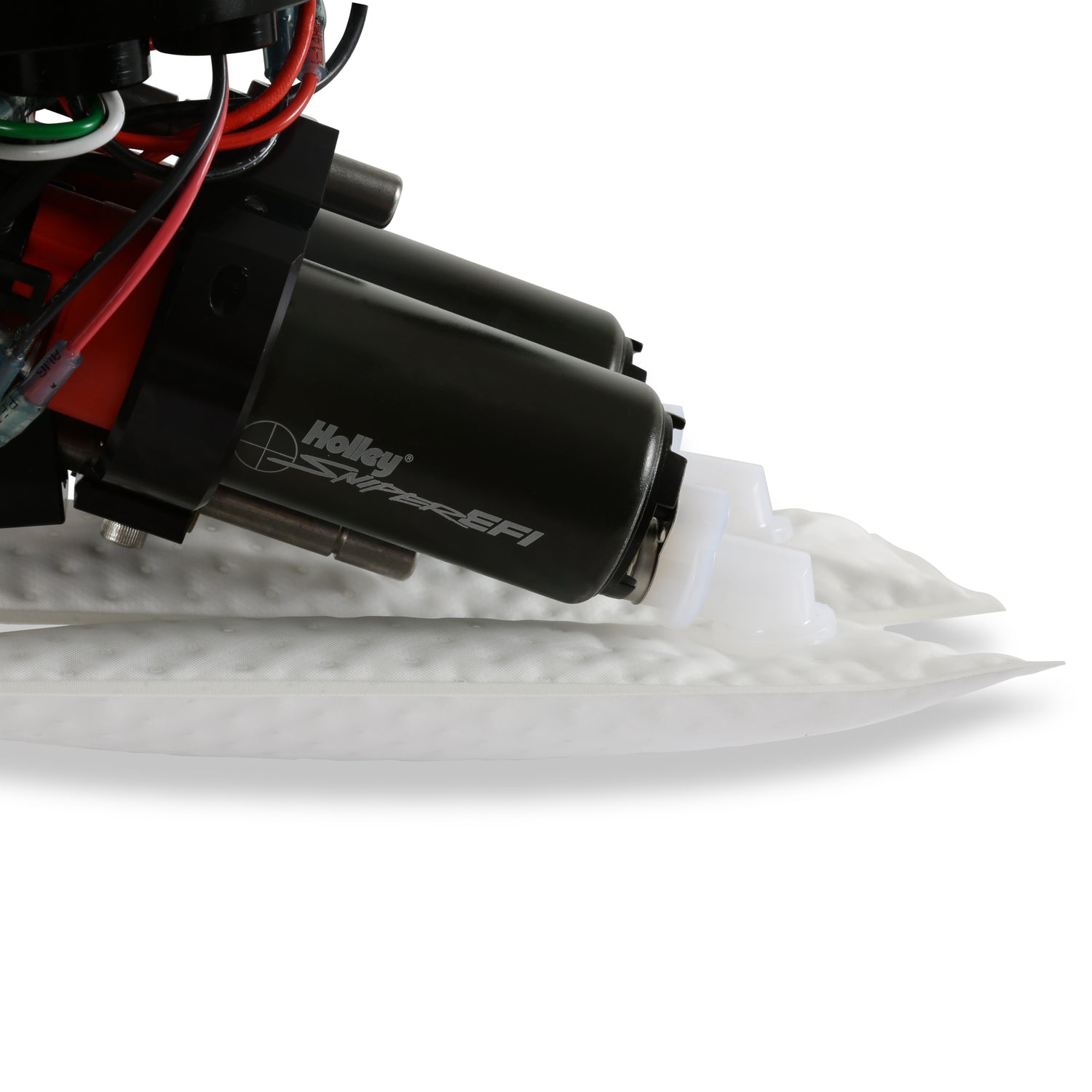

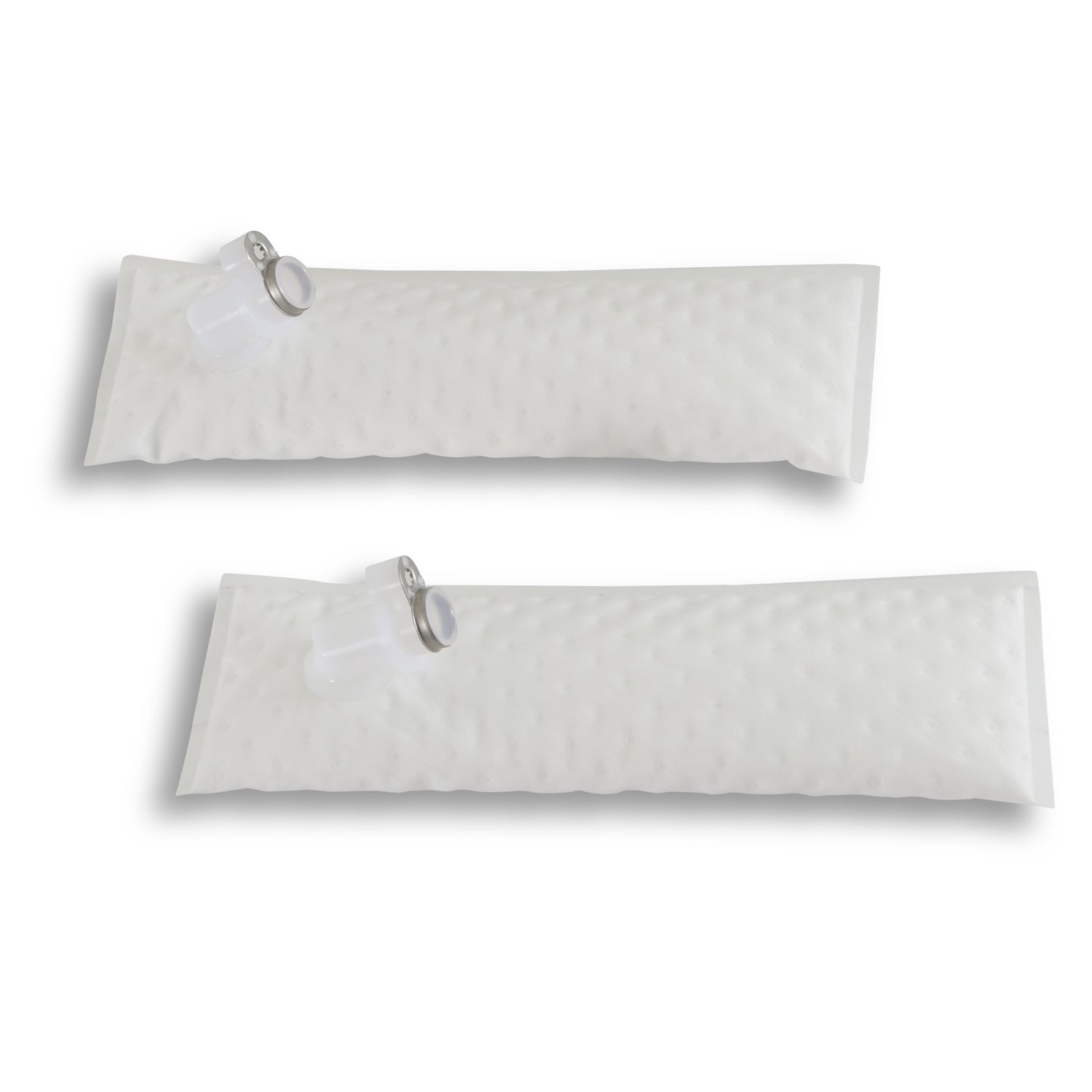

• Two HydraMats, one for each pump
• Integrated jet pump assembly allows retention of factory drivers side fuel pickup
• Have been tested to deliver stable fuel pressure down to low fuel indicator warning light

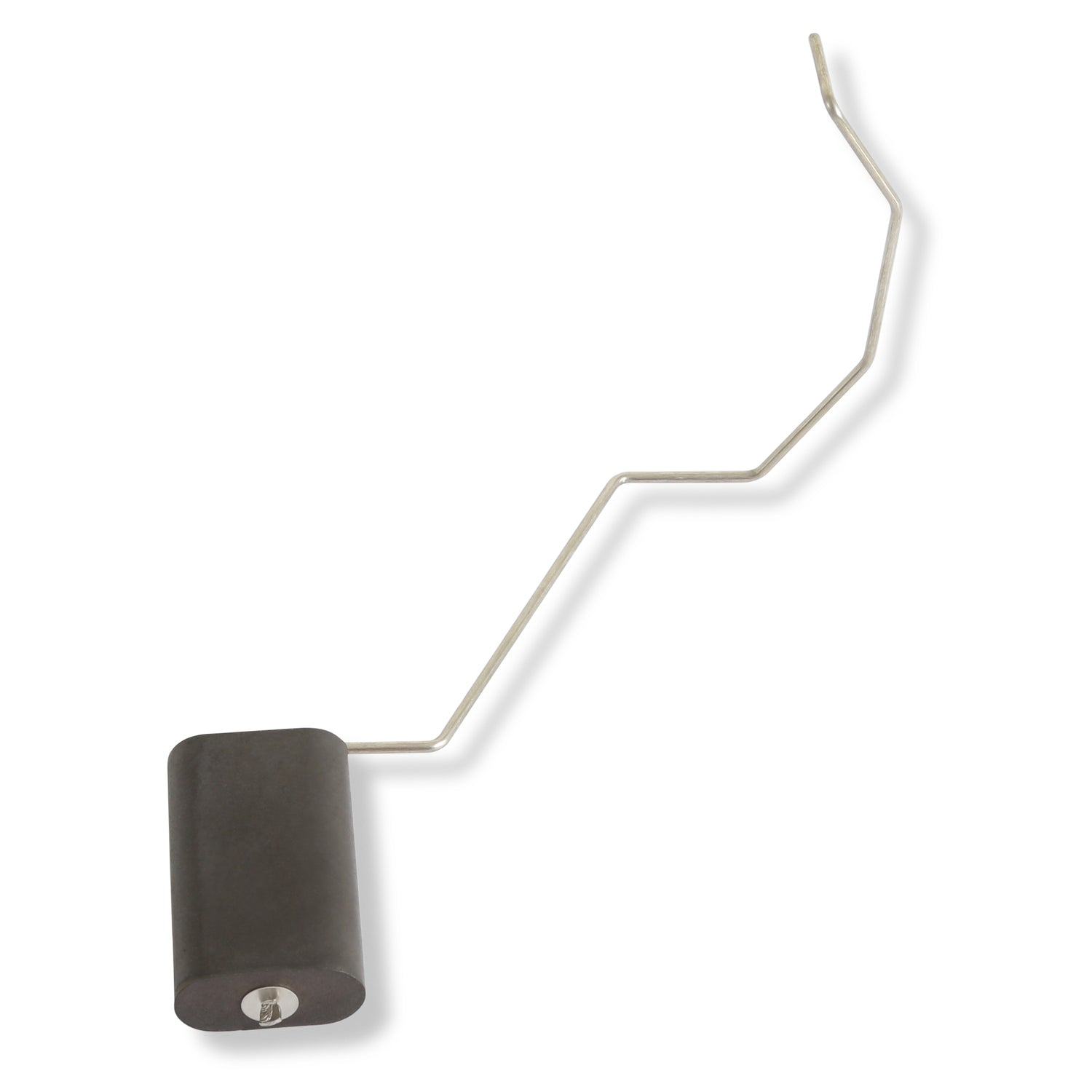

• Brand new level sensor included and pre-installed. Installation is as simple as removing factory module and replacing with Holley module

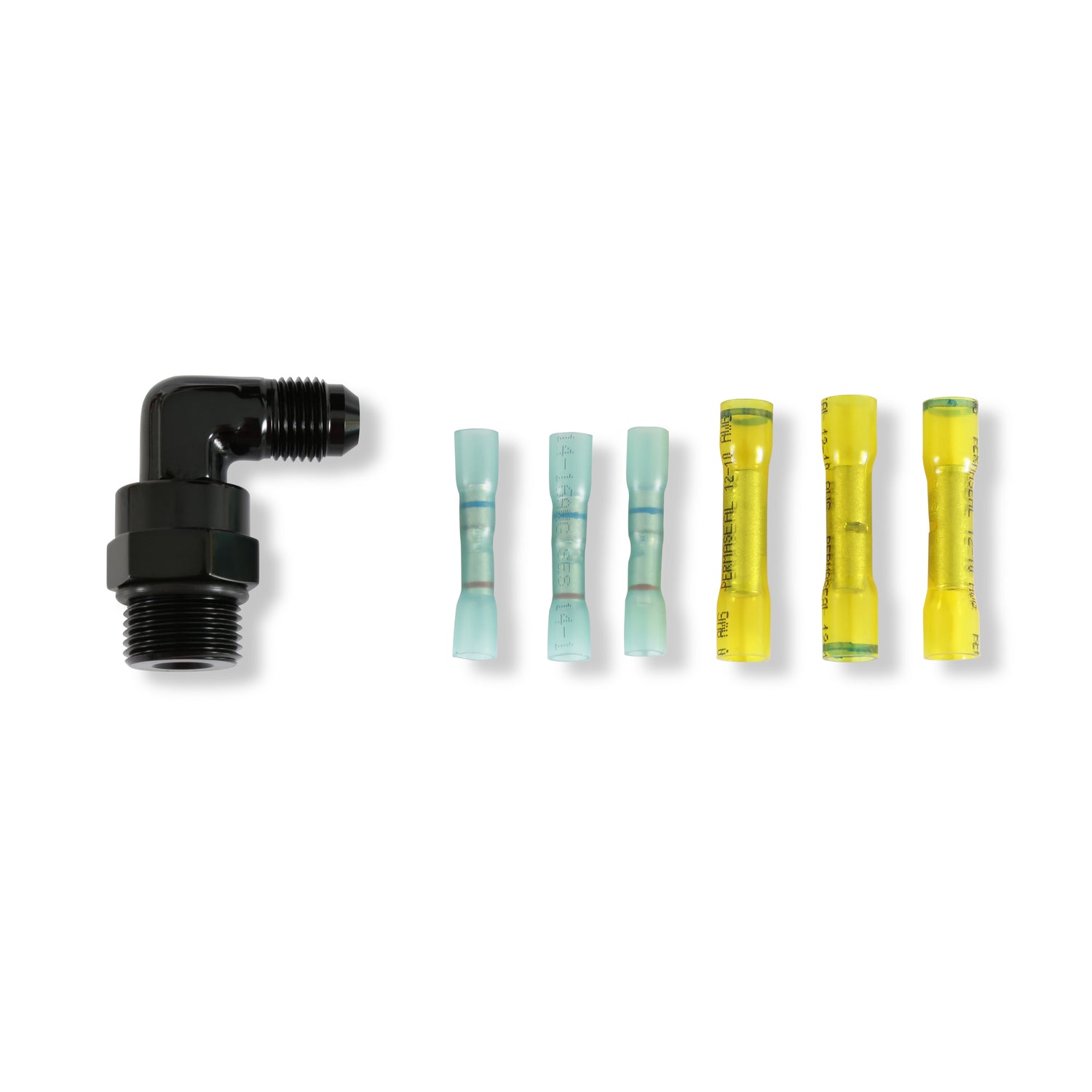

• Outlet fitting included to connect to factory feed line. Secondary ORB port machined into flange for easy AN plumbing of feed line
• Module is return style only so a regulator must be installed
• Machined, billet, anodized, laser etch components for durability and good looks
Part Number: 12-350
If you are adding nitrous or boost to your 2010-2015 Camaro race car, Holley has the fuel pump upgrades for you! The fuel pump module design starts with a billet pump flange assembly and connects it to dual 340 or 450 LPH fuel pumps for maximum fuel delivery of gasoline or E85. The fuel pump module design starts with a billet pump flange assembly and connects it to dual 340 or 450 LPH fuel pumps for maximum fuel delivery. The module also includes two HydraMats to eliminate fuel starvation under hard acceleration or cornering. The Integrated Jet pump assembly allows retention of factory drivers side fuel pickup. A new level sensor is included and pre-installed. Installation is as simple as removing factory module and replacing with Holley module. Outlet fitting included to connect to factory feed line. Secondary ORB port machined into flange for easy AN plumbing of feed line if you so desire. The module is a return style only so a regulator such as the 12-895 will be needed to complete the return portion of your system. The dual 340 LPH module will support up to 1400 HP while the dual 450 LPH will support up to 1750 HP.
Features and Benefits
• -8AN ORB inlets and outlets (return fitting included)
• Dual 340 (1400 hp) @ 60 psi at 13.5 volts / 14.5 amp draw
• Two HydraMats, one for each pump
• Integrated jet pump assembly allows retention of factory drivers side fuel pickup
• Have been tested to deliver stable fuel pressure down to low fuel indicator warning light
• Brand new level sensor included and pre-installed. Installation is as simple as removing factory module and replacing with Holley module
• Outlet fitting included to connect to factory feed line. Secondary ORB port machined into flange for easy AN plumbing of feed line
• Module is return style only so a regulator must be installed
• Machined, billet, anodized, laser etch components for durability and good looks
Specifications
Specifications
-
Specifications

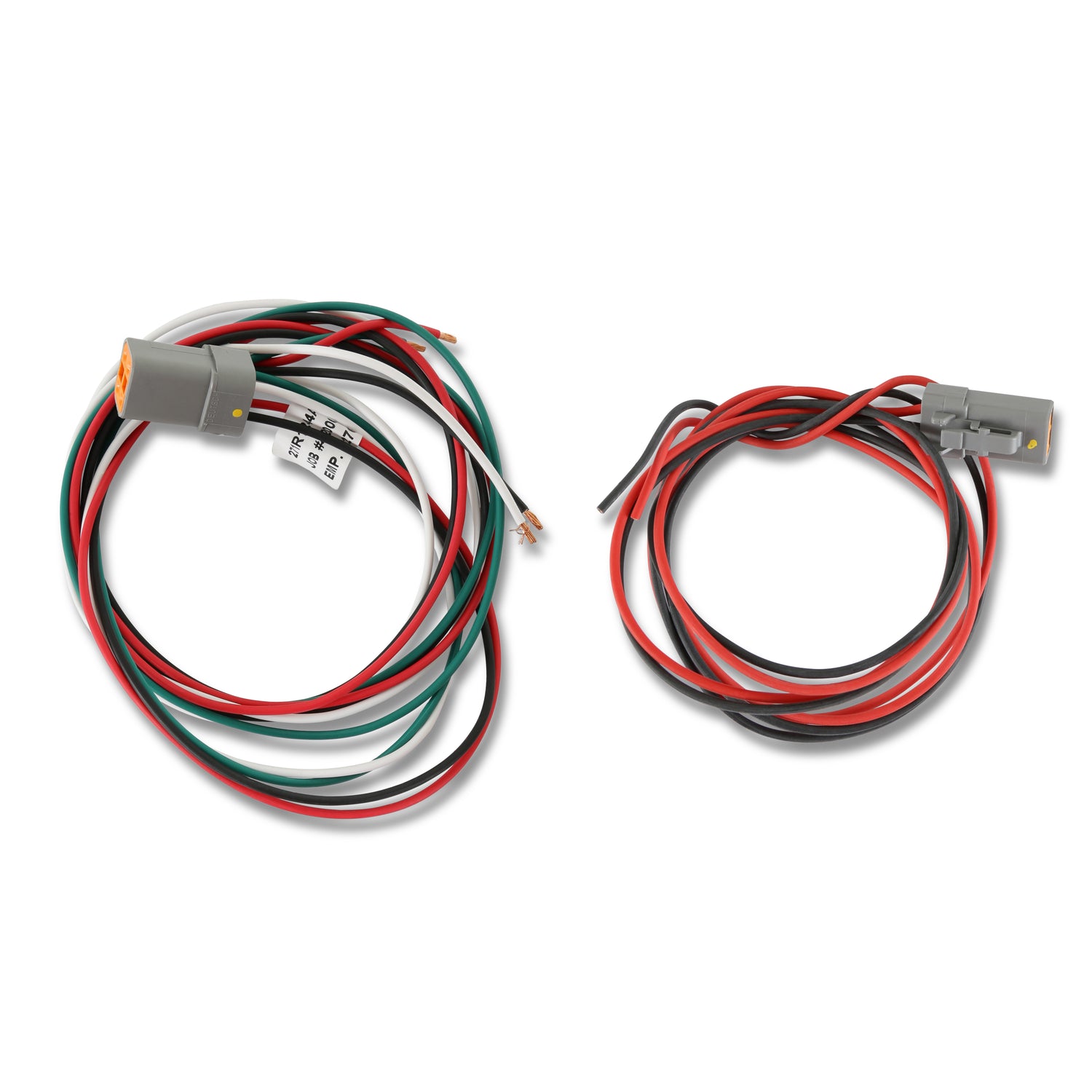

Average Current Draw 29 Average Flow Rating 680 Brand Holley Category Air and Fuel Delivery Connector Color Gray Connector Gender Female Connector Quantity 2 Emission Code 5 Free Flow GPH 180 Free Flow LPH 680 Fuel Filter Included Yes Fuel Sending Unit Included Yes Fuel System EFI Fuel Tank Pressure Sensor Included No Fuel Type Gasoline/E85 Compatible Gasket Or Seal Included No Grade Type Performance Height Standard Housing Material Aluminum In Tank or External In Tank Inlet Quantity One Internal Or External Strainer External Lock Ring Included No Material Billet Aluminum and Steel Maximum Pressure 60 Mounting Hardware Included Yes Negative Ground Yes Outlet Quantity 2 Outlet Type Factory Quick Connect Outlet Type ORB part type Fuel Pump Module Assembly Product Type Fuel Pump Module Pump Body Color Silver Pump Type Electric Regulator Included No Resistance Ohms Empty 40 Resistance Ohms Full 250 Sub Category Fuel Pumps and Related Components Universal Or Specific Fit Specific Voltage 12 Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty Wire Harness Included Yes Wire Quantity 6 -
