Holley EFI | SKU:
12-347
Holley 12-347 EFI Fuel Pump Module - 525 LPH
Fits 1983-1997 Ford Mustang
Regular price
$849.30 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 12-347 EFI Fuel Pump Module - 525 LPH is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Fits 1983-1997 Ford Mustang
Part Number: 12-347

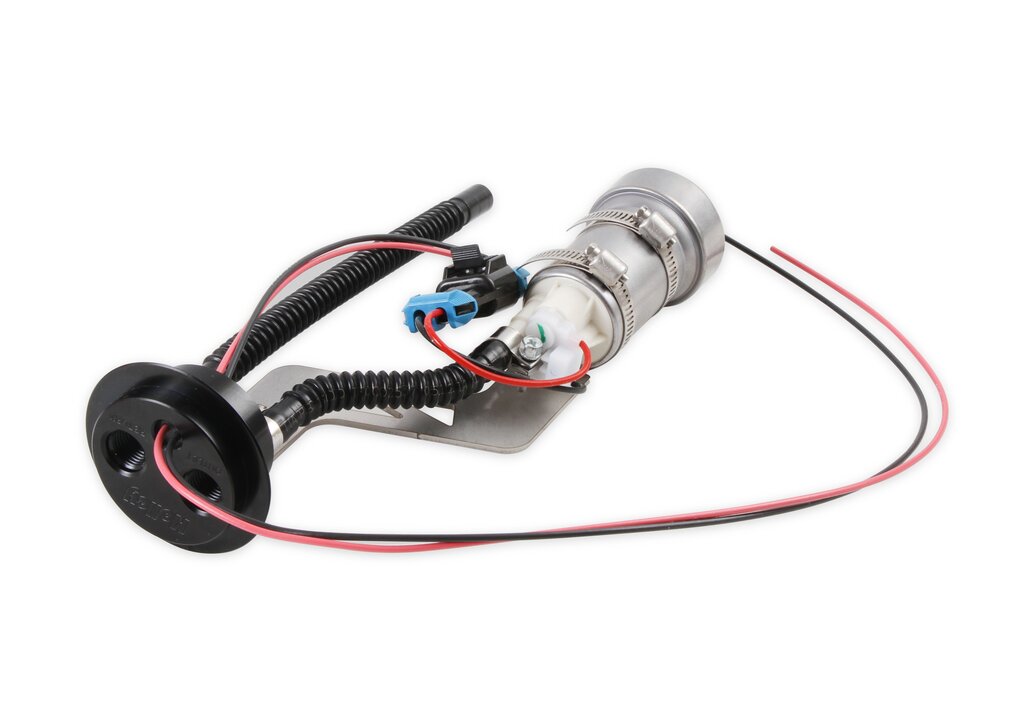

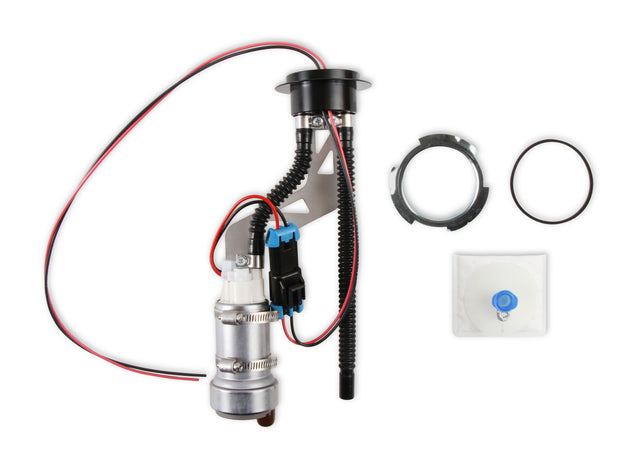

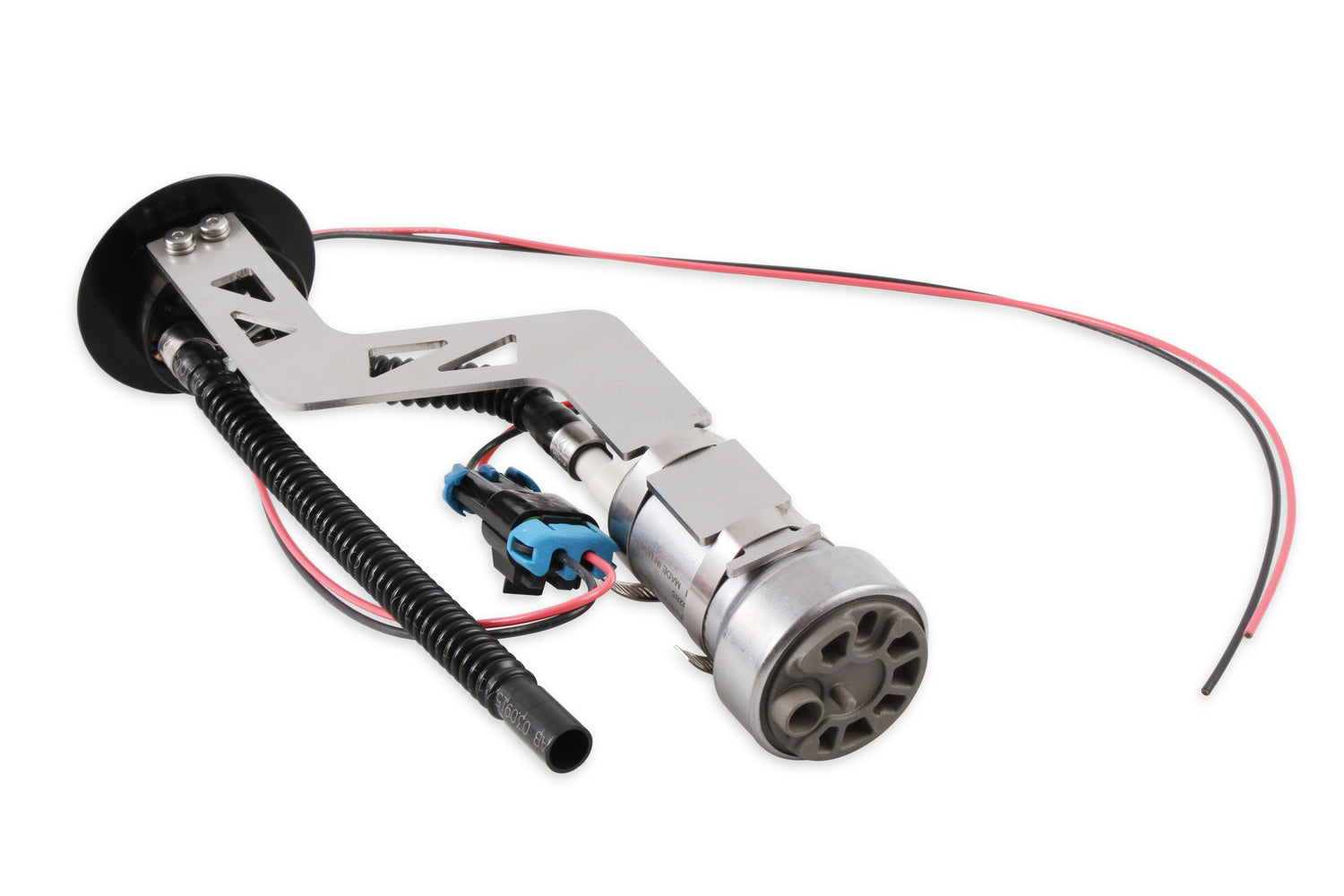

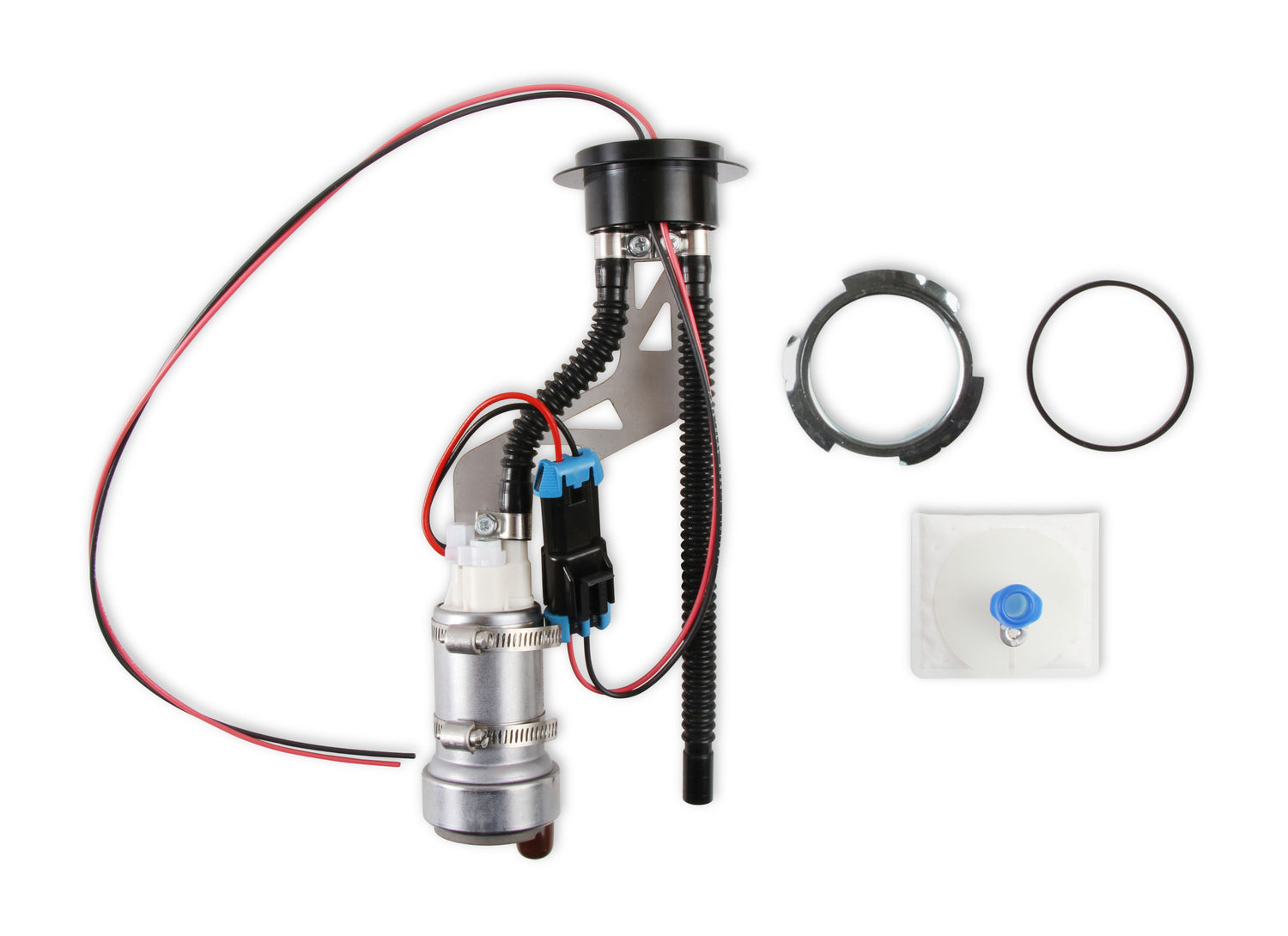

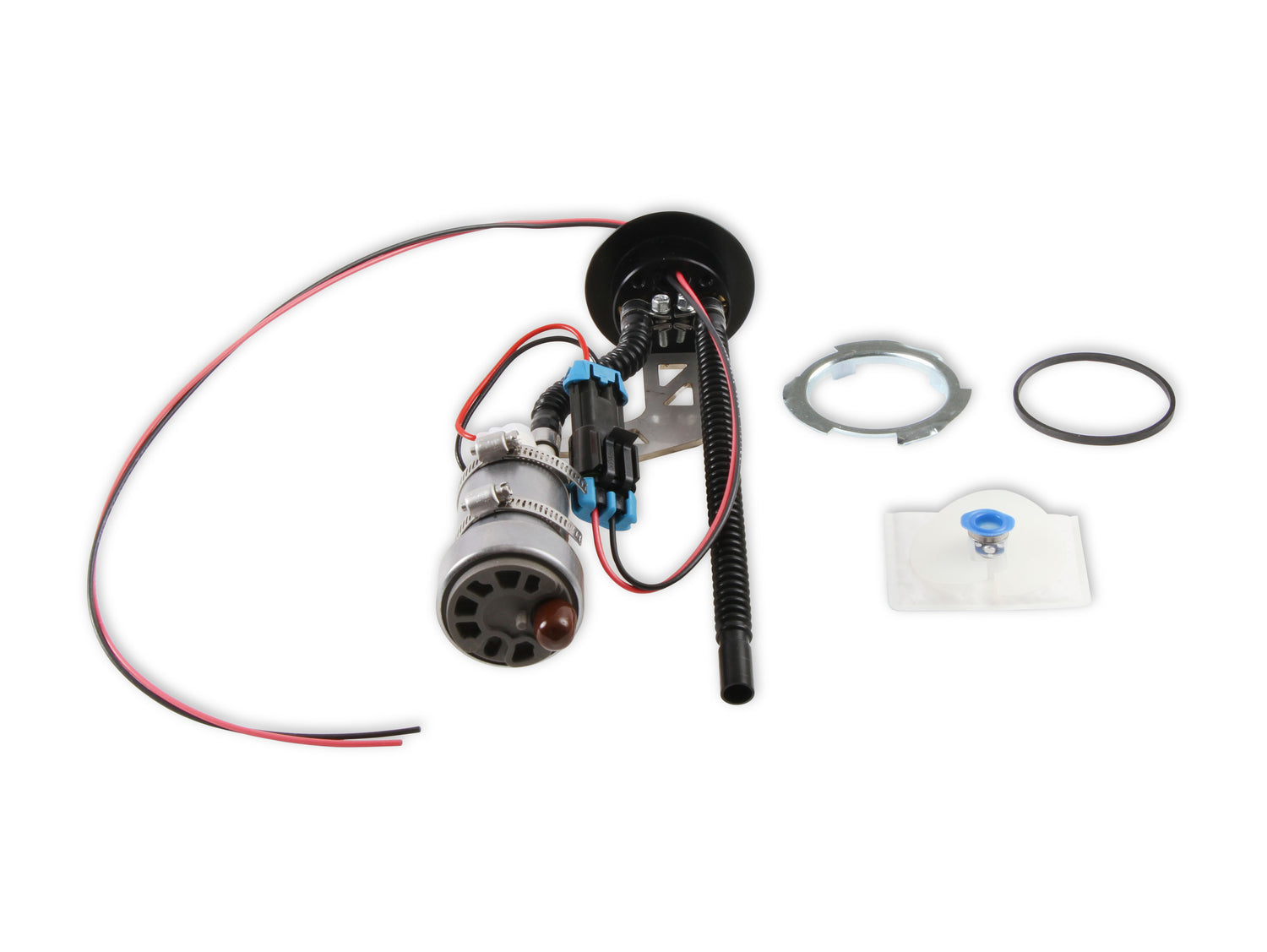

This direct fit fuel pump module will drop directly into any 1983-1997 Ford Mustang EFI fuel tank, designed with a 525 LPH (liters per hour) Holley fuel pump that will support up to 1200 EFI or 1450 Carbureted horsepower (HP Rating @ 60 PSI at 13.5 Volts / 17 AMP Draw). The flange has a 6AN o-ring outlet and return port making the plumbing connections easy. The kit includes the hanger assembly, fuel pump inlet filter, flange o-ring, and tank lock ring and gasket to complete your installation into your stock fuel tank.
Features and Benefits
• 6061-T6 Aluminum fuel pump module with a 525 LPH (liters per hour) Sniper pump assembly drops into stock 1983-1997 Mustang EFI fuel tanks.

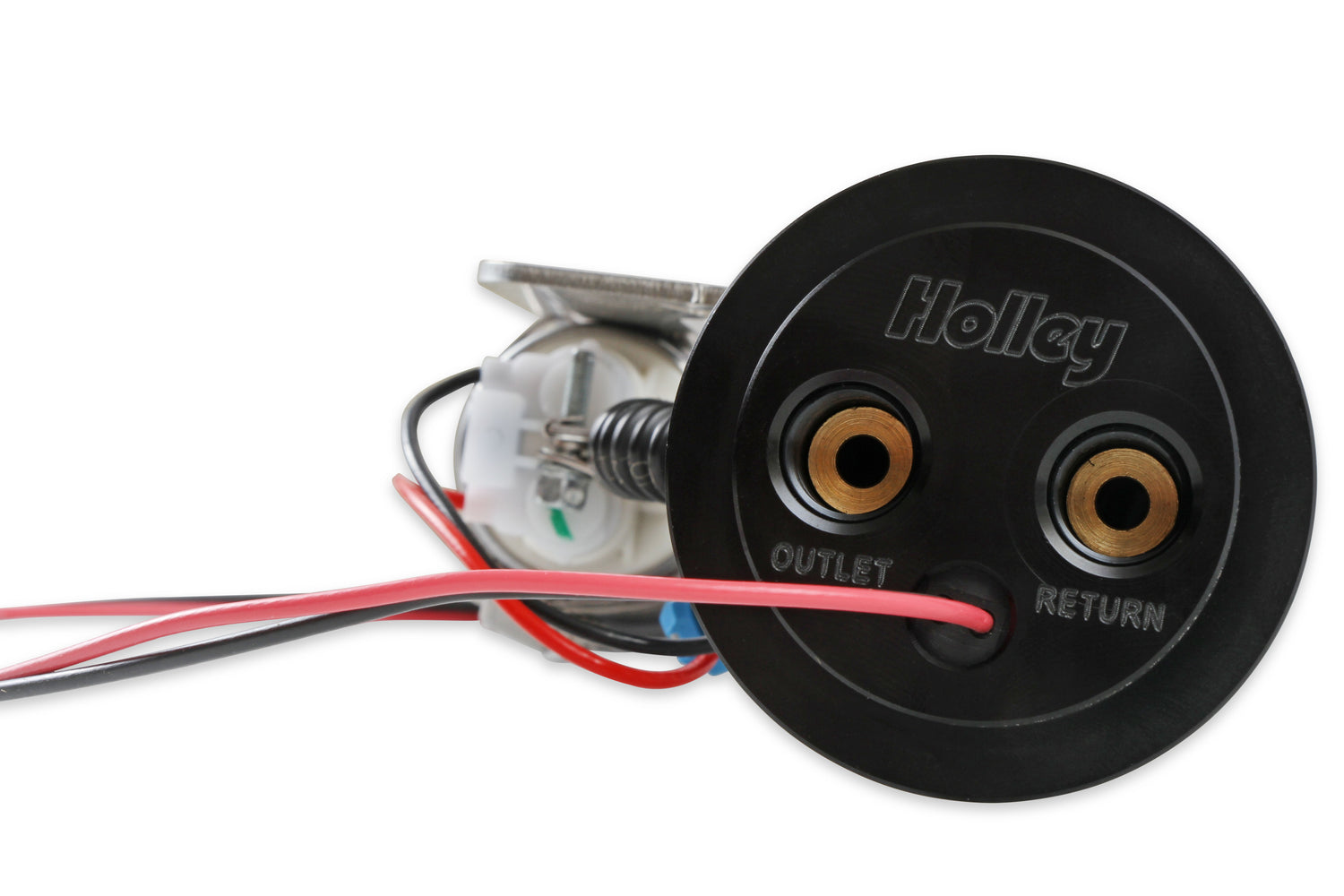

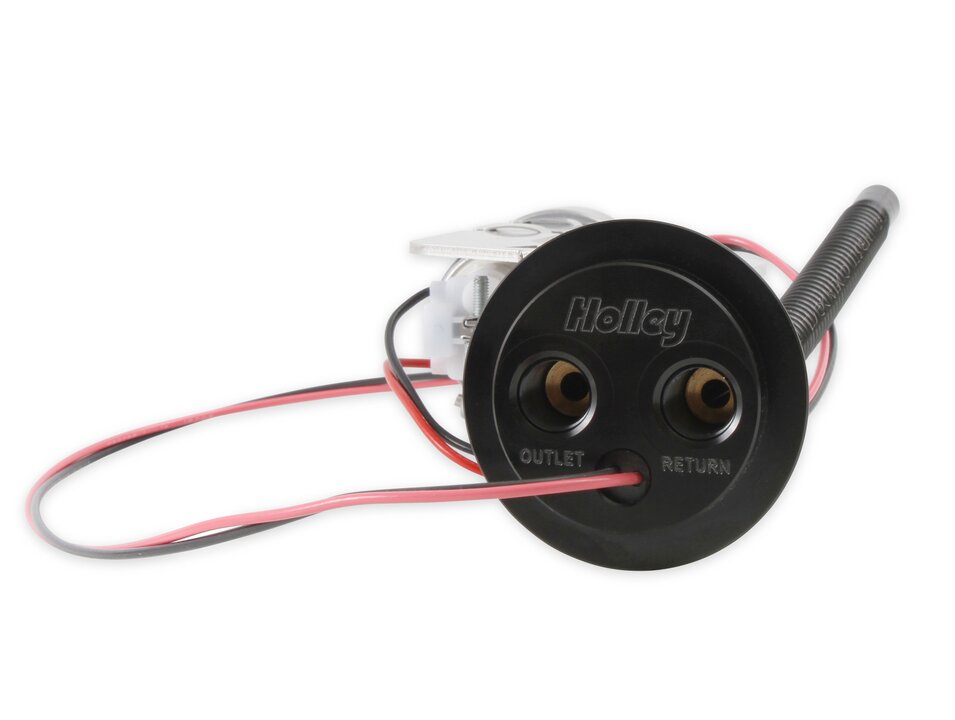

• 6AN o-ring outlet and return ports for easy plumbing connections.

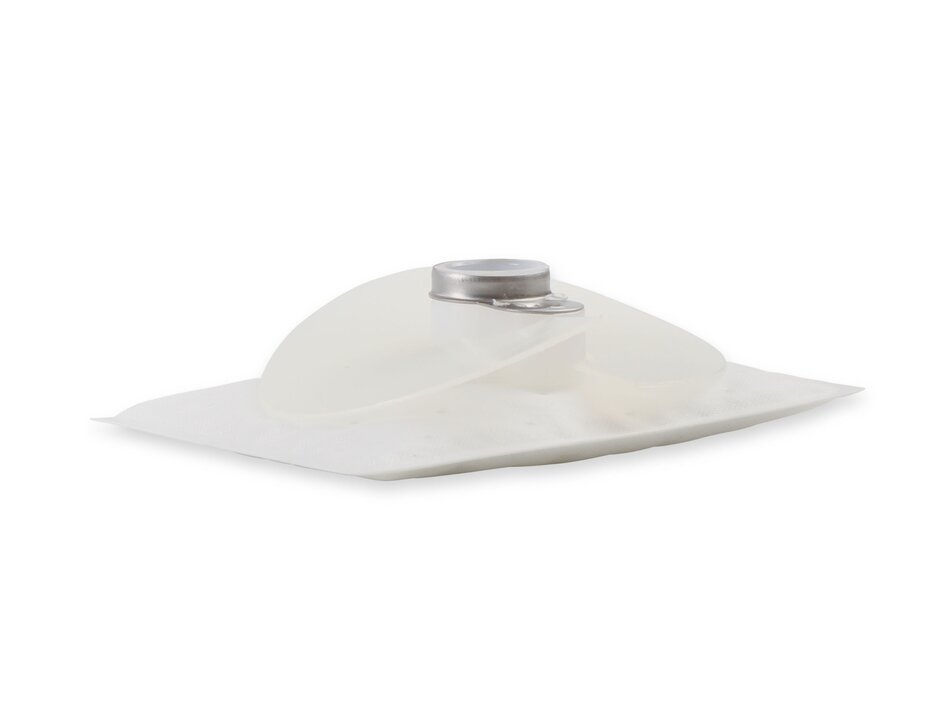

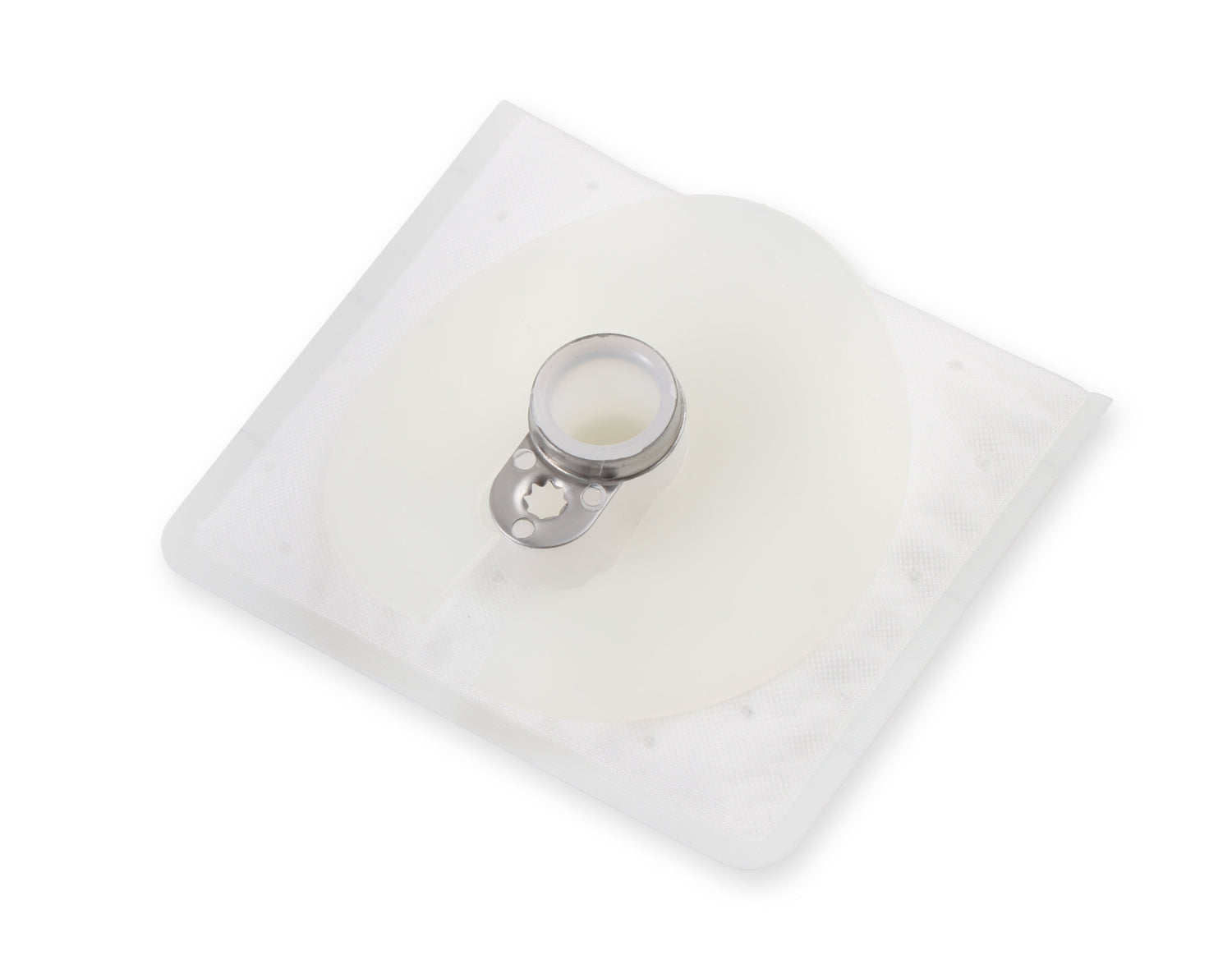

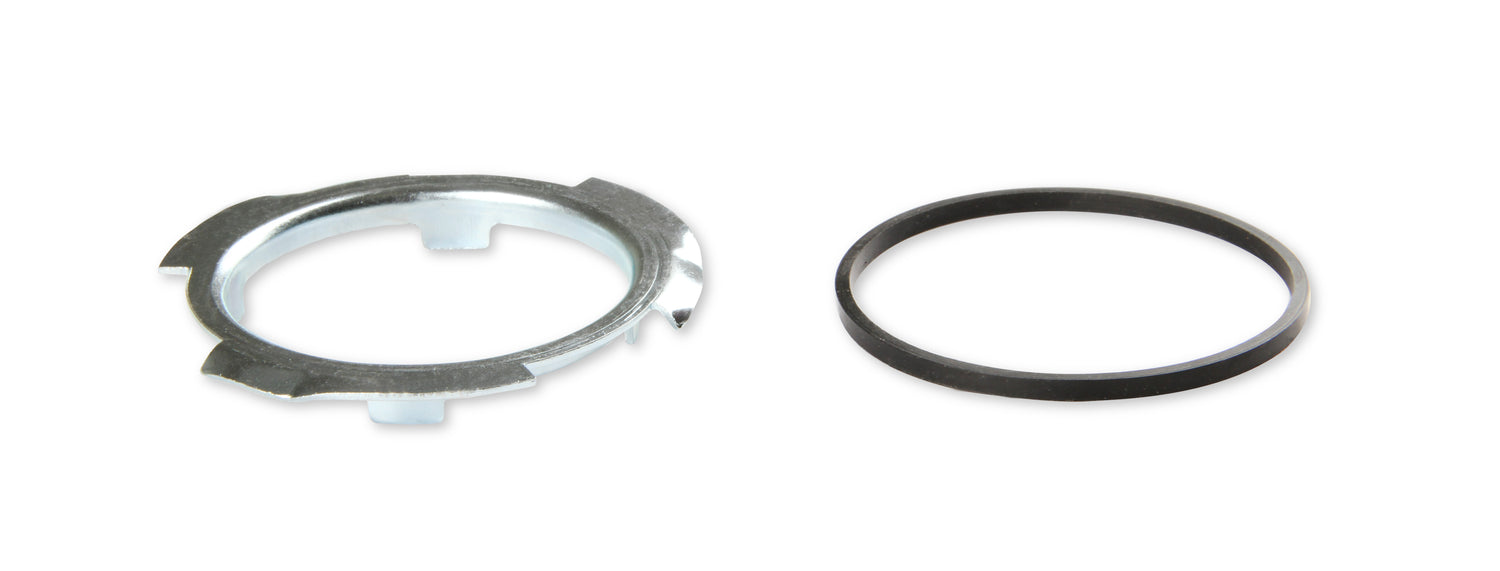

• Filter sock, flange o-ring, and fuel tank lock ring included to complete your installation.
• Can be used with both carbureted and EFI (Electronic Fuel Injection) fuel systems depending on your needs.
• Supports up to 1200 EFI or 1450 Carb HP (@ 60 PSI at 13.5 Volts / 17 AMP Draw); estimates are based on gasoline. Individual systems will vary based on fuel system design.
• Flange is bright dip black anodized for corrosion protection from undercar moisture.
Bypass Fuel Regulator such as Holley P/N 12-886 (EFI) or 12-887 (Carburetor)
Part Number: 12-347
This direct fit fuel pump module will drop directly into any 1983-1997 Ford Mustang EFI fuel tank, designed with a 525 LPH (liters per hour) Holley fuel pump that will support up to 1200 EFI or 1450 Carbureted horsepower (HP Rating @ 60 PSI at 13.5 Volts / 17 AMP Draw). The flange has a 6AN o-ring outlet and return port making the plumbing connections easy. The kit includes the hanger assembly, fuel pump inlet filter, flange o-ring, and tank lock ring and gasket to complete your installation into your stock fuel tank.
Features and Benefits
• 6061-T6 Aluminum fuel pump module with a 525 LPH (liters per hour) Sniper pump assembly drops into stock 1983-1997 Mustang EFI fuel tanks.
• 6AN o-ring outlet and return ports for easy plumbing connections.
• Filter sock, flange o-ring, and fuel tank lock ring included to complete your installation.
• Can be used with both carbureted and EFI (Electronic Fuel Injection) fuel systems depending on your needs.
• Supports up to 1200 EFI or 1450 Carb HP (@ 60 PSI at 13.5 Volts / 17 AMP Draw); estimates are based on gasoline. Individual systems will vary based on fuel system design.
• Flange is bright dip black anodized for corrosion protection from undercar moisture.
Bypass Fuel Regulator such as Holley P/N 12-886 (EFI) or 12-887 (Carburetor)
Specifications
Specifications
-
Specifications
Application 1983-1997 Mustang Brand Holley EFI Category Air and Fuel Delivery Emission Code 5 Free Flow LPH 525 Fuel Filter Included No Fuel Sending Unit Included No Fuel Tank Pressure Sensor Included No Fuel Type Gasoline/E85 Compatible Gasket Or Seal Included Yes Grade Type Performance In Tank or External In Tank Inlet Quantity One Lock Ring Included Yes Material 6061-T6 Aluminum Maximum Flow Rating 525 LPH Mounting Hardware Included Yes Negative Ground Yes Outlet Quantity One Outlet Type AN part type Fuel Pump Module Assembly Product Type Fuel Pump Module Pump Type Electric Regulator Included No Strainer Included Yes Sub Category Fuel Pumps and Related Components Universal Or Specific Fit Specific Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
Instructions
