Holley | SKU:
12-1001

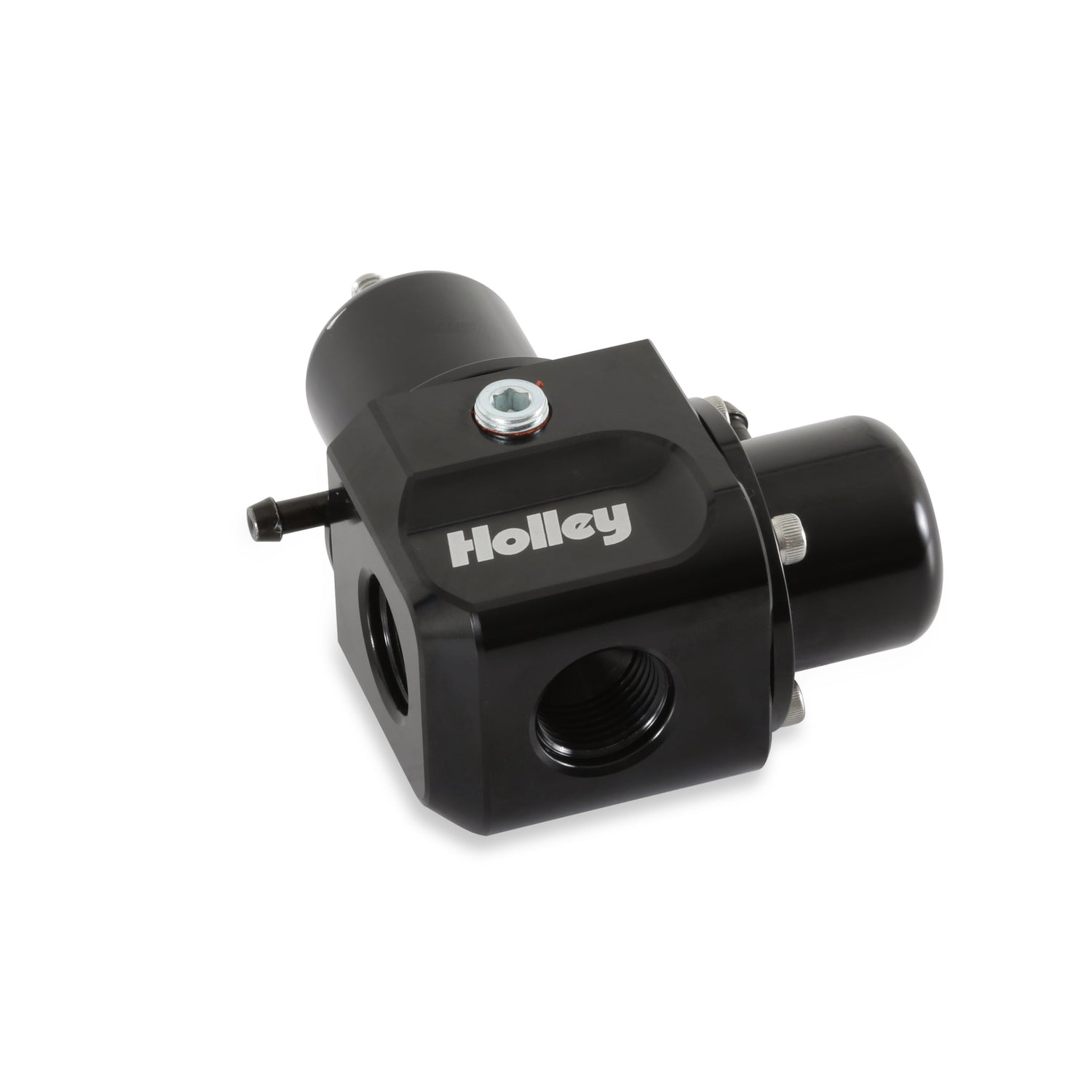

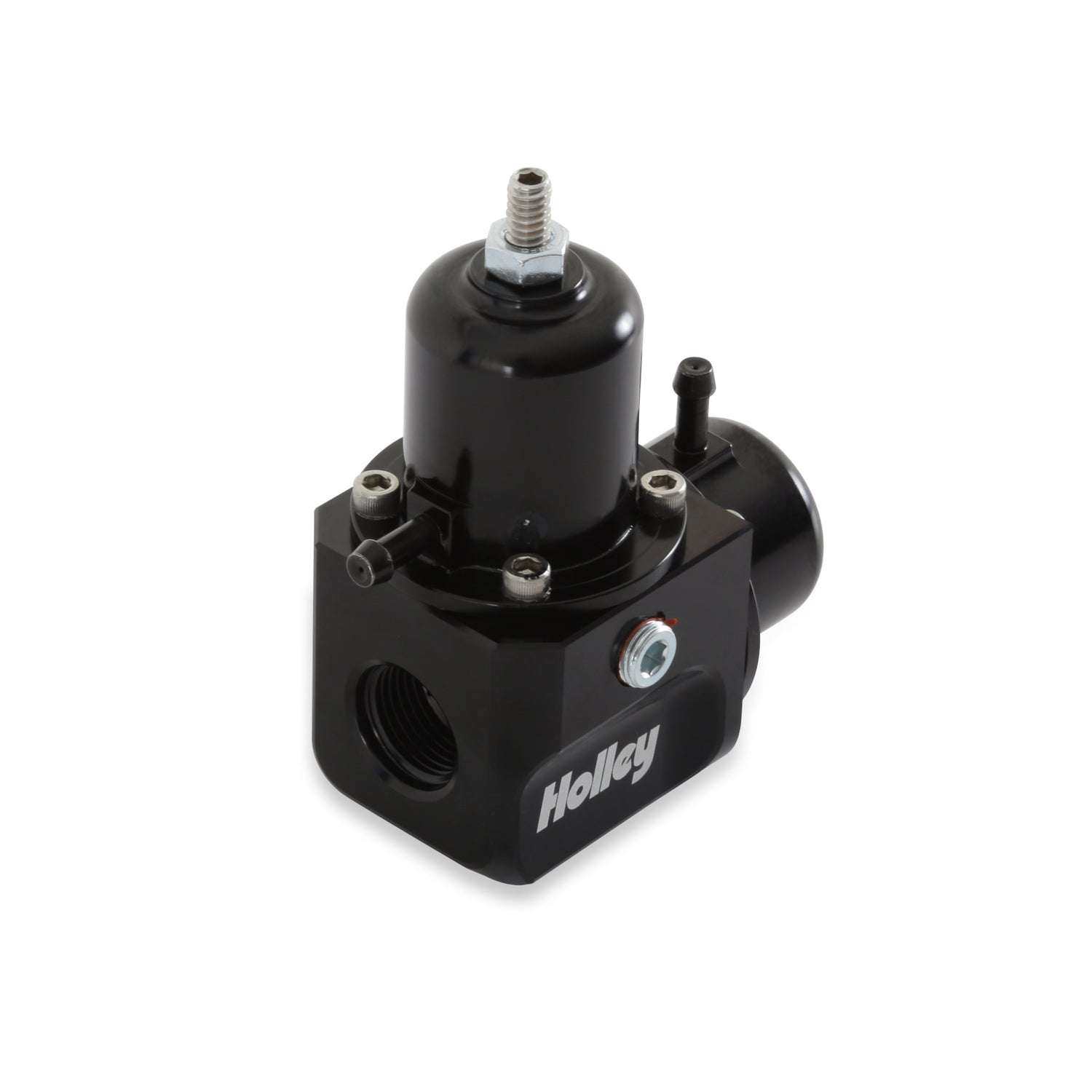

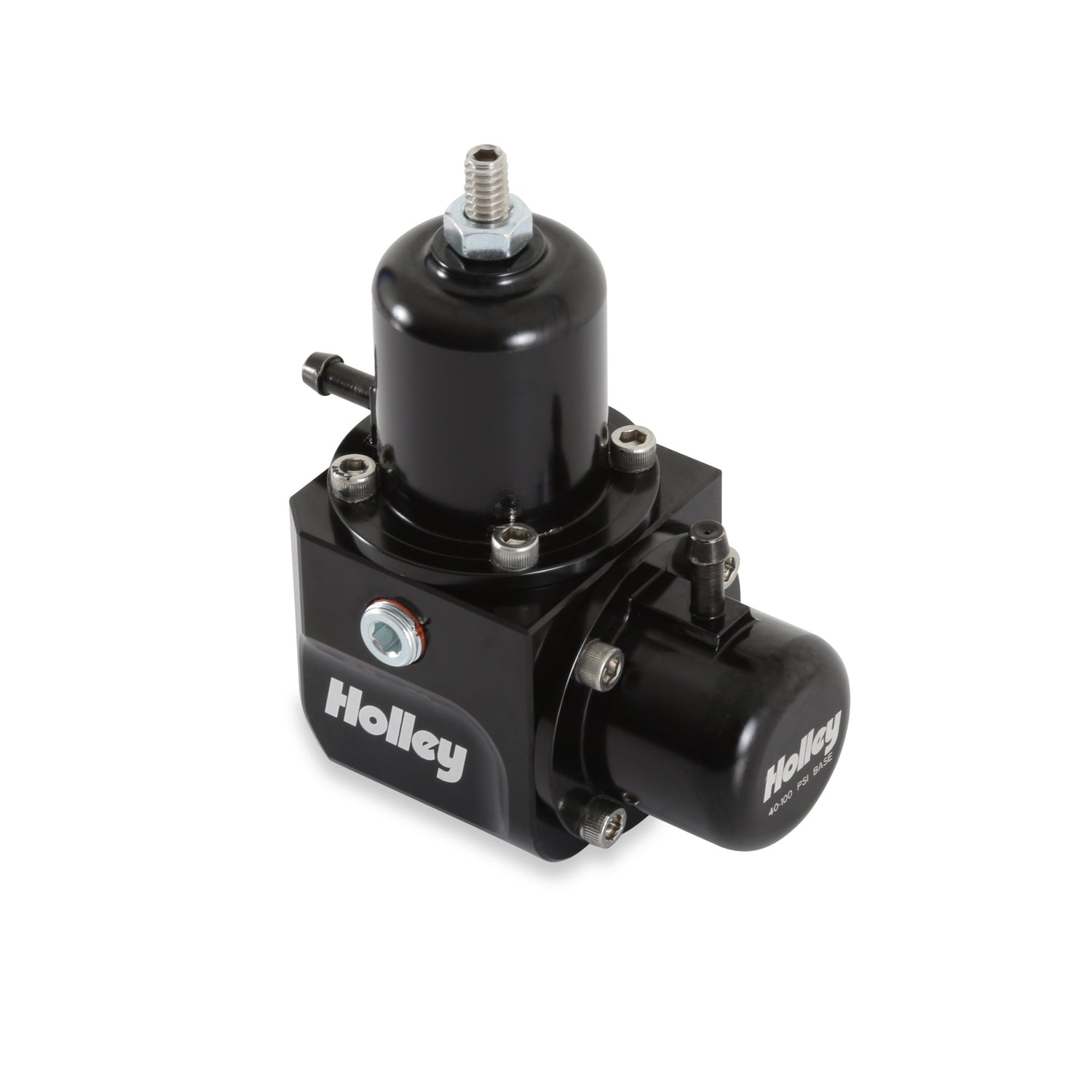

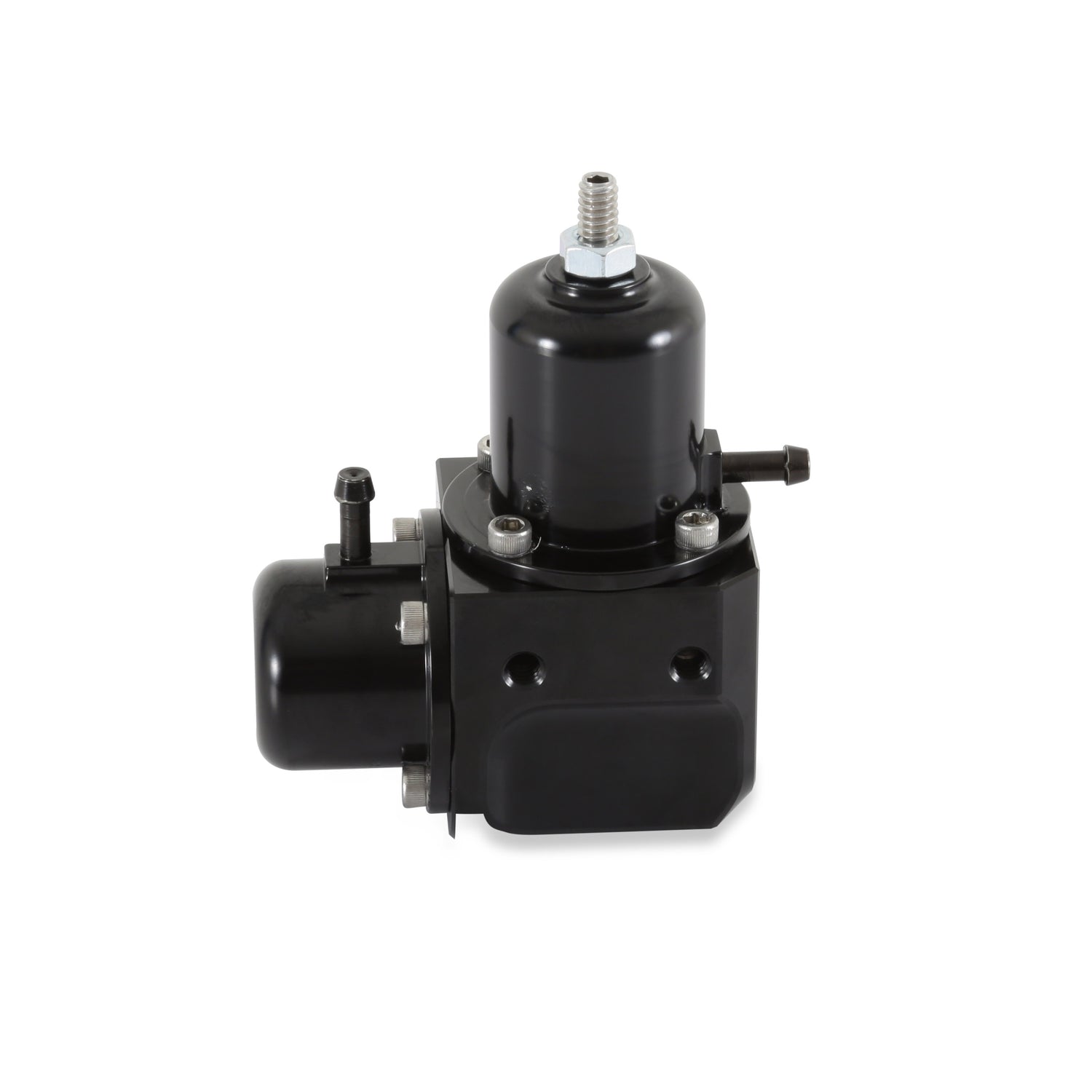

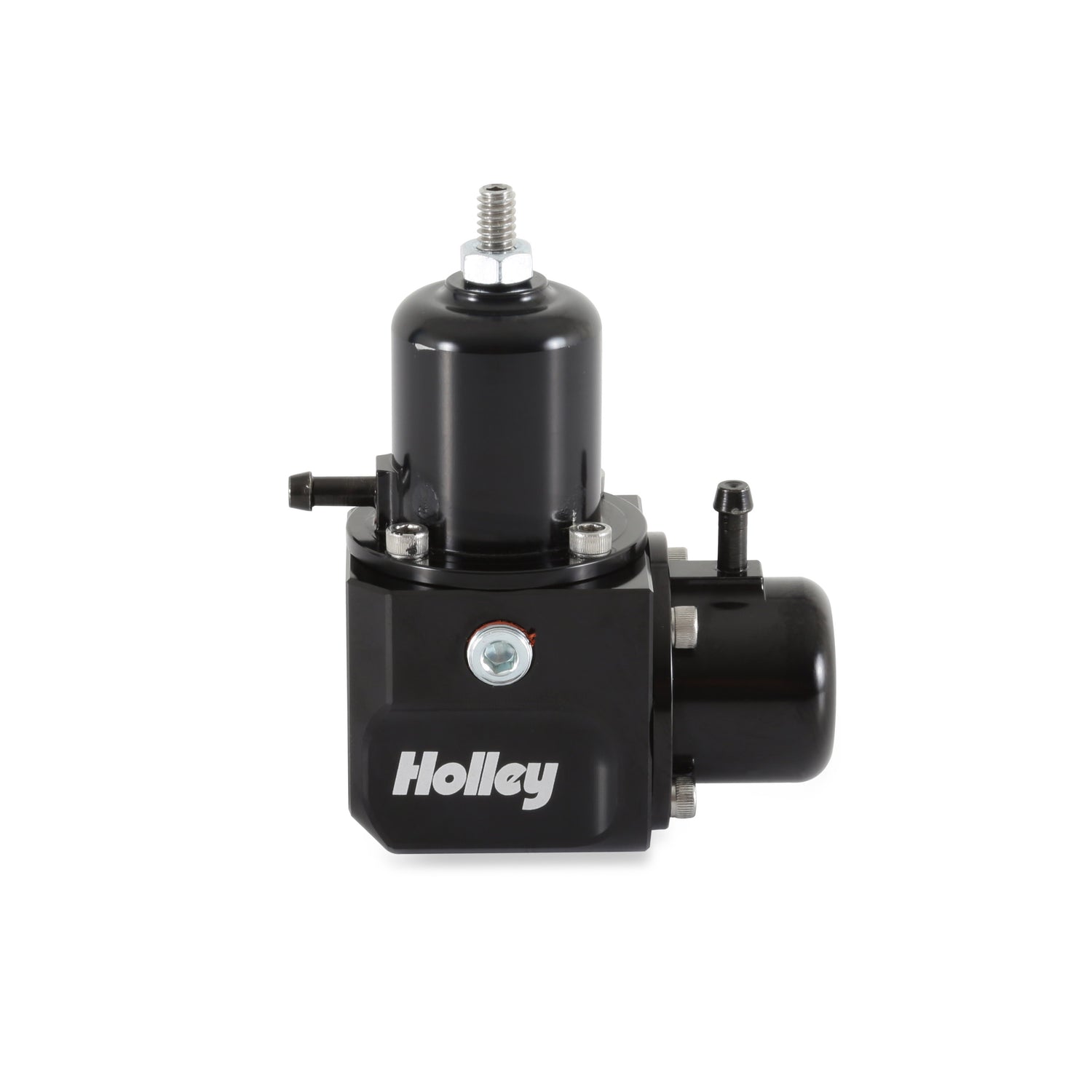

Holley 12-1001 HOLLEY FUEL REGULATOR/DAMPER
REGULATOR/DAMPER, EXTENDED RANGE 40-100PSI
Regular price
$687.80 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 12-1001 HOLLEY FUEL REGULATOR/DAMPER is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Holley 12-1001 HOLLEY FUEL REGULATOR/DAMPER
Regular price
$687.80 NZD
+ GST
Unit price
/
Unavailable
Description
Description
REGULATOR/DAMPER, EXTENDED RANGE 40-100PSI
Part Number: 12-1001
Fuel pulse dampers act in tandem with the fuel pressure regulator to further control the fuel pressure in an EFI system. They act to smooth out the pressure pulsations caused by the injectors opening and closing as well as the fuel pump operating. These pulsations happen so quickly that in many cases they can't be identified with an analog gauge but can cause issues with fuel delivery to the engine.
Features and Benefits
• Engineered to stabilize pressure pulsations caused by the injectors opening, ideal for applications with large fuel injectors and high volume fuel pumps
• Compatible with any fuel -- full anodized billet aluminum construction with stainless steel springs and fluorosilicone diaphragm

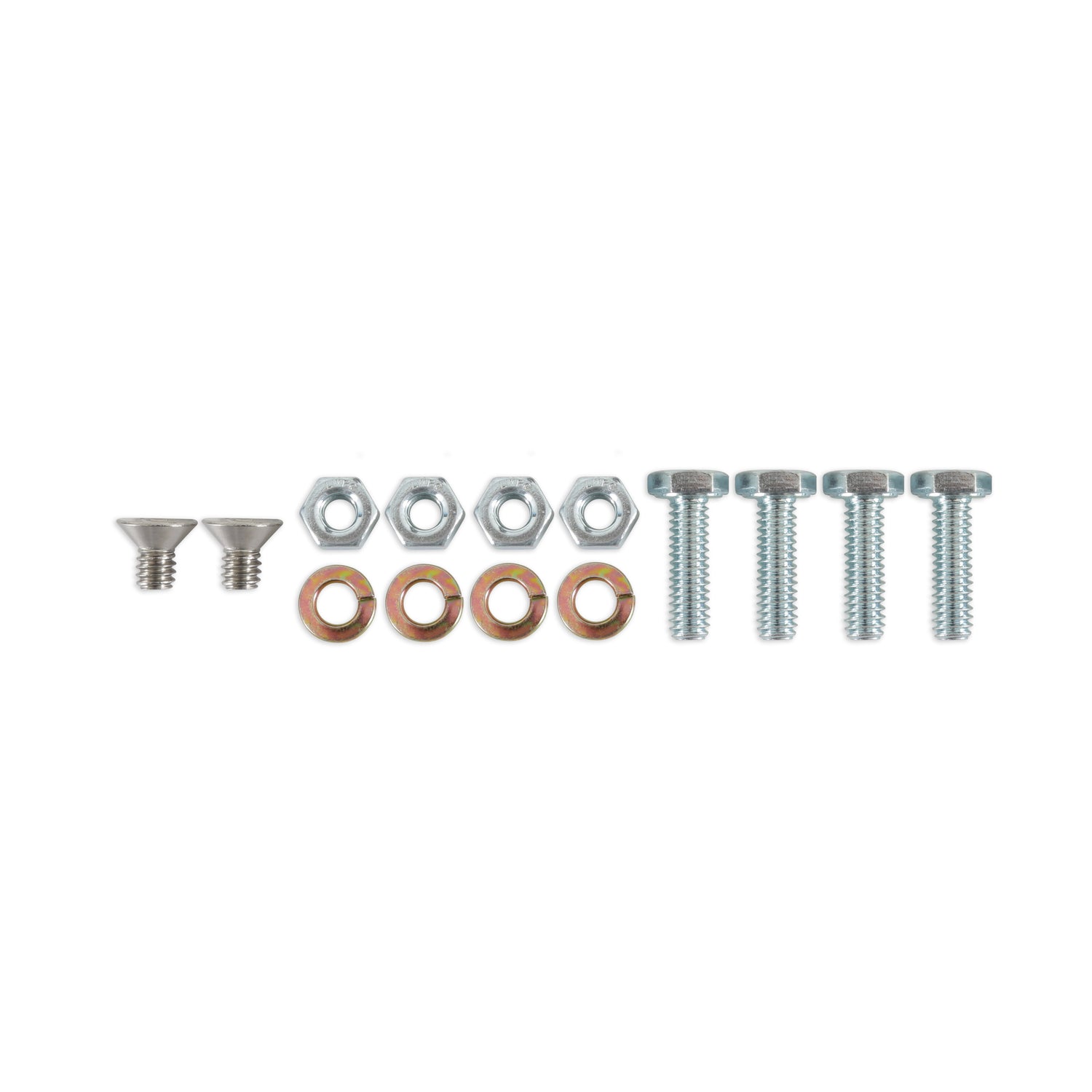

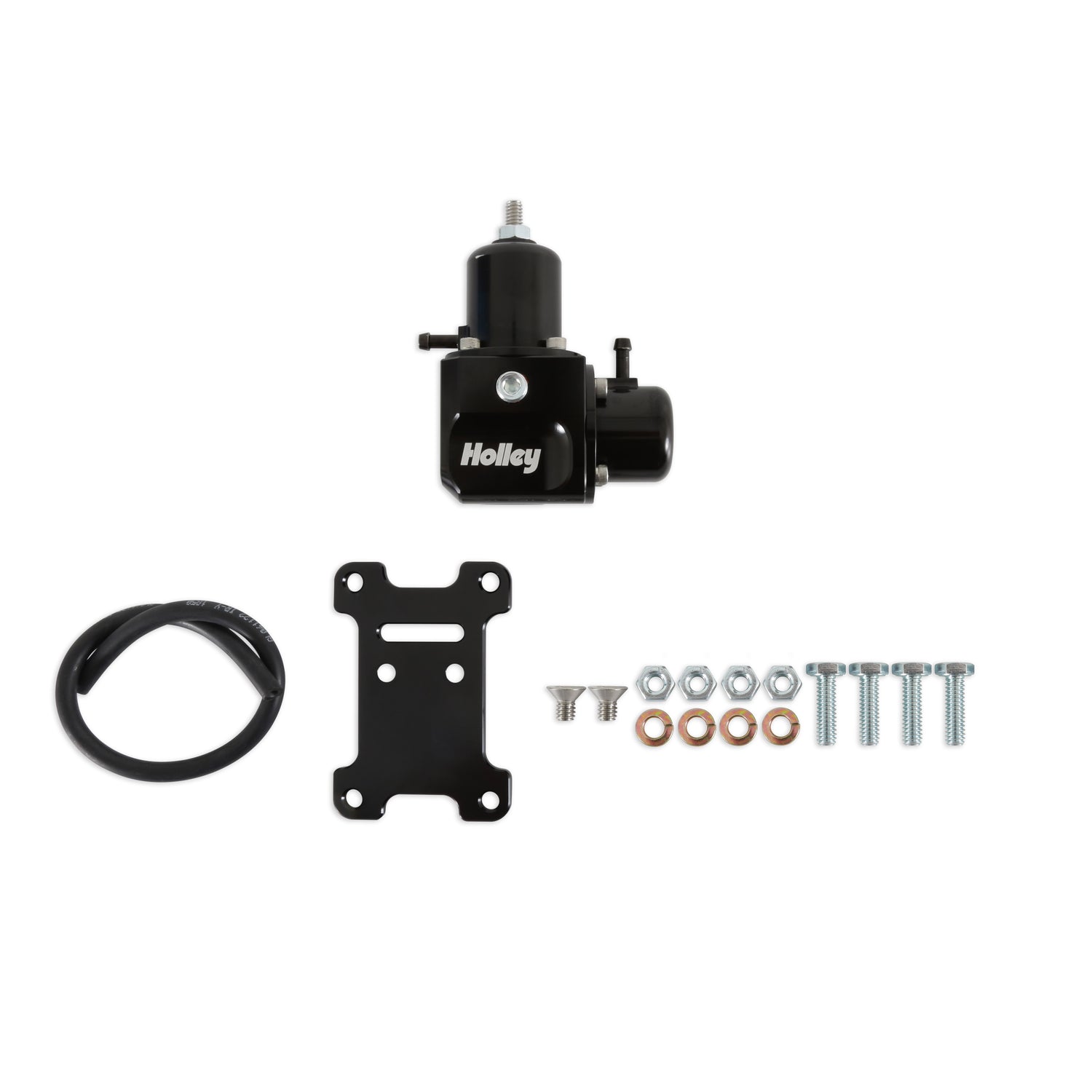

• Fittings included for damper/regulator’s and direct mount dampers
• 1/8" NPT port on body of damper/regulators and in-line dampers for easy installation of mechanical pressure gauge or pressure transducer

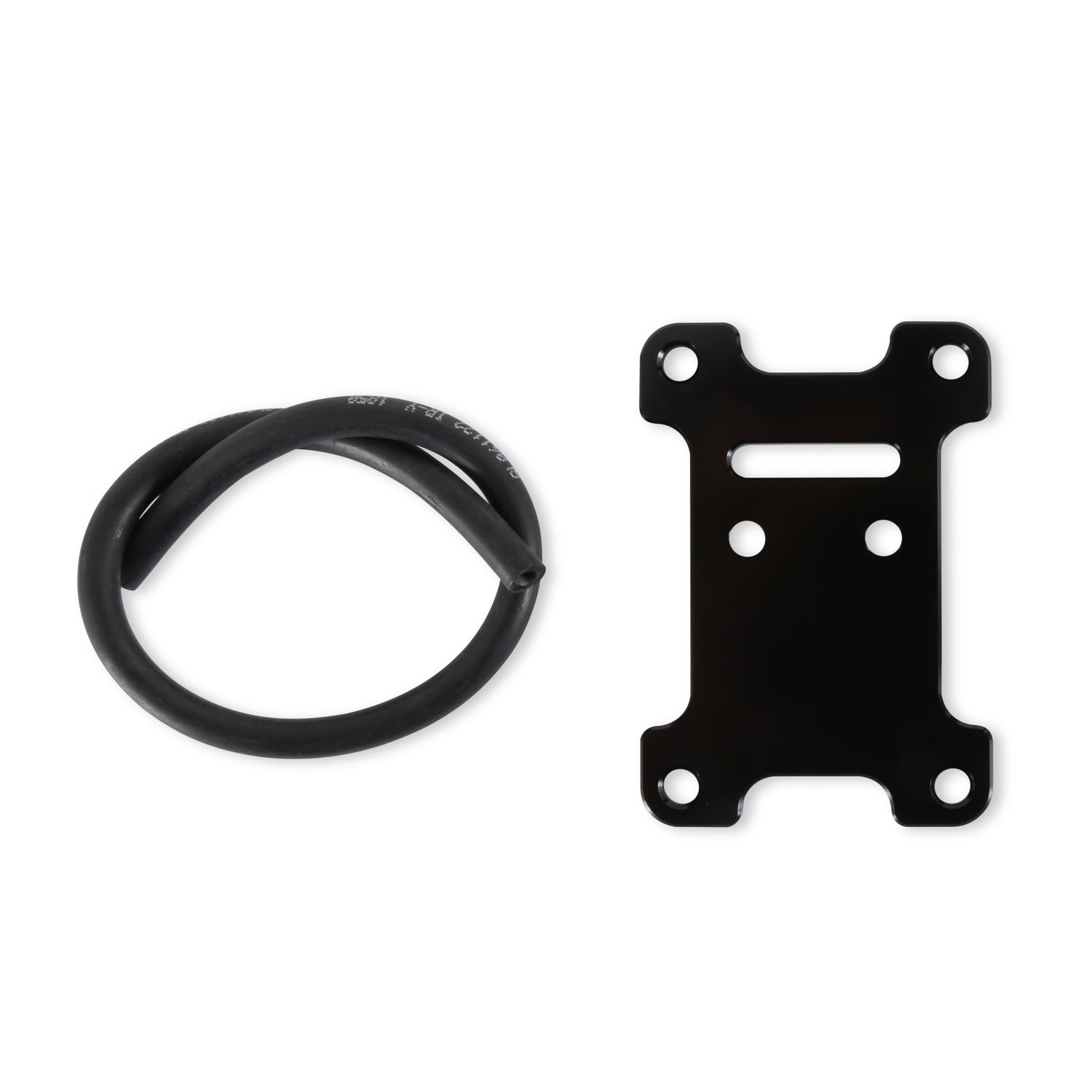

• Vacuum fitting and one foot of hose included with all dampers for vacuum referencing
• Assembled and tested in the USA
Part Number: 12-1001
Fuel pulse dampers act in tandem with the fuel pressure regulator to further control the fuel pressure in an EFI system. They act to smooth out the pressure pulsations caused by the injectors opening and closing as well as the fuel pump operating. These pulsations happen so quickly that in many cases they can't be identified with an analog gauge but can cause issues with fuel delivery to the engine.
Features and Benefits
• Engineered to stabilize pressure pulsations caused by the injectors opening, ideal for applications with large fuel injectors and high volume fuel pumps
• Compatible with any fuel -- full anodized billet aluminum construction with stainless steel springs and fluorosilicone diaphragm
• Fittings included for damper/regulator’s and direct mount dampers
• 1/8" NPT port on body of damper/regulators and in-line dampers for easy installation of mechanical pressure gauge or pressure transducer
• Vacuum fitting and one foot of hose included with all dampers for vacuum referencing
• Assembled and tested in the USA
Specifications
Specifications
-
Specifications
Adjustable Yes Brand Holley Category Air and Fuel Delivery Emission Code 3 Finish Anodized Black Fuel Type Gasoline / Ethanol / Methanol / E85 Gauge Included No Gauge Port Included Yes Grade Type Performance Inlet / Outlet Size 3/4-16 Female O-Ring (AN 8) Inlet Gender Female Inlet Port Diameter 8 AN ORB Inlet Port Quantity 1 Inlet Type 8 AN ORB Maximum Pressure 100 Minimum Pressure 40 Mounting Bracket Included Yes Mounting Type Inline Outlet Gender Female Outlet Port Diameter 8 AN ORB Outlet Port Quantity 1 Outlet Type 8 AN ORB part type Fuel Pressure Regulator Port Quantity 2 Pressure Range 40-100 PSI Product Type Fuel Pressure Regulator/ Damper Rebuildable Yes Style Billet Aluminum Sub Category Carburetion Vacuum Port Quantity 2 Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
