Holley EFI | SKU:
112-588

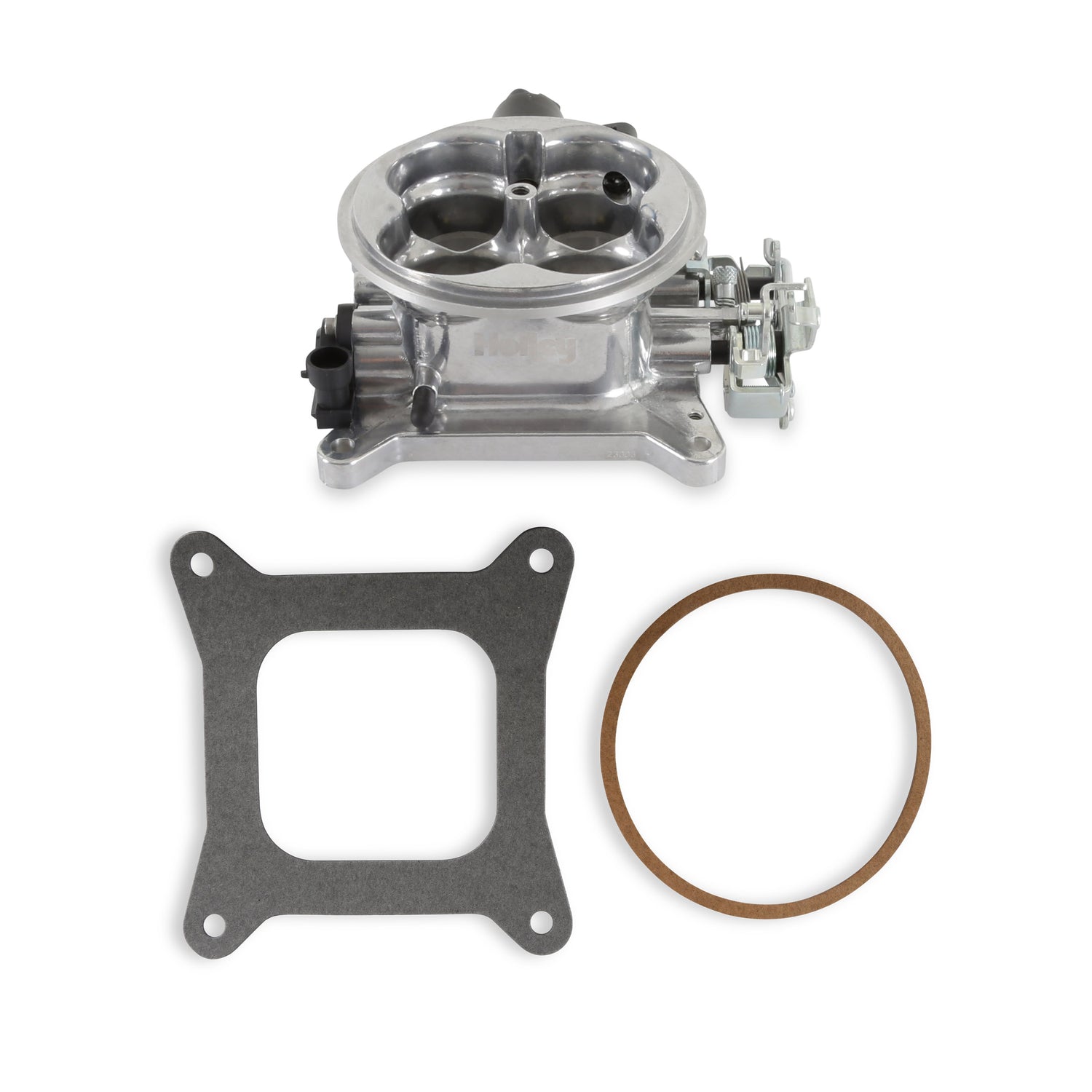

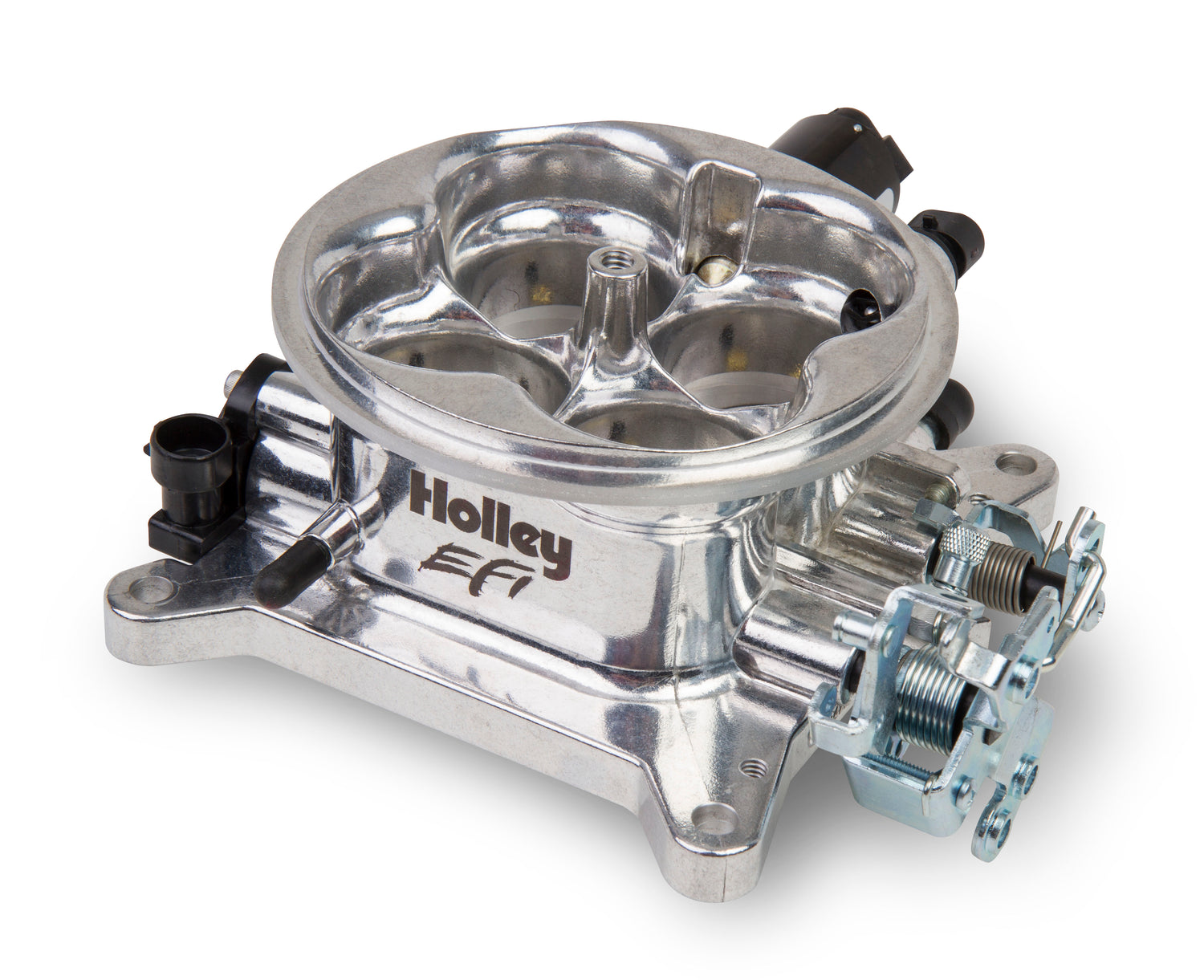

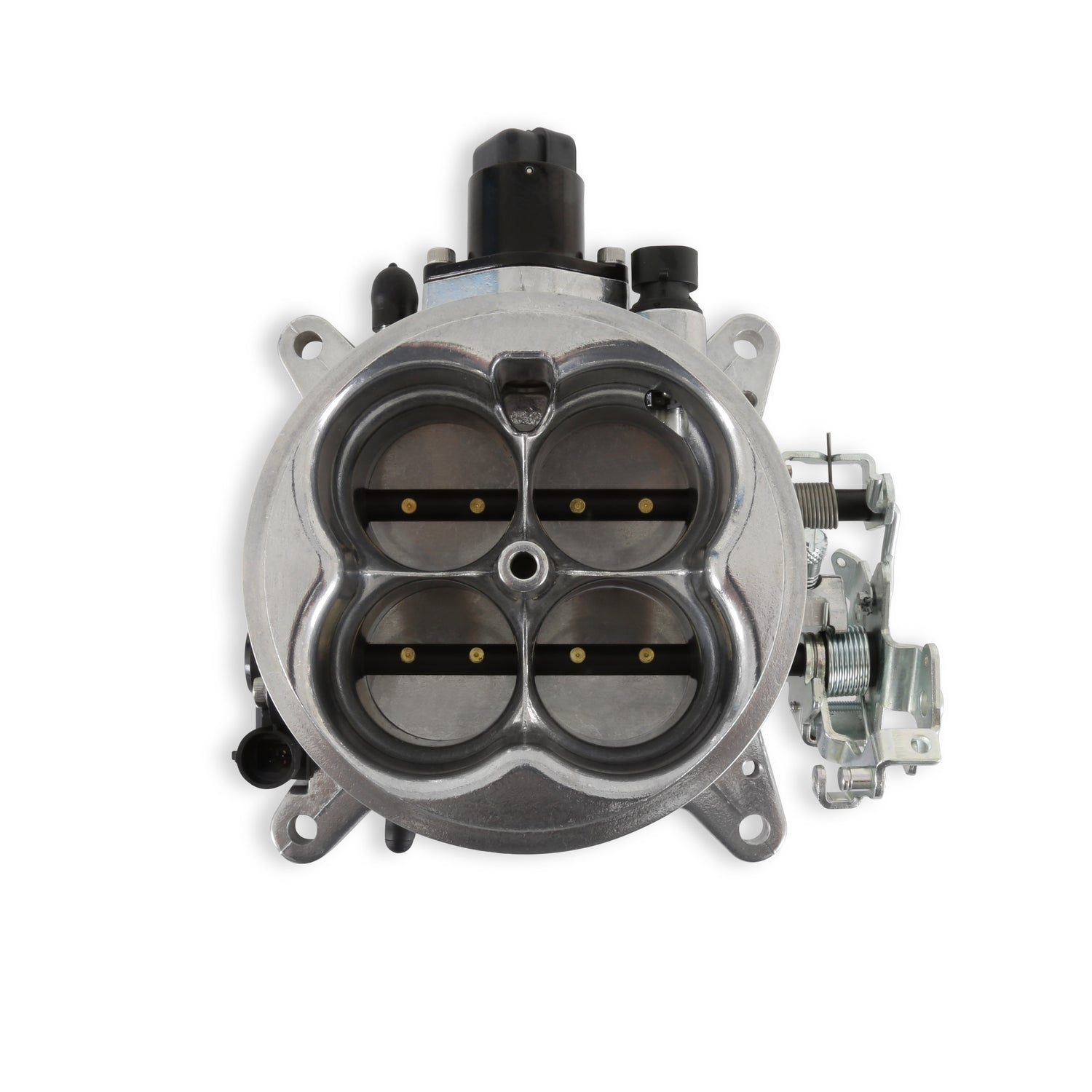

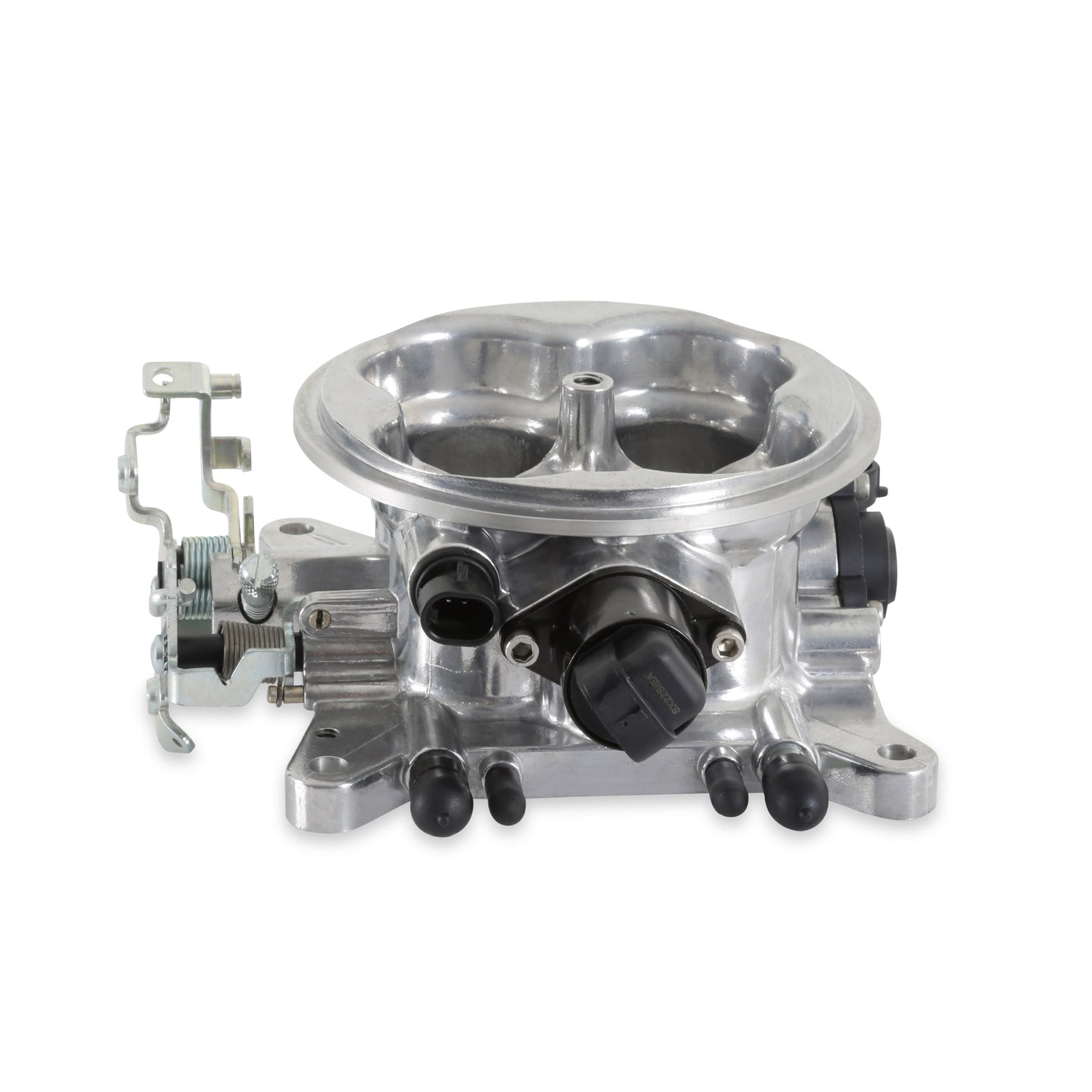

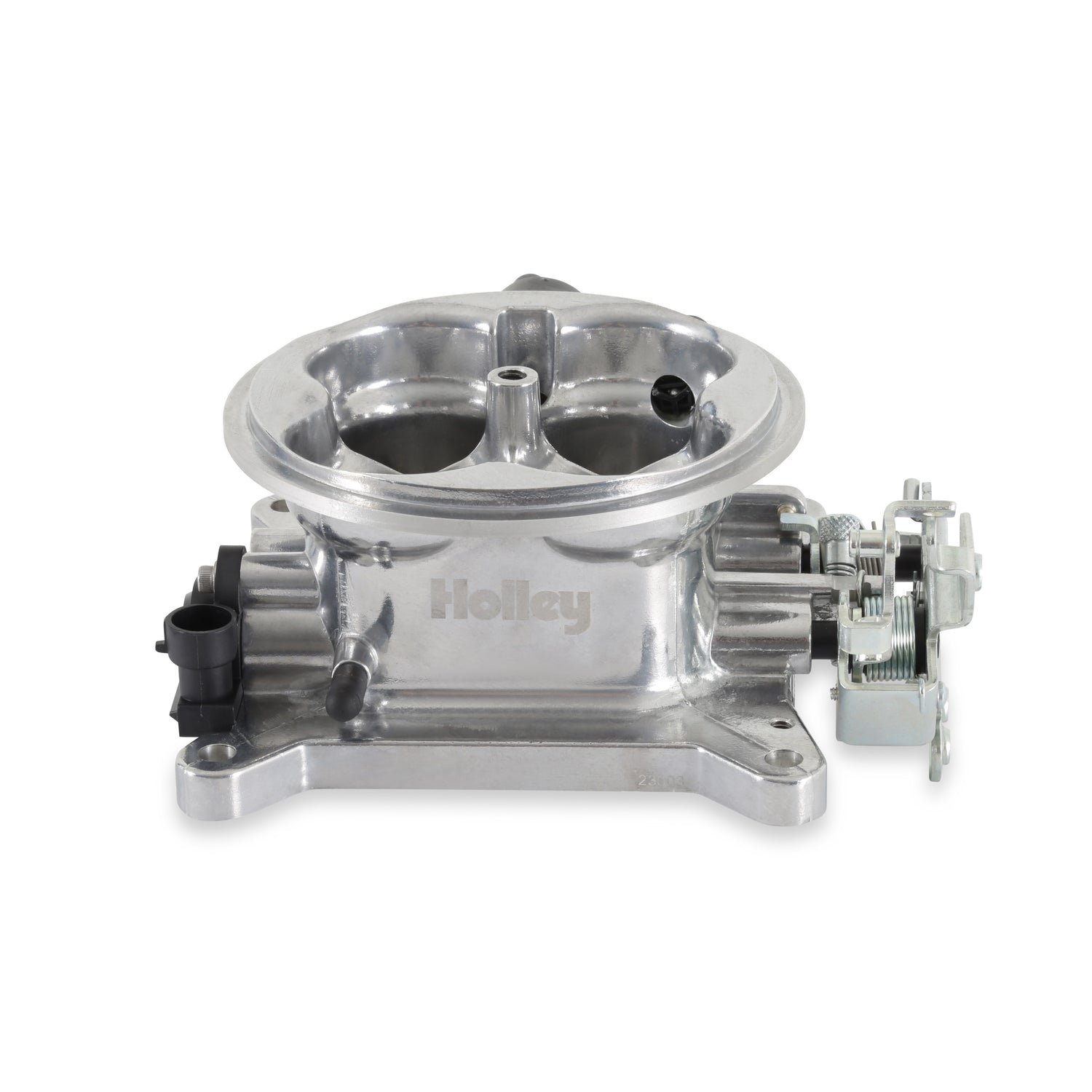

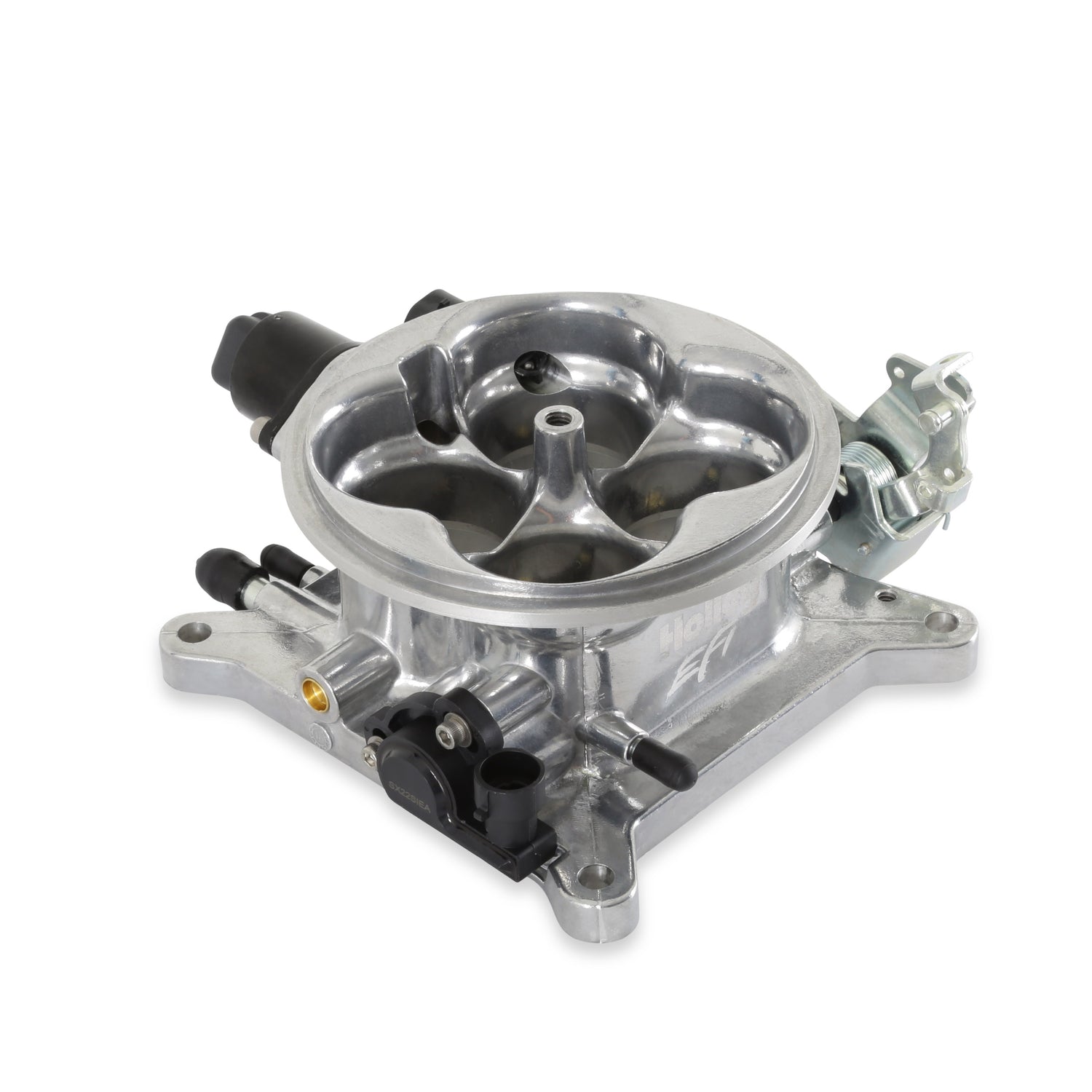

Holley 112-588 4BBL 1000CFM Universal 4BBL 1000CFM Throttle Body
Universal 4BBL 1000CFM 4150 Flange Throttle Body - Polished Finish
Regular price
$1,176.00 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 112-588 4BBL 1000CFM Universal 4BBL 1000CFM Throttle Body is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Universal 4BBL 1000CFM 4150 Flange Throttle Body - Polished Finish
Part Number: 112-588
Holley's new 1000 CFM throttle body shares the same air entry area design that powers every NASCAR Sprint Cup Series™ car. The throttle body features integrated throttle position, idle air control, and intake air temperature sensors. Ford and GM transmission kick down levers as well as all necessary vacuum ports.
Features and Benefits
• Standard square bore mounting pattern for installation on various intake manifolds
• Flows 1000 CFM to handle high horsepower engines
• Exclusive CFD computer modeled air entry area delivers maximum velocity and accelerated air speed
• Integrated TPS, IAC, and Air Temperature Sensor
• Hi Flow IAC passages for larger cubic inch engines for idle stability
• Ford transmission kick down lever for use with Ford automatic transmissions
• Integrated GM 700R4 transmission kick down location, no adapters needed
• (1) timed spark, (2) 3/8" and (2) 3/16" full manifold necessary vacuum ports
• 1.75" throttle plates mounted to PTFE coated throttle shafts for higher flow and a smoother feel
• High quality die cast aluminum for strength and weight reduction
• Tumble polished finish
This throttle body is an air valve only (no injectors).
Part Number: 112-588
Holley's new 1000 CFM throttle body shares the same air entry area design that powers every NASCAR Sprint Cup Series™ car. The throttle body features integrated throttle position, idle air control, and intake air temperature sensors. Ford and GM transmission kick down levers as well as all necessary vacuum ports.
Features and Benefits
• Standard square bore mounting pattern for installation on various intake manifolds
• Flows 1000 CFM to handle high horsepower engines
• Exclusive CFD computer modeled air entry area delivers maximum velocity and accelerated air speed
• Integrated TPS, IAC, and Air Temperature Sensor
• Hi Flow IAC passages for larger cubic inch engines for idle stability
• Ford transmission kick down lever for use with Ford automatic transmissions
• Integrated GM 700R4 transmission kick down location, no adapters needed
• (1) timed spark, (2) 3/8" and (2) 3/16" full manifold necessary vacuum ports
• 1.75" throttle plates mounted to PTFE coated throttle shafts for higher flow and a smoother feel
• High quality die cast aluminum for strength and weight reduction
• Tumble polished finish
This throttle body is an air valve only (no injectors).
Specifications
Specifications
-
Specifications
Adjustable Yes Barrels 4 Bore Diameter 4x1.75 IN Brand Holley EFI Category Air and Fuel Delivery CFM 1000 Emission Code 3 Flange Style 4150/4160 Square Bore Fuel Injectors Included No Fuel System Type EFI Gasket Or Seal Included No Grade Type Performance Height 2.80" Idle Air Control Motor Included Yes Mounting Hardware Included No Product Type Throttle Body Throttle Body Finish Polished Throttle Body Material Cast Aluminum Throttle Body Spacer Included No Throttle Bore 1.750 inch Throttle Position Sensor Included Yes Warning California Proposition 65 -
