Holley EFI | SKU:
112-581

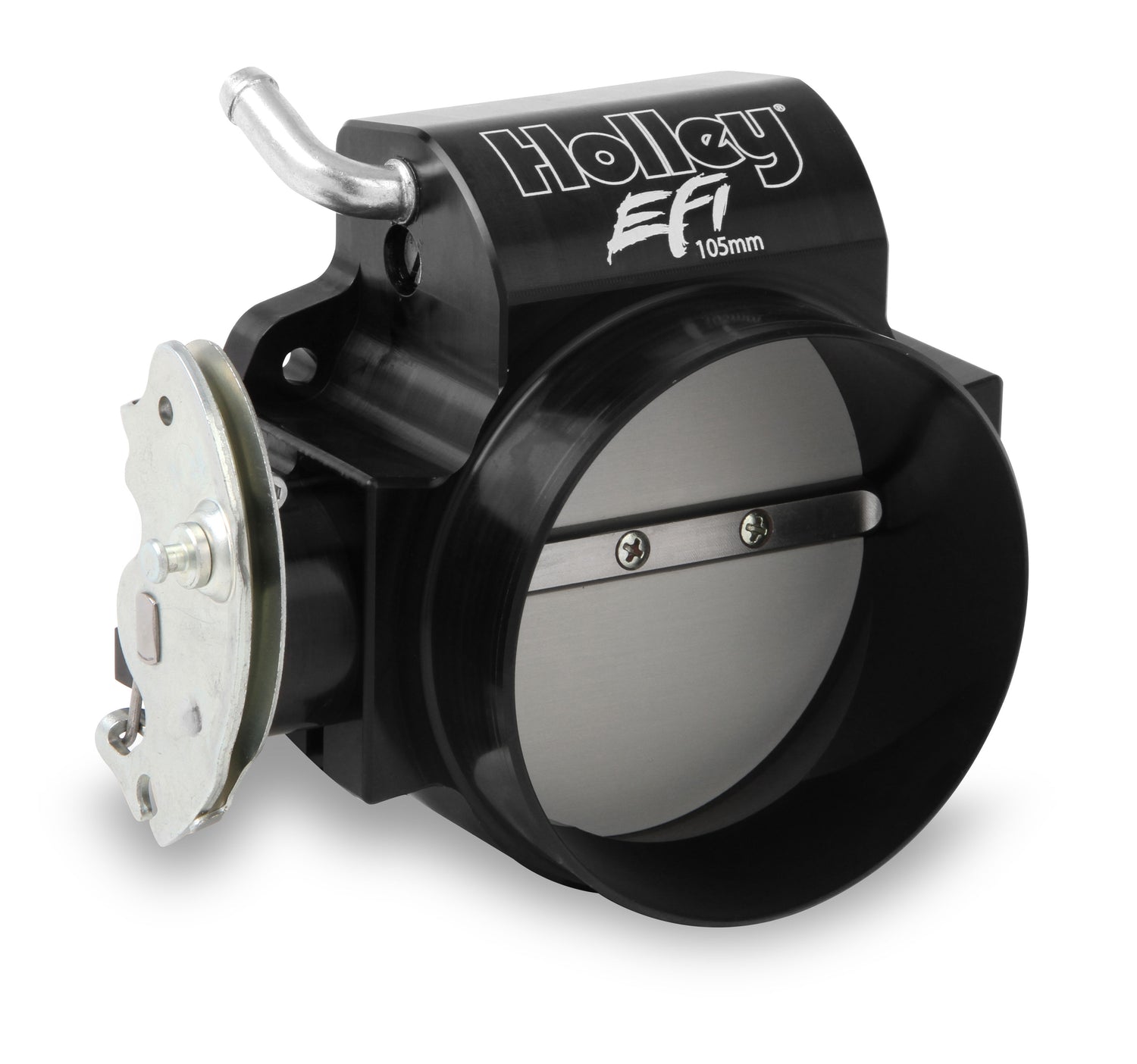

Holley 112-581 BILLET 105mm LS Throttle Body w/low RPM Taper
LS 105mm TB w/cable drive and taper
Regular price
$1,642.90 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 112-581 BILLET 105mm LS Throttle Body w/low RPM Taper is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
LS 105mm TB w/cable drive and taper
Part Number: 112-581
Holley's BILLET LS Throttle Bodies are the BIGGEST BORE - MOST FEATURE LOADED available. Holley went back to the drawing board and built the ultimate air valve for your LS engine! This all new design boasts a huge 105 millimeter bore for when WOT is all that matters. Innovative features like Idle Bleed Adjustment, TPS CLOCKER, and closable PCV Passage Valve, make them the ultimate throttle bodies for ease of installation and tuning. Regardless of whether you have a turbo, supercharger, or a big cam engine sucking gulps of air, Holley's throttle bodies are maximized for your application. The barrier protection of the BLACK ANODIZED finish also offers up a modern tech look!
Features and Benefits
• TPS CLOCKER allows the TPS to be rotated back into the ECU's required idle voltage range. Modified engines no longer suffer from problems related to TPS voltage!

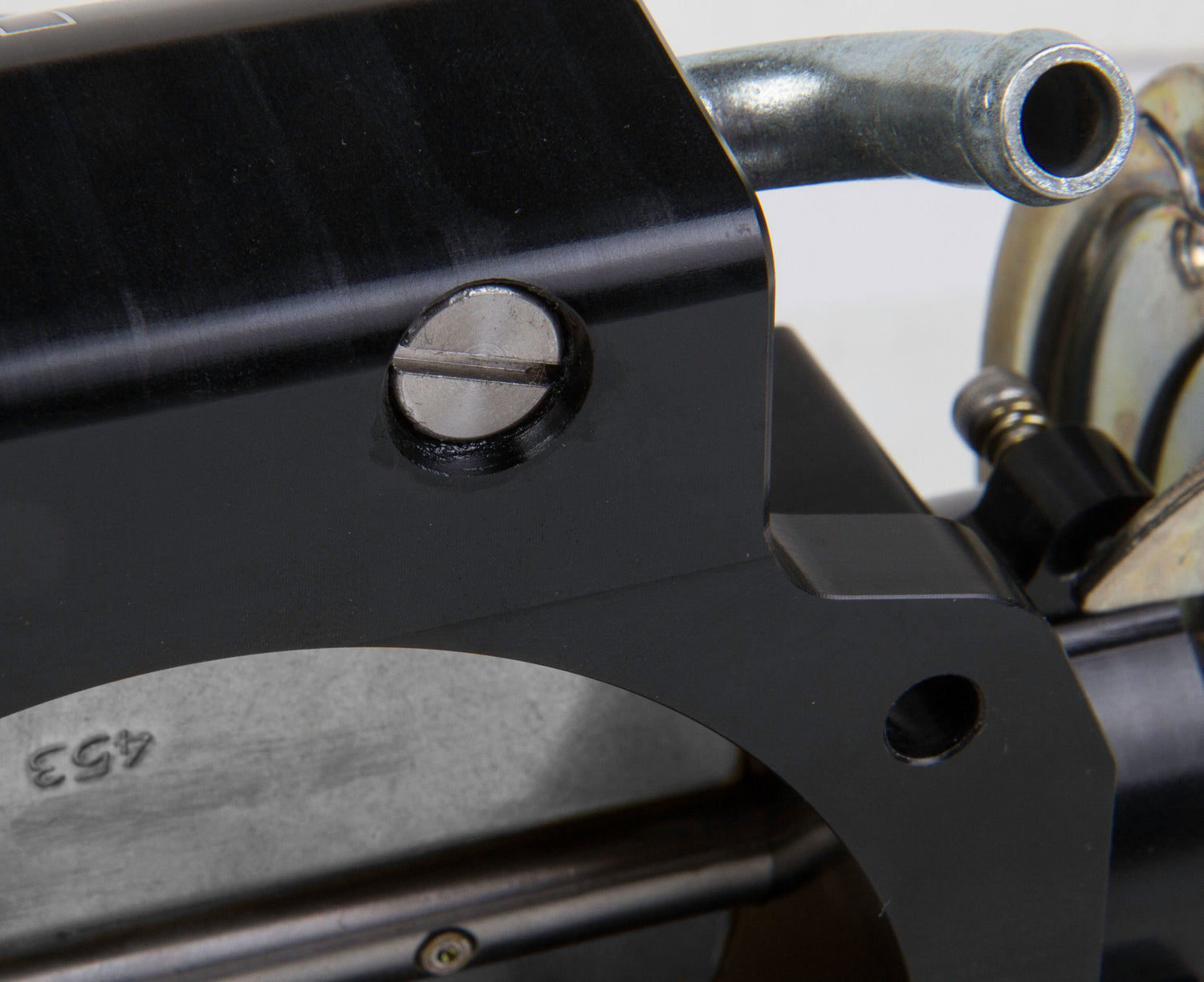

• IDLE BLEED allows adjustment of your idle without affecting throttle position or TPS voltages at idle!

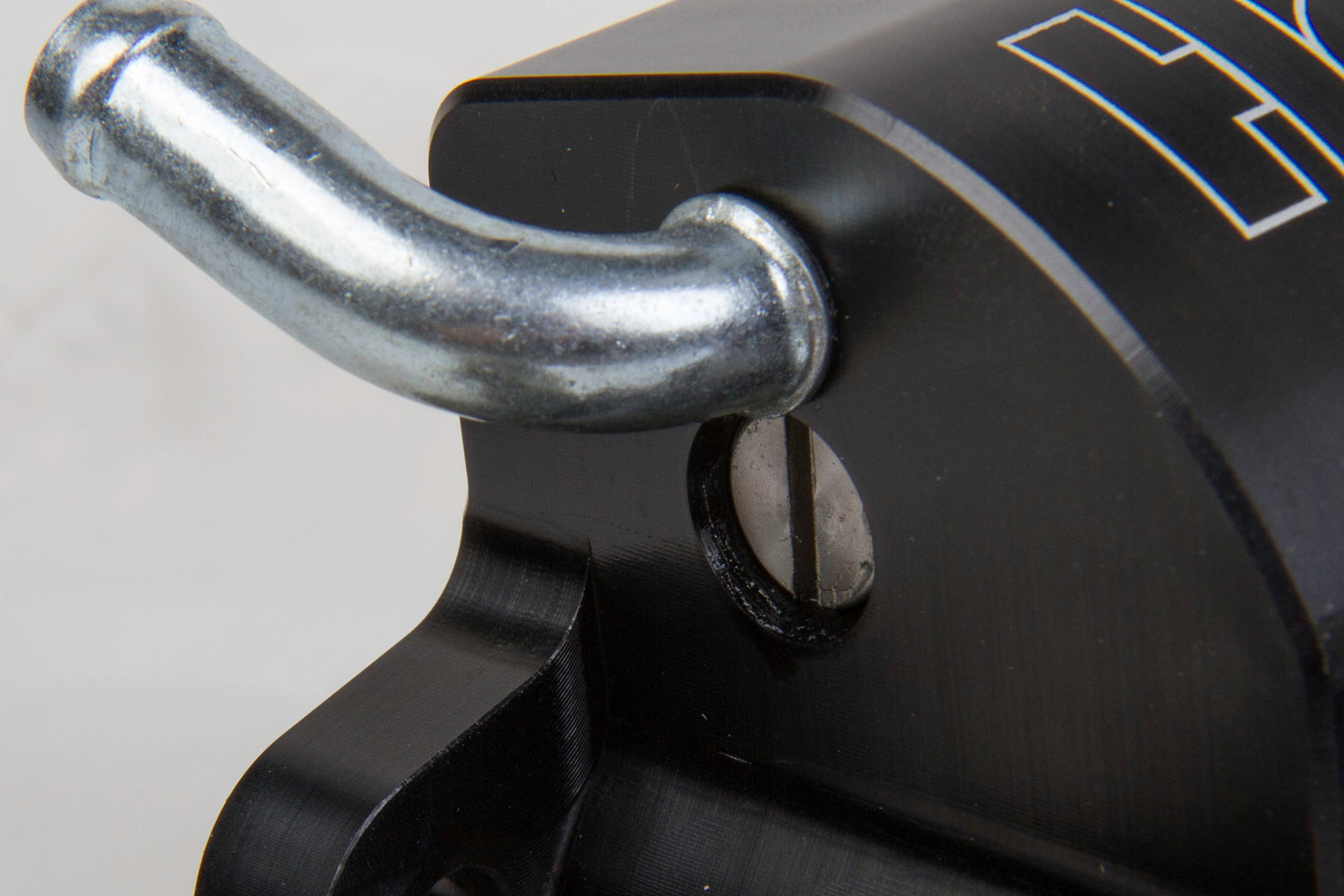

• PCV PASSAGE VALVE closes to accommodate forced induction applications! No more plugging to block off PCV!
• OVERSIZED BORE compared to other LS throttle bodies
• PREMIUM BILLET BODY supports the high tolerance design and look your performance engine deserves!
• BLACK ANODIZED FINISH for superior corrosion resistance and serious good looks
• CRUISE CONTROL provision built in for cruise control cable
• CABLE DRIVEN APPLICATION
• Fits the following intake manifolds: Holley 105mm Hi-Ram, Fast™ LSXR & LSXRT, MSD® Atomic AirForce, Most other 102 through 105mm LS intakes using 4 bolt TBs
Part Number: 112-581
Holley's BILLET LS Throttle Bodies are the BIGGEST BORE - MOST FEATURE LOADED available. Holley went back to the drawing board and built the ultimate air valve for your LS engine! This all new design boasts a huge 105 millimeter bore for when WOT is all that matters. Innovative features like Idle Bleed Adjustment, TPS CLOCKER, and closable PCV Passage Valve, make them the ultimate throttle bodies for ease of installation and tuning. Regardless of whether you have a turbo, supercharger, or a big cam engine sucking gulps of air, Holley's throttle bodies are maximized for your application. The barrier protection of the BLACK ANODIZED finish also offers up a modern tech look!
Features and Benefits
• TPS CLOCKER allows the TPS to be rotated back into the ECU's required idle voltage range. Modified engines no longer suffer from problems related to TPS voltage!
• IDLE BLEED allows adjustment of your idle without affecting throttle position or TPS voltages at idle!
• PCV PASSAGE VALVE closes to accommodate forced induction applications! No more plugging to block off PCV!
• OVERSIZED BORE compared to other LS throttle bodies
• PREMIUM BILLET BODY supports the high tolerance design and look your performance engine deserves!
• BLACK ANODIZED FINISH for superior corrosion resistance and serious good looks
• CRUISE CONTROL provision built in for cruise control cable
• CABLE DRIVEN APPLICATION
• Fits the following intake manifolds: Holley 105mm Hi-Ram, Fast™ LSXR & LSXRT, MSD® Atomic AirForce, Most other 102 through 105mm LS intakes using 4 bolt TBs
Specifications
Specifications
-
Specifications
Adjustable Yes Billet Color Black Bore Diameter 105 MM Brand Holley EFI Category Air and Fuel Delivery Emission Code 8 Fuel Injectors Included No Fuel System Type EFI Gasket Or Seal Included No Grade Type Performance Idle Air Control Motor Included No Material Billet Aluminum Mounting Hardware Included No part type Fuel Injection Throttle Body Product Type Throttle Body Sub Category Fuel Injection System and Related Components Throttle Body Finish Black Throttle Body Material Billet Aluminum Throttle Body Spacer Included No Throttle Bore 105mm Throttle Diameter (mm) 105mm Throttle Position Sensor Included No Warning California Proposition 65 -
