Holley | SKU:
0-9776

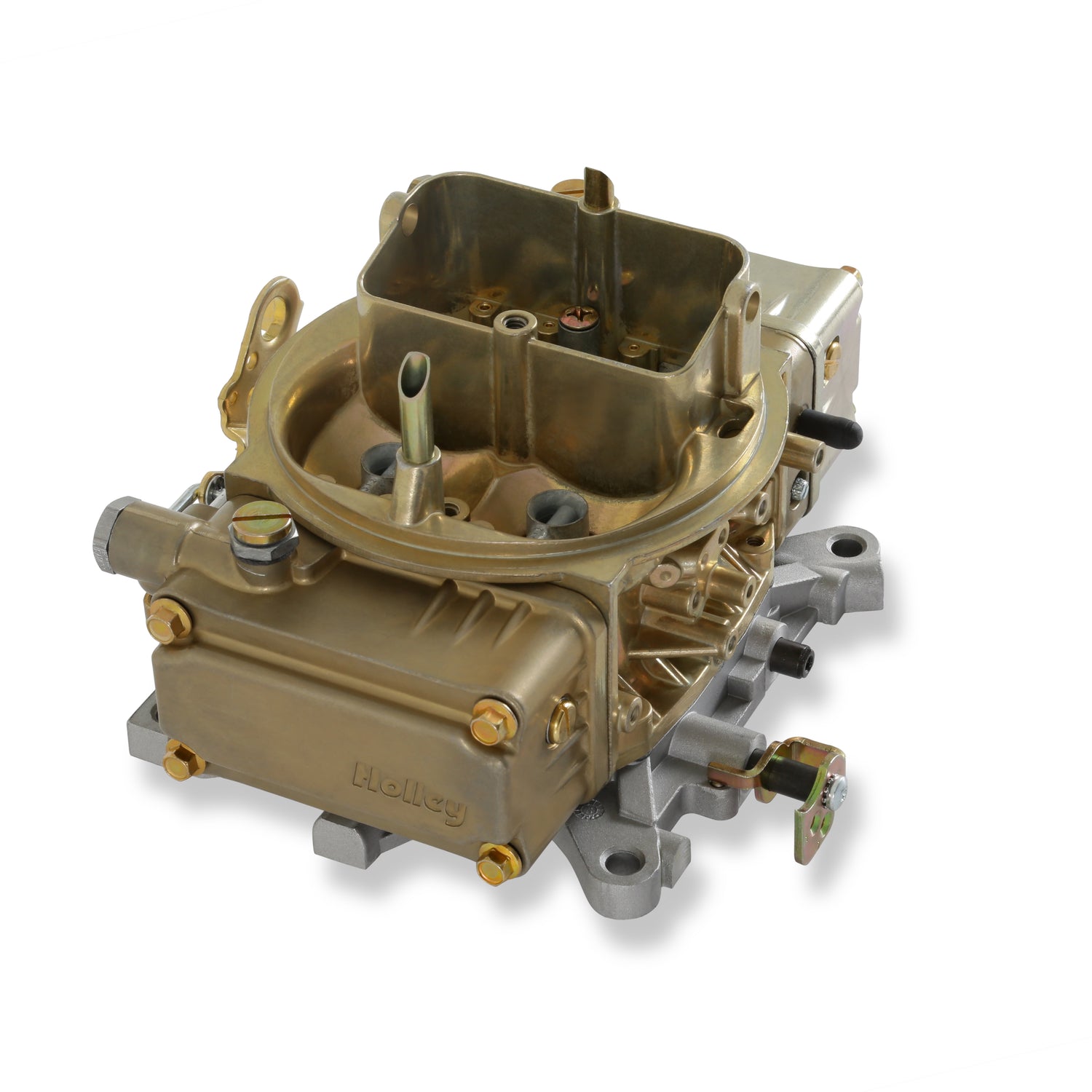

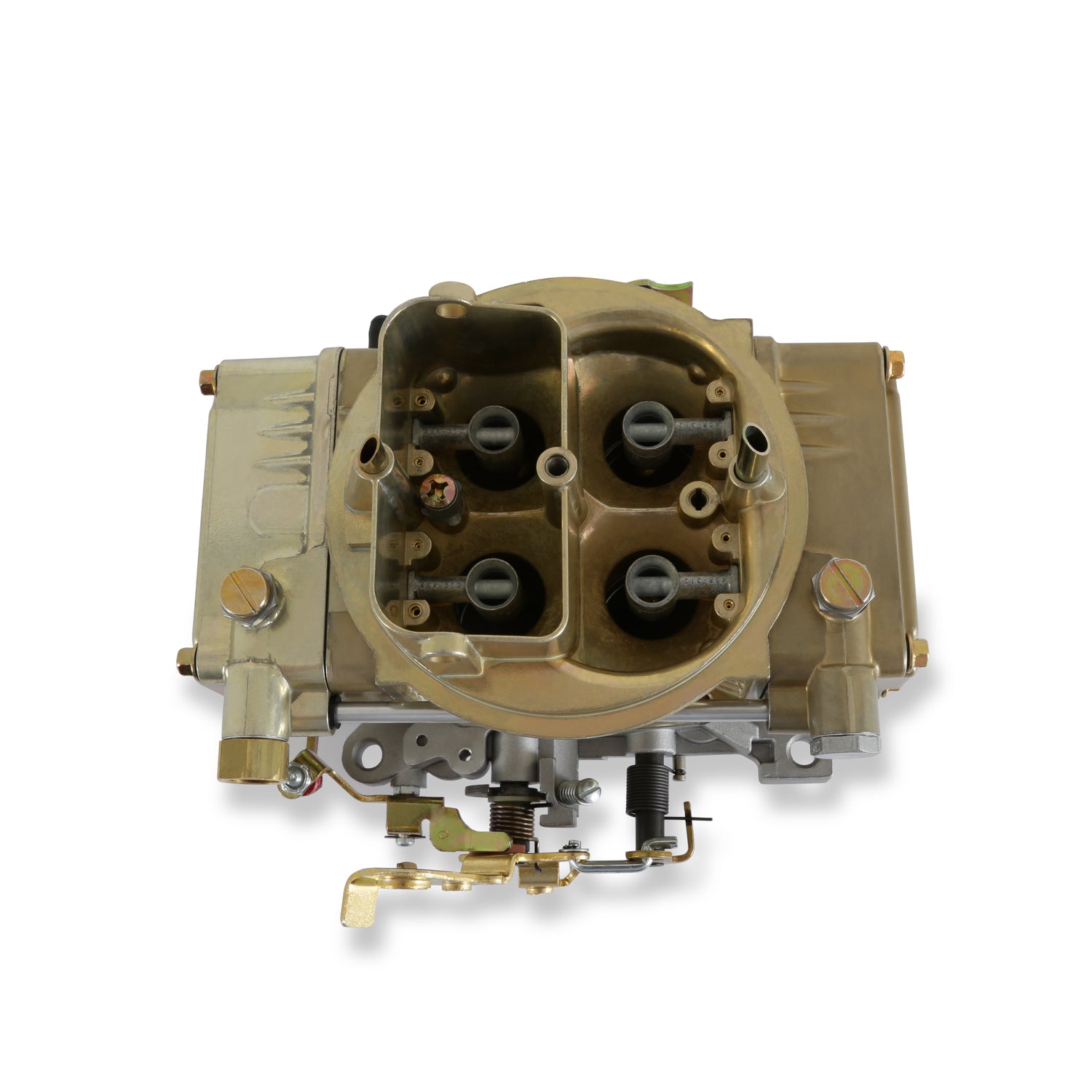

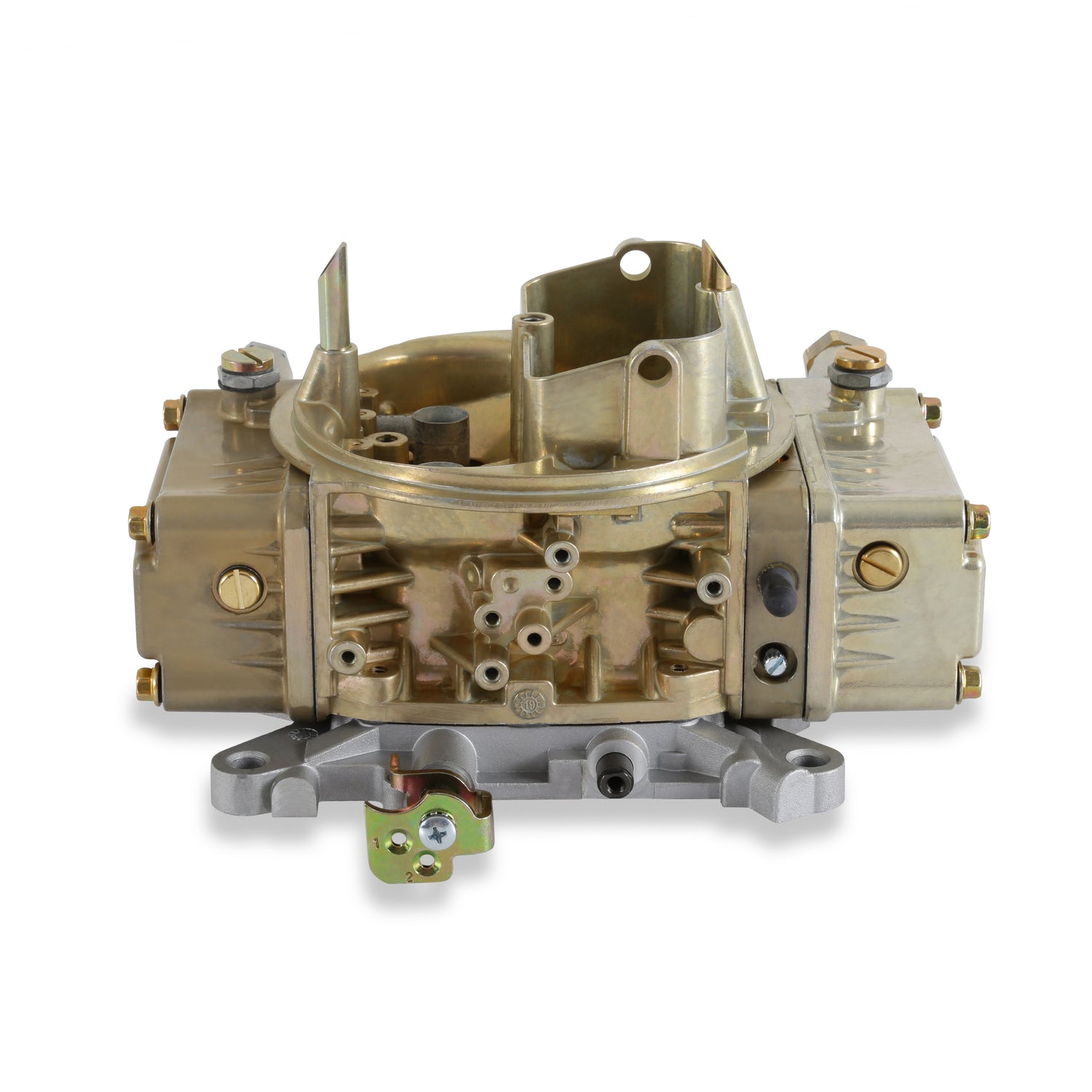

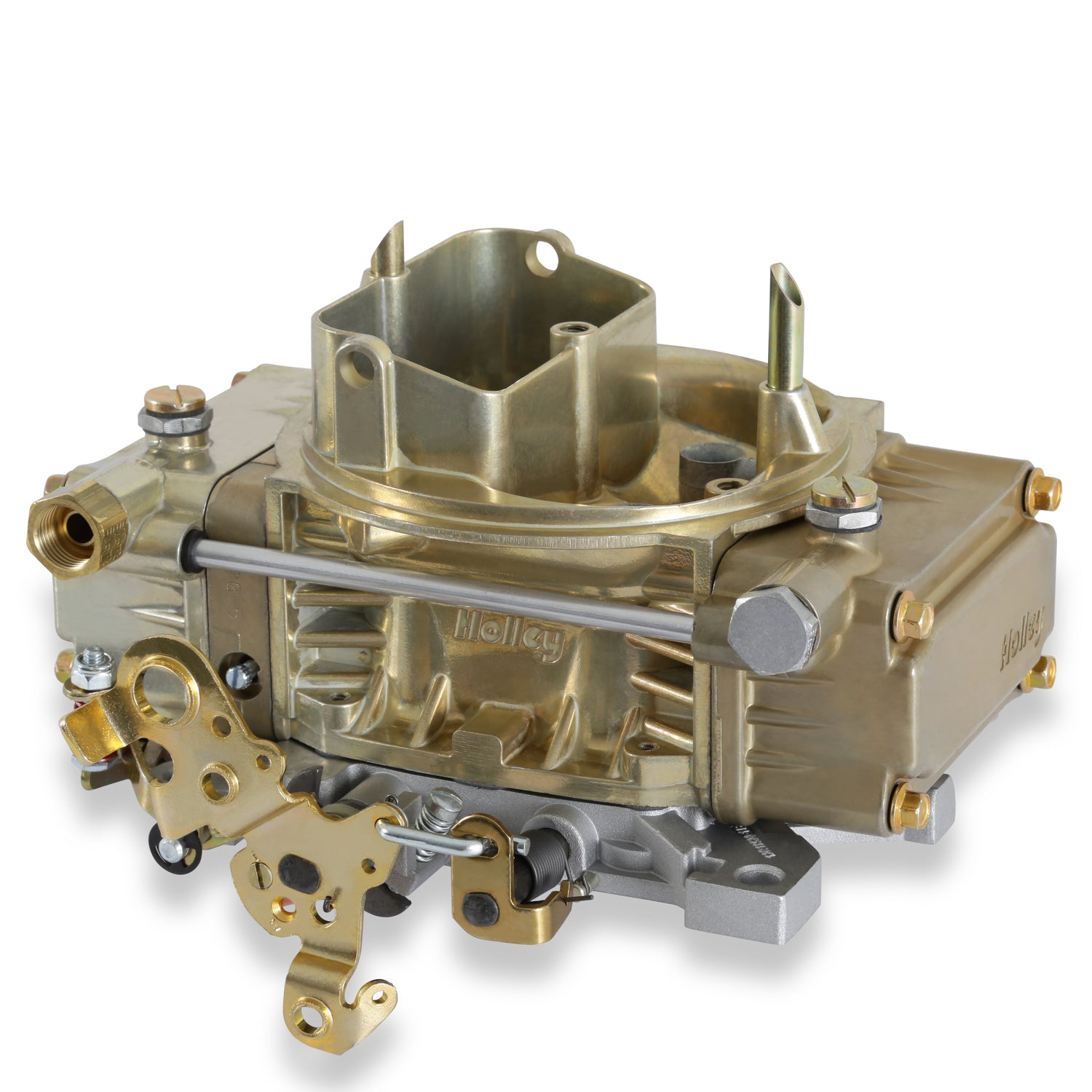

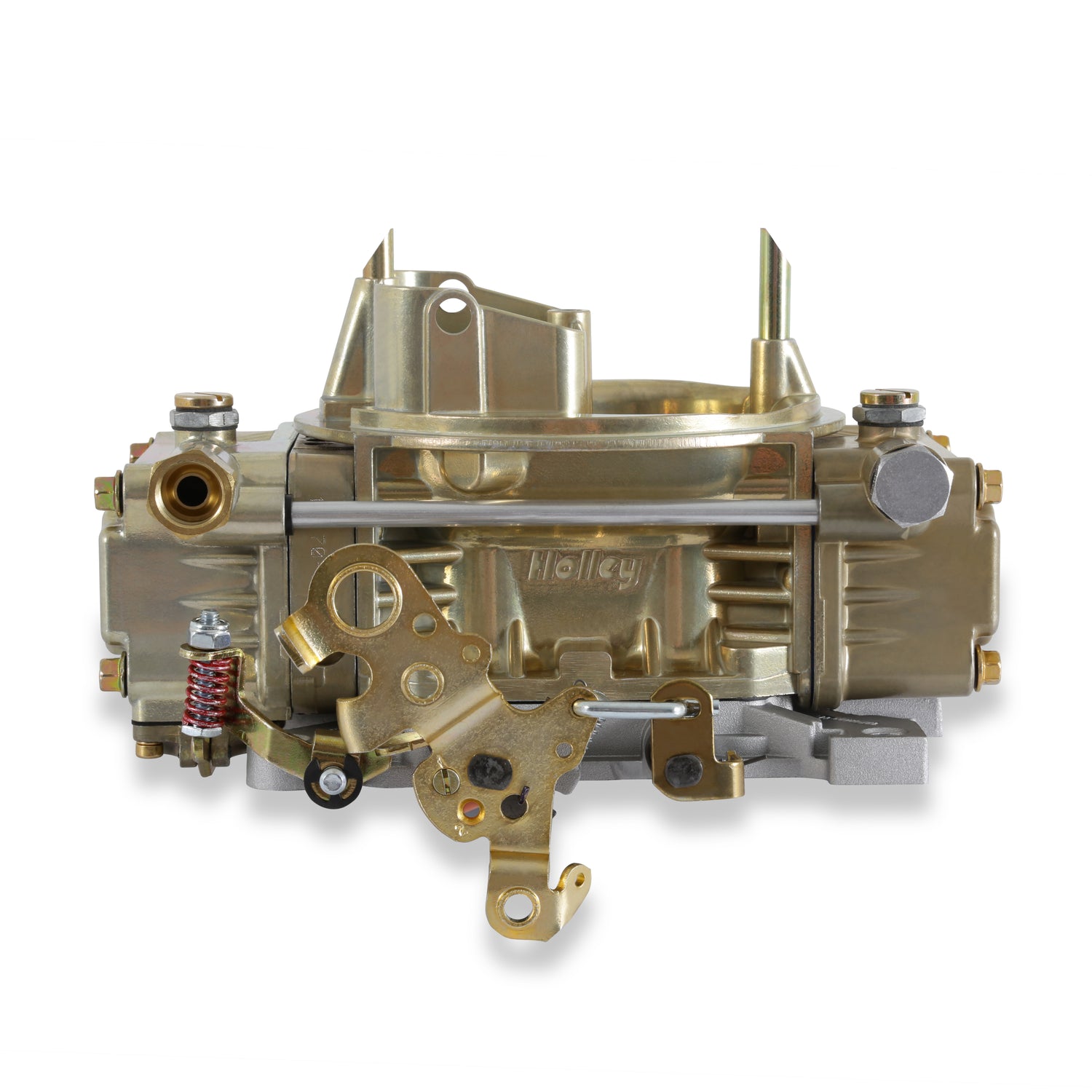

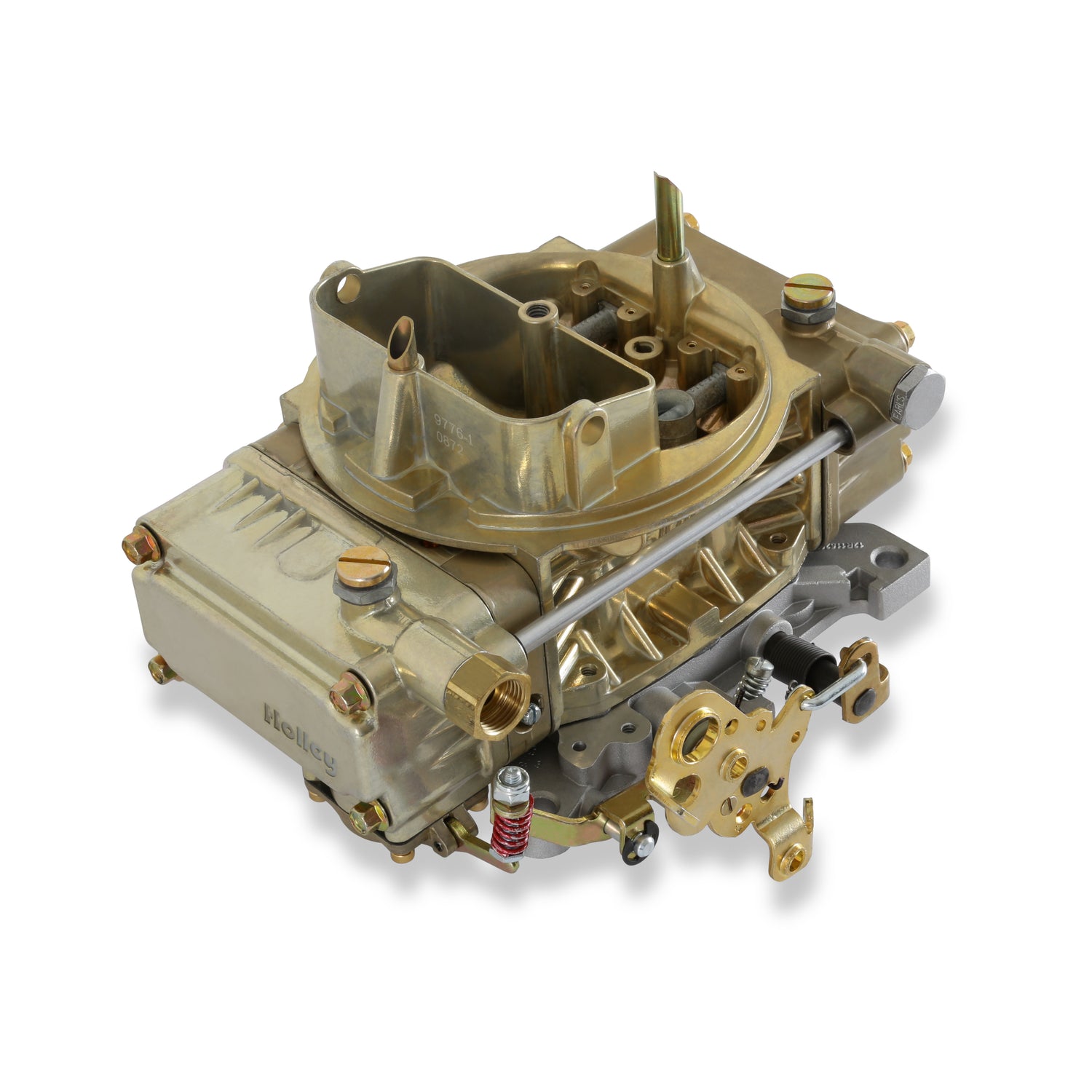

Holley 0-9776 450 CFM Tunnel Ram Carburetor
450 CFM - 4160 - Mechanical Secondaries - Gold Dichromate - Gasoline
Regular price
$1,370.30 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 0-9776 450 CFM Tunnel Ram Carburetor
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
450 CFM - 4160 - Mechanical Secondaries - Gold Dichromate - Gasoline
Part Number: 0-9776
The 0-9776 450 CFM mechanical secondary carburetor is designed as a universal performance carburetor for use on tunnel ram applications.
Features and Benefits
• Universal Holley 4-Barrel Carburetor
• Mechanical secondaries
• Specifically designed for tunnel ram intakes
• Gold dichromate finish resists corrosion
Notice - Due to the natural color variations of the dichromate plating process, the plating color may vary from casting to casting (within a carburetor) and from carburetor to carburetor. This is considered normal and is not a cosmetic defect. If you desire a carburetor with no color variation, please shop our black and shiny finish carburetors.
Part Number: 0-9776
The 0-9776 450 CFM mechanical secondary carburetor is designed as a universal performance carburetor for use on tunnel ram applications.
Features and Benefits
• Universal Holley 4-Barrel Carburetor
• Mechanical secondaries
• Specifically designed for tunnel ram intakes
• Gold dichromate finish resists corrosion
Notice - Due to the natural color variations of the dichromate plating process, the plating color may vary from casting to casting (within a carburetor) and from carburetor to carburetor. This is considered normal and is not a cosmetic defect. If you desire a carburetor with no color variation, please shop our black and shiny finish carburetors.
Specifications
Specifications
-
Specifications
Adjustable Air Bleeds No Adjustable Emulsion Bleeds No Adjustable Idle Feed Restrictors No Air Cleaner Flange Diameter 5-1/8 Barrel Quantity 4 Barrels 4 Barrels Quantity 4 Body Color Gold Dichromate Body Finish Plated Body Material Aluminum Booster Straight Booster Design Straight Brand Holley Carburetor Material Aluminium Carburetor Use Street Category Air and Fuel Delivery CFM 450 CFM Rating 450 Choke None Choke Type None Circuit Count 2 Color Gold Dichromate Condition New Cubic Feet Per Minute Rating 450 Emission Code 3 Finish Gold Dichromate Flange Shape Square Flange Size Square bore Flange Type Square/4150 Float Level Externally Adjustable Fuel Gasoline Fuel Inlet Single Fuel Inlet Count Single Fuel Inlet Type 9/16-24 Fuel Type Gasoline Gasket Or Seal Included Yes Grade Type Tunnel Ram Linkage Attached Yes Marine Approved No Marine Use No Material Aluminum Meter Block Material Cast Aluminum Metering Block Color Gold Dichromate Model 4160 Mounting Hardware Included No Mounting Hole Quantity 4 part type Carburetor Primary Float Type Side Hung Nitrophyl Primary Jet Diameter 58 Primary Main Jet Size 58 Primary Power Valve 8.5 Primary Pump Nozzle Size 31 Primary Throttle Bore Diameter 1.5 Primary Venturii Diameter 1.093 Product Type Carburetor Secondaries Mechanical Secondary Barrel Type Mechanical Secondary Float Type Side Hung Nitrophyl Secondary Jet Extensions No Secondary Throttle Bore Diameter 1.5 Series Classic Performance Spacer Included No Supercharged Application No Throttle Bore Diameter 1.5 Throttle Kickdown Provision(S) Compatible with GM, Chrysler, and Ford A/T kickdown linkage Vacuum Ports 1 timed (spark) port Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
