Holley  |  SKU: 0-9015-2

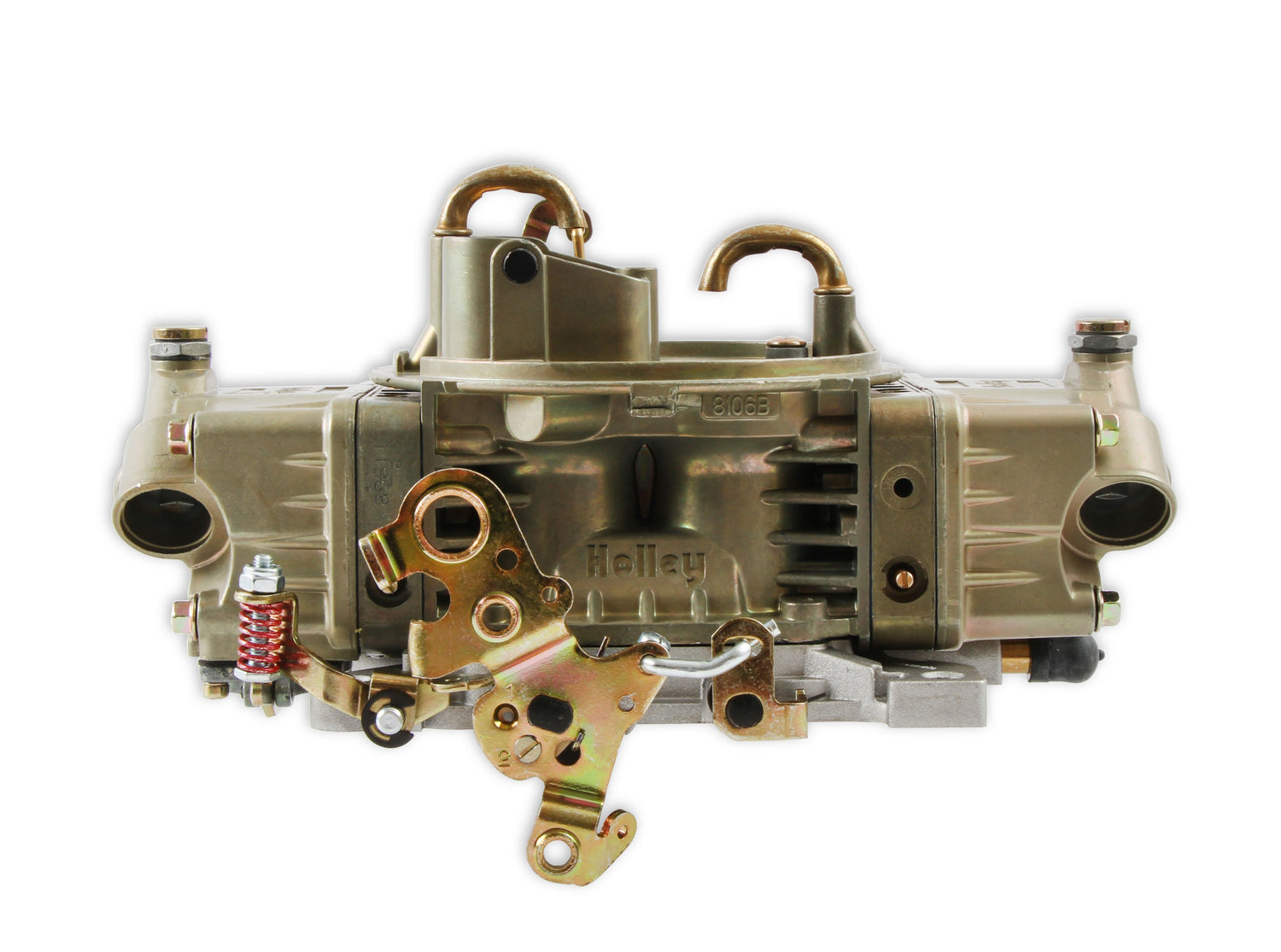

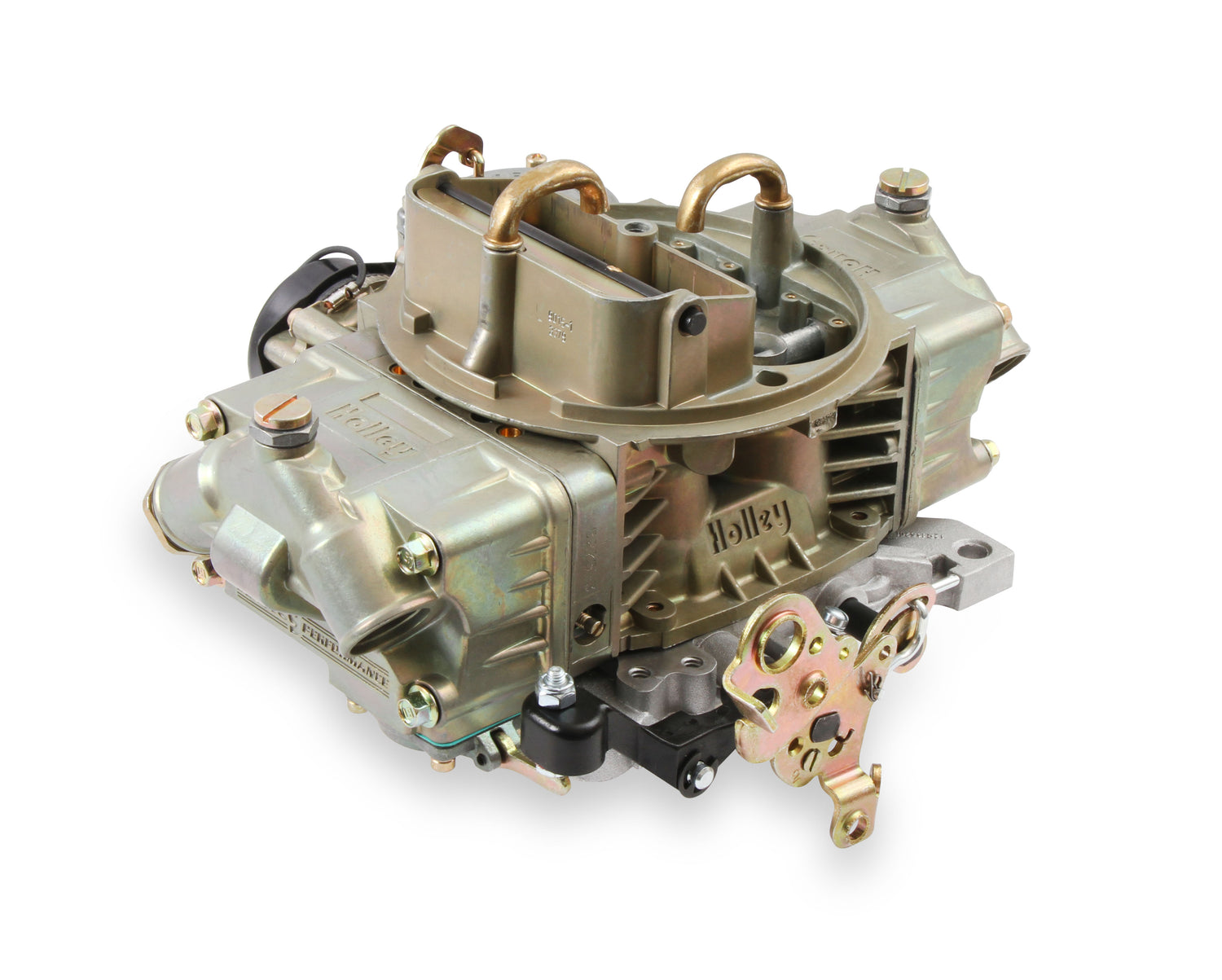

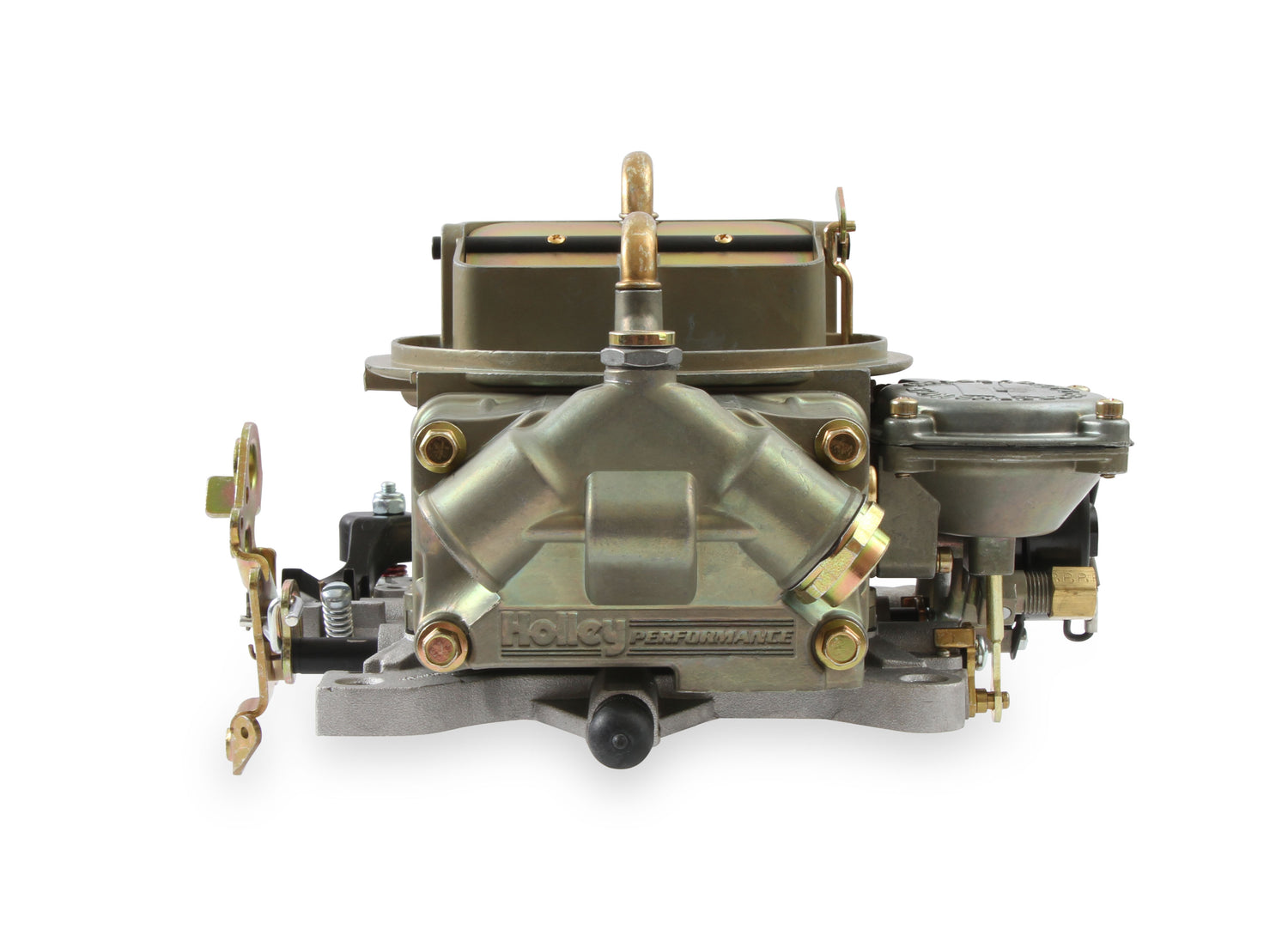

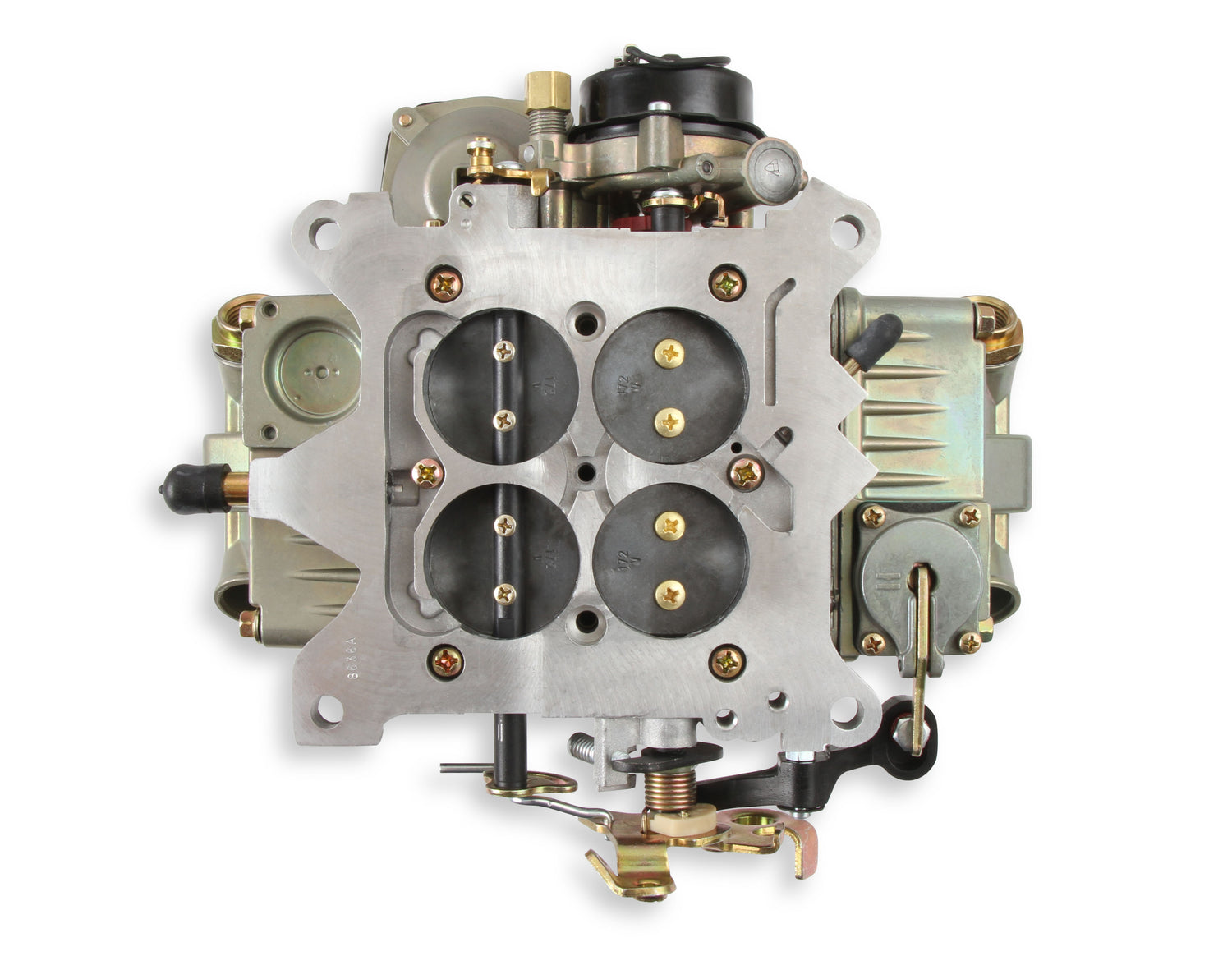

Holley 0-9015-2 750 CFM Marine Carburetor

750 CFM - 4150 - Vacuum Secondaries - Gold Dichromate - Gasoline

Regular price $1,431.20 NZD + GST
Shipping calculated at checkout.

Description

750 CFM - 4150 - Vacuum Secondaries - Gold Dichromate - Gasoline

Part Number: 0-9015-2

All Holley Marine Carburetors are designed to meet Coast Guard specifications. A marine carburetors fuel metering system is calibrated to compensate for unique engine loads found on boats. The J-style vent tubes direct fuel/fumes back into the carburetor for safe operation while on rough waters.
The Holley 0-9015-2 Marine carburetor is designed with a universal calibration good for small cubic inch marine engines where a vacuum secondary 4150 model 4BBL with electric choke is required

Features and Benefits

• Gold Dichromate finish for corrosion resistance and classic Holley looks
• Universal Marine Calibration
• Vacuum secondaries for use on wide variety of boats. Compensate for all weights to allow smooth opening of secondaries.
• Factory preset electric choke for easy startups
• 30cc Accelerator pump for smooth starts
• Dual feed fuel inlets for constant high volume fuel delivery
• J-Style Vent Tubes
• Meets Coast Guard Specifications
• Power valve blow-out protection
• 100% wet-flow tested by Holley technicians to assure it arrives ready to run!

Notice - Due to the natural color variations of the dichromate plating process, the plating color may vary from casting to casting (within a carburetor) and from carburetor to carburetor. This is considered normal and is not a cosmetic defect. If you desire a carburetor with no color variation, please shop our black and shiny finish carburetors.

Specifications

  • Specifications
    Adjustable Air BleedsNo
    Adjustable Emulsion BleedsNo
    Adjustable Idle Feed RestrictorsNo
    Air Cleaner Flange Diameter5-1/8
    Barrel Quantity4
    Barrels4
    Barrels Quantity4
    Body ColorGold Dichromate
    Body FinishPlated
    Body MaterialAluminum
    BoosterDownleg
    Booster DesignDownleg
    BrandHolley
    Carburetor MaterialAluminium
    Carburetor UseMarine
    CategoryAir and Fuel Delivery
    CFM750
    CFM Rating750
    ChokeElectric
    Choke TypeElectric
    Circuit Count2
    ColorGold Dichromate
    ConditionNew
    Cubic Feet Per Minute Rating750
    Emission Code3
    FinishGold Dichromate

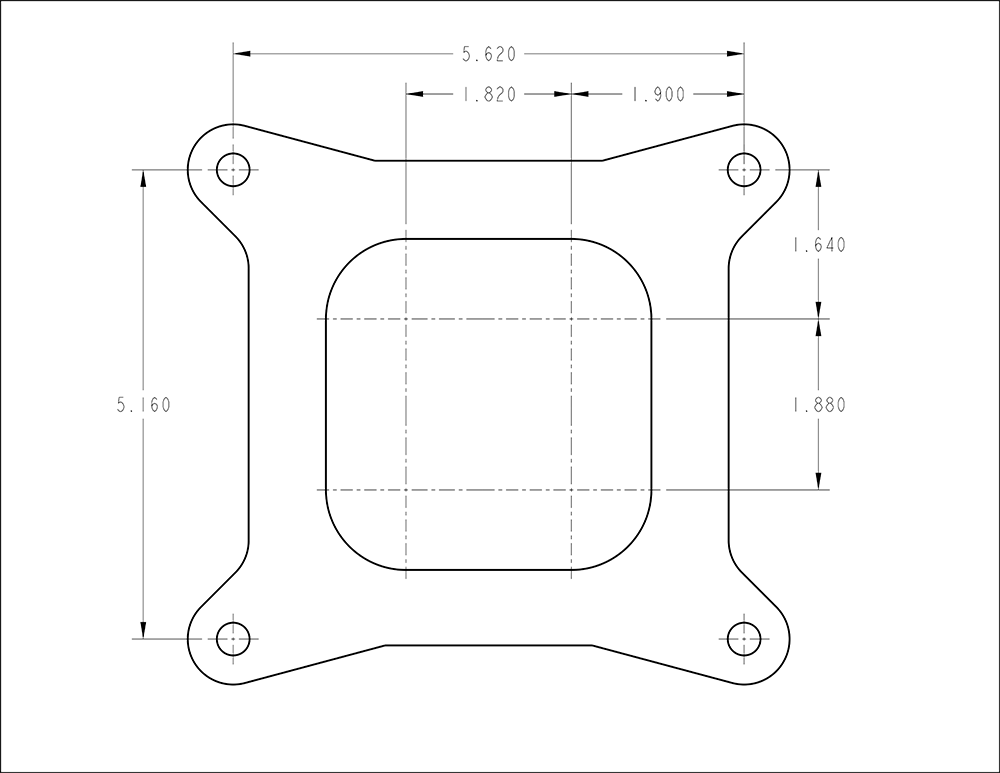

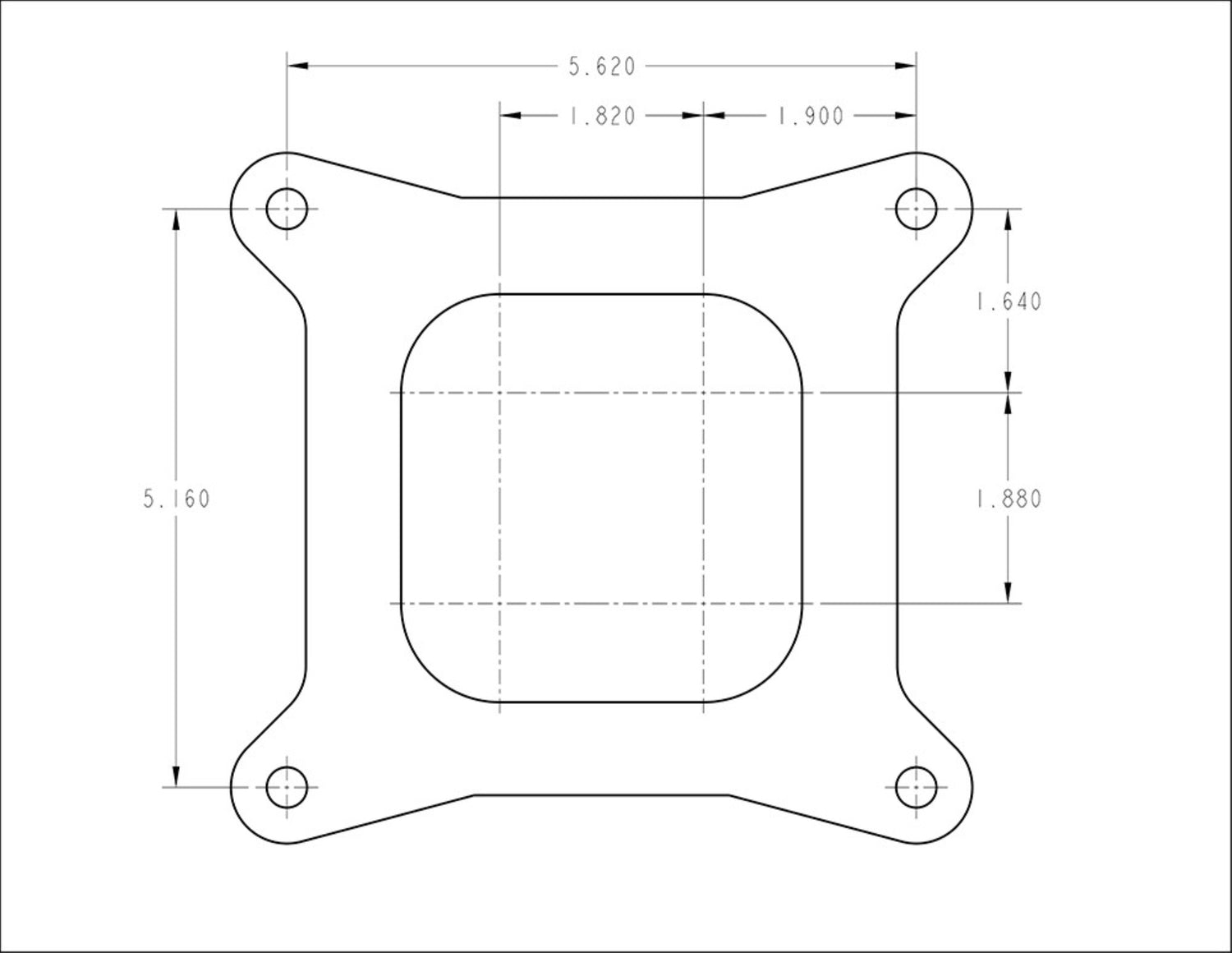

    Flange ShapeSquare
    Flange TypeSquare/4150
    Float LevelExternally Adjustable
    FuelGasoline
    Fuel InletDual
    Fuel Inlet Center to Center9.5
    Fuel Inlet CountDual
    Fuel Inlet Type5/8-18 Inverted flare
    Fuel TypeGasoline

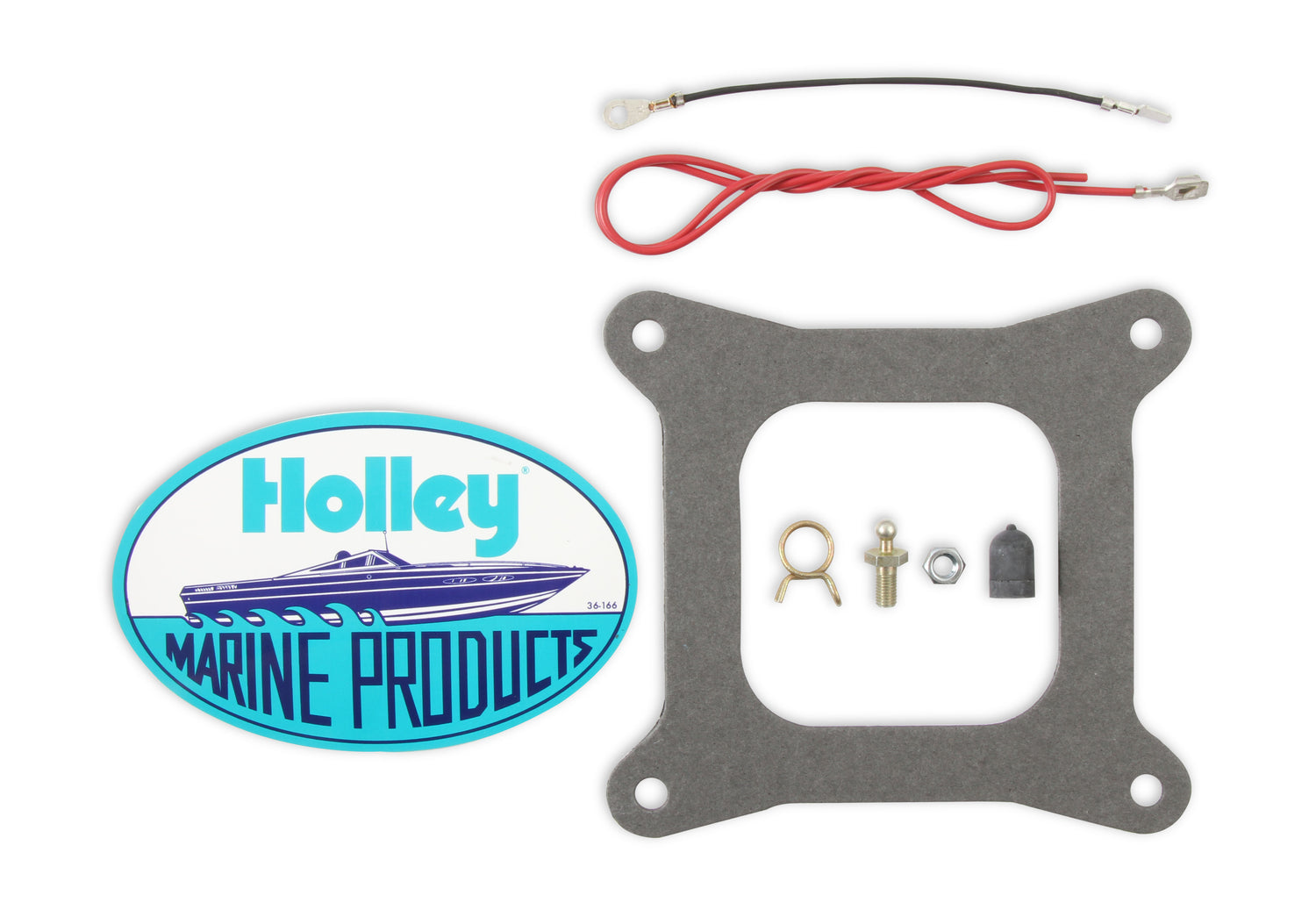

    Gasket Or Seal IncludedYes
    Grade TypeMarine
    Linkage AttachedYes
    Marine ApprovedYes
    Marine Engine SizeUniversal
    Marine UseYes
    MaterialAluminum
    Meter Block MaterialCast Aluminum
    Metering Block ColorGold Dichromate
    Model4150
    Mounting Hardware IncludedNo
    Mounting Hole Quantity4
    part typeCarburetor
    Primary Float TypeCenter Hung Nitrophyl
    Primary Jet Diameter76
    Primary Main Jet Size76
    Primary Throttle Bore Diameter1.688
    Primary Venturii Diameter1.437
    Product TypeMarine Carburetor
    SecondariesVacuum
    Secondary Barrel TypeVacuum
    Secondary Float TypeCenter Hung Nitrophyl
    Secondary Jet ExtensionsNo
    Secondary Main Jet Size89
    Secondary Throttle Bore Diameter1.688
    SeriesMarine
    Spacer IncludedNo
    Sub CategoryCarburetion
    Supercharged ApplicationNo
    Throttle Bore Diameter1.688 inch
    Vacuum Ports1 full, and 1 PCV port
    WarningCalifornia Proposition 65
    WarrantyManufacturer's Limited 90 Day Warranty
  • Instructions
