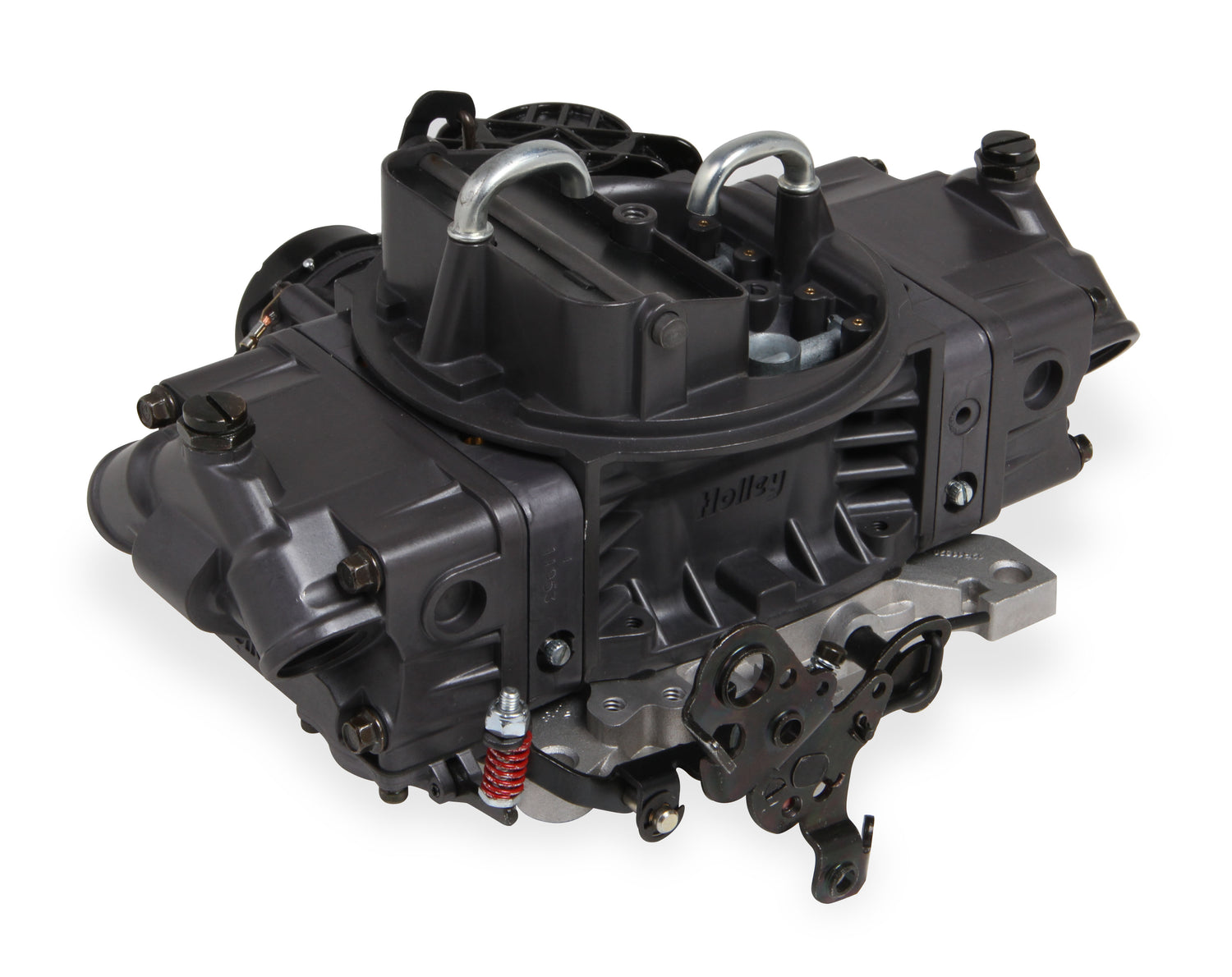

Holley 0-82670 670 CFM Aluminum Marine Avenger Carburetor
670 CFM - 4150 - Vacuum Secondaries - Hard Core Gray - Gasoline
Holley 0-82670 670 CFM Aluminum Marine Avenger Carburetor is not in stock at Fast Lane Spares and will ship direct from supplier
Description
Description
Part Number: 0-82670
Building on the proven performance and durability of the Aluminum Street Avenger Series- we have engineered the new marine models to continue that performance heritage that Holley is known for. The all-aluminum carburetors are hard coat anodized in a Hard Core Gray finish to protect them from corrosion in fresh water or salt water conditions. The new Marine Avengers are built to exceed the Coast Guard standards and are J1223 Marine Standard certified. So, if you are hitting the lake for an easy cruise or some high speed fun, the new Aluminum Marine Avengers will meet and exceed your performance demands! The Marine Avenger Carburetors come with the same Limited Lifetime Warranty as our Street Avengers do. Holley warrants its Marine Avenger Carburetor to be free from defects in material and workmanship for the life of the product on parts and one year on repair labor. After a period of one year, Holley will charge standard rates for repair labor.
Features and Benefits
• All aluminum construction
• Hard Core Gray finish for corrosion protection in marine environments
• Built to exceed Coast Guard standards and are J1223 Marine Standard Certified
• Dual metering block system utilizing four corner idle adjustment for precision tuning
• Throttle shafts are PTFE coated for corrosion protection
• Calibrated to compensate for unique engine loads found on boats
• Available in 570 CFM, 670 CFM, and 770 CFM sizes to match your application needs
• Limited Lifetime Warranty

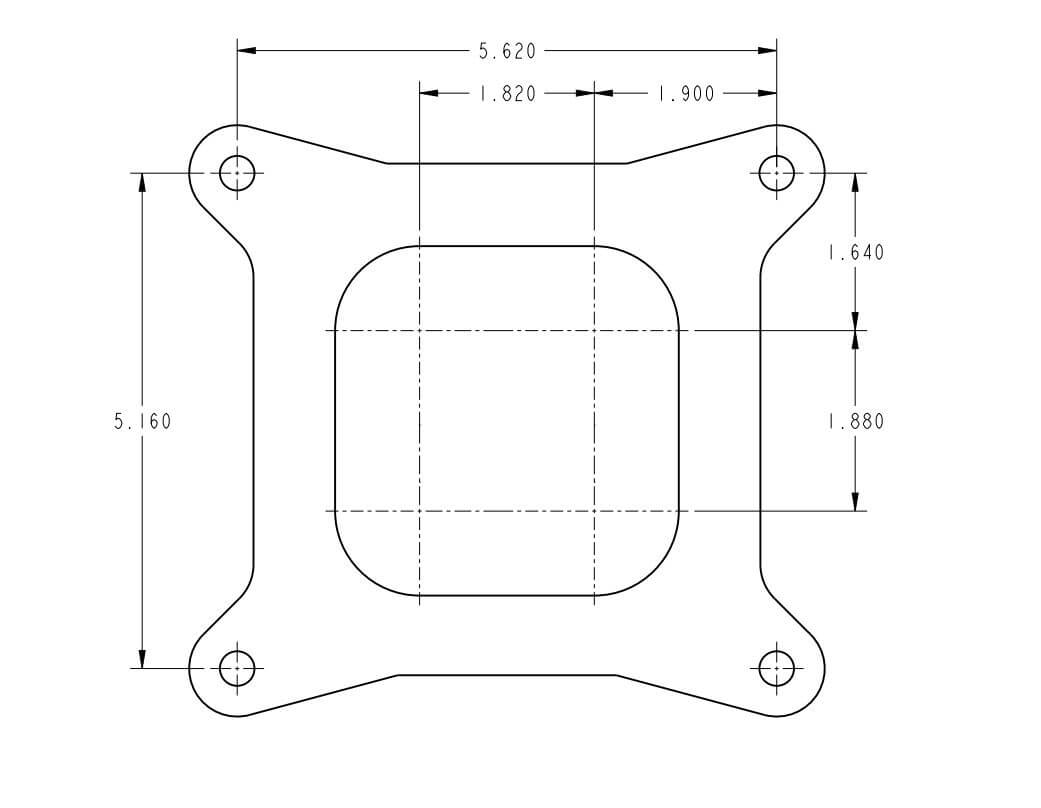

This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.
Specifications
Specifications
-
Specifications
Barrel Quantity 4 Barrels 4 Body Color Hard Core Gray Body Finish E-Coated Body Material Aluminum Brand Holley Carburetor Material Aluminum Carburetor Use Marine Category Air and Fuel Delivery CFM 670 Choke Electric Choke Type Electric Color Hard Coat Gray Condition New Cubic Feet Per Minute Rating 670 Emission Code 3 Finish Hard Core Gray Flange Shape Square Flange Type Square/4150 Fuel Gasoline Fuel Inlet Dual Grade Type Performance Linkage Attached Yes Marine Approved Yes Marine Engine Size Universal Marine Use Yes Material Aluminum Model 4150 Mounting Hole Quantity 4 Needle and Seat Size 110; 110 part type Carburetor Primary Jet Diameter 62 Primary Main Jet 62 Primary Power Valve 2.5 Primary Pump Nozzle Size .037 Product Type Marine Carburetor Secondaries Vacuum Secondary Main Jet 84 Spacer Included No Sub Category Carburetion Supercharged Application No Throttle Bore 1.6875 inch Venturii Size 1.280 inch Warning California Proposition 65 Warranty Manufacturer's Limited Lifetime Warranty -
