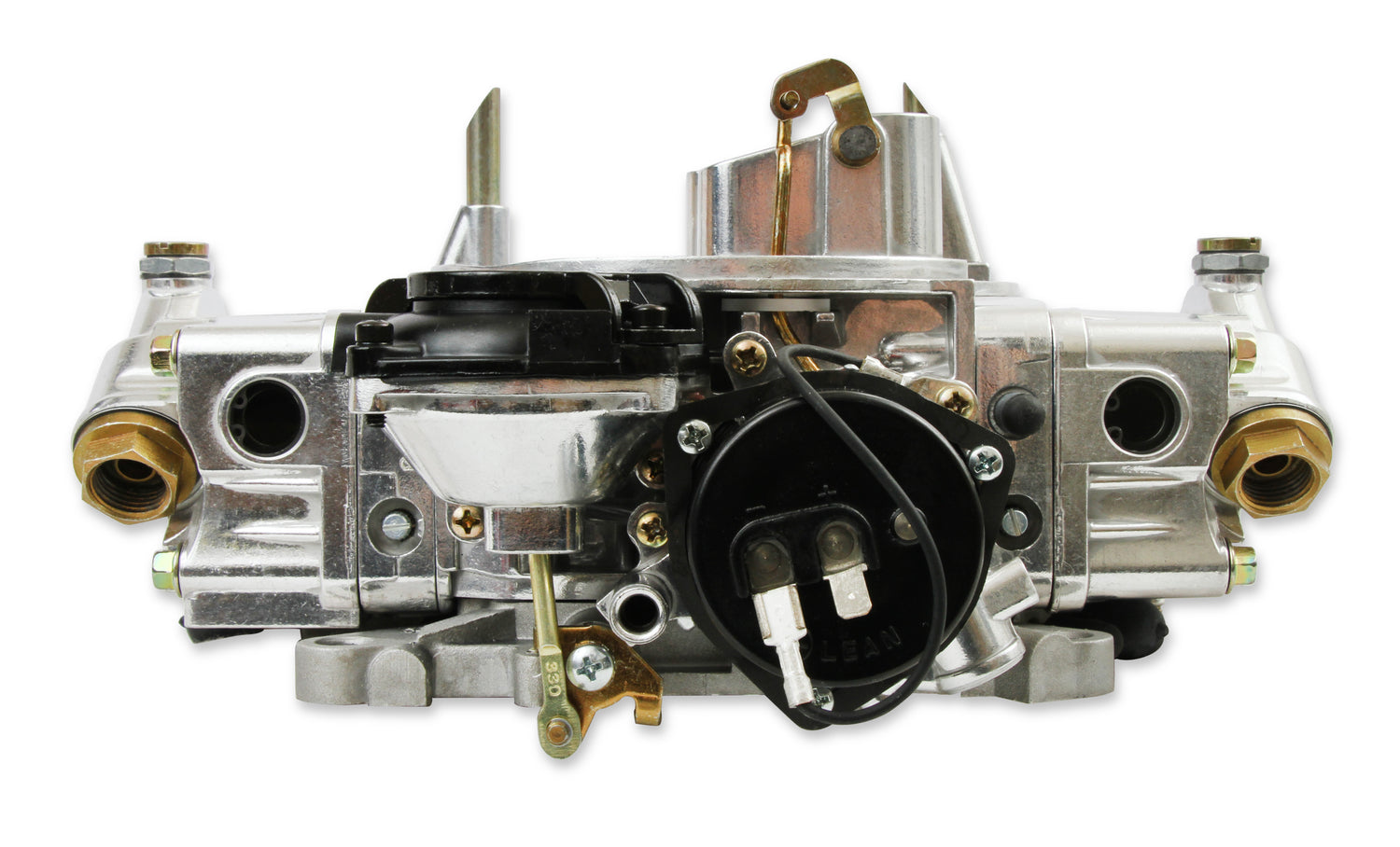

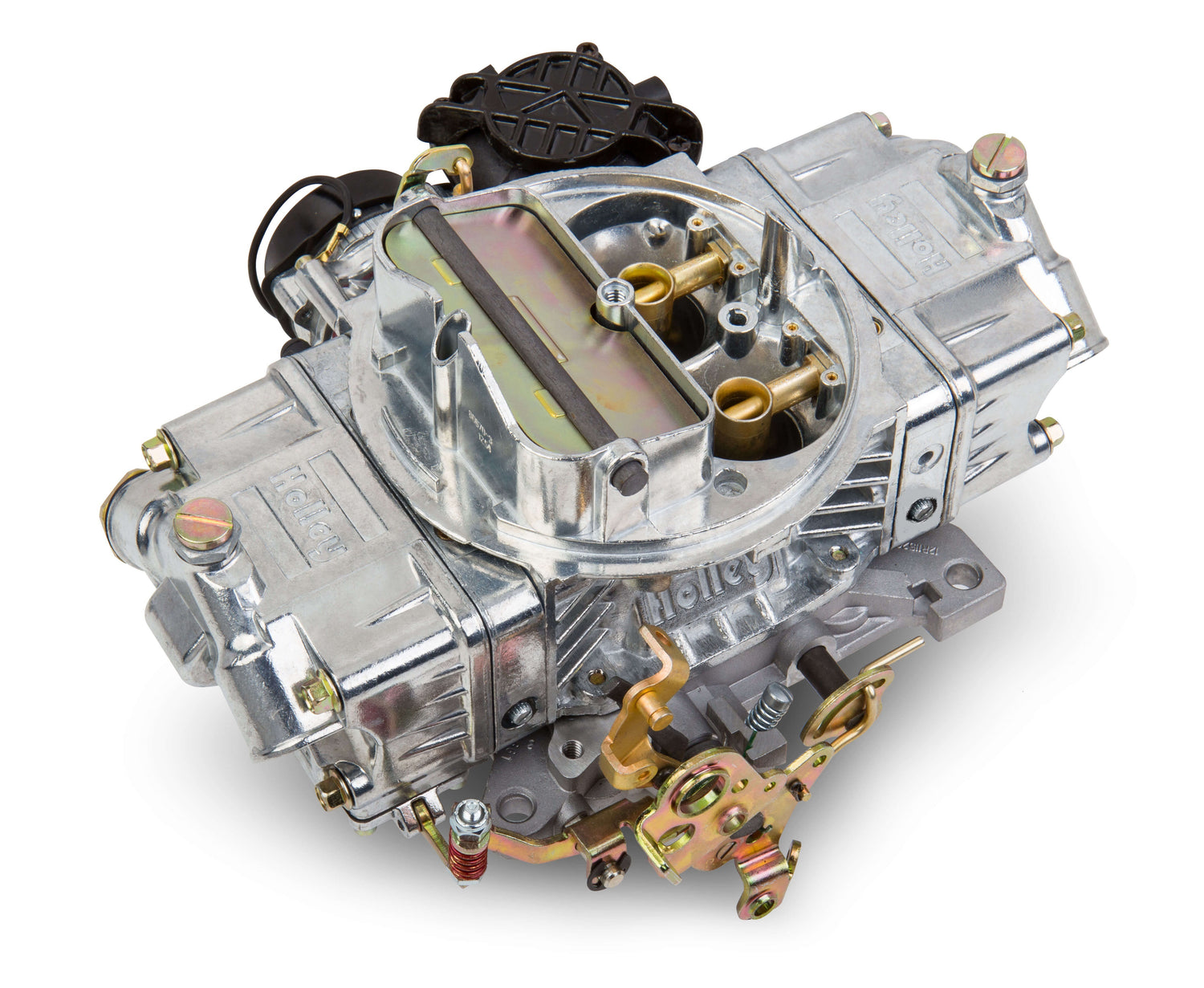

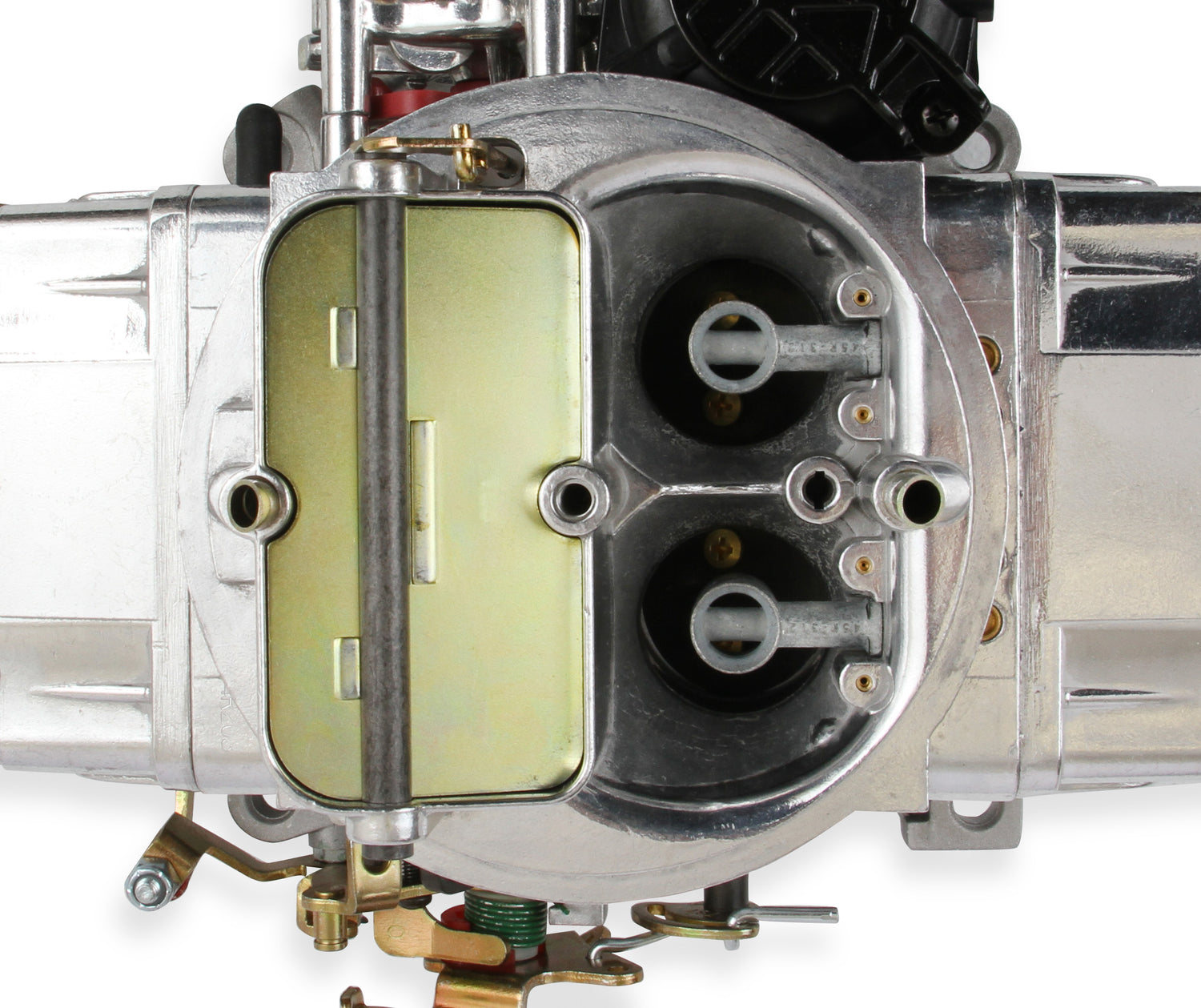

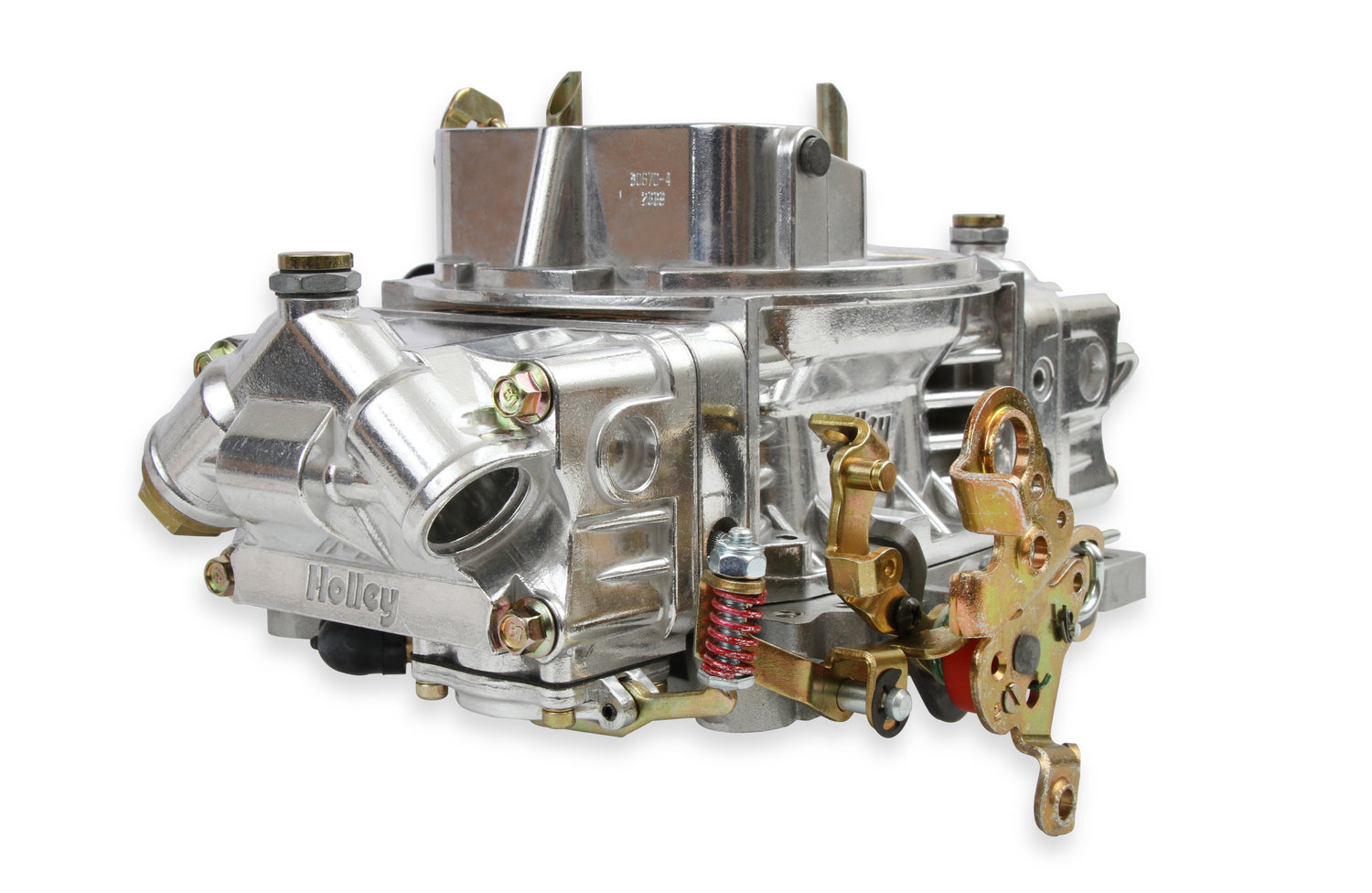

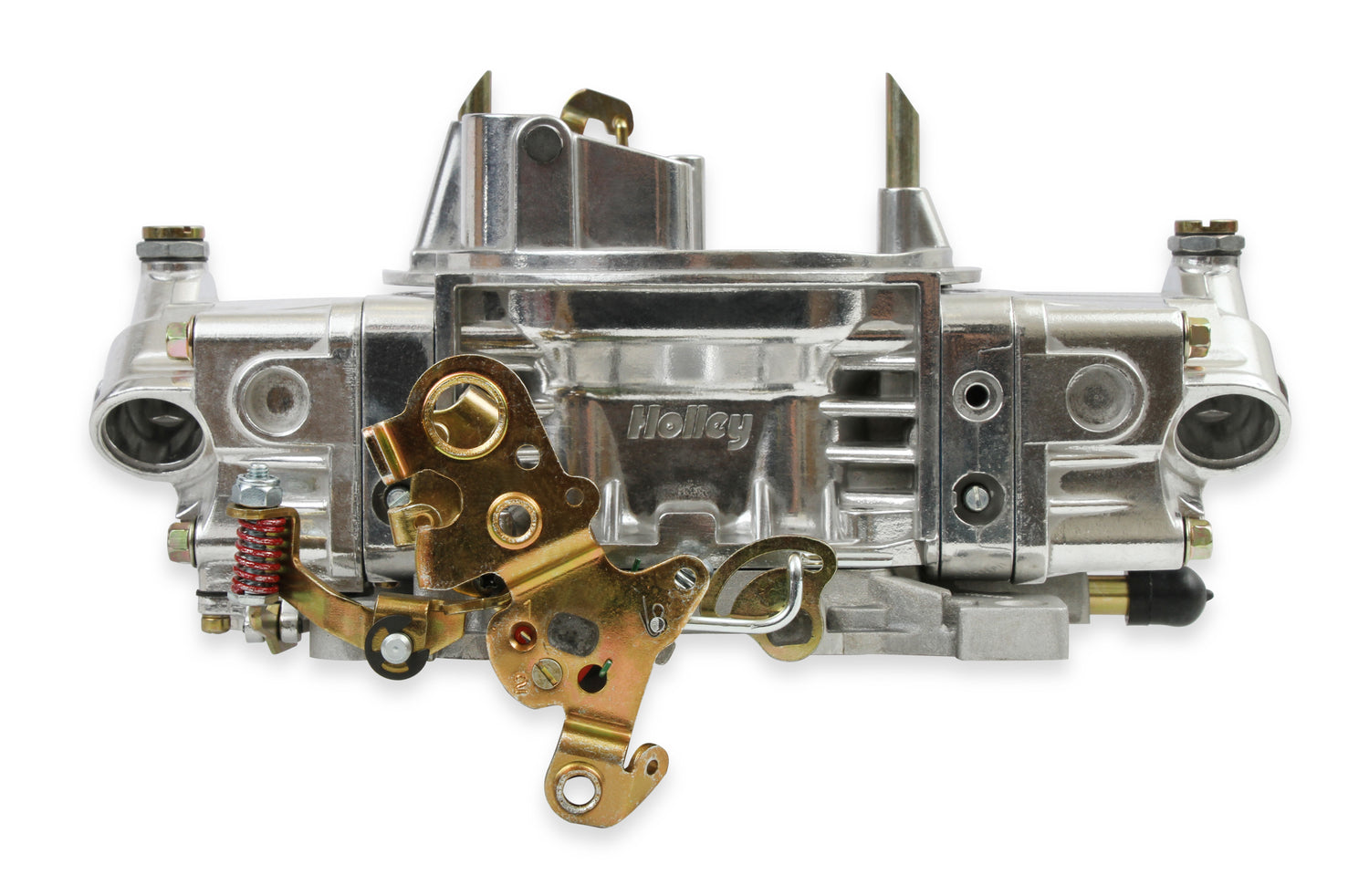

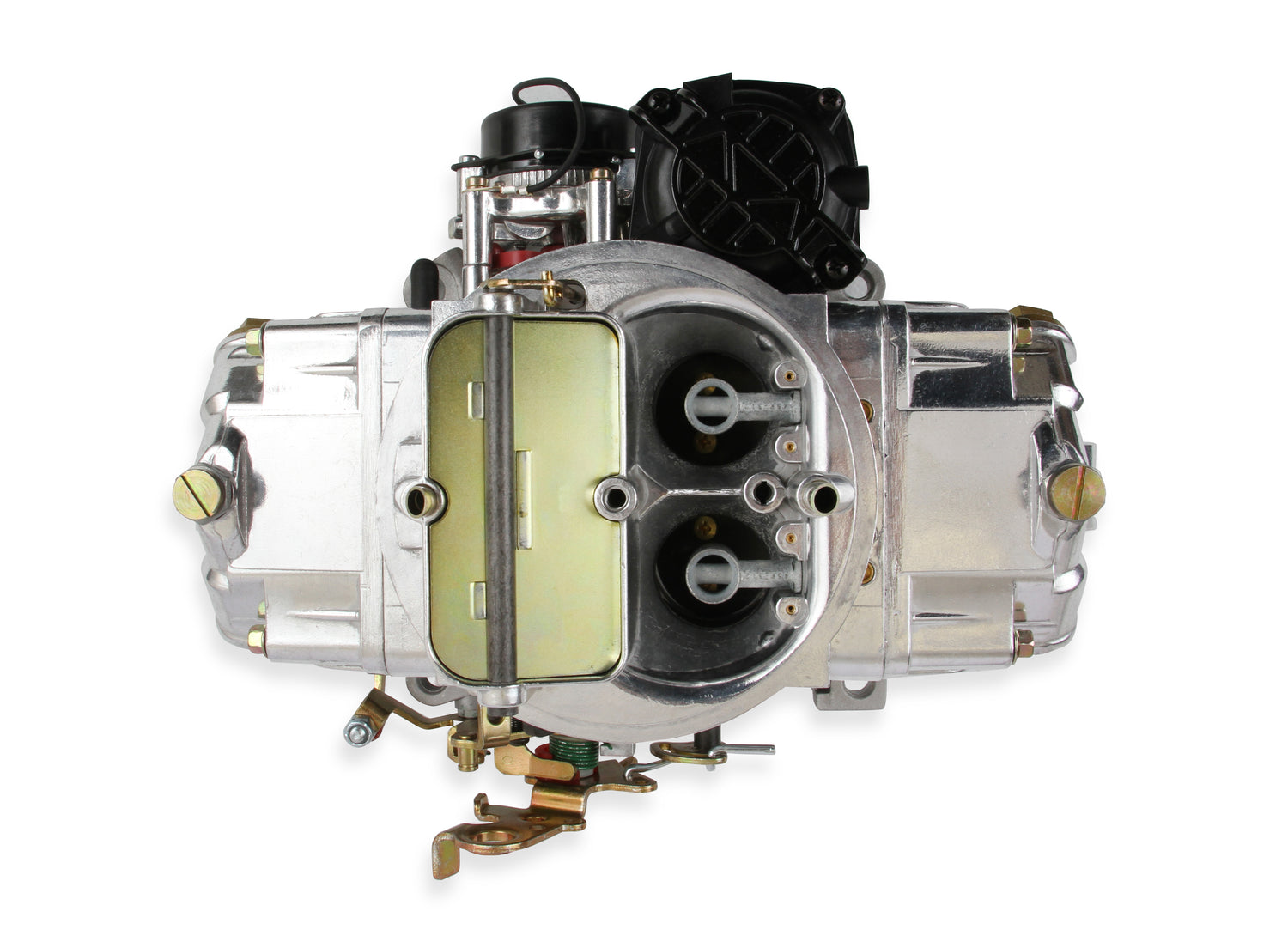

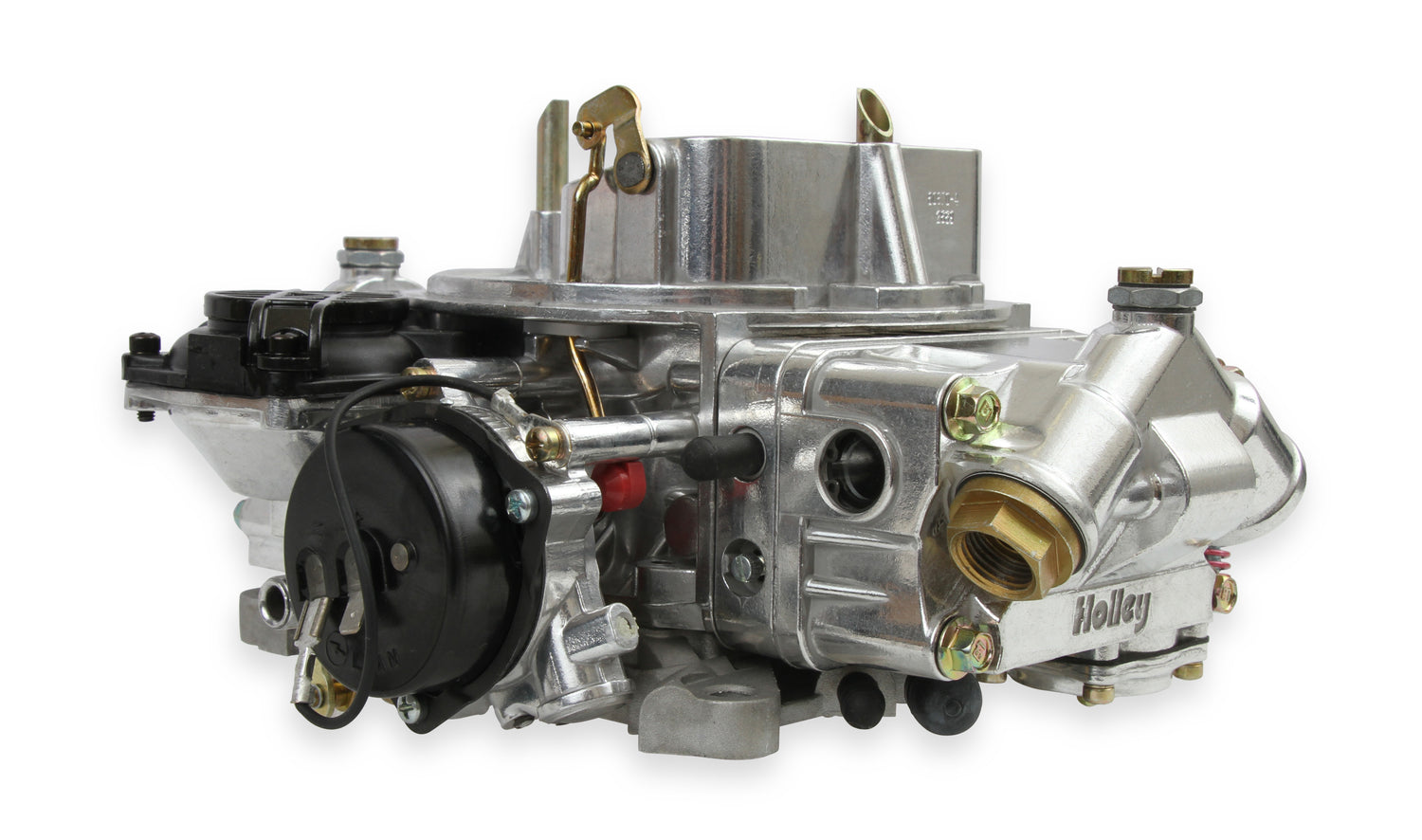

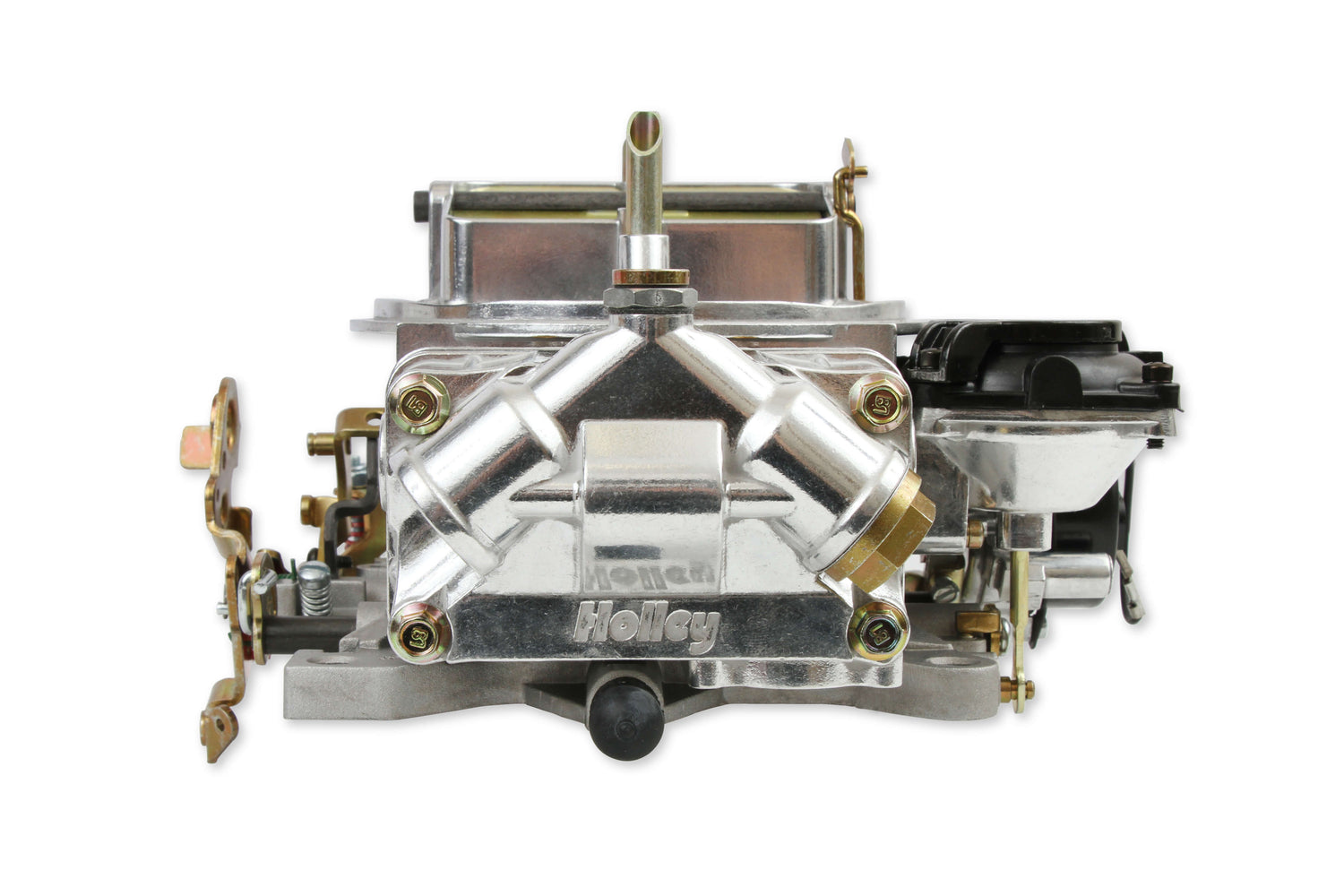

Holley 0-80670 670 CFM Street Avenger Carburetor
670 CFM - 4150 - Vacuum Secondaries - Shiny - Gasoline
Holley 0-80670 670 CFM Street Avenger Carburetor is not in stock at Fast Lane Spares and will ship direct from supplier
Description
Description
Part Number: 0-80670
Street Avenger carburetors are known to bolt on right out of the box and have great features such as a quick change vacuum secondary for easy fine tuning, optimized street calibrations, four vacuum ports for all necessary vacuum accessories, factory preset electric choke for easy start ups, built-in fuel filters, and an included fuel line kit so there are no unnecessary trips back to the parts store. The Avenger series are the first carburetors to have a limited lifetime warranty. With a great warranty and the included comprehensive instruction manual, you can count on years of worry-free service.
Features and Benefits
• Vibratory polished for good looks
• Optimized street calibration that works-out-of-the-box
• Factory preset electric choke for easy startups
• Vacuum secondaries allow use on a wide variety of vehicles. Quick Change vacuum housing cap allows you to tune for performance or fuel economy (springs included)
• Compatible with GM, Chrysler, and Ford A/T kickdown linkage. Additional parts may be required.

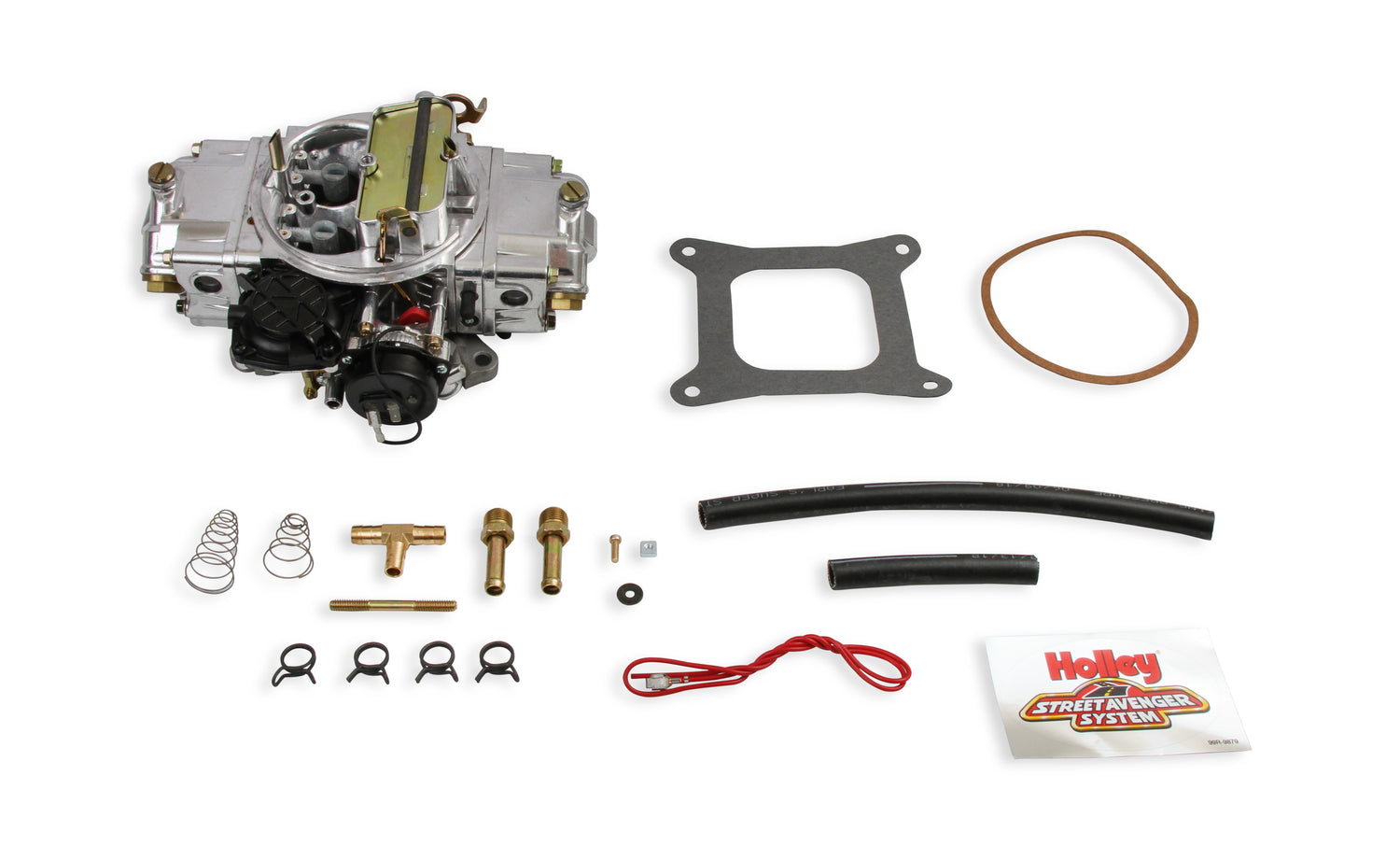

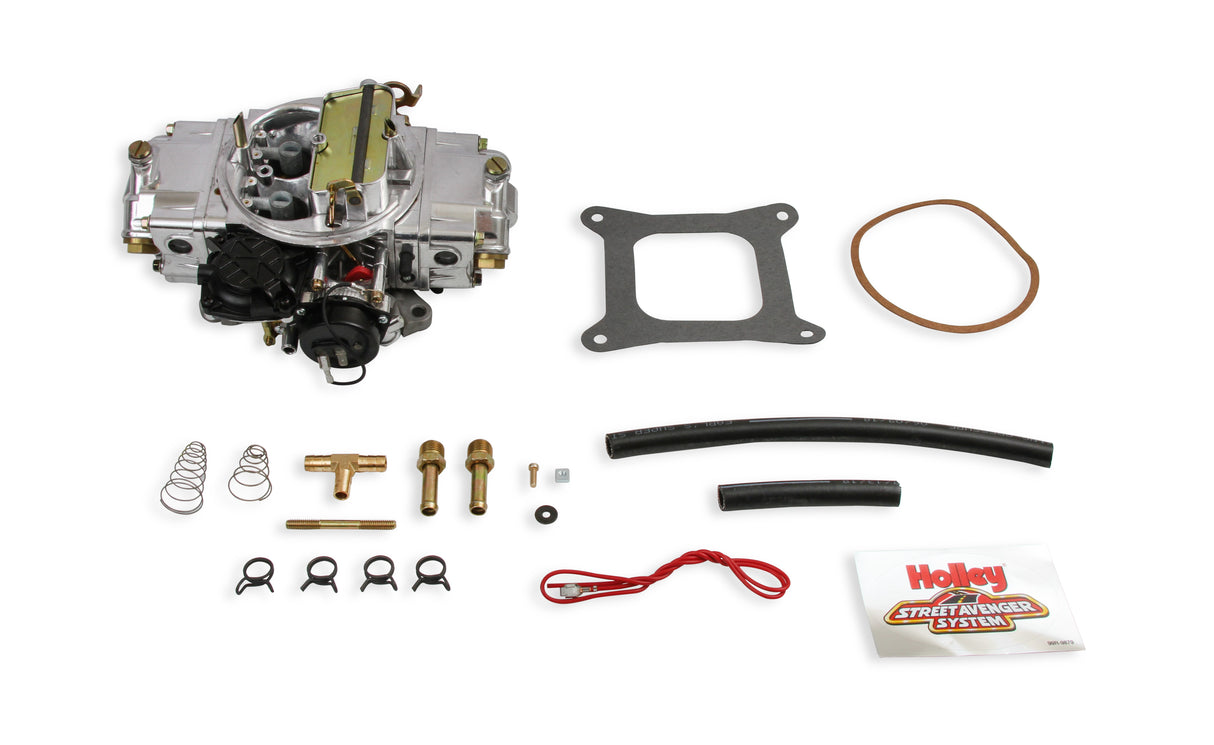

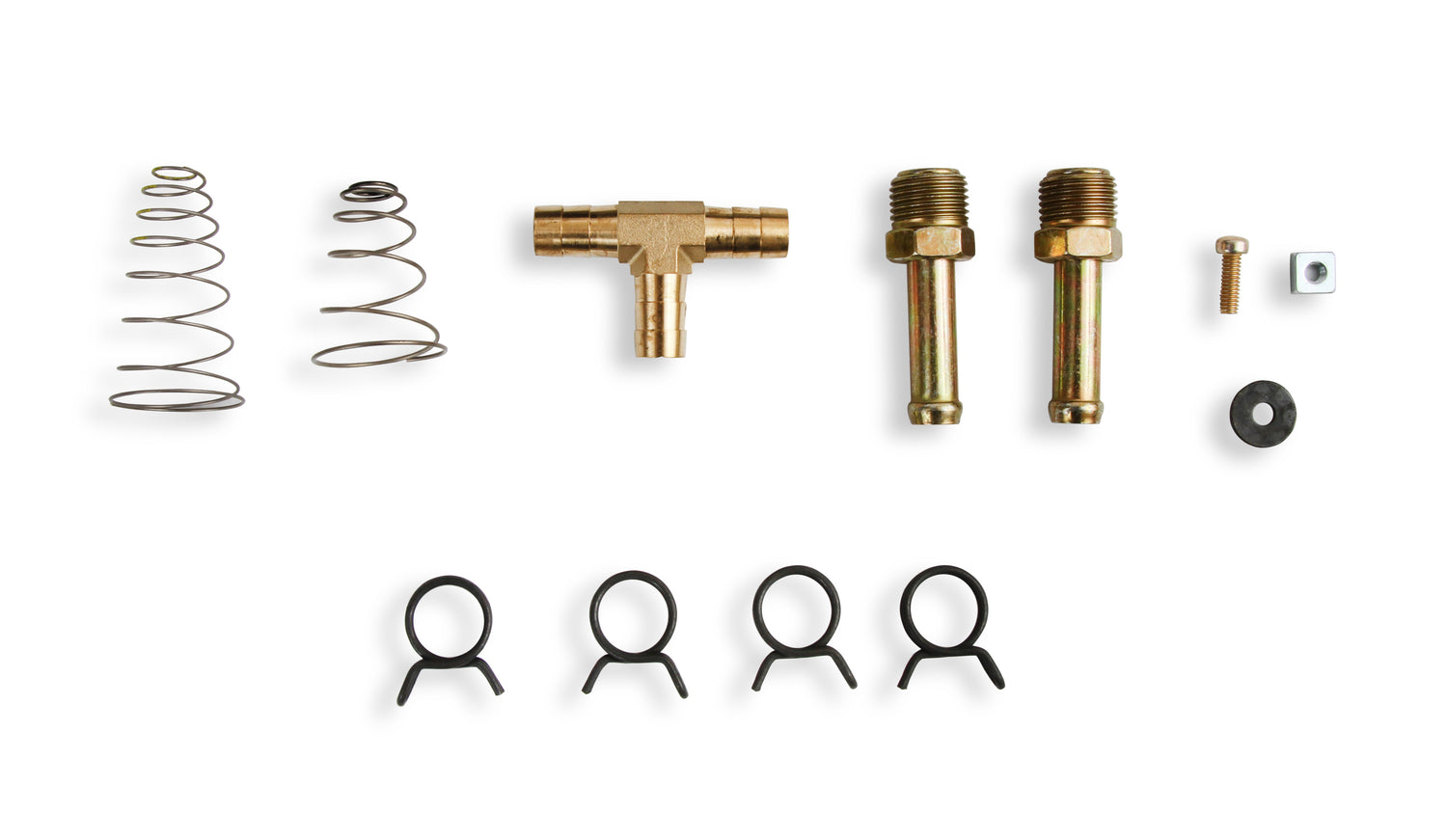

• Fuel line kit included so there are no unnecessary trips back to the parts store
• Limited lifetime warranty - Guaranteed to be free from defects in material and workmanship for the life of the product!
• 100% wet-flow tested by Holley technicians to assure it arrives ready to run!

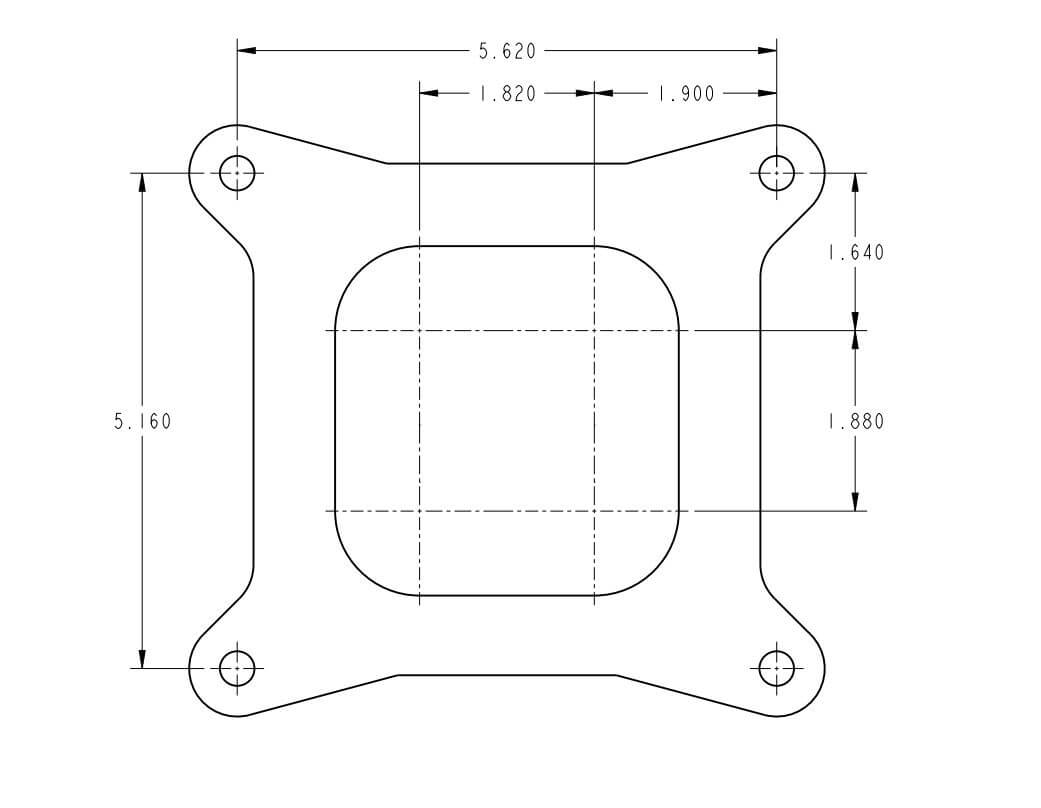

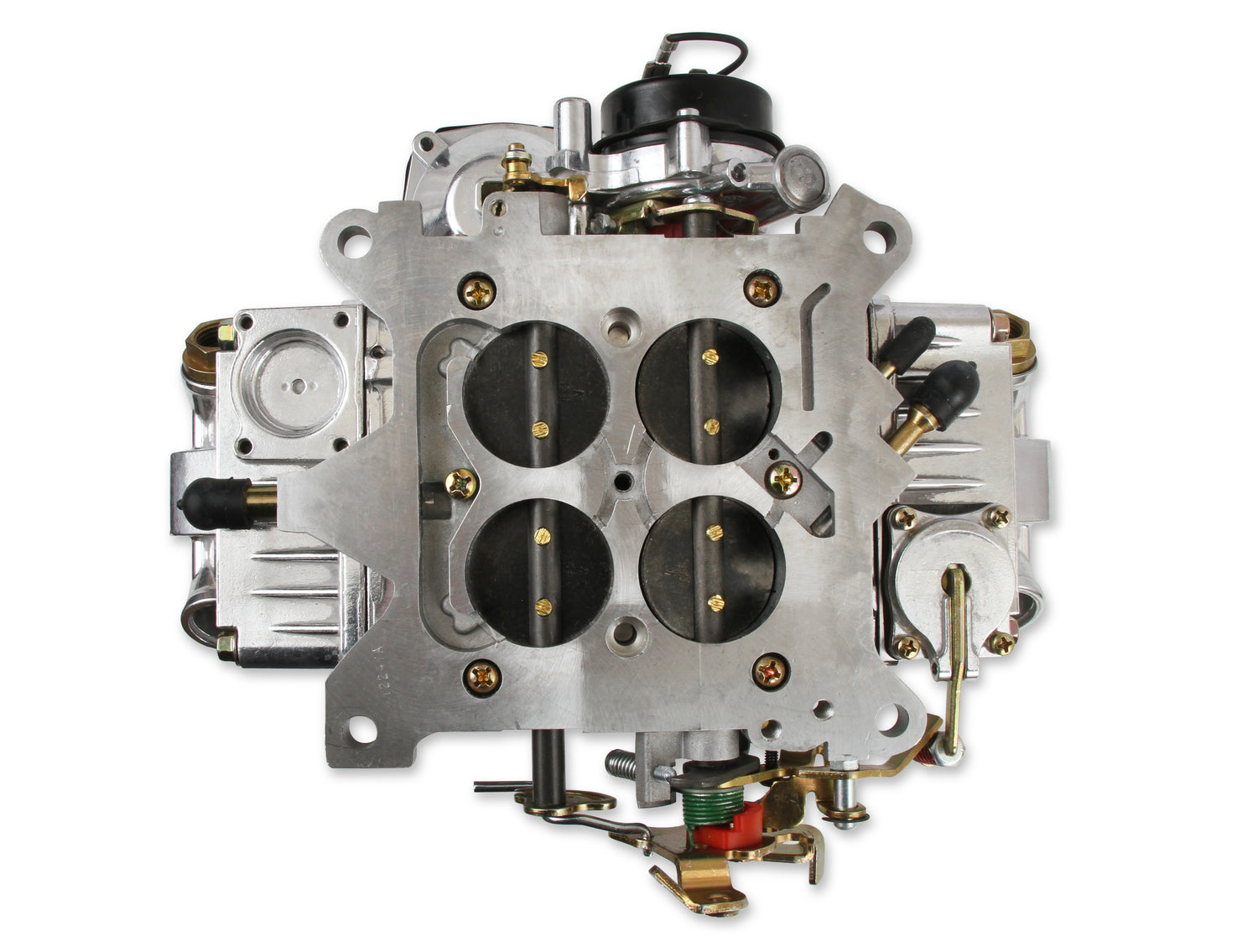

This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.
Specifications
Specifications
-
Specifications
Barrel Quantity 4 Barrels 4 Body Color Polished Body Finish Polished Body Material Aluminum Booster Straight Booster Design Straight Brand Holley Carburetor Material Aluminum Carburetor Use Street Category Air and Fuel Delivery CFM 670 Choke Electric Choke Type Electric Color Polished Aluminum Condition New Cubic Feet Per Minute Rating 670 Emission Code 3 Finish Shiny Flange Shape Square Flange Type Square/4150 Fuel Gasoline Fuel Inlet Dual Gasket Or Seal Included Yes Grade Type Performance Linkage Attached Yes Marine Approved No Marine Use No Material Aluminum Model 4150 Mounting Hole Quantity 4 part type Carburetor Primary Jet Diameter 65 Primary Main Jet 65 Primary Power Valve 6.5 Primary Pump Nozzle Size 31 Product Type Carburetor Secondaries Vacuum Secondary Barrel Type Vacuum Secondary Jet Diameter 68 Secondary Main Jet 68 Spacer Included No Street Legal Yes Sub Category Carburetion Supercharged Application No Throttle Bore 1.563 inch Vacuum Ports 1 timed (spark) port, 2 full, and 1 PCV port Warning California Proposition 65 Warranty Manufacturer's Limited Lifetime Warranty -
