Holley | SKU:
0-80576SA

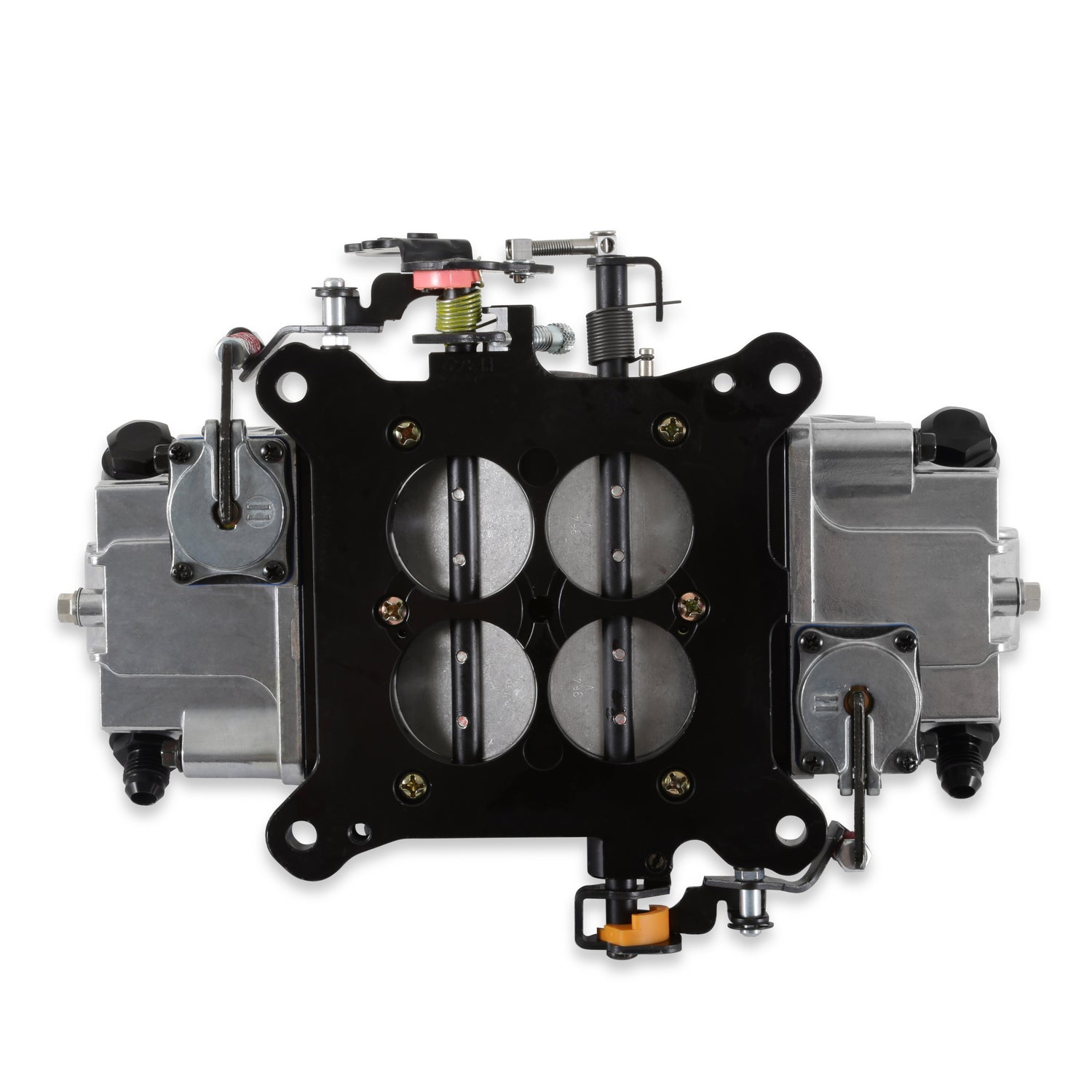

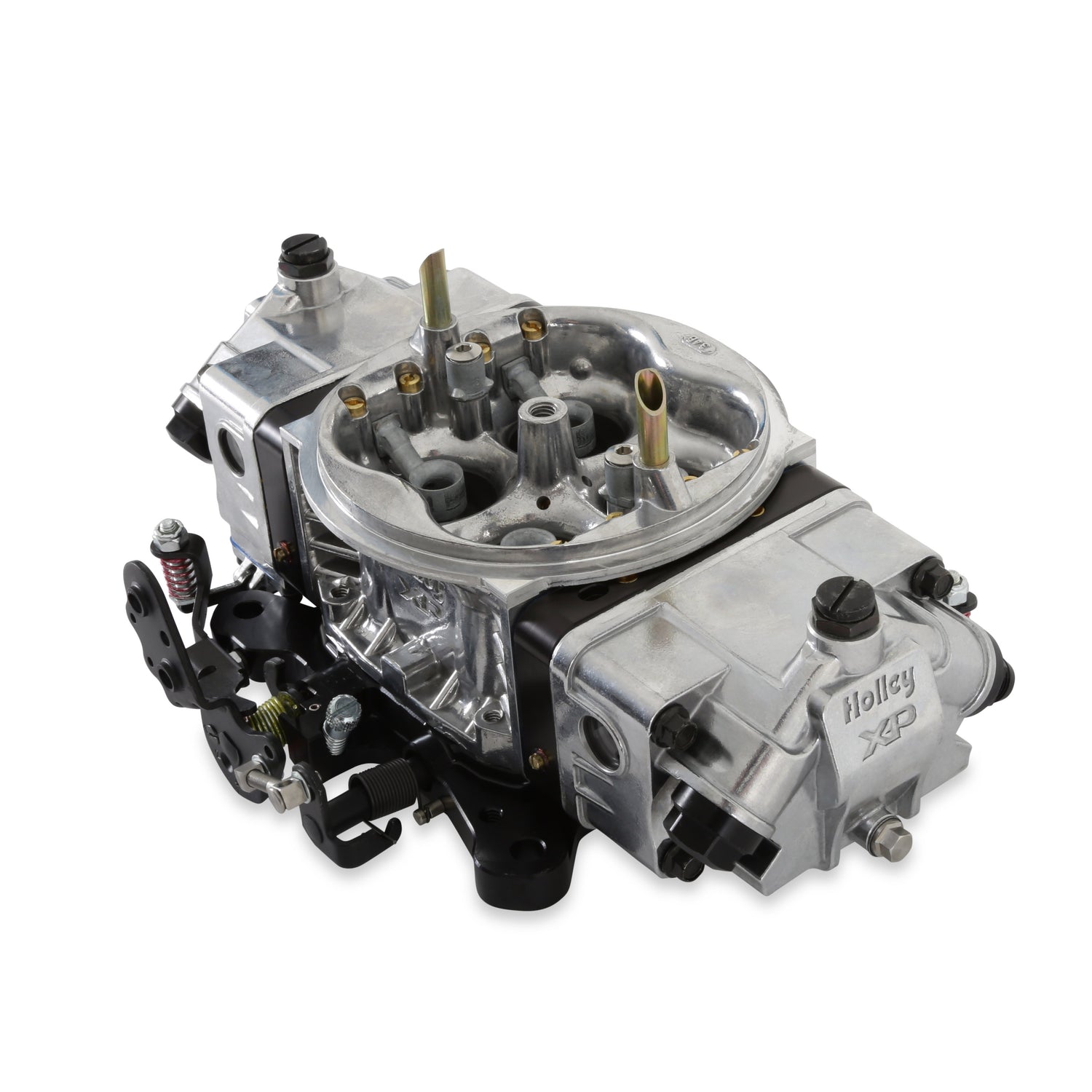

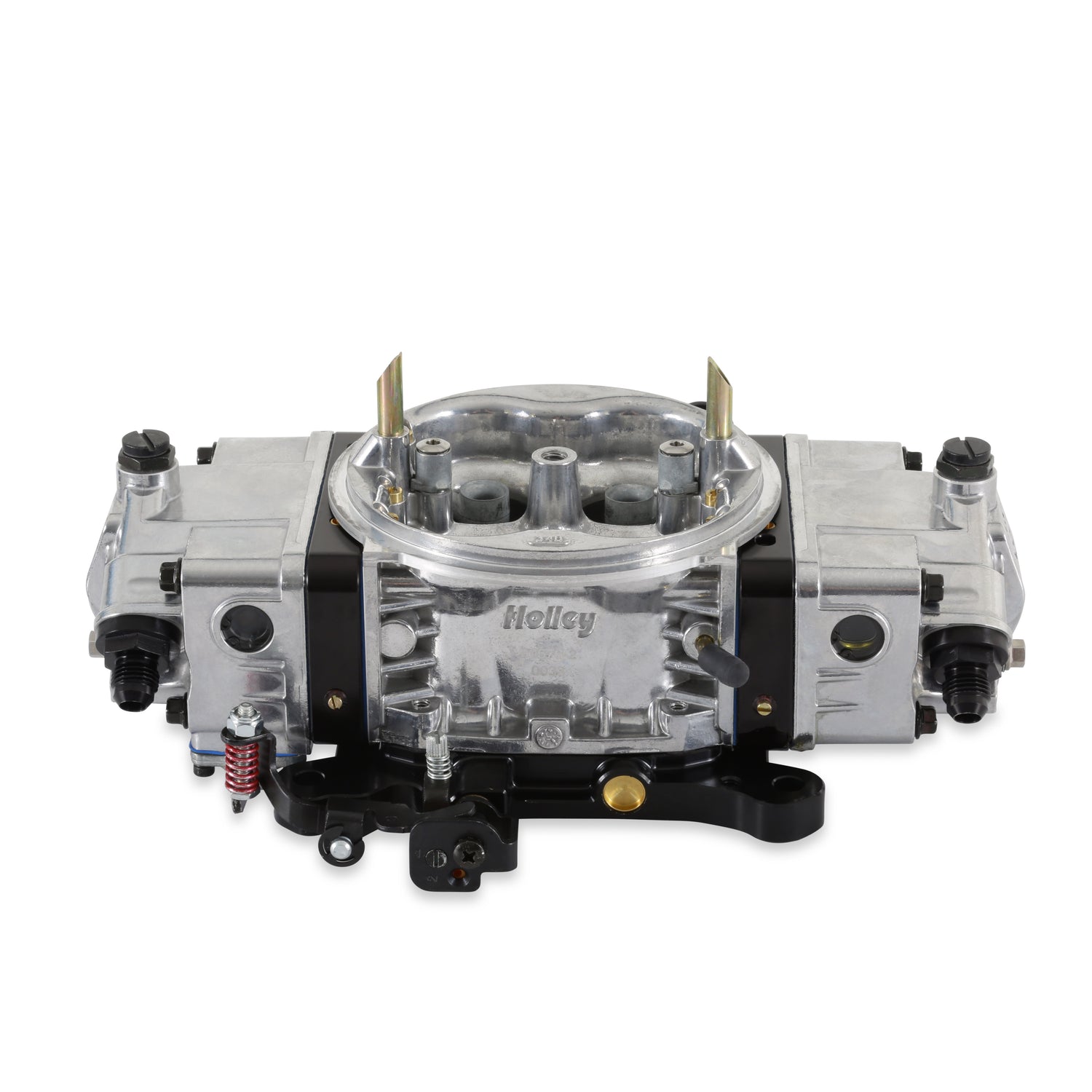

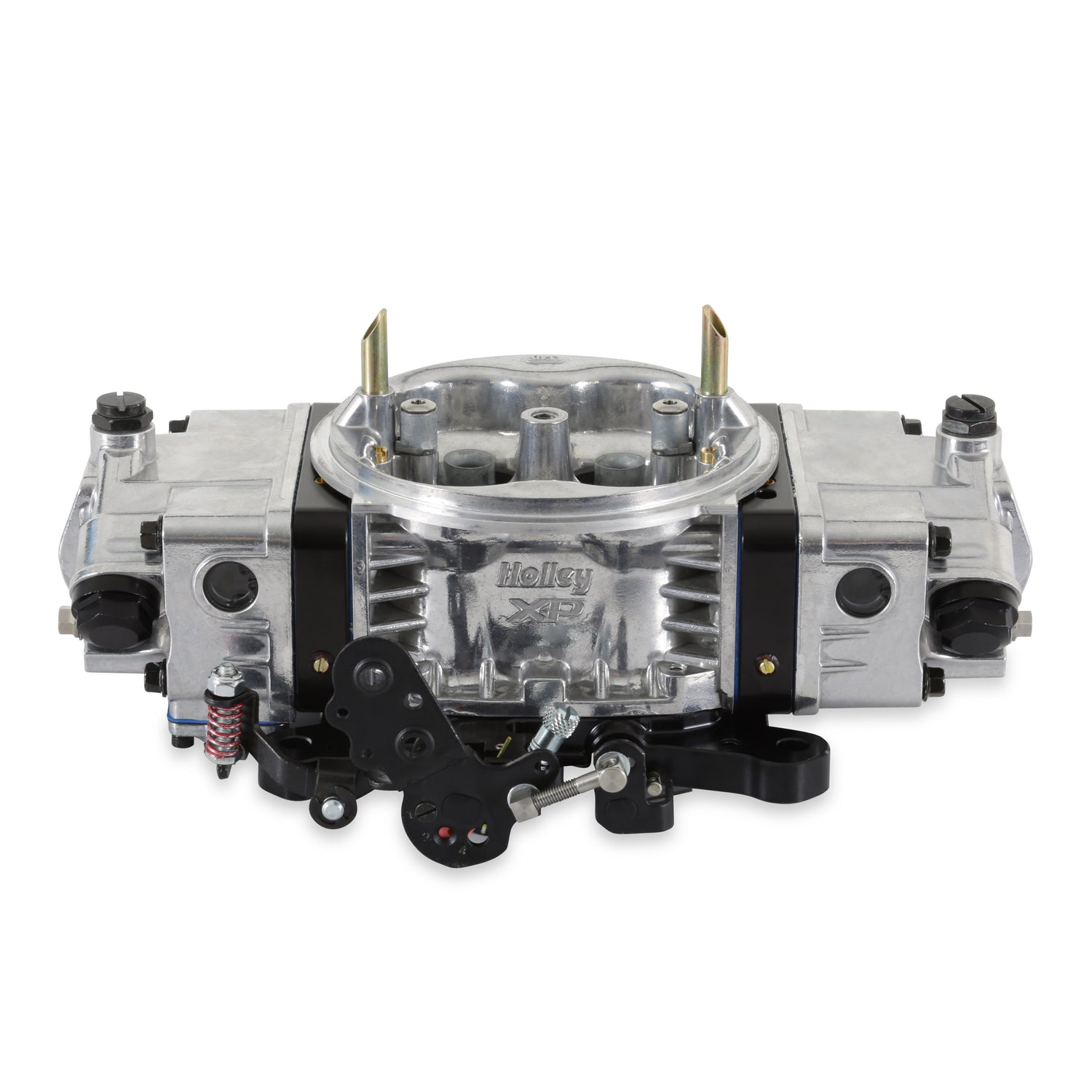

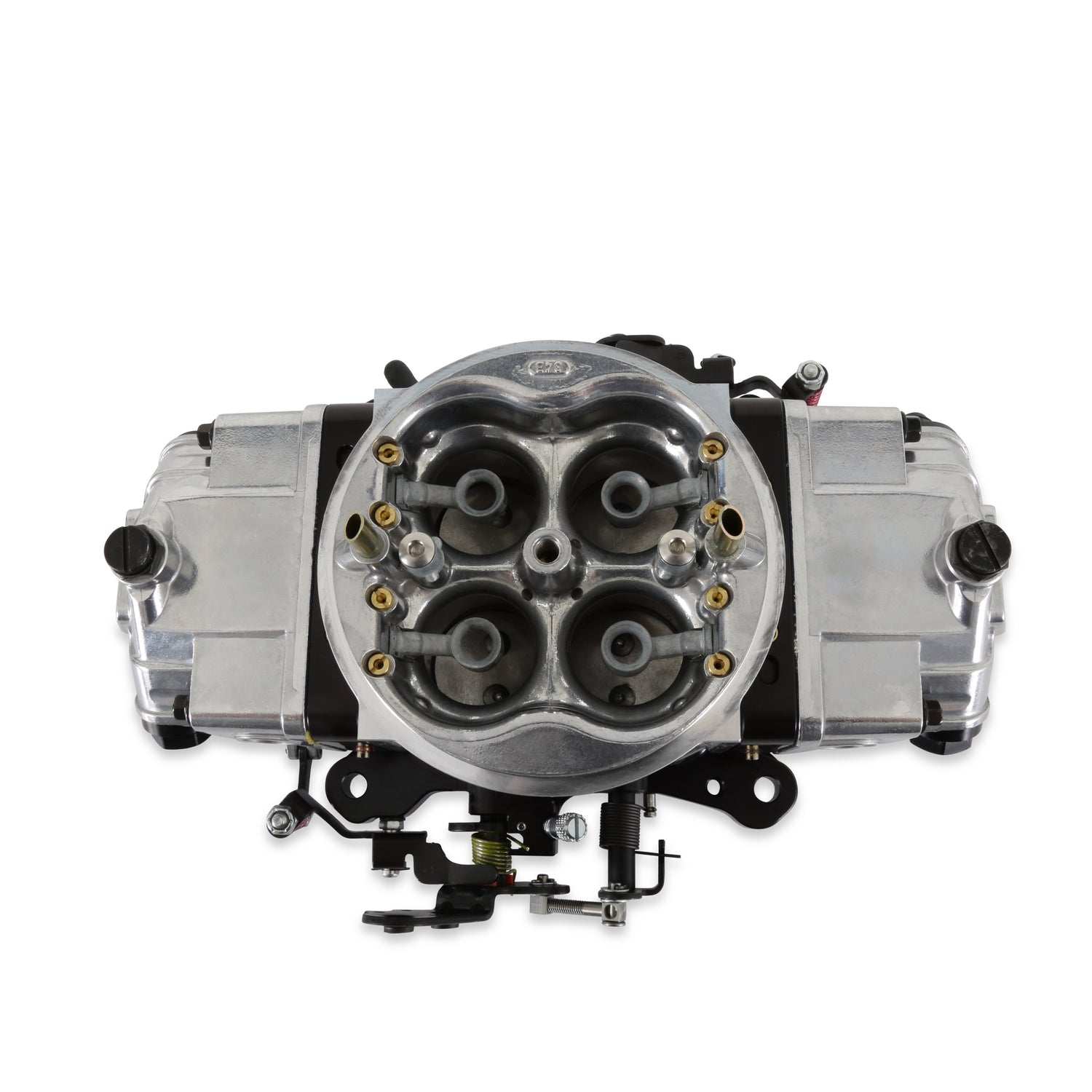

Holley 0-80576SA 750 CFM Supercharger XP Carburetor - Draw-Thru
750 CFM - 4150 - Mechanical Secondaries - Shiny - Gasoline
Sold out
Regular price
$2,170.80 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 0-80576SA 750 CFM Supercharger XP Carburetor - Draw-Thru
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
Stock Status:
Description
Description
750 CFM - 4150 - Mechanical Secondaries - Shiny - Gasoline
Part Number: 0-80576SA
By popular demand, Holley is expanding the draw-thru supercharger carburetor line to now include the XP series. Like the existing HP line, these are available in 600, 750, and 950 CFM flow rates and standard polished with black accents. The feature-laden XP includes a contoured venturi inlet for balanced air flow, screw in air bleeds for precision tuning capabilities, high flow billet metering blocks, billet base plate, and Dominator style fuel bowls which allow plumbing from either side.
Supercharger XP carburetors also have a unique capability that allows their power valves to reference the intake manifold vacuum below the supercharger. This allows the power valve to operate as it should, based off intake manifold vacuum. A power valve provides further enrichment to the main metering system under load (low vacuum) conditions.
Holley XP carburetors are the standard for square bore race carburetors. Race-Ready out of the box!
Features and Benefits
• Tumble polished shiny finish for good looks
• Designed for use on the WEIAND® 671 supercharger (big block Chevrolet/Chrysler 392) or WEIAND® 871 supercharger (small block Chevrolet/Chrysler 426)
• Contoured venturri inlet offers balanced airflow for increased horsepower
• Screw in air bleeds for precision tuning capabilities
• Dual 30cc accelerator pumps for additional fuel under initial acceleration
• Dual feed fuel inlets for constant high volume fuel delivery
• 4 corner idle allows you to precisely control your idle system
• Mechanical Secondaries for perfect off the line launches
• Boost referenced power valve for proper enrichment under acceleration
• Throttle lever cut off for clearance on a sideways application
• 100% wet-flow tested by Holley technicians to assure it arrives ready to run!
This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.
Part Number: 0-80576SA
By popular demand, Holley is expanding the draw-thru supercharger carburetor line to now include the XP series. Like the existing HP line, these are available in 600, 750, and 950 CFM flow rates and standard polished with black accents. The feature-laden XP includes a contoured venturi inlet for balanced air flow, screw in air bleeds for precision tuning capabilities, high flow billet metering blocks, billet base plate, and Dominator style fuel bowls which allow plumbing from either side.
Supercharger XP carburetors also have a unique capability that allows their power valves to reference the intake manifold vacuum below the supercharger. This allows the power valve to operate as it should, based off intake manifold vacuum. A power valve provides further enrichment to the main metering system under load (low vacuum) conditions.
Holley XP carburetors are the standard for square bore race carburetors. Race-Ready out of the box!
Features and Benefits
• Tumble polished shiny finish for good looks
• Designed for use on the WEIAND® 671 supercharger (big block Chevrolet/Chrysler 392) or WEIAND® 871 supercharger (small block Chevrolet/Chrysler 426)
• Contoured venturri inlet offers balanced airflow for increased horsepower
• Screw in air bleeds for precision tuning capabilities
• Dual 30cc accelerator pumps for additional fuel under initial acceleration
• Dual feed fuel inlets for constant high volume fuel delivery
• 4 corner idle allows you to precisely control your idle system
• Mechanical Secondaries for perfect off the line launches
• Boost referenced power valve for proper enrichment under acceleration
• Throttle lever cut off for clearance on a sideways application
• 100% wet-flow tested by Holley technicians to assure it arrives ready to run!
This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.
Specifications
Specifications
-
Specifications
Adjustable Air Bleeds Yes Adjustable Emulsion Bleeds Yes Adjustable Idle Feed Restrictors Yes Air Cleaner Flange Diameter 5-1/8 Barrel Quantity 4 Barrels 4 Barrels Quantity 4 Body Color Polished Body Finish Polished Body Material Aluminum Booster Downleg Booster Design Downleg Brand Holley Carburetor Material Aluminum Carburetor Use Performance and Race Category Air and Fuel Delivery CFM 750 CFM Rating 750 Choke None Choke Type None Circuit Count 2 Color Polished Aluminum Condition New Cubic Feet Per Minute Rating 750 Emission Code 3 Finish Polished Flange Shape Square Flange Type Square/4150 Float Level Externally Adjustable Fuel Gasoline Fuel Inlet Dual Fuel Inlet Center to Center 9.75 Fuel Inlet Count Dual Fuel Inlet Type -6 AN Male Fuel Type Gasoline Gasket Or Seal Included Yes Grade Type Supercharger Linkage Attached Yes Marine Approved No Marine Use No Material Aluminum Meter Block Material Billet Aluminum Metering Block Color Black Model 4150 Mounting Hardware Included No Mounting Hole Quantity 4 part type Carburetor Primary Float Type Center Hung Nitrophyl Primary Jet Diameter 72 Primary Main Jet Size 72 Primary Power Valve 10.5 Primary Pump Nozzle Size 31 Primary Throttle Bore Diameter 1.688 Primary Venturii Diameter 1.375 Product Type Carburetor Secondaries Mechanical Secondary Barrel Type Mechanical Secondary Float Type Center Hung Nitrophyl Secondary Jet Extensions Yes Secondary Main Jet Size 86 Secondary Pump Nozzle Size 31 Secondary Throttle Bore Diameter 1.688 Series Supercharger XP Spacer Included No Sub Category Carburetion Supercharged Application Yes System Type Draw Thru Throttle Bore Diameter 1.688 inch Venturii Size 1.375 inch Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
Instructions
