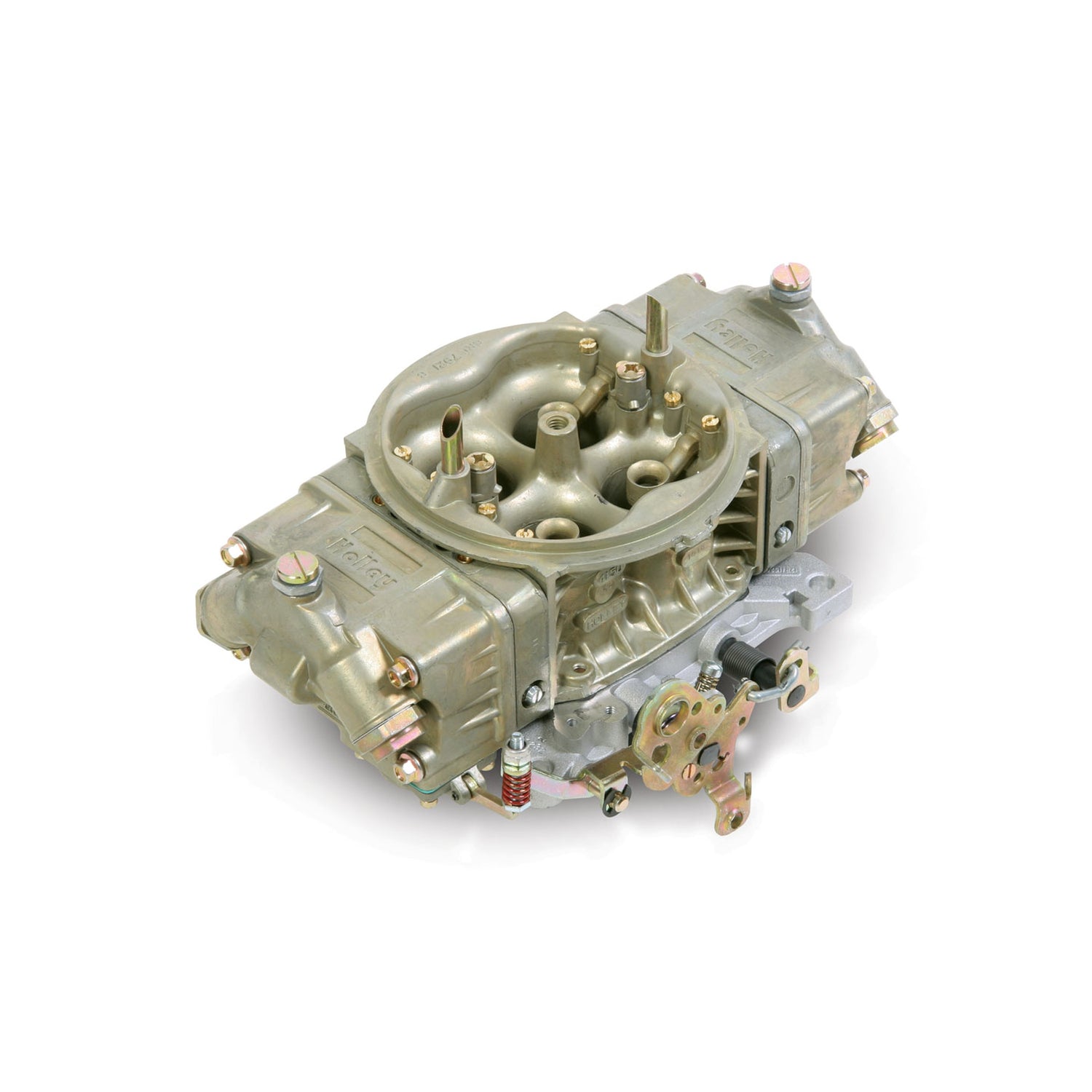

Holley 0-80528-2 750 CFM Classic HP Carburetor
750 CFM - 4150 - Mechanical Secondaries - Zinc - Gasoline
Holley 0-80528-2 750 CFM Classic HP Carburetor
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
Description
Description
Part Number: 0-80528-2

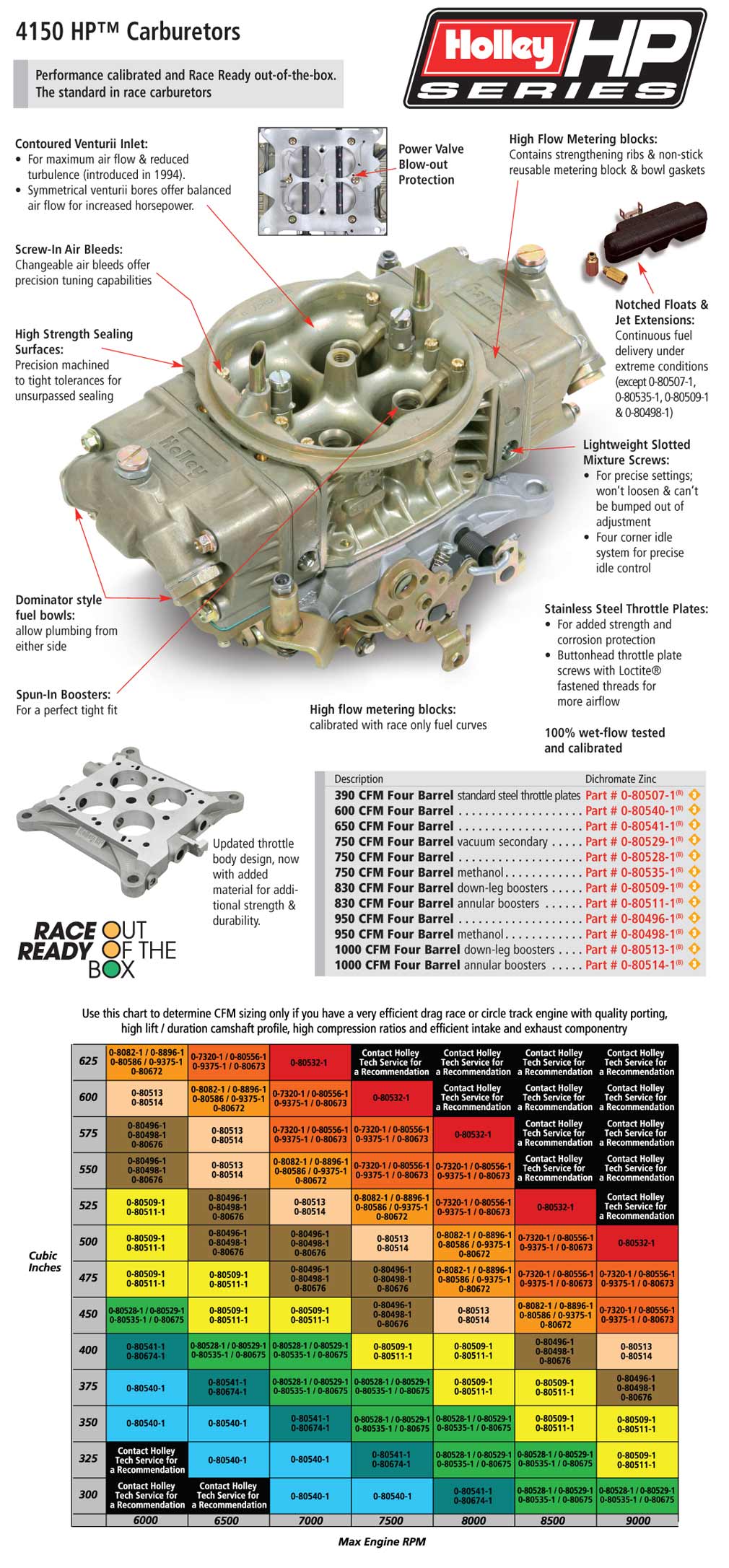

Holley HP™ carburetors have been the standard in racing carburetors for nearly two decades. Powering the biggest names in NASCAR to the Saturday night racer, HP carburetors are the perfect choice for all types of motorsports.
Classic HP carburetors are available from 390 to 1000 CFM and feature a contoured venturii inlet for balanced air flow, screw in air bleeds for precision tuning capabilities, high flow metering blocks and Dominator style fuel bowls which allow pluming from either side for ease of installation.
Holley HP carburetors are the standard for square bore race carburetors. Race-Ready out of the box!
Features and Benefits
• Gold Dichromate finish for corrosion resistance
• Optimized race calibration
• Contoured venturri inlet offers balanced airflow for increased horsepower
• Screw in air bleeds for precision tuning capabilities
• Dual 30cc accelerator pumps for additional fuel under initial acceleration
• Dual feed fuel inlets for constant high volume fuel delivery
• 4 corner idle allows you to precisely control your idle system
• Progressive Secondaries for perfect off the line launches
• Stainless steel throttle plates
• Includes notched float and jet extensions
• Calibrated for gasoline
• 100% wet-flow tested by Holley technicians to assure it arrives ready to run!
• Compatible with GM, Chrysler, and Ford A/T kickdown linkage. Additional parts may be required.
Notice - Due to the natural color variations of the dichromate plating process, the plating color may vary from casting to casting (within a carburetor) and from carburetor to carburetor. This is considered normal and is not a cosmetic defect. If you desire a carburetor with no color variation, please shop our black and shiny finish carburetors.
Specifications
Specifications
-
Specifications

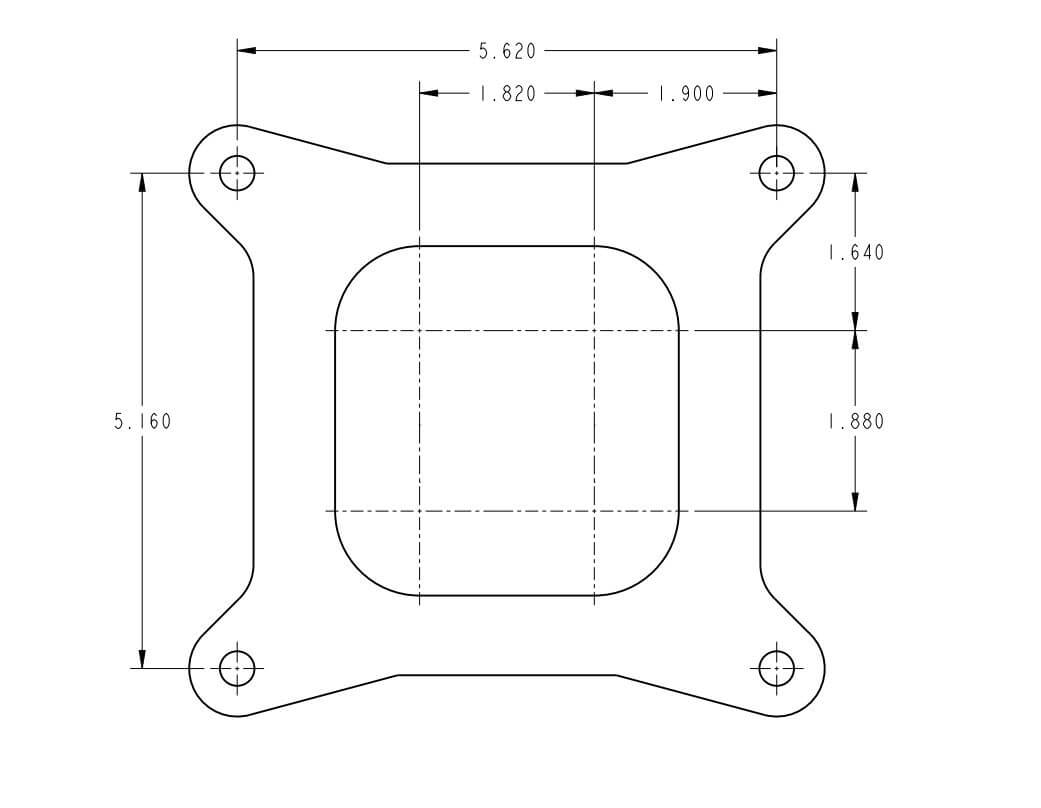

Adjustable Air Bleeds Yes Adjustable Emulsion Bleeds No Adjustable Idle Feed Restrictors No Air Cleaner Flange Diameter 5-1/8 Barrel Quantity 4 Barrels 4 Barrels Quantity 4 Body Color Gold Dichromate Body Finish Plated Body Material Aluminum Booster Downleg Booster Design Downleg Brand Holley Carburetor Material Aluminum Carburetor Use Performance and Race Category Air and Fuel Delivery CFM 750 CFM Rating 750 Choke None Choke Type None Circuit Count 2 Color Gold Dichromate Condition New Cubic Feet Per Minute Rating 750 Emission Code 3 Finish Gold Dichromate Flange Shape Square Flange Type Square/4150 Float Level Externally Adjustable Fuel Gasoline Fuel Inlet Dual Fuel Inlet Center to Center 9.5 Fuel Inlet Count Dual Fuel Inlet Type 5/8-18 Inverted flare Fuel Type Gasoline Gasket Or Seal Included Yes Grade Type Race Linkage Attached Yes Marine Approved No Marine Use No Material Aluminum Meter Block Material Cast Aluminum Metering Block Color Gold Dichromate Model 4150 Mounting Hardware Included No Mounting Hole Quantity 4 part type Carburetor Primary Float Type Center Hung Nitrophyl Primary Jet Diameter 75 Primary Main Jet Size 75 Primary Power Valve 6.5 Primary Pump Nozzle Size 31 Primary Throttle Bore Diameter 1.688 Primary Venturii Diameter 1.376 Product Type Carburetor Secondaries Mechanical Secondary Barrel Type Mechanical Secondary Float Type Center Hung Notched Nitrophyl Secondary Jet Extensions No Secondary Main Jet Size 75 Secondary Power Valve 6.5 Secondary Pump Nozzle Size 31 Secondary Throttle Bore Diameter 1.688 Series Classic HP Spacer Included No Supercharged Application No Throttle Bore Diameter 1.688 inch Throttle Kickdown Provision(S) Compatible with GM, Chrysler, and Ford A/T kickdown linkage Vacuum Ports None Venturii Size 1.376 inch Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
Instructions
