Holley | SKU:
0-80402-2

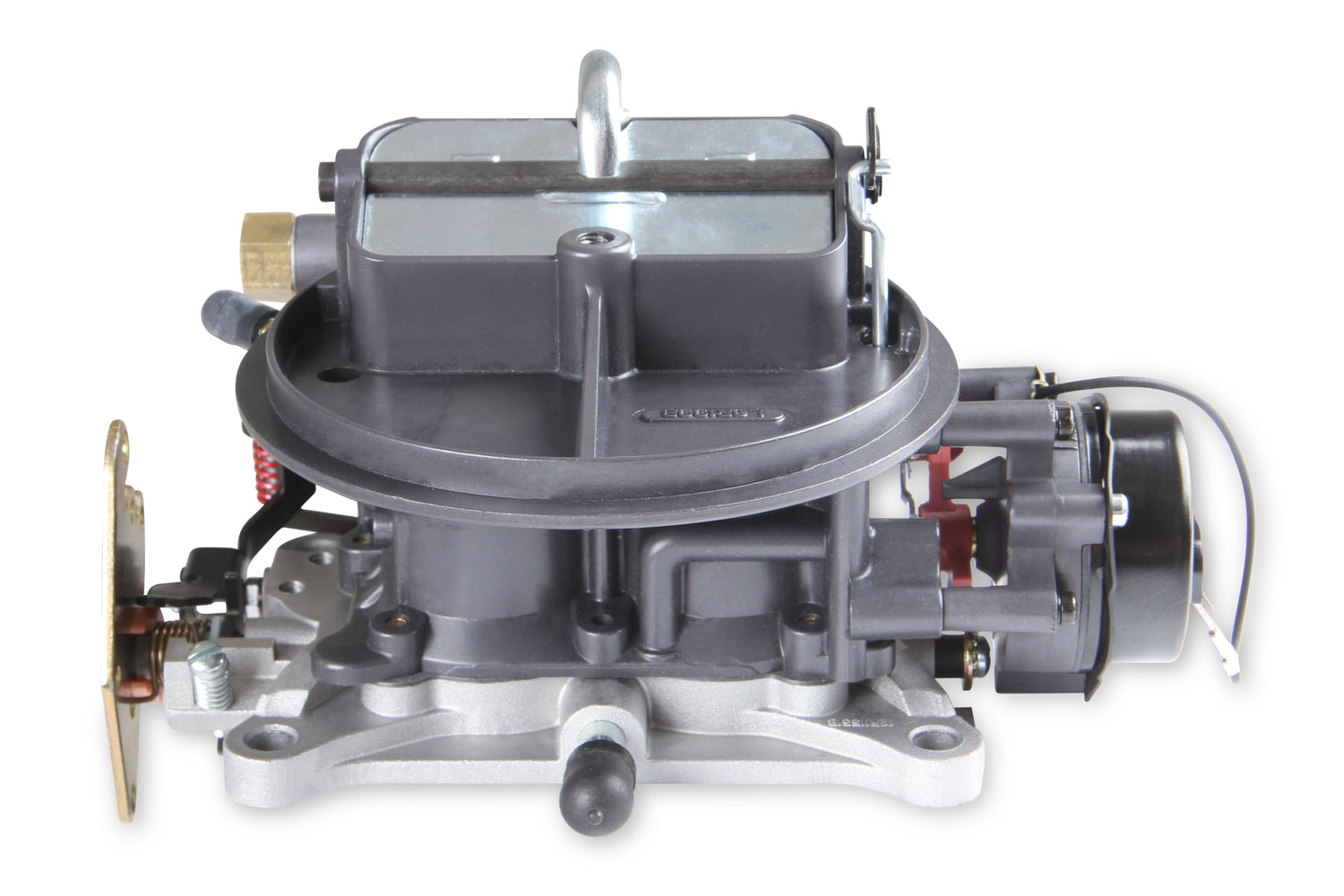

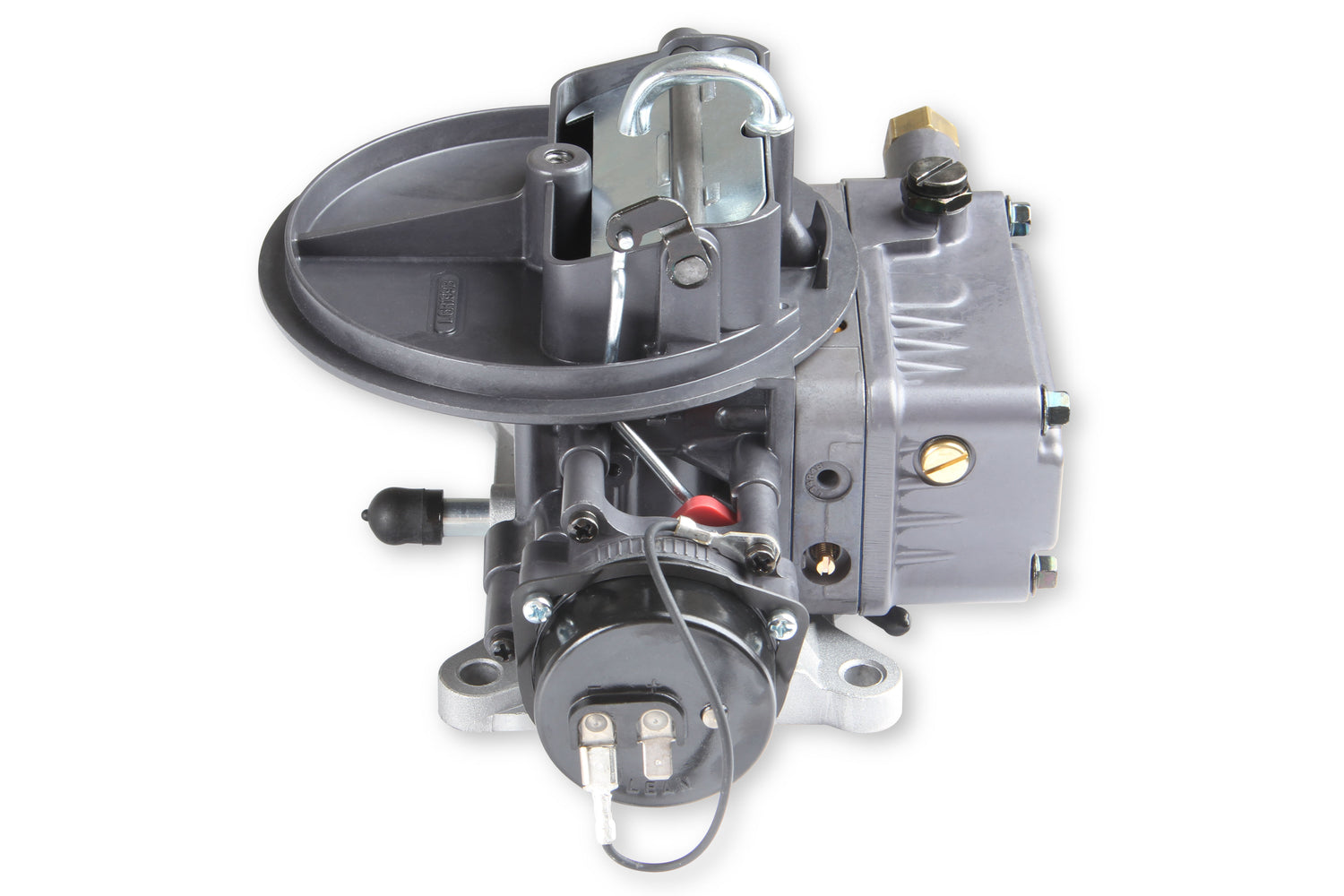

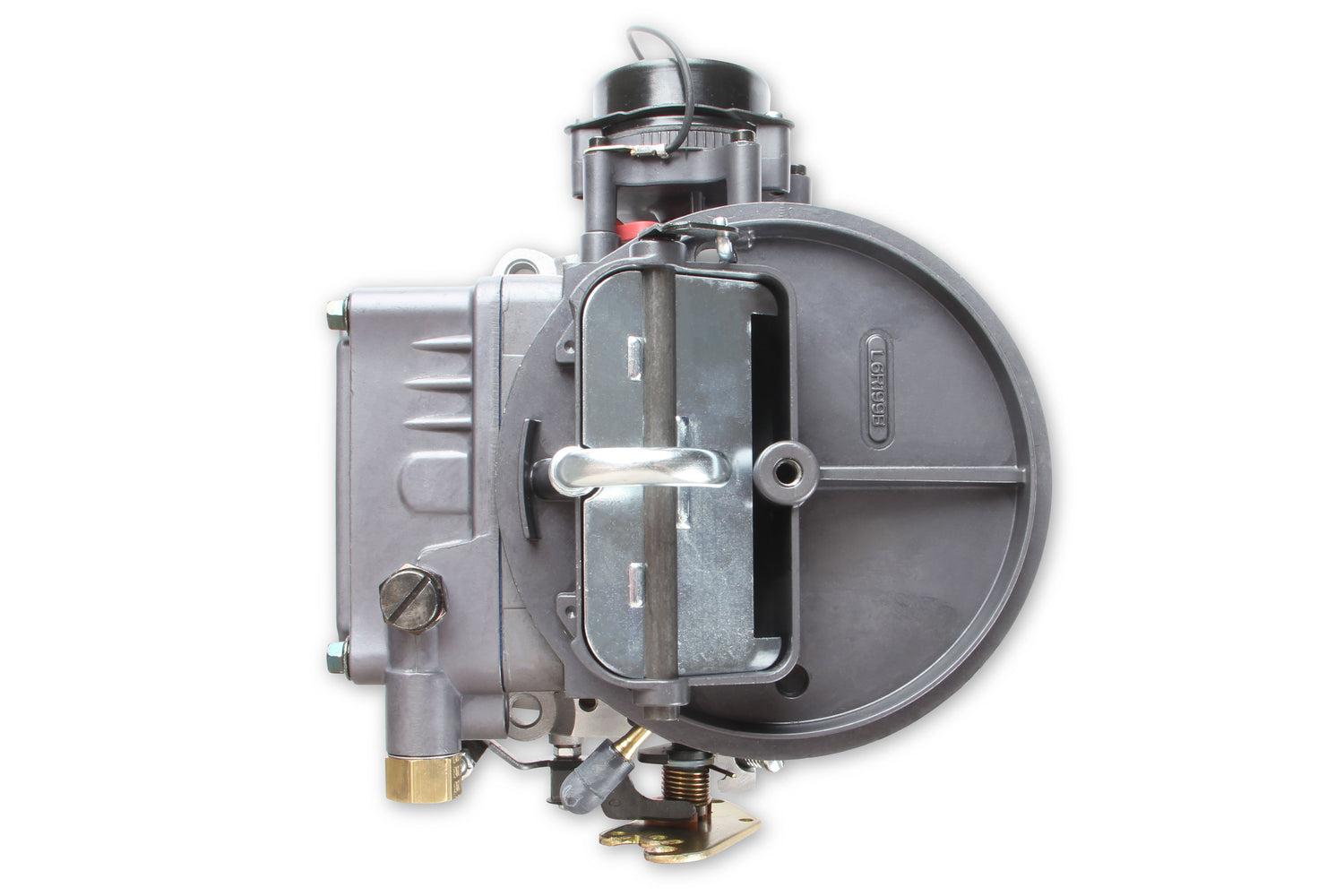

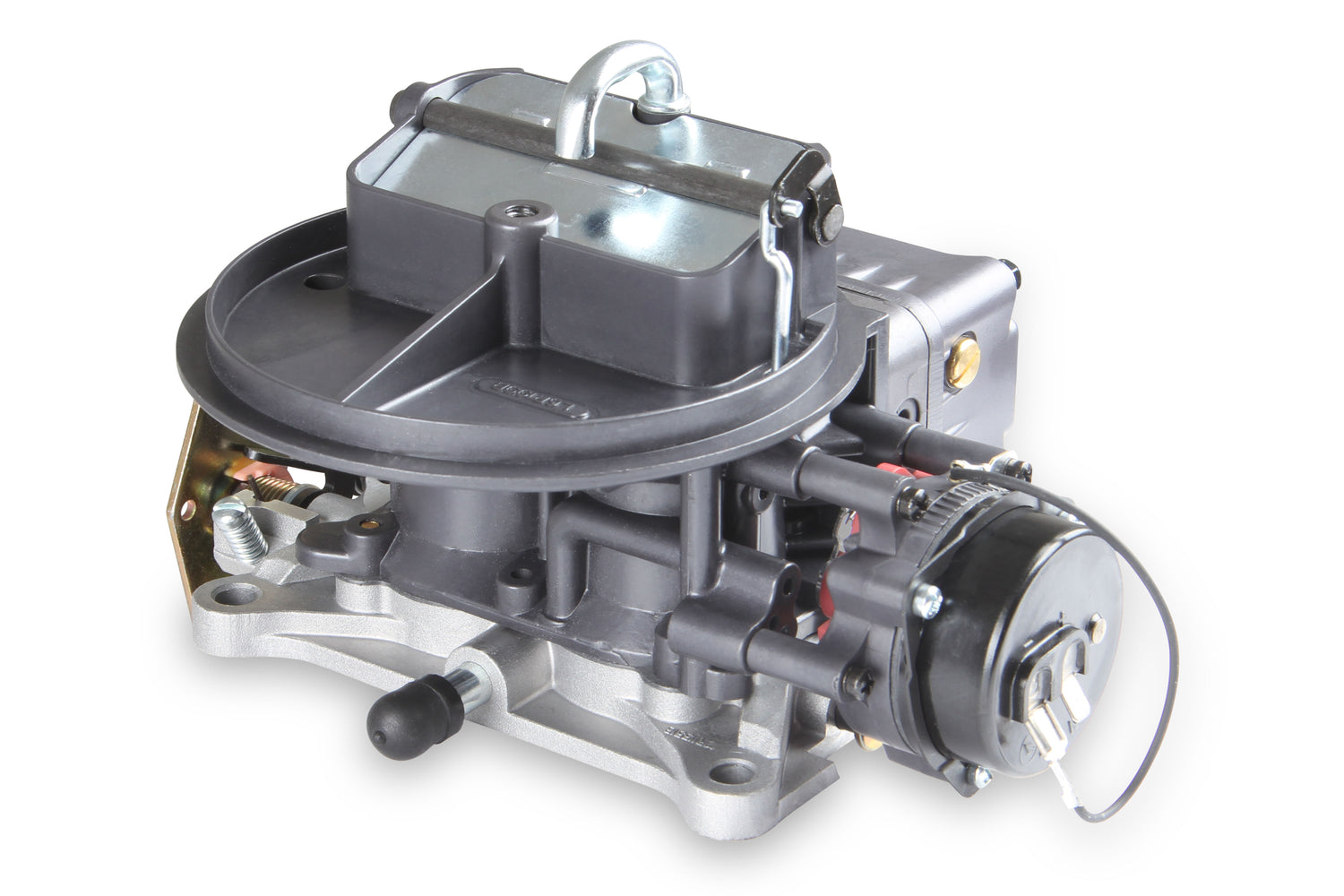

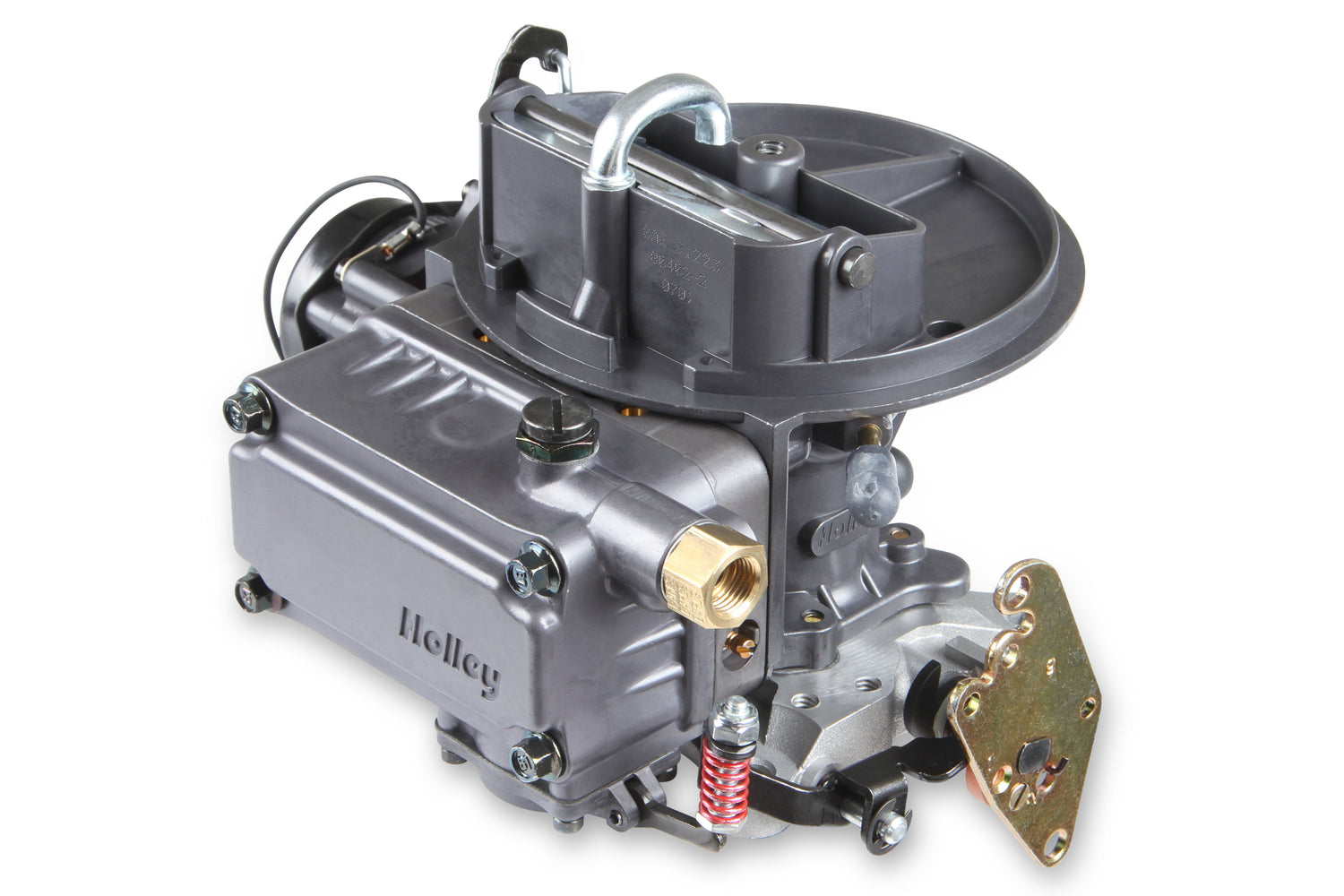

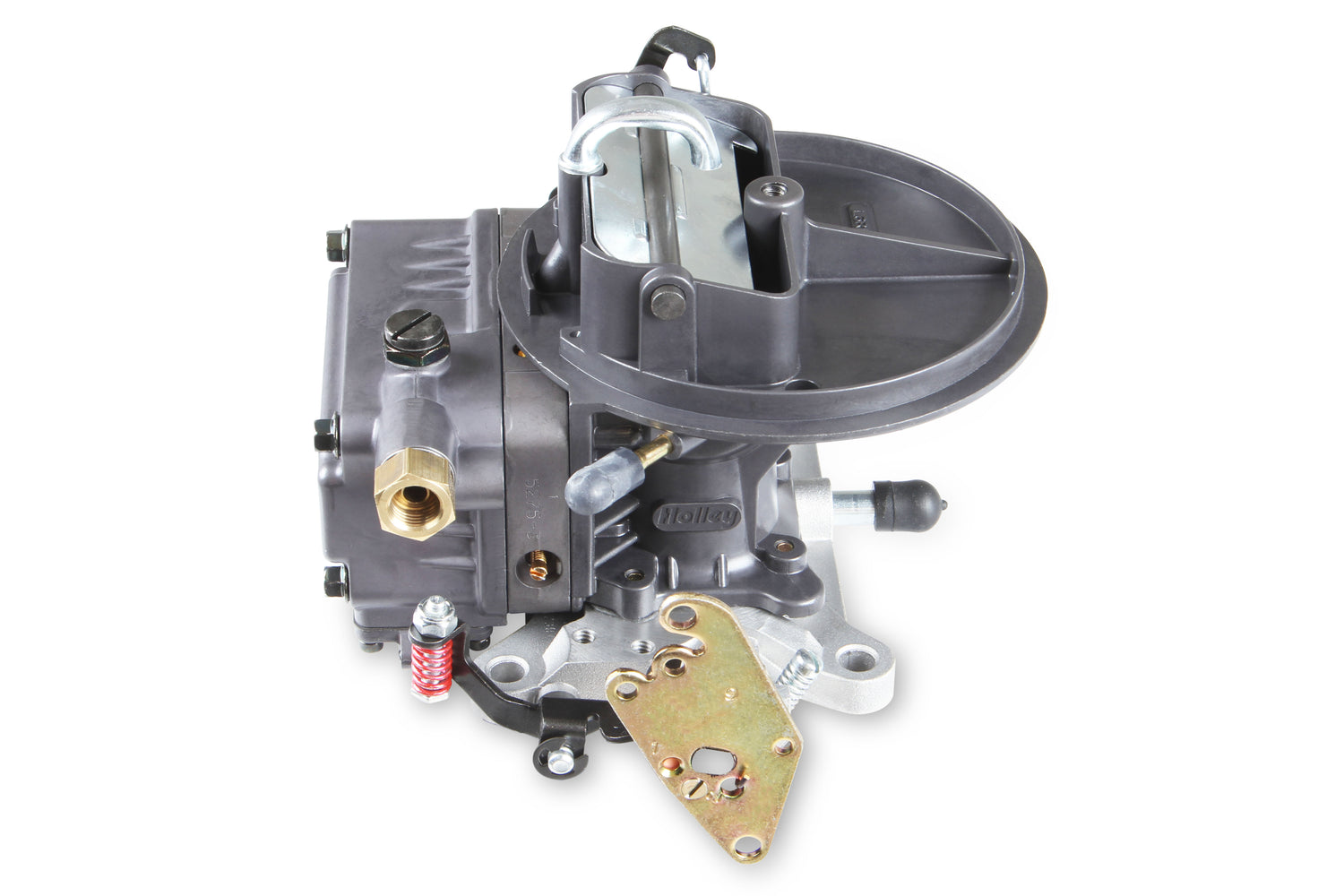

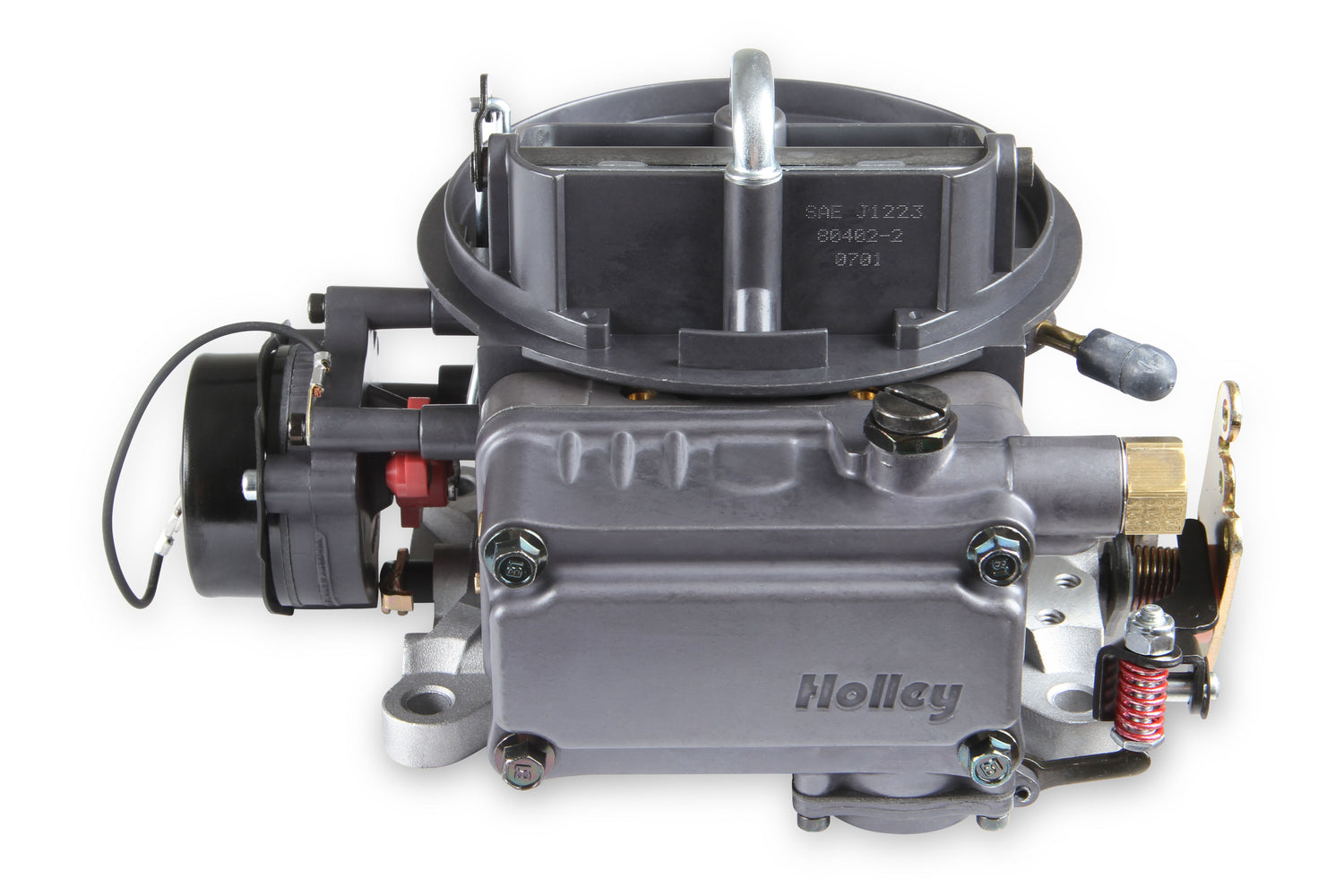

Holley 0-80402-2 500 CFM Marine Carburetor - Aluminum
500 CFM - 2300 - Hard Core Gray - Gasoline
Sold out
Regular price
$1,491.90 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 0-80402-2 500 CFM Marine Carburetor - Aluminum
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
Stock Status:
Description
Description
500 CFM - 2300 - Hard Core Gray - Gasoline
Part Number: 0-80402-2
All Holley Marine Carburetors are designed to meet Coast Guard specifications. A marine carburetors fuel metering system is calibrated to compensate for unique engine loads found on boats. The J-style vent tubes direct fuel/fumes back into the carburetor for safe operation while on rough waters.
The aluminum Holley 0-80402-2 Marine carburetor is designed with a universal calibration good for small cubic inch marine engines where a 2300 model 2BBL with electric choke is required
Features and Benefits
• Hard Core Gray finish for corrosion resistance
• Universal Marine Calibration
• Factory preset electric choke for easy startups
• 30cc Accelerator pump for smooth starts
• Single feed fuel inlet for easy installation
• J-Style Vent Tubes for marine applications
• Meets Coast Guard Specifications
• Power valve blow-out protection
• 100% wet-flow tested by Holley technicians to assure it arrives ready to run!
Part Number: 0-80402-2
All Holley Marine Carburetors are designed to meet Coast Guard specifications. A marine carburetors fuel metering system is calibrated to compensate for unique engine loads found on boats. The J-style vent tubes direct fuel/fumes back into the carburetor for safe operation while on rough waters.
The aluminum Holley 0-80402-2 Marine carburetor is designed with a universal calibration good for small cubic inch marine engines where a 2300 model 2BBL with electric choke is required
Features and Benefits
• Hard Core Gray finish for corrosion resistance
• Universal Marine Calibration
• Factory preset electric choke for easy startups
• 30cc Accelerator pump for smooth starts
• Single feed fuel inlet for easy installation
• J-Style Vent Tubes for marine applications
• Meets Coast Guard Specifications
• Power valve blow-out protection
• 100% wet-flow tested by Holley technicians to assure it arrives ready to run!
Specifications
Specifications
-
Specifications
Adjustable Air Bleeds No Adjustable Emulsion Bleeds No Adjustable Idle Feed Restrictors No Air Cleaner Flange Diameter 5-1/8 Barrel Quantity 2 Barrels 2 Barrels Quantity 2 Body Color Hard Core Gray Body Finish E-Coated Body Material Aluminum Booster Downleg Booster Design Downleg Brand Holley Carburetor Material Aluminum Carburetor Use Marine Category Air and Fuel Delivery CFM 500 CFM Rating 500 Choke Electric Choke Type Electric Circuit Count 2 Color Hard Coat Gray Condition New Cubic Feet Per Minute Rating 500 Emission Code 3 Finish E-Coated Flange Shape Rectangular Flange Type 2300 2-BBL Float Level Externally Adjustable Fuel Gasoline Fuel Inlet Single Fuel Inlet Count Single Fuel Inlet Type 1/2-20 Inverted Flare Fuel Type Gasoline Gasket Or Seal Included Yes Grade Type Marine Linkage Attached Yes Marine Approved Yes Marine Engine Size Universal Marine Use Yes Material Aluminum Meter Block Material Cast Aluminum Metering Block Color Black Model 2300 Mounting Hardware Included No Mounting Hole Quantity 4 part type Carburetor Primary Float Type Side Hung Nitrophyl Primary Jet Diameter 75 Primary Main Jet Size 75 Primary Power Valve 4.5 Primary Pump Nozzle Size 28 Primary Throttle Bore Diameter 1.75 Primary Venturii Diameter 1.562 Product Type Marine Carburetor Secondaries None Secondary Barrel Type None Secondary Jet Extensions No Secondary Throttle Bore Diameter 1.750 Series Marine Spacer Included No Sub Category Carburetion Supercharged Application No Throttle Bore Diameter 1.750 inch Vacuum Ports 1 timed (spark) port, 1 full, and 1 PCV port Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
Instructions
