Holley | SKU:
0-76850HB

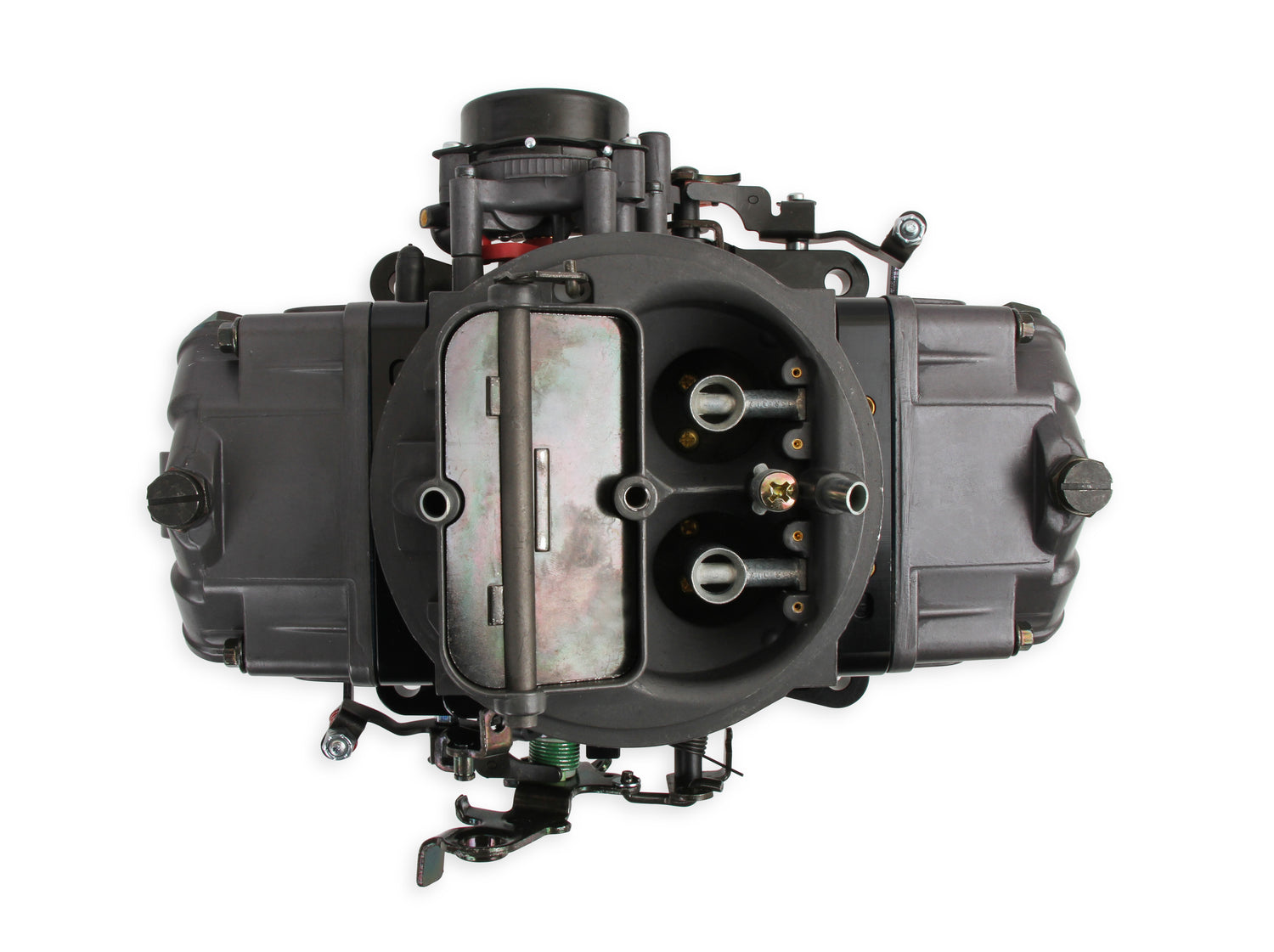

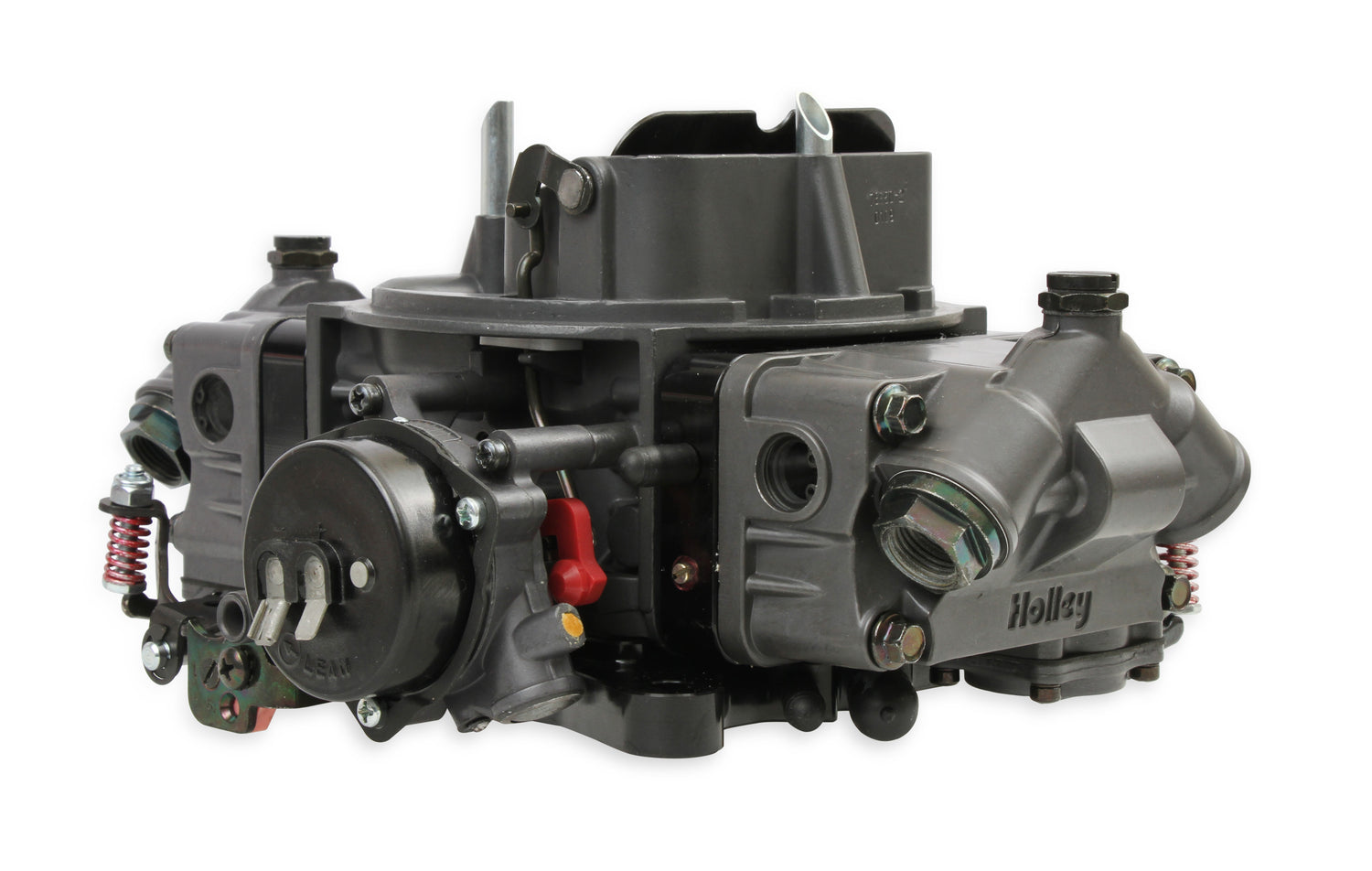

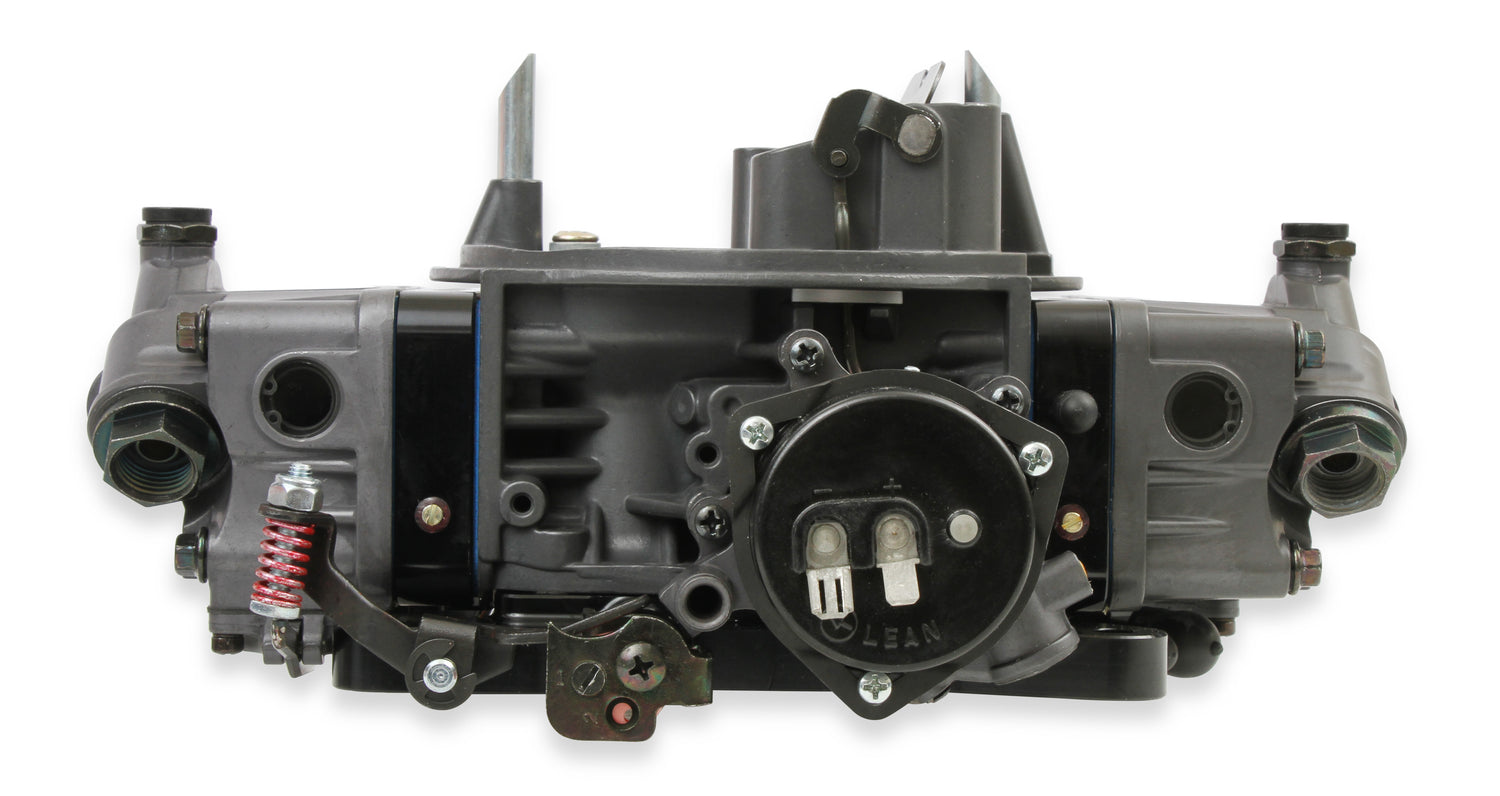

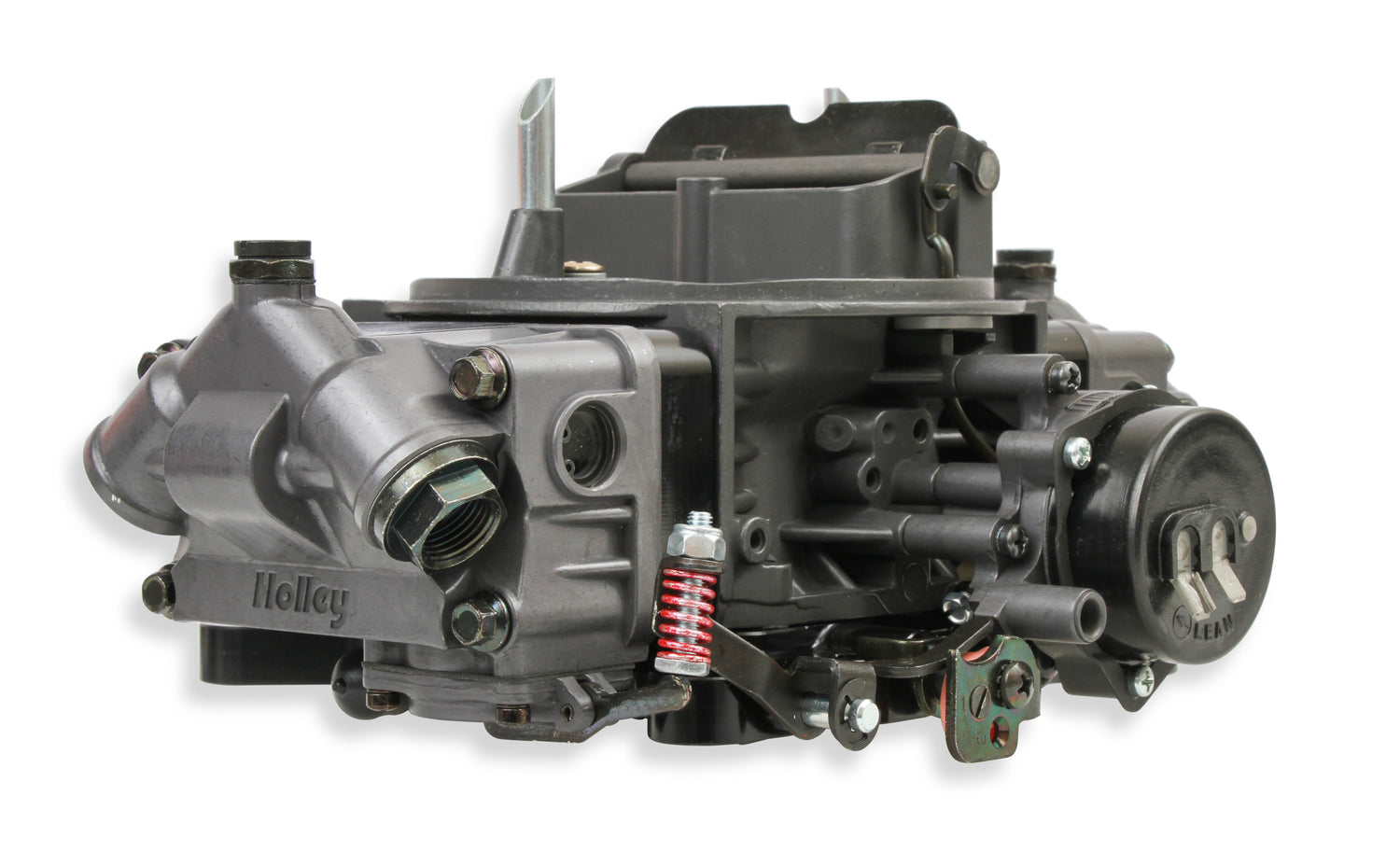

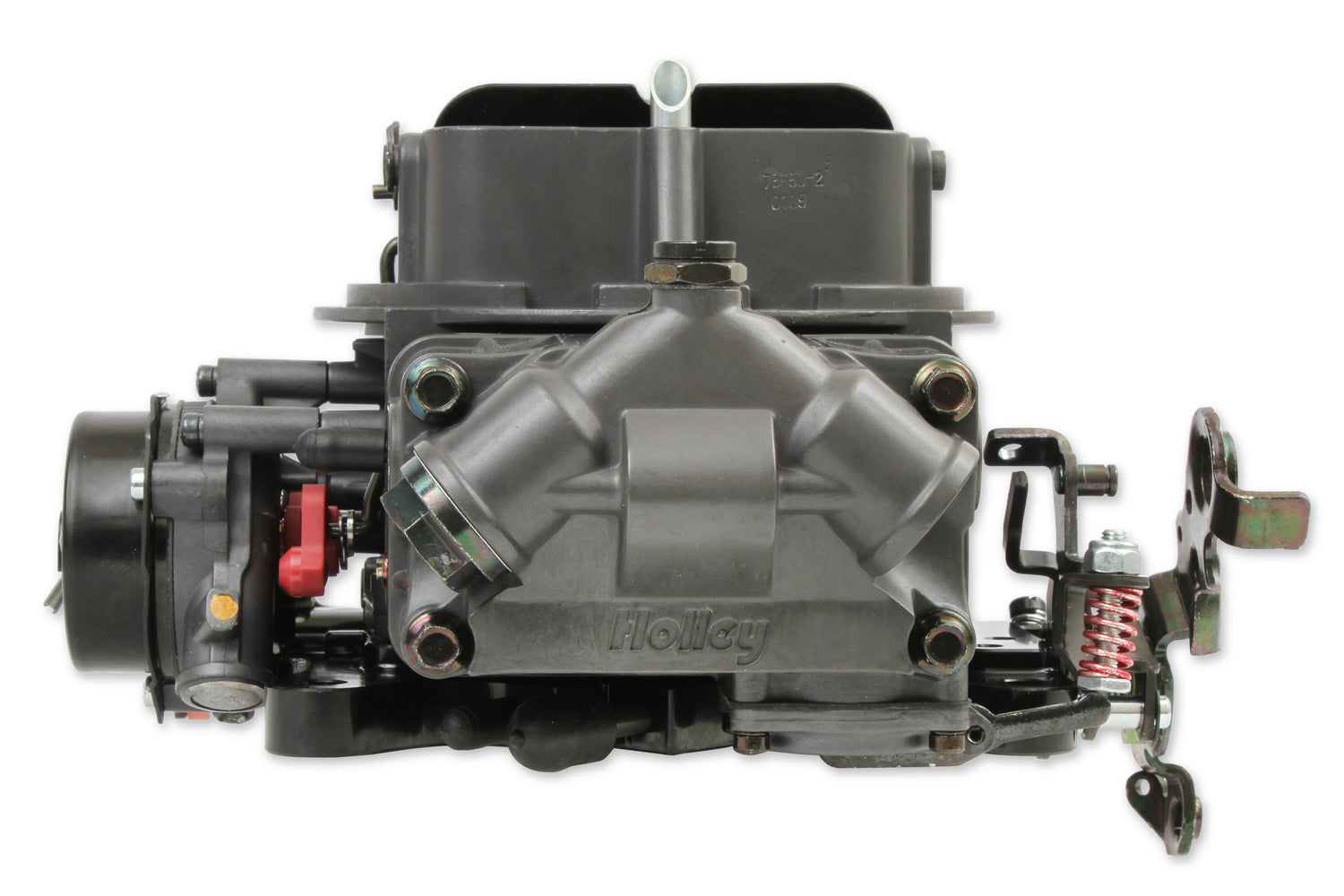

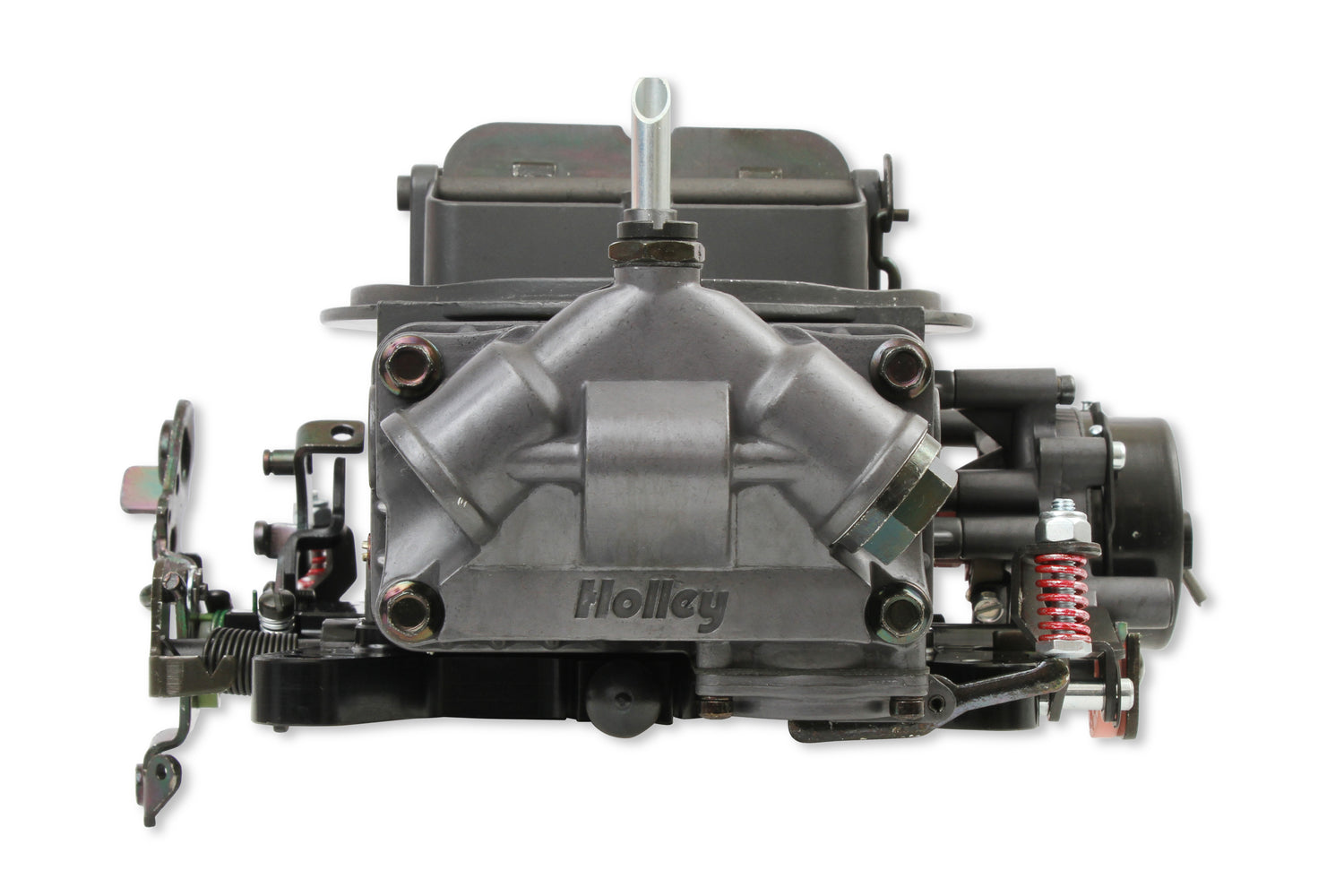

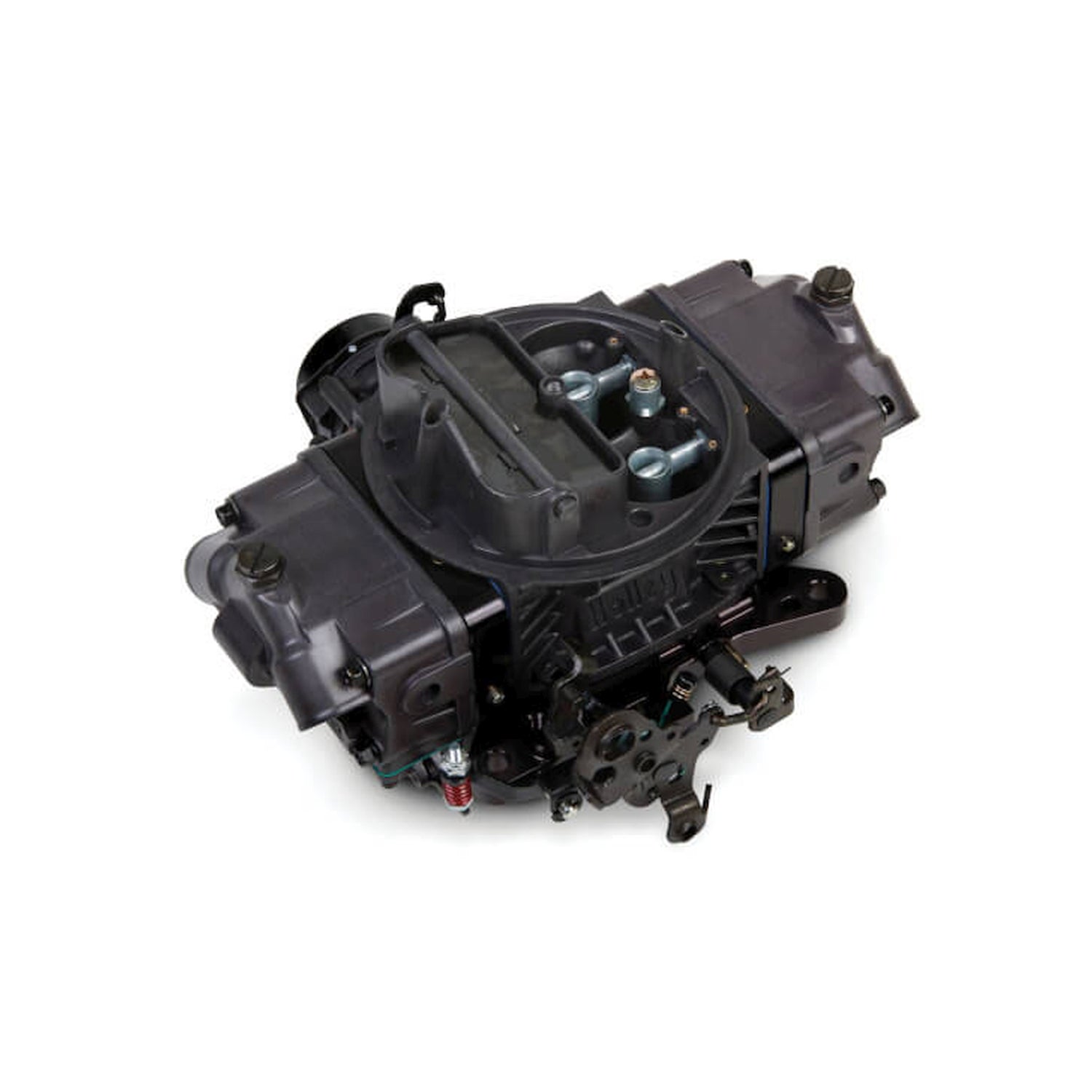

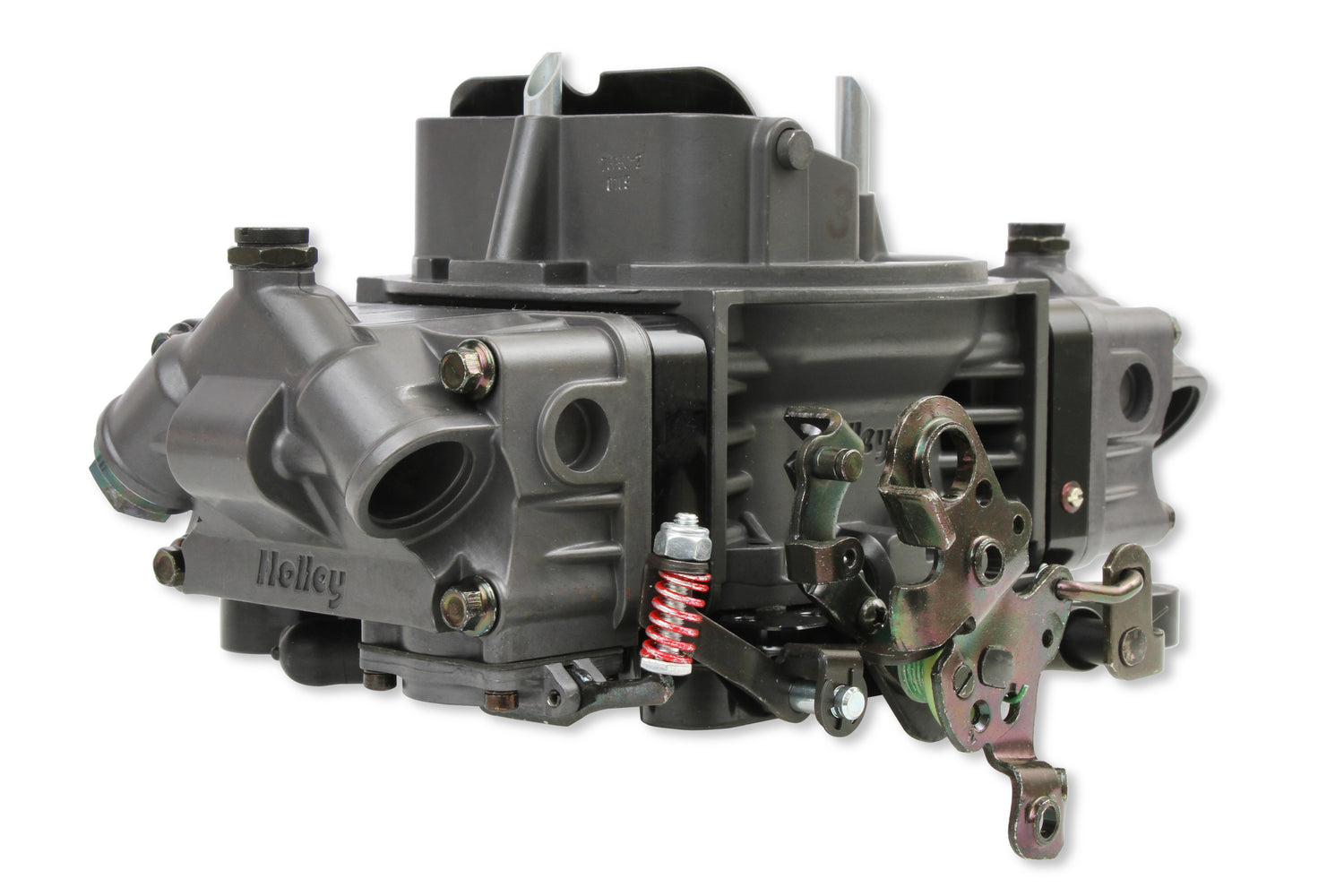

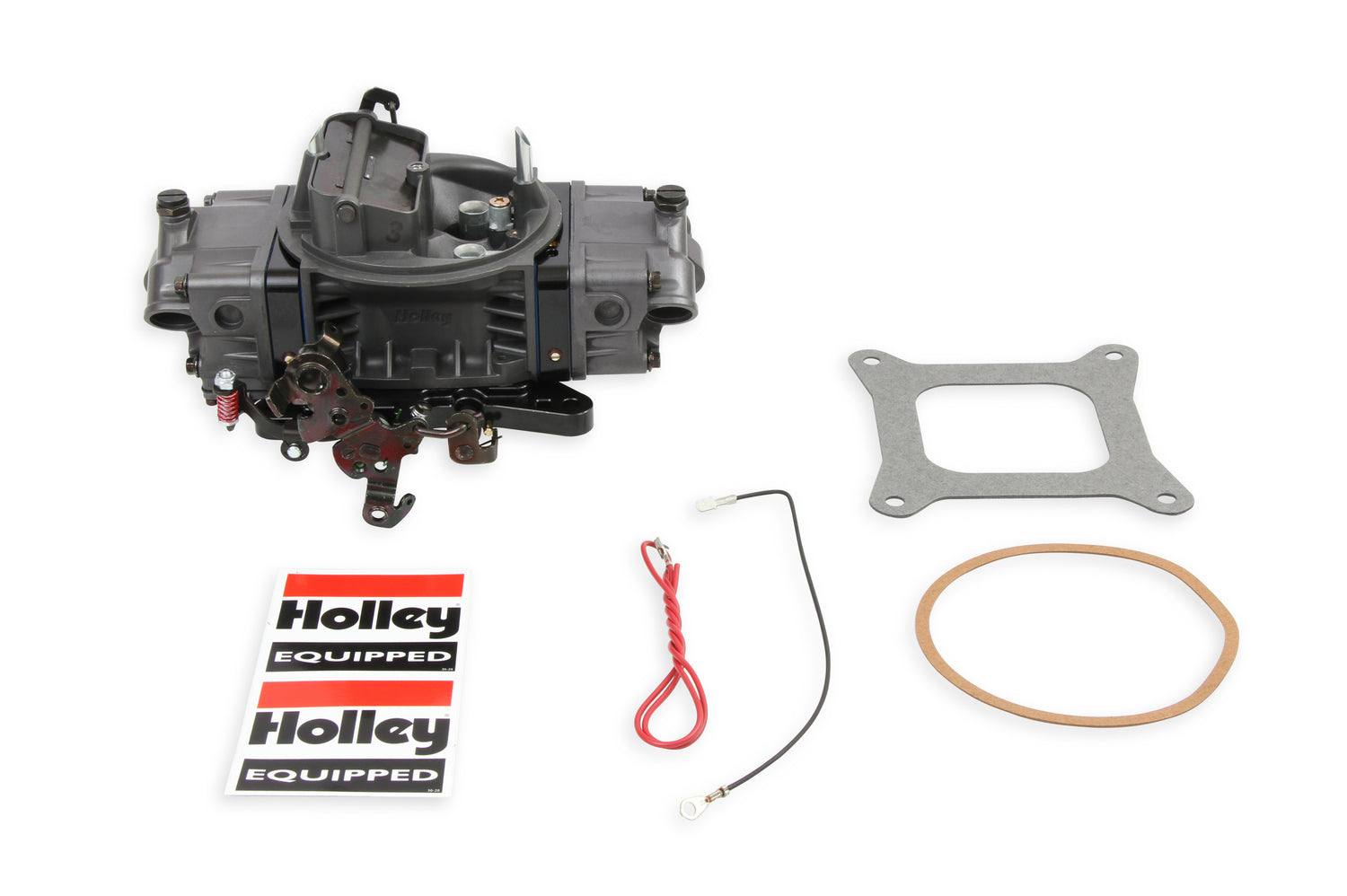

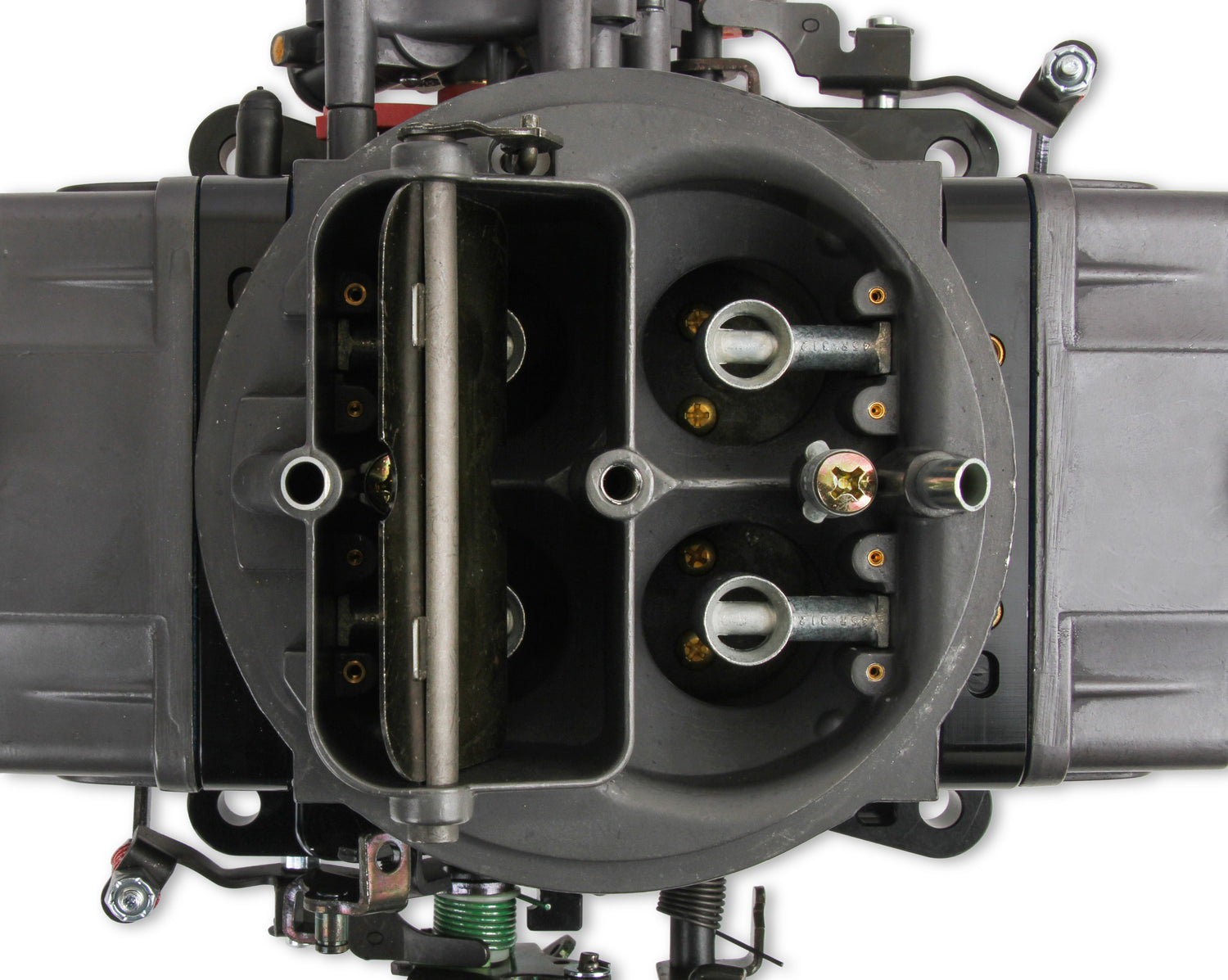

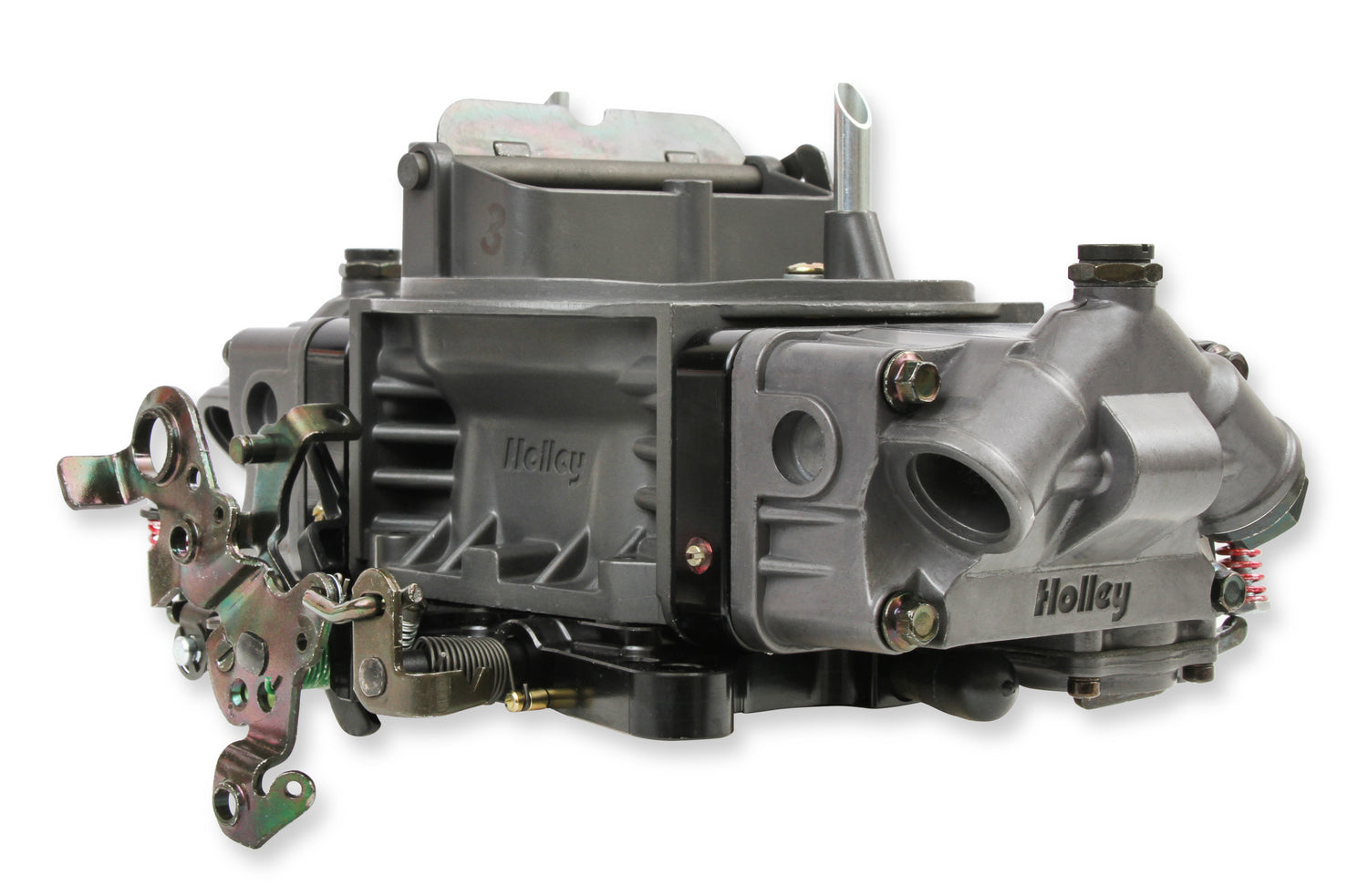

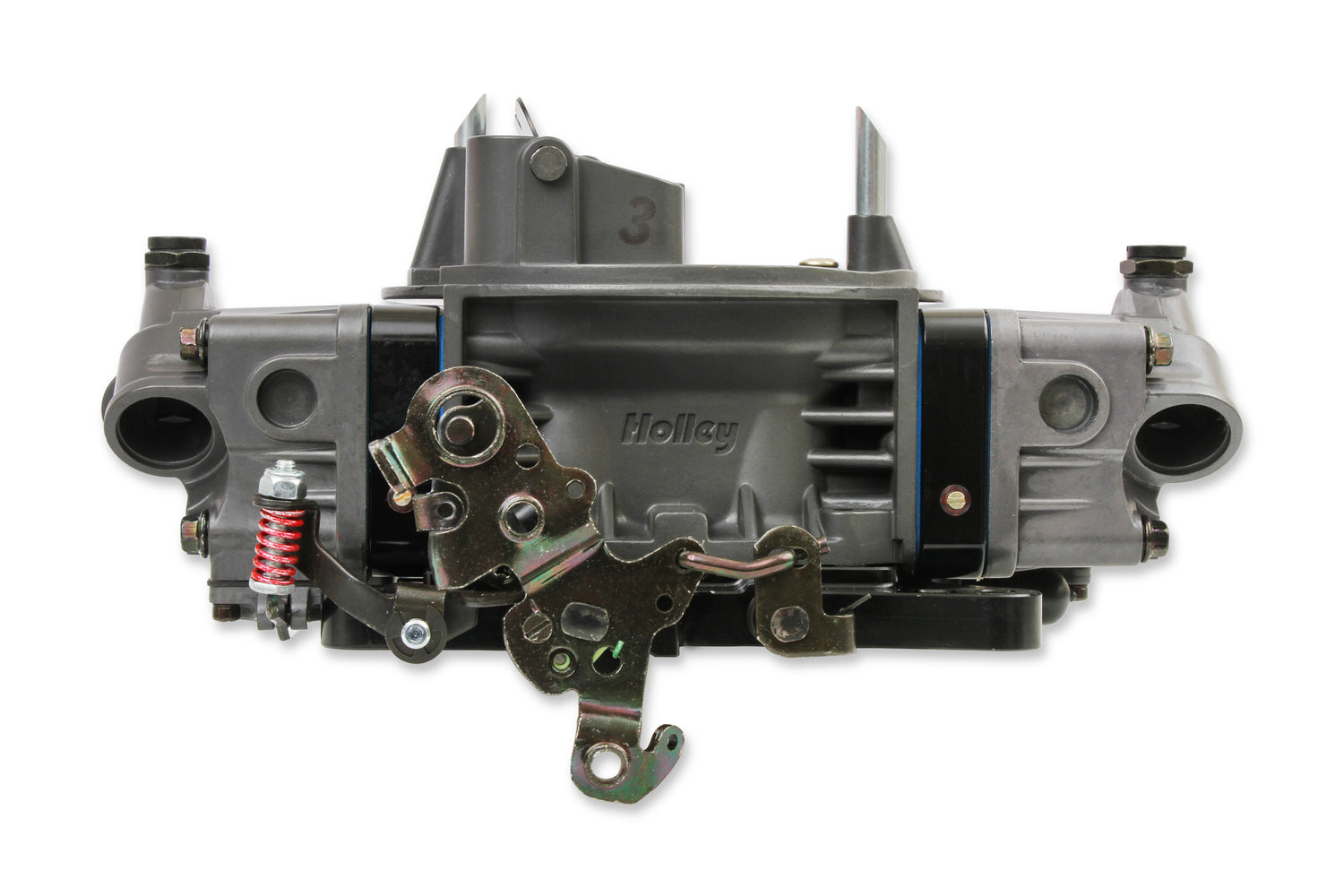

Holley 0-76850HB 850 CFM Ultra Double Pumper Carburetor
850 CFM - 4150 - Mechanical Secondaries - Hard Core Gray - Gasoline
Regular price
$2,047.70 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 0-76850HB 850 CFM Ultra Double Pumper Carburetor
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
850 CFM - 4150 - Mechanical Secondaries - Hard Core Gray - Gasoline
Part Number: 0-76850HB
ULTRA light
Aluminum construction for 43% weight savings
ULTRA stealthy
Hard Core Gray™ anodized finish
ULTRA strong

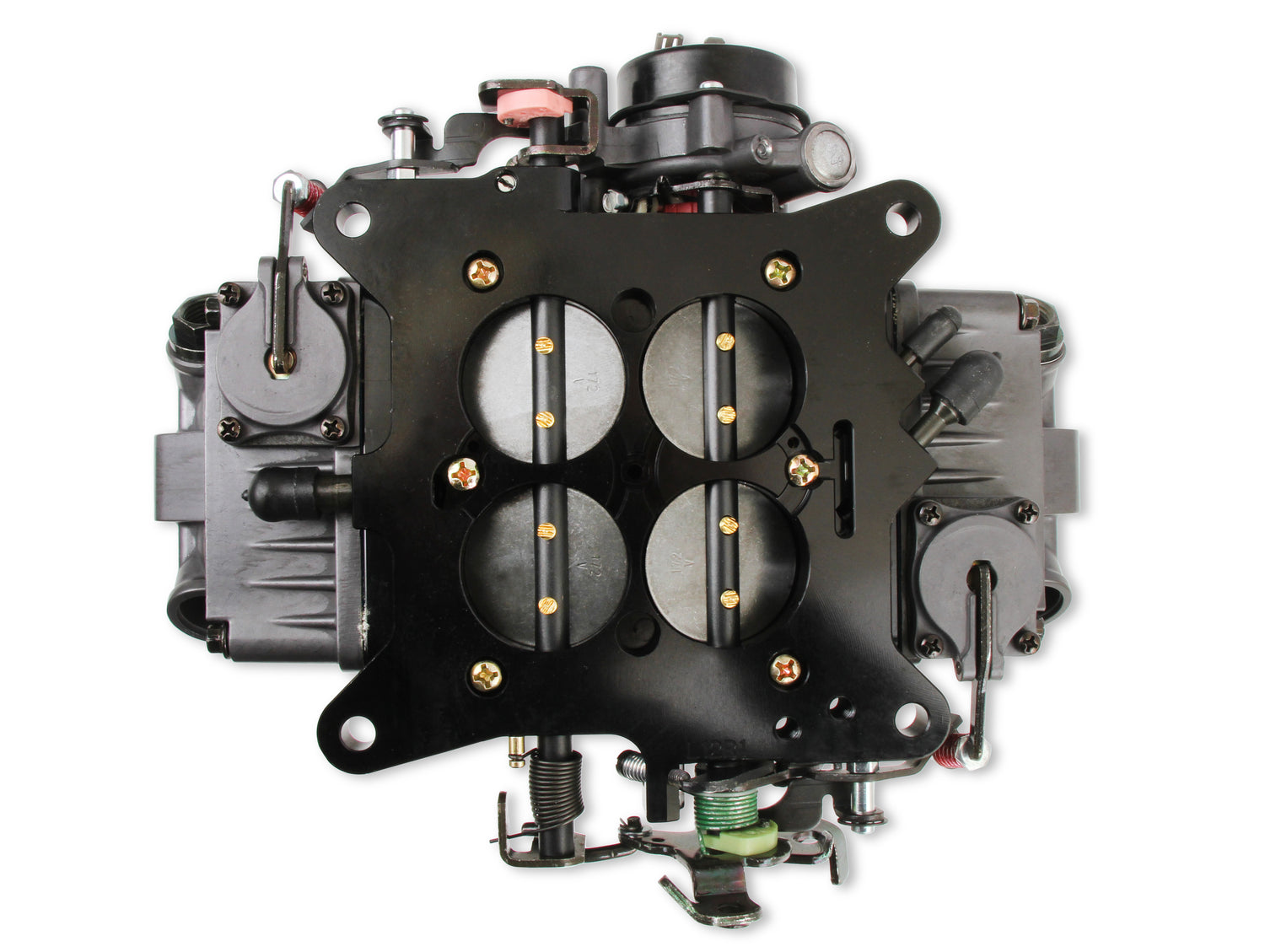

Billet metering blocks & base plates
ULTRA cool
Black anodized billet aluminum metering blocks and base plate
ULTRA easy
Built in sight window for simple float adjustments
ULTRA fast
High-performance fuel curves
The Ultra Double Pumper™ Carburetors feature all aluminum construction and are equipped with metering blocks and a base plate made from 6061-T6 billet aluminum. They weigh in at approximately 5 lbs. less than a comparable zinc carburetor.
The new Ultra Double Pumper Carburetors have an enhanced fuel curve for optimum performance, with many more features such as aluminum construction, anodized billet aluminum metering blocks and base plate, 4 corner idle for precise idle control, mechanical secondaries for great performance, clear fuel level sight plugs for easy, no mess fuel level adjustments, Ford automatic transmission kickdown for use on popular Ford transmissions, four vacuum ports for all necessary vacuum accessories, and for the first time on a Double Pumper, factory pre-set electric choke for easy, fast cold start-ups.
The clean, stealthy look coupled with Black metering blocks and throttle body will certainly set your ride apart whether you are at the show or track.
Features and Benefits
• Hard Core Gray™ w/ black anodized billet aluminum metering blocks/base plate. Casting is hard coat anodized for ultimate corrosion resistance
• Ultra Double Pumpers feature an Optimized street/strip calibration that works out-of-the-box
• Factory preset electric choke for easy startups
• Mechanical secondaries for awesome tire turning performance
• 4 corner idle allows you to precisely control your idle system
• Built in, clear fuel level sight glass for easy, no mess fuel level adjustments
• Aluminum construction for a 43% weight savings
• Compatible with GM, Chrysler, and Ford A/T kickdown linkage. Additional parts may be required.
• Intended for lightweight vehicles w/ manual trans or automatics with high stall & low gearing
• 100% wet-flow tested by Holley technicians to assure it arrives ready to run!

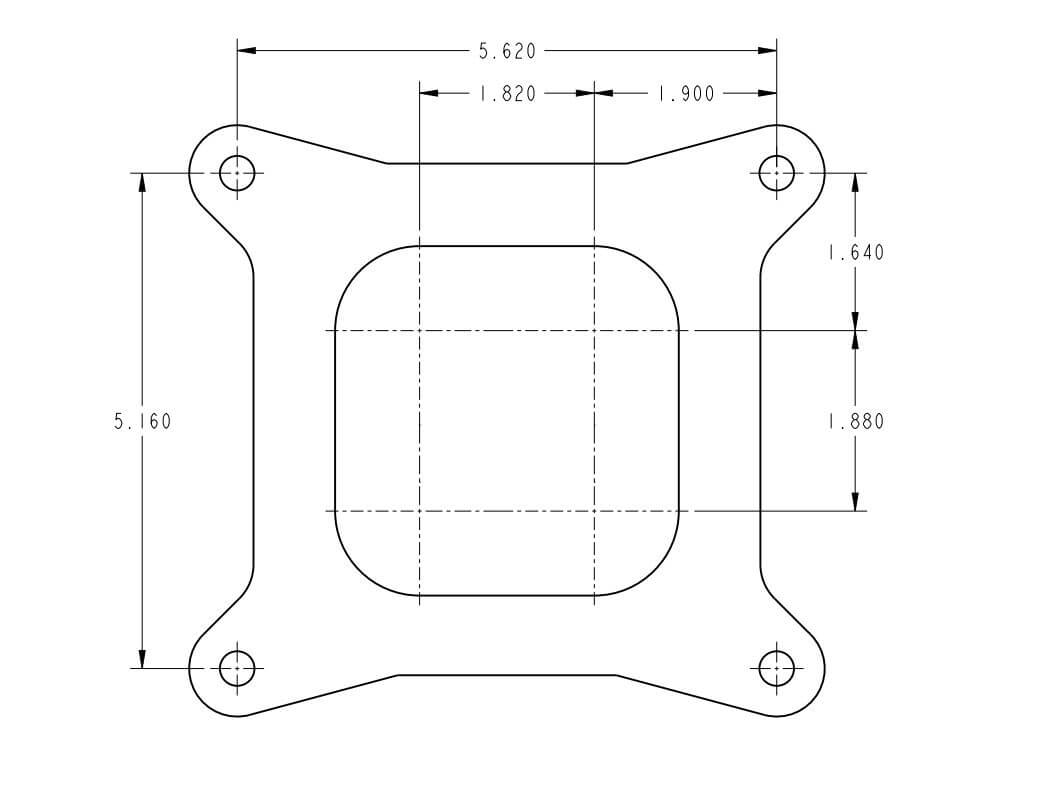

This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.
Part Number: 0-76850HB
ULTRA light
Aluminum construction for 43% weight savings
ULTRA stealthy
Hard Core Gray™ anodized finish
ULTRA strong
Billet metering blocks & base plates
ULTRA cool
Black anodized billet aluminum metering blocks and base plate
ULTRA easy
Built in sight window for simple float adjustments
ULTRA fast
High-performance fuel curves
The Ultra Double Pumper™ Carburetors feature all aluminum construction and are equipped with metering blocks and a base plate made from 6061-T6 billet aluminum. They weigh in at approximately 5 lbs. less than a comparable zinc carburetor.
The new Ultra Double Pumper Carburetors have an enhanced fuel curve for optimum performance, with many more features such as aluminum construction, anodized billet aluminum metering blocks and base plate, 4 corner idle for precise idle control, mechanical secondaries for great performance, clear fuel level sight plugs for easy, no mess fuel level adjustments, Ford automatic transmission kickdown for use on popular Ford transmissions, four vacuum ports for all necessary vacuum accessories, and for the first time on a Double Pumper, factory pre-set electric choke for easy, fast cold start-ups.
The clean, stealthy look coupled with Black metering blocks and throttle body will certainly set your ride apart whether you are at the show or track.
Features and Benefits
• Hard Core Gray™ w/ black anodized billet aluminum metering blocks/base plate. Casting is hard coat anodized for ultimate corrosion resistance
• Ultra Double Pumpers feature an Optimized street/strip calibration that works out-of-the-box
• Factory preset electric choke for easy startups
• Mechanical secondaries for awesome tire turning performance
• 4 corner idle allows you to precisely control your idle system
• Built in, clear fuel level sight glass for easy, no mess fuel level adjustments
• Aluminum construction for a 43% weight savings
• Compatible with GM, Chrysler, and Ford A/T kickdown linkage. Additional parts may be required.
• Intended for lightweight vehicles w/ manual trans or automatics with high stall & low gearing
• 100% wet-flow tested by Holley technicians to assure it arrives ready to run!
This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.
Specifications
Specifications
-
Specifications
Adjustable Air Bleeds No Adjustable Emulsion Bleeds No Adjustable Idle Feed Restrictors No Air Cleaner Flange Diameter 5-1/8 Barrel Quantity 4 Barrels 4 Barrels Quantity 4 Billet Color Black Body Color Hard Core Gray Body Finish E-Coated Body Material Aluminum Booster Downleg Booster Design Downleg Brand Holley Carburetor Material Aluminum Carburetor Use Performance and Race Category Air and Fuel Delivery CFM 850 CFM Rating 850 Choke Electric Choke Type Electric Circuit Count 2 Color Hard Coat Gray Condition New Cubic Feet Per Minute Rating 850 Emission Code 3 Finish Hard Core Gray Flange Shape Square Flange Type Square/4150 Float Level Externally Adjustable Fuel Gasoline Fuel Inlet Dual Fuel Inlet Center to Center 9.5 Fuel Inlet Count Dual Fuel Inlet Type 5/8-18 Inverted Flare Fuel Type Gasoline Gasket Or Seal Included Yes Grade Type Street/Strip Linkage Attached Yes Marine Approved No Marine Use No Material Aluminum Meter Block Material Billet Aluminum Metering Block Color Black Model 4150 Mounting Hardware Included No Mounting Hole Quantity 4 part type Carburetor Primary Float Type Center Hung Nitrophyl Primary Jet Diameter 80 Primary Main Jet Size 80 Primary Power Valve 6.5 Primary Pump Nozzle Size 31 Primary Throttle Bore Diameter 1.75 Primary Venturii Diameter 1.563 Product Type Carburetor Secondaries Mechanical Secondary Barrel Type Mechanical Secondary Float Type Center Hung Nitrophyl Secondary Jet Extensions No Secondary Main Jet Size 80 Secondary Power Valve 6.5 Secondary Pump Nozzle Size 31 Secondary Throttle Bore Diameter 1.750 Series Ultra Double Pumper Spacer Included No Sub Category Carburetion Supercharged Application No Throttle Bore Diameter 1.750 inch Throttle Kickdown Provision(S) Compatible with GM, Chrysler, and Ford A/T kickdown linkage Vacuum Ports 1 timed (spark) port, 2 full, and 1 PCV port Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
