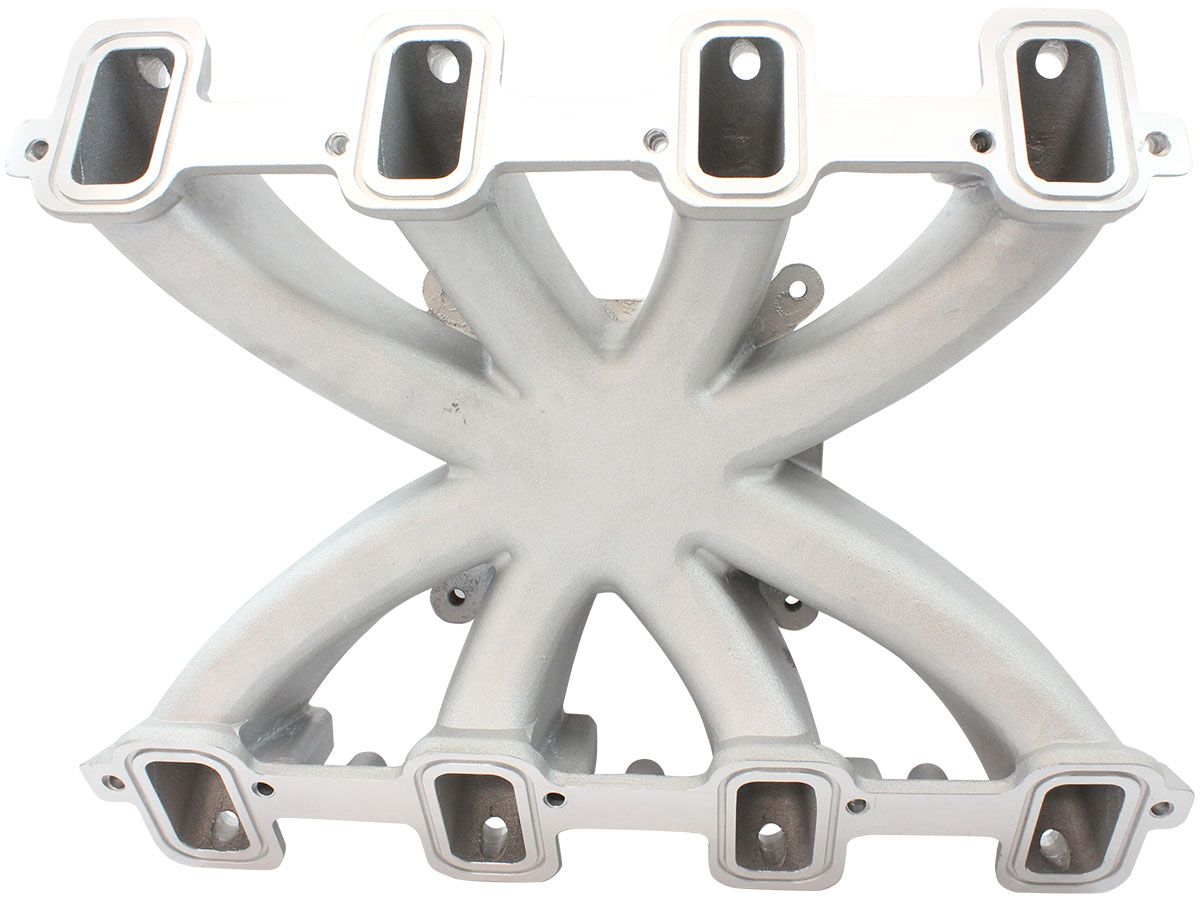

Aeroflow GM LS Rectangle Port Carburettor Street Single Plane EFI Intake Manifold, Natural Cast Finish (AF6050-6000)
4 Barrell 4150 Square Bore Carburettor Pad
Aeroflow GM LS Rectangle Port Carburettor Street Single Plane EFI Intake Manifold, Natural Cast Finish (AF6050-6000)
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
Description
Description
GM LS CARBY INTAKE MANIFOLD
4 Barrell 4150 Square Bore Carburettor Pad
Part Number: AF6050-6000
Convert your GM LS engine to allow a 4150 style throttlebody to sit on top of your engine for retro-fit applications with this Aeroflow Performance Street low rise cast intake manifold.This single-plane intake manifold is designed to keep your air and fuel distributiongoing into the engine at a steady and even flow for maximum performance and efficiency. The carburettor-mounting pad is designed to accept aftermarket4150 square-bore throttle bodies or adapter plates for turbocharged applications. Specifically designed to suit GM LS Gen III and IV engines equipped with OE or aftermarket LS3 rectangle portcylinder heads.
• Fits GM LS3 Rectangle Port Engines.
• EFI Applications.
• This is designed for GM LS Engines with EFI only. Use AF6040-6000 for NON-EFI applications.
• This intake manifold does not work with factory OEM fuel rails and requires the use of Aeroflow Fuel Rail Kit included (AF6999-6000).
• Requires the use of either 14mm short (33.60mm) fuel injectors or 3/4" length (48.65mm) fuel injectors (SoldSeparately).
• FitsGM LS3 Engines.
• Single Plane Configuration.
• Low Rise Intake Manifold.
• RPM operating range - 2500 to 7000.
• Natural Cast Finish.
Specifications: Manifold Specifications

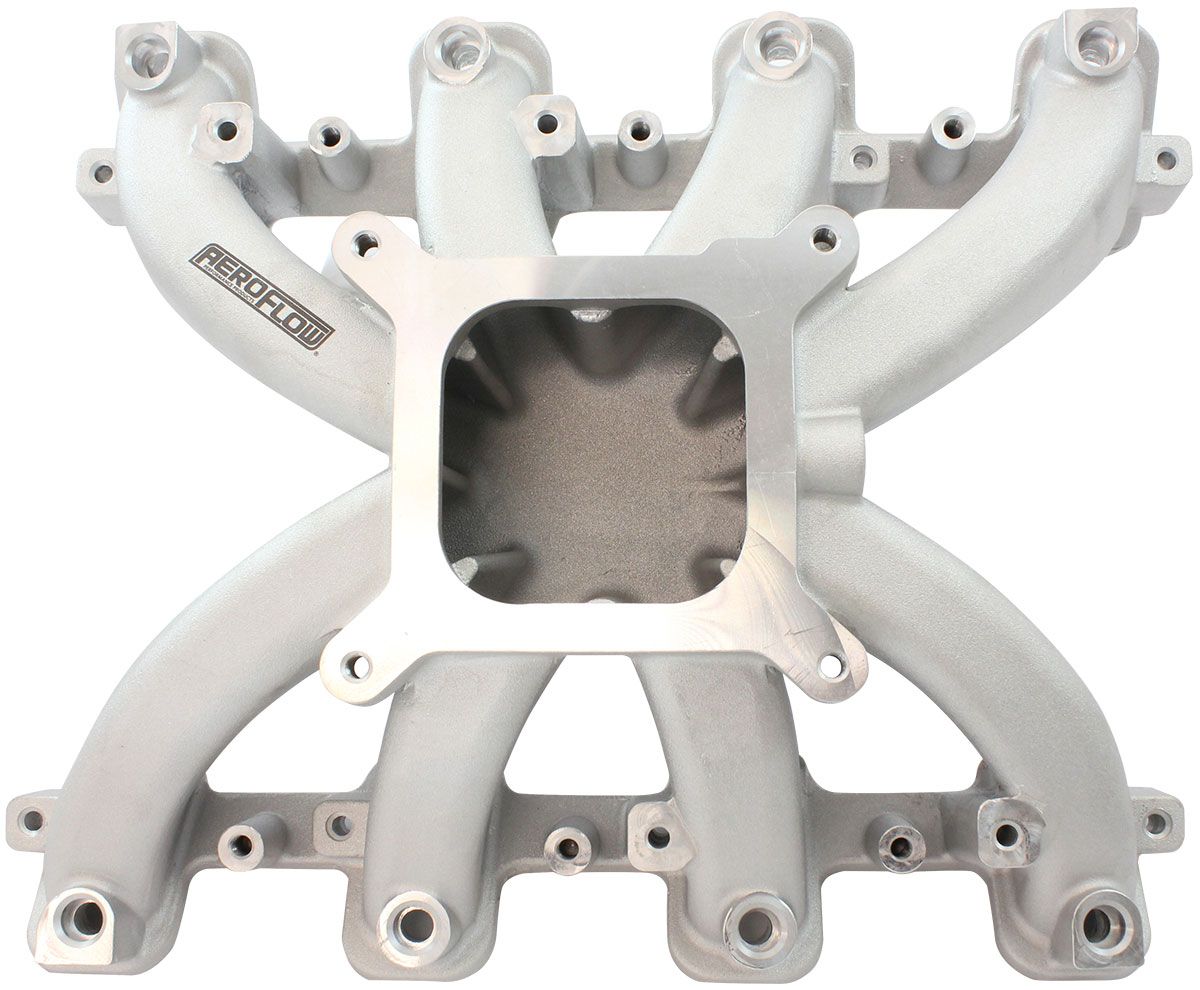

- Square bore carburettor pad (4150 Flange)
- Overall height (Carb pad to bottom of manifold) is 122mm (
Ensure to Check Bonnet Clearance
)
- Port Size: 1.15" x 2.50"
- Intake manifold gasket O-Ring.
-5/16-18" carburettor studs (x4)
- 3/8" NPT port (x1)
- 6 x 5/16-18" Mounting Holes.
Intake Manifold Includes
- 8 x Intake Manifold O-Ring Gaskets (AF6233-5002)
- 4 x M6 x 1.00mm Hex Screws (80mm UHL)
- 6 x M6 x 1.00mm (50m UHL)
- 10 x M6 Flat Washers
- 1 x 3/8" NPT Steel Port Plug

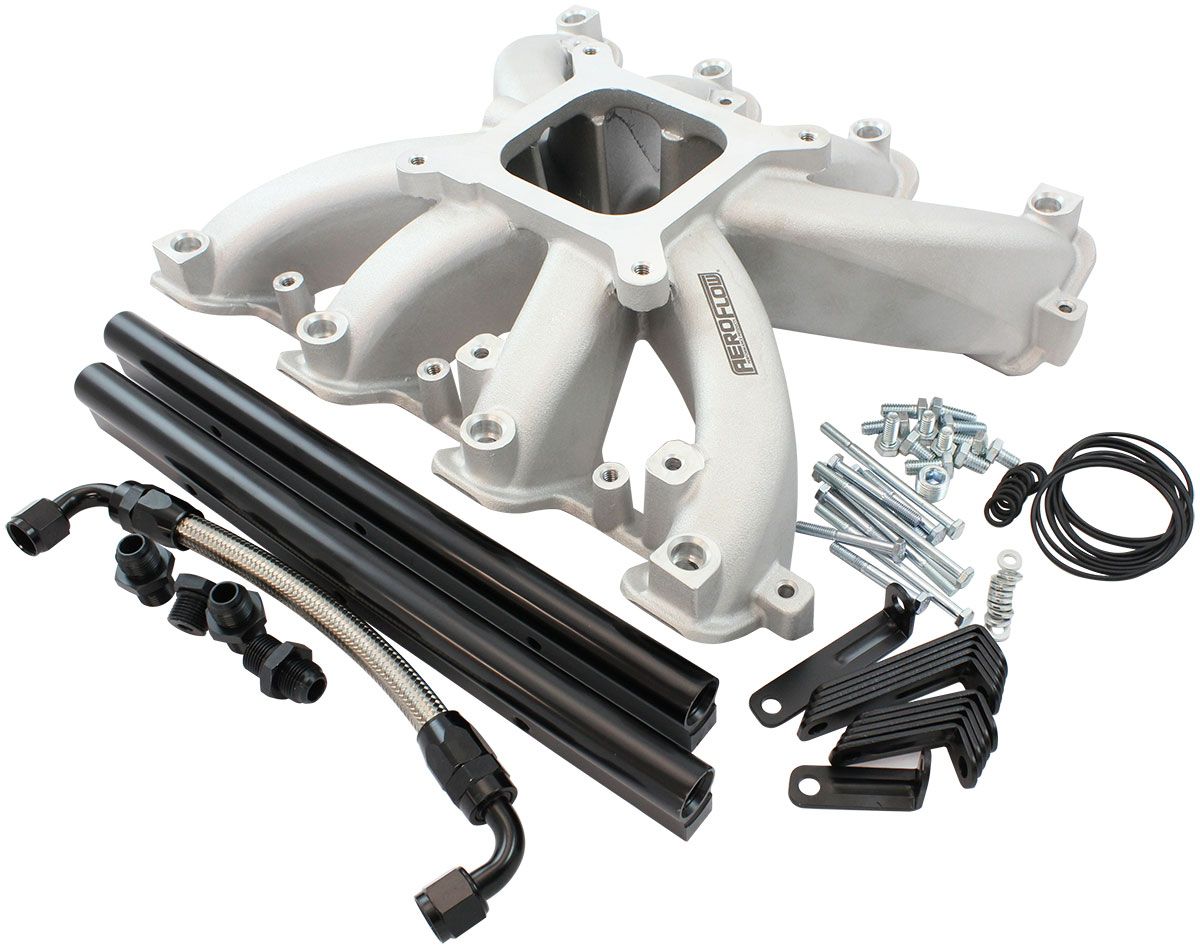

Fuel Rail Kit includes
- 2 x Two Fuel Rails (-8ORB)
- 1 x -8AN cross over 100 series braided line and two 90 degree non full flow taper fittings
- 3 x -8an to -8ORB fittings
- 1 x -8ORB hexport plug
- 6 x long mounting brackets
- 6 x short mounting brackets
- 6 x 5/16-18" hex screws(18.5mm UHL)
- 6 x 5/16-18" hex screws (12mmUHL)
- 4 x M6 nuts
- 8 x 14mm Fuel InjectorO-Rings
Important Information: • Fits GM LS3 Rectangle Port Engines.
• EFI Applications.
• This is designed for GM LS Engines with EFI only. Use AF6040-6000 for NON-EFI applications.
• This intake manifold does not work with factory OEM fuel rails and requires the use of Aeroflow Fuel Rail Kit included (AF6999-6000).
• Requires the use of either 14mm short (33.60mm) fuel injectors or 3/4" length (48.65mm) fuel injectors (SoldSeparately).
