Aeroflow GM LS Fuel Rail Kit for Modular Intake Manifolds (AF6999-6003)

GM LS MODULAR FUEL RAIL KIT

Suitsall Low Rise Modular Intake Manifolds

Part Number: AF6999-6003

Give your GM LS intake manifold the capability to flow some serious flow to feedeven the most fuel hungry applications. These GM LS fuelrails from Aeroflow Performance are specifically designed for use with the GM LS low rise modular intake manifolds. It will not suit the factory GM LS intake manifolds.
Each fuel rail is precision CNC machinedfrom extruded 6063 aluminium with a large internal diameterbore with -8ORB ports on each end and anodized black.
Like the OEM fuelrails, the injector bores are 14mm ID so factory injectors are permitted. This kit is compatible with all fuel typesincluding popular alcohol mixtures such as E85.

Specifications: Requires the use of
14mm short (33.60mm) fuel
injectors.

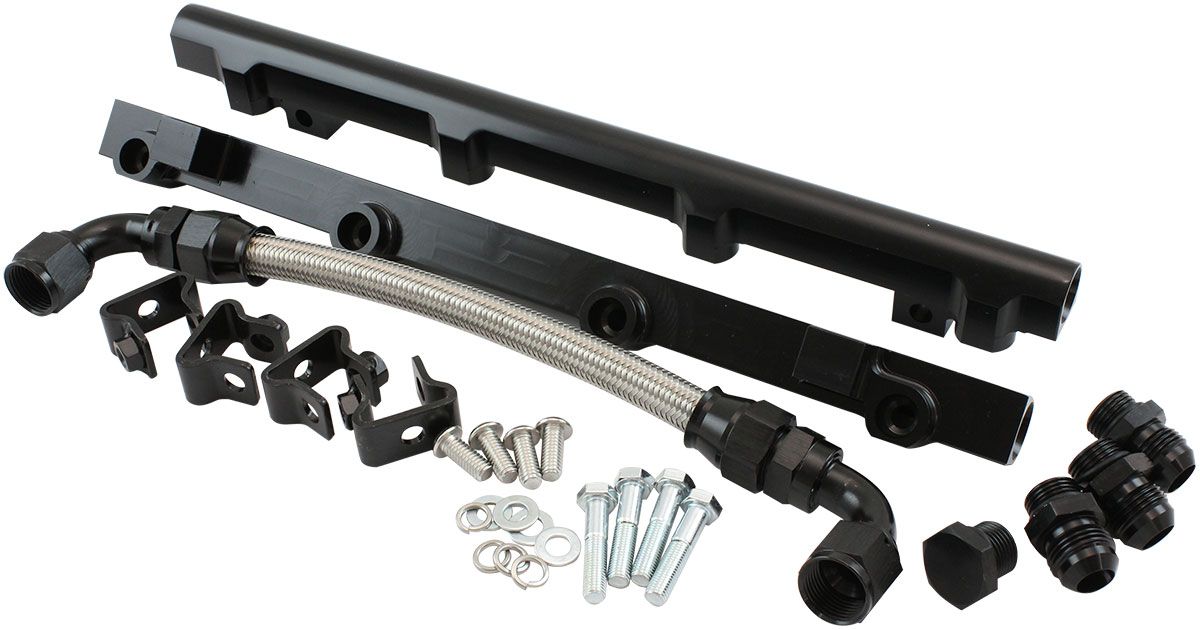

Fuel Rail Kit
includes
2 x Two Fuel
Rails (-8ORB),
1 x -8AN
cross over 200 series braided
PTFE line and two 90 degree
non full flow fittings
3
x -8an to -8ORB fittings

1 x -8ORB hex port
plug
4 x mounting brackets
4 x
5/16-18" hex screws (38mm
UHL)
4 x 5/16-18"
allen key screws
(19mm UHL)

Important Information: This Fuel Rail kit will notsuit Factory GM LS Intake Manifolds. This fuel rail kit can only be used with AeroflowPerformance Modular Intake Manifolds and EFI Bases
