Aeroflow GM LS Factory Valve Cover Set, Tall Height, Natural Cast Finish (AF77-5019)

AF77-5019 - GM LS FACTORY VALVE COVERS

Suit GM LS Series Engines. Factory Position Coil Mounts

Part Number: AF77-5019

Cast aluminium valve covers are a great way to improve and refine the look of your LS engine, without any radical changes to its configuration. These Aeroflow Performance valve covers allow you to bolt the factory coils back into the factory position but without the brackets required on the OE covers. These valve covers were designed to add an additional 13mm of internal clearance over the factory height valve covers. It also features a baffled stock-style ventilation set-up and oil fill cap while also retaining the factory gaskets and bolts. Fits all LS engines using LS2, LS3, LS7 or similar coils with 72mm bolt spacing.

Specifications: Tall factory style LS valve covers suits GM LS2 style coil packs with 72mm bolt spacing (sold separatley AF4020-8262).
Total Height is 76mm.
Valvetrain Clearance is .750" lift cam with stock style rocker arms.

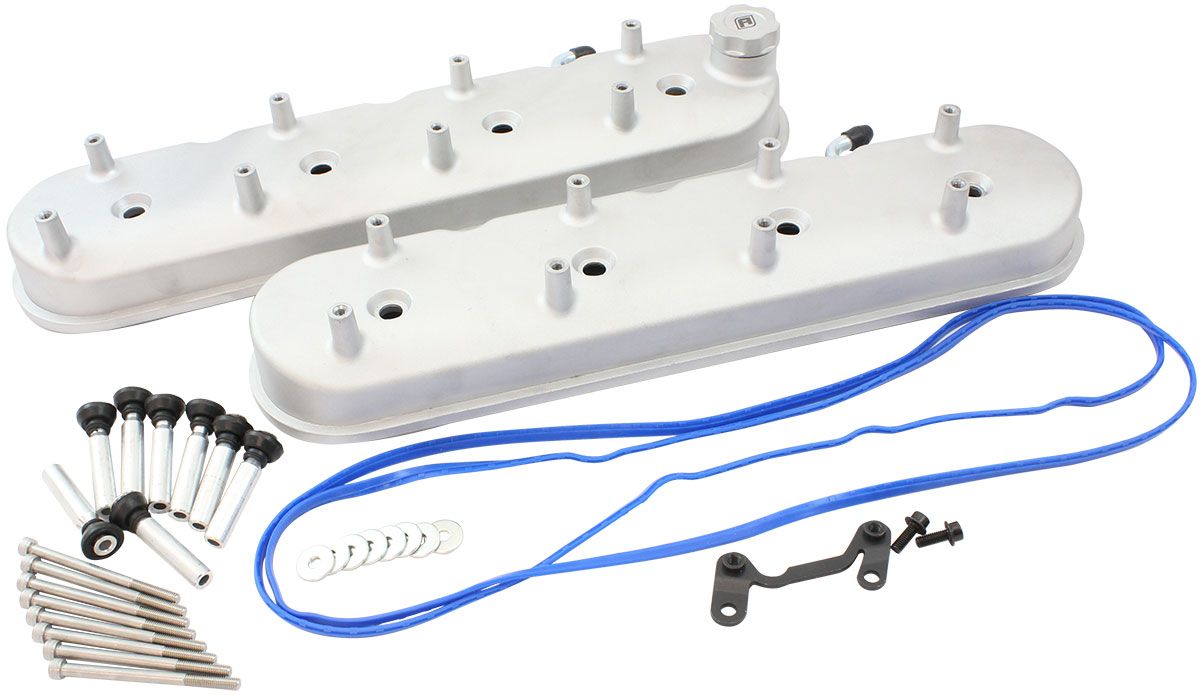

Valve Cover includes:
2 x GM LS valve cover (one with oil fill cap and both have 3/8" breather hose barb)
8 x Valve cover mounting socket cap screws (M6 x 1.00mm, 85mm UHL)
8 x Valve cover base stands and grommets
8 x Flat Washers
2 x rubber valve cover gaskets (AF1850-1013)
