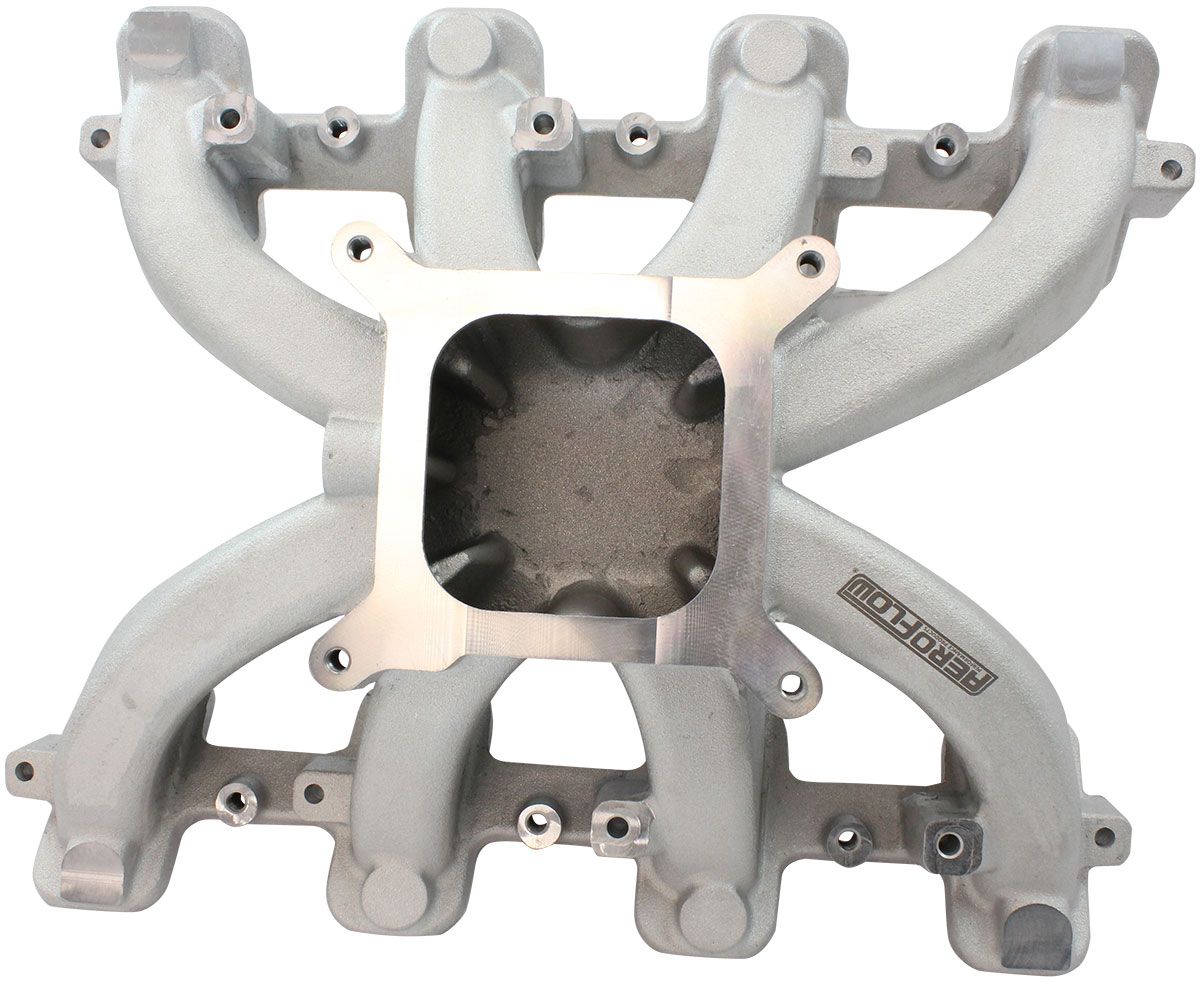

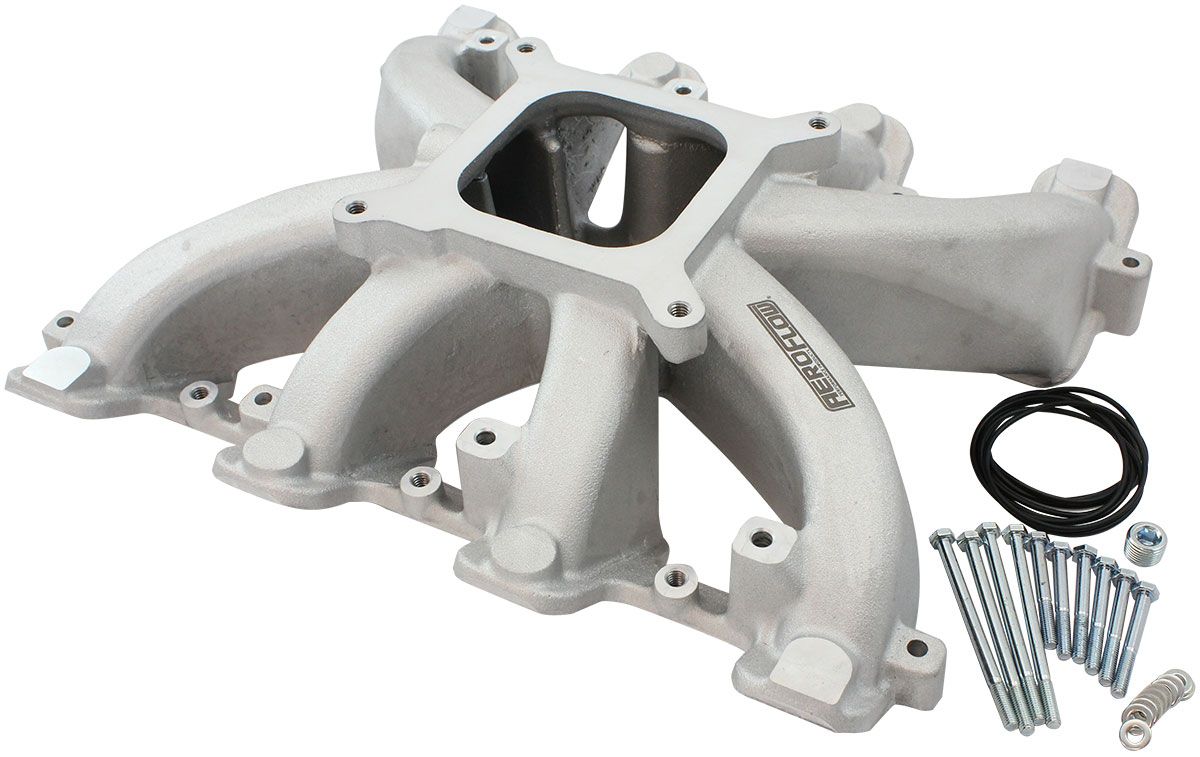

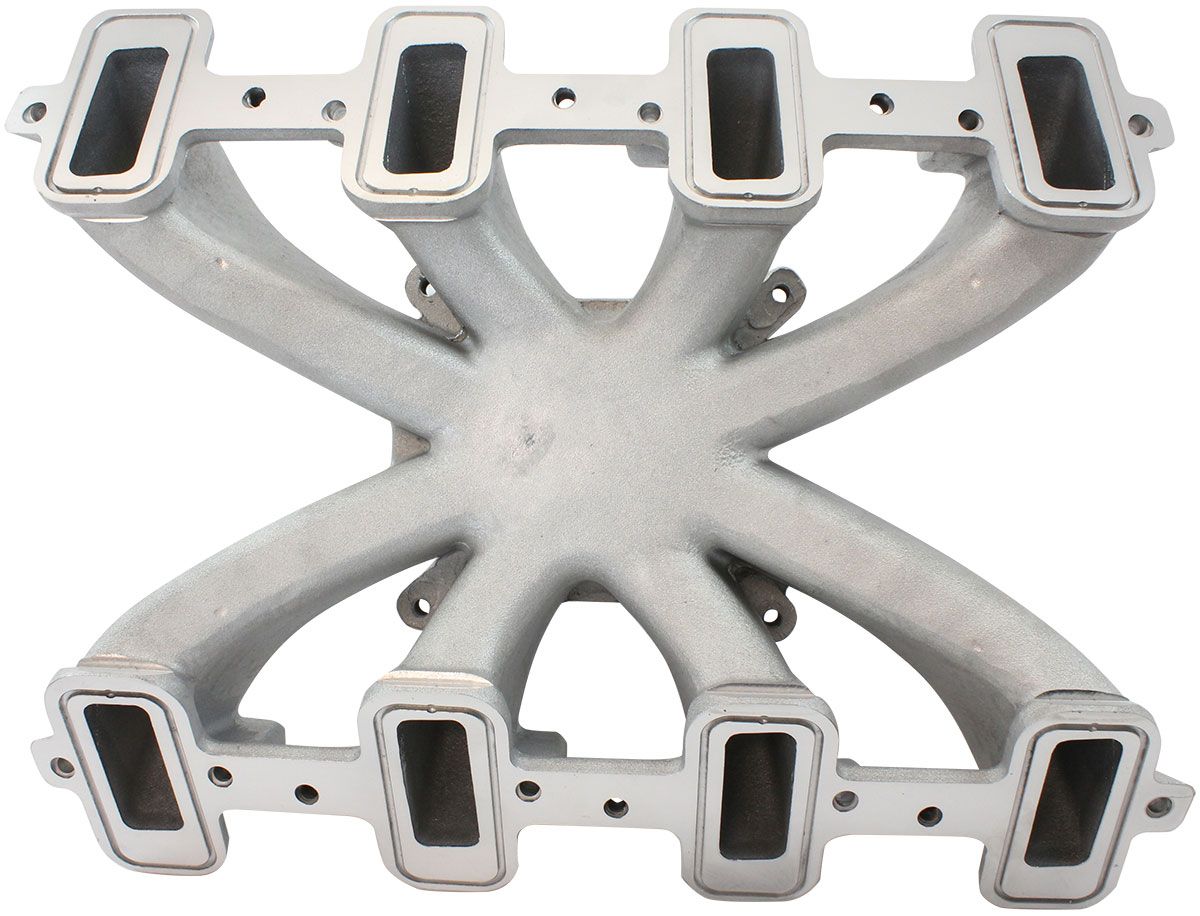

Aeroflow GM LS Cathedral Port Carburettor Street Single Plane Non-EFI Intake Manifold, Natural Cast Finish (AF6040-5000)
4 Barrell 4150 Square Bore Carburettor Pad
Aeroflow GM LS Cathedral Port Carburettor Street Single Plane Non-EFI Intake Manifold, Natural Cast Finish (AF6040-5000)
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
Description
Description
GM LS CARBY INTAKE MANIFOLD
4 Barrell 4150 Square Bore Carburettor Pad
Part Number: AF6040-5000
Convert your GM LS engine from EFI to Non-EFI carburettor in retro-fit applications with this Aeroflow Performance Street low rise cast intake manifold.This single-plane intake manifold is designed to keep your air and fuel distributiongoing into the engine at a steady and even flow for maximum performance and efficiency. The carburettor-mounting pad is designed to accept aftermarket4150 square-bore carburettors with either manual or electricchoke options available on today’s market. Specificallydesigned to suit GM LS Gen IIIand IV engines equipped with OE or aftermarket LS1/LS2 cathedral port cylinder heads.This product is intended for carburetted, throttle body EFI, or port EFI applications.
• Fits GM LS1/LS2 Cathedral PortEngines.
• Non-EFI Applications.
• Fits GM LS1/LS2 Engines.
• Single Plane Configuration.
• RPM operating range - 2500 to 7000.
• Natural Cast Finish.
Specifications: Manifold Specifications
- Square bore carburettor pad (4150 Flange)
- Overall height (Carb pad to bottom of manifold) is 122mm (
Ensure to Check Bonnet Clearance
)
- Port Size: 0.95" x 2.45"
- Intake manifold gasket O-Ring (AF6233-5002).
- 5/16-18" carburettor studs (x4)
- 3/8" NPT port (x1)
- 6 x 5/16-18" Mounting Holes.
Intake Manifold Includes
- 8 x Intake Manifold O-Ring Gaskets (AF6233-5002)
- 4 x M6 x 1.00mm Hex Screws (80mm UHL)
- 6 x M6 x 1.00mm (50m UHL)
- 10 x M6 Flat Washers
- 1 x 3/8" NPT Steel Port Plug
