Aeroflow GM LS Cathedral Port Carburettor Hi Rise Race Single Plane EFI Intake Manifold, Black Finish (AF6250-5001)
4 Barrell 4150 Square Bore Carburettor Pad
Aeroflow GM LS Cathedral Port Carburettor Hi Rise Race Single Plane EFI Intake Manifold, Black Finish (AF6250-5001)
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
Description
Description
GM LS CARBY INTAKE MANIFOLD
4 Barrell 4150 Square Bore Carburettor Pad
Part Number: AF6250-5001
Convert your GM LS engine to allow a 4150 style throttlebody to sit on top of your engine for retro-fit applications with this Aeroflow Performance Hi Rise Race cast intake manifold. This single-plane intake manifold is designed to keep your air and fuel distributiongoing into the engine at a steady and even flow for maximum performance and efficiency. The carburettor-mounting pad is designed to accept aftermarket4150 square-bore throttle bodies or adapter plates for turbocharged applications. Specifically designed to suit GM LS Gen III and IV engines equipped with OE or aftermarket LS1/LS2 cathedral port cylinder heads.
• Fits GM LS1/LS2 Cathedral Port Engines.
• EFI Applications.
• This is designed for GM LS Engines with EFI only. Use AF6040-5005 for NON-EFI applications.
• This intake manifold does not work with factory OEM fuel rails and requires the use of Aeroflow Fuel Rail Kit included (AF6999-5000).
• Requires the use of 14mm short(33.60mm) fuel injectors (SoldSeparately).
• FitsGM LS1/LS2 Engines.
• Single Plane Configuration.
• High Rise Intake Manifold.
• RPM operating range - 2500 to 7000.
• Black Finish.
•- Intake manifold Flat style gasket (must use Fel Pro 1312-2 or 1312-3).
Specifications: Manifold Specifications

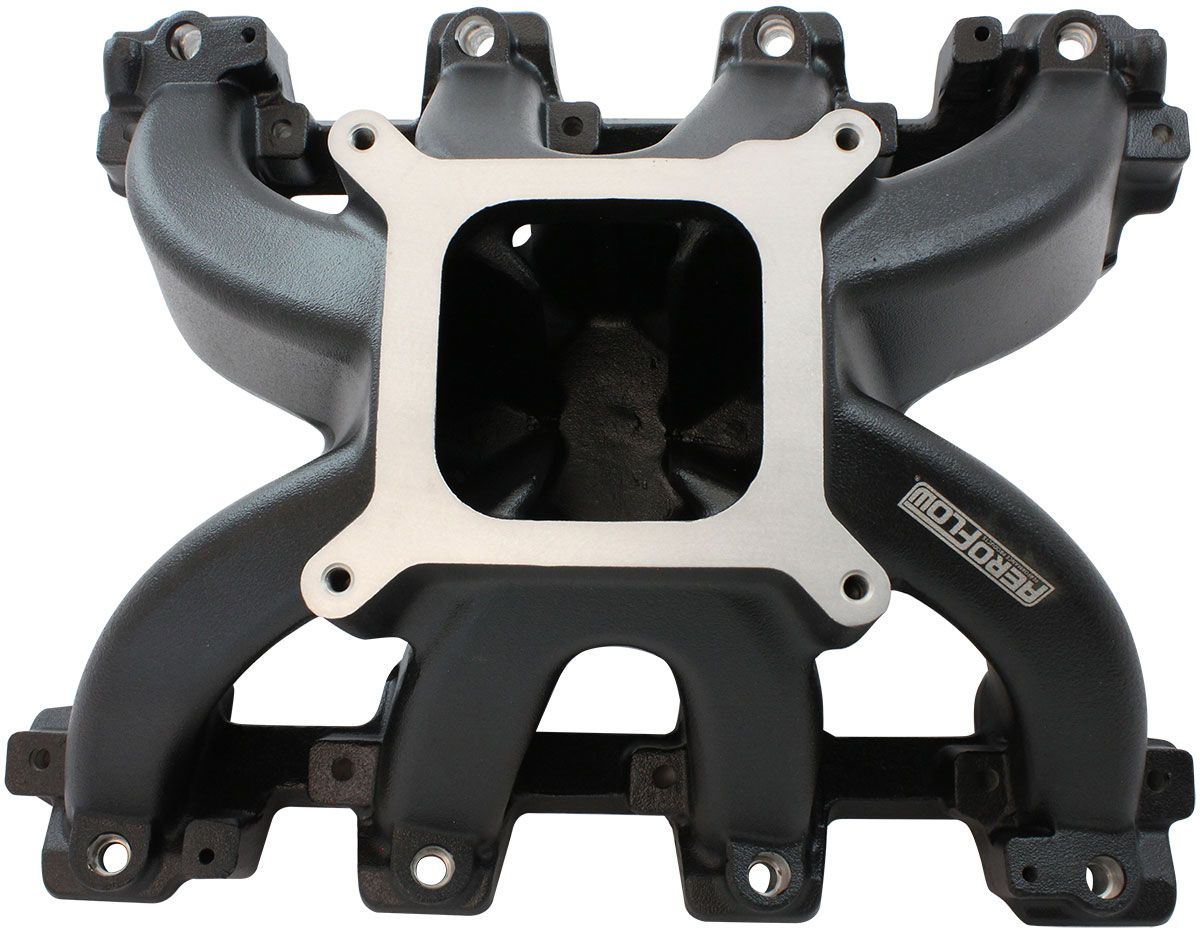

- Square bore carburettor pad (4150 Flange)
- Overall height (Carb pad to bottom of manifold) is 172mm (
Ensure to Check Bonnet Clearance
)

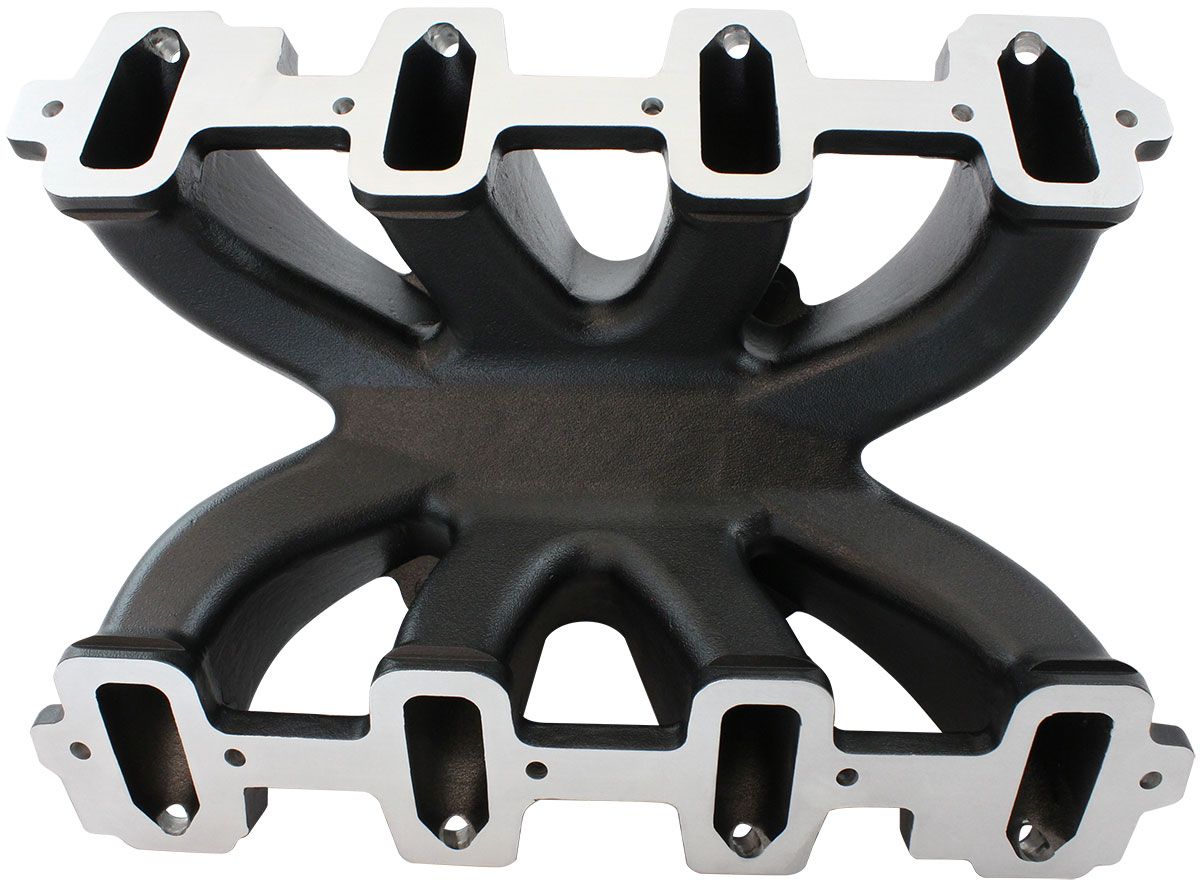

- Port Size: 1.08" x 2.45"
- Intake manifold Flat style gasket (must use Fel Pro 1312-2 or 1312-3).
- 5/16-18" carburettor studs (x4)
- 4 x M6 x 1.00mm Mounting Holesfor fuel rails.
Intake Manifold Includes
- 10 x M6 x 1.00mm Hex Screws (50mm UHL)
- 10 x M6 Flat Washers

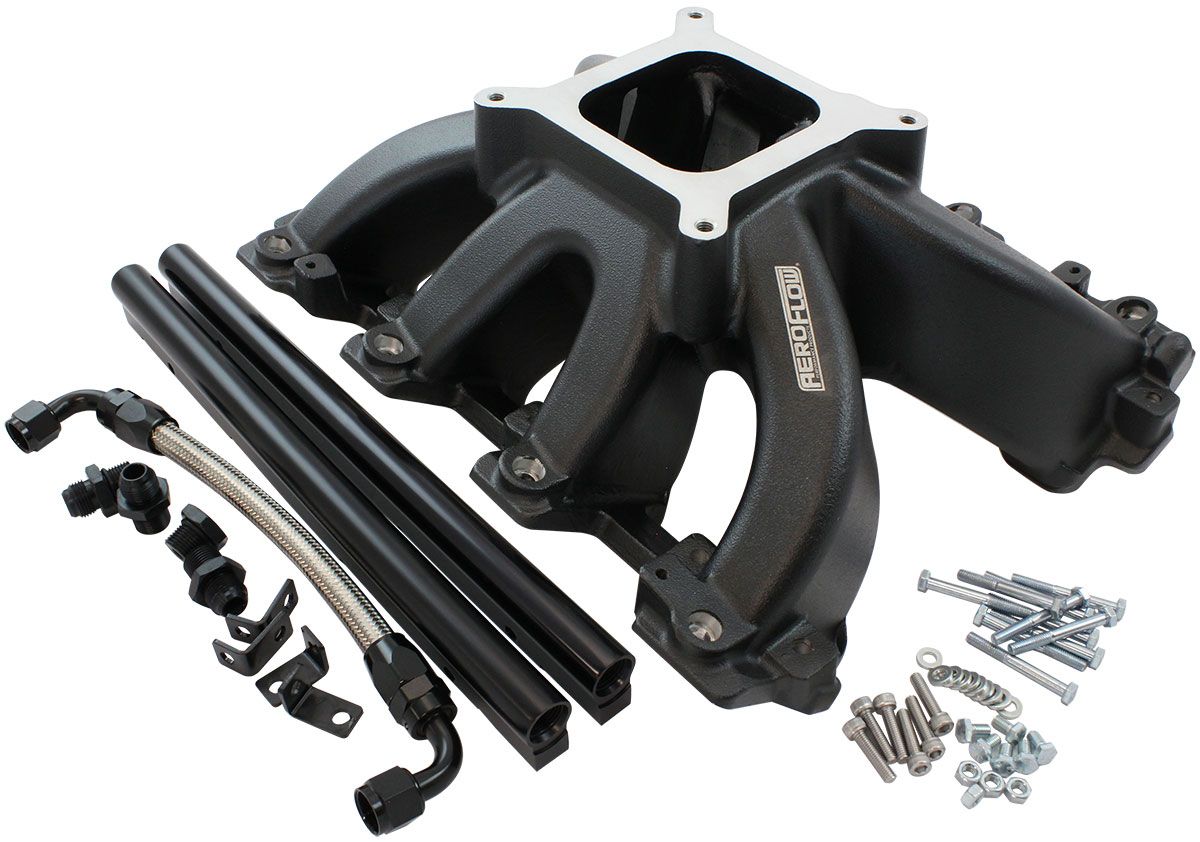

Fuel Rail Kit includes
- 2 x Two Fuel Rails (-8ORB)
- 1 x -8AN cross over 100 series braided line and two 90 degreenon full flow taper fittings
- 3 x -8an to -8ORB fittings
- 1 x -8ORB hex port plug
- 4 xmounting brackets
- 6 xM6 x 1.00mm socket cap screws (25mm UHL)
- 6 x M6 x 1.00mm hex screws (12mm UHL)
- 4 x M6 nuts
Important Information: • Fits GM LS1/LS2 Cathedral Port Engines.
• EFI Applications.
• This is designed for GM LS Engines with EFI only. Use AF6040-5005 for NON-EFI applications.
• This intake manifold does not work with factory OEM fuel rails and requires the use of Aeroflow Fuel Rail Kit included (AF6999-5000).
• Requires the use of 14mm short(33.60mm) fuel injectors (SoldSeparately).
•- Intake manifold Flat style gasket (must use Fel Pro 1312-2 or 1312-3).
