Aeroflow GM LS 2 Piece Retro Finned Valve Cover Set, Polished Finish (AF77-5020P)
Suit GM LS Series Engines. Factory Position CoilMounts with Tall CoverAF77-5020P - GM LS 2 PIECE VALVE COVERS
Suit GM LS Series Engines. Factory Position Coil Mounts with Tall Cover
Part Number: AF77-5020P

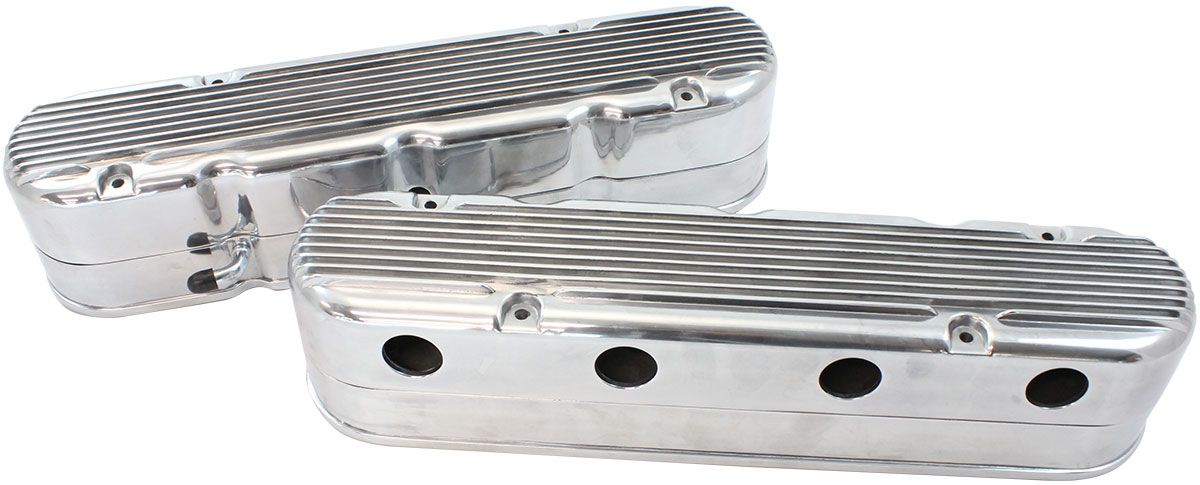

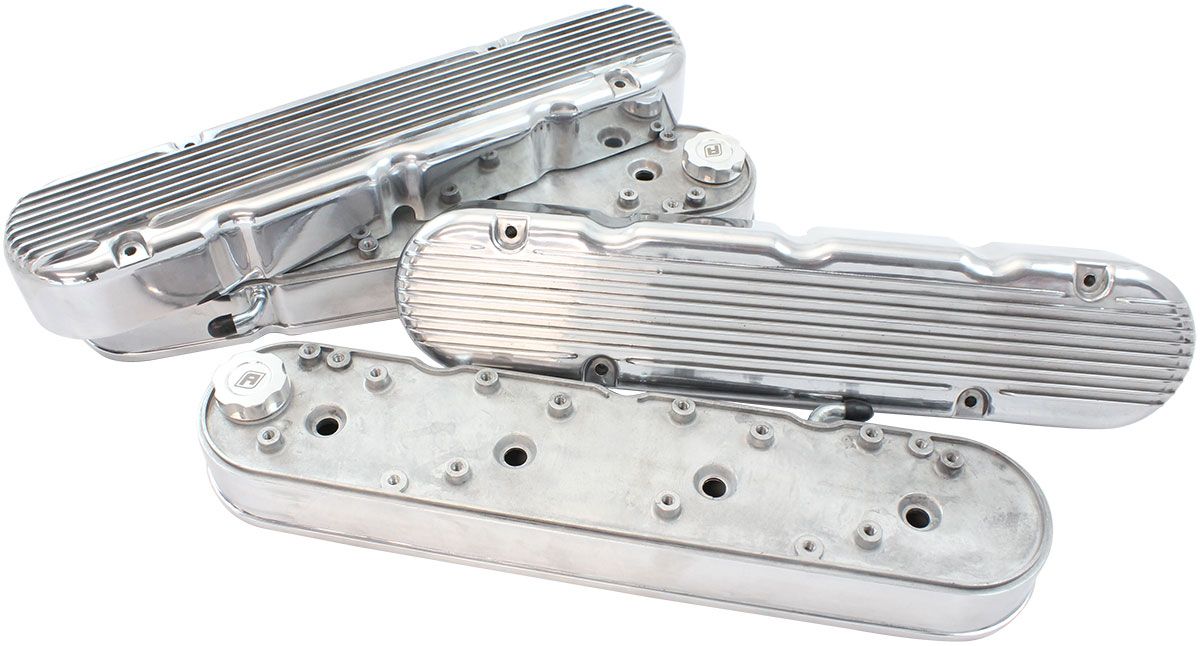

Cast aluminium valve covers are a great way to improve and refine the look of your LS engine, without any radical changes to its configuration. These Aeroflow Performance valve covers are a 2-piece retro finned design. These feature a low, internally baffled LS valve cover base with integrated coil mounts and a retro style finned overcover that hides the ignition coils and wiring harness. It also features a baffled stock-style ventilation set-up with an oil fill cap while also retaining the factory gaskets and bolts. All hardware and spacers for mounting ignition coils and 12-point dress up hardware and rubber grommets for the coil covers are included. Fits all LS engines using both LS1 and LS2 or similar coils.
Specifications: Coil mounts on base plate suits both LS1 style coil packs sold separatley (AF4020-8262) and LS2 style coil packs sold separatley (AF4020-8265).
Total Height is 96mm.
Valvetrain Clearance is .750" lift cam with stock style rocker arms.

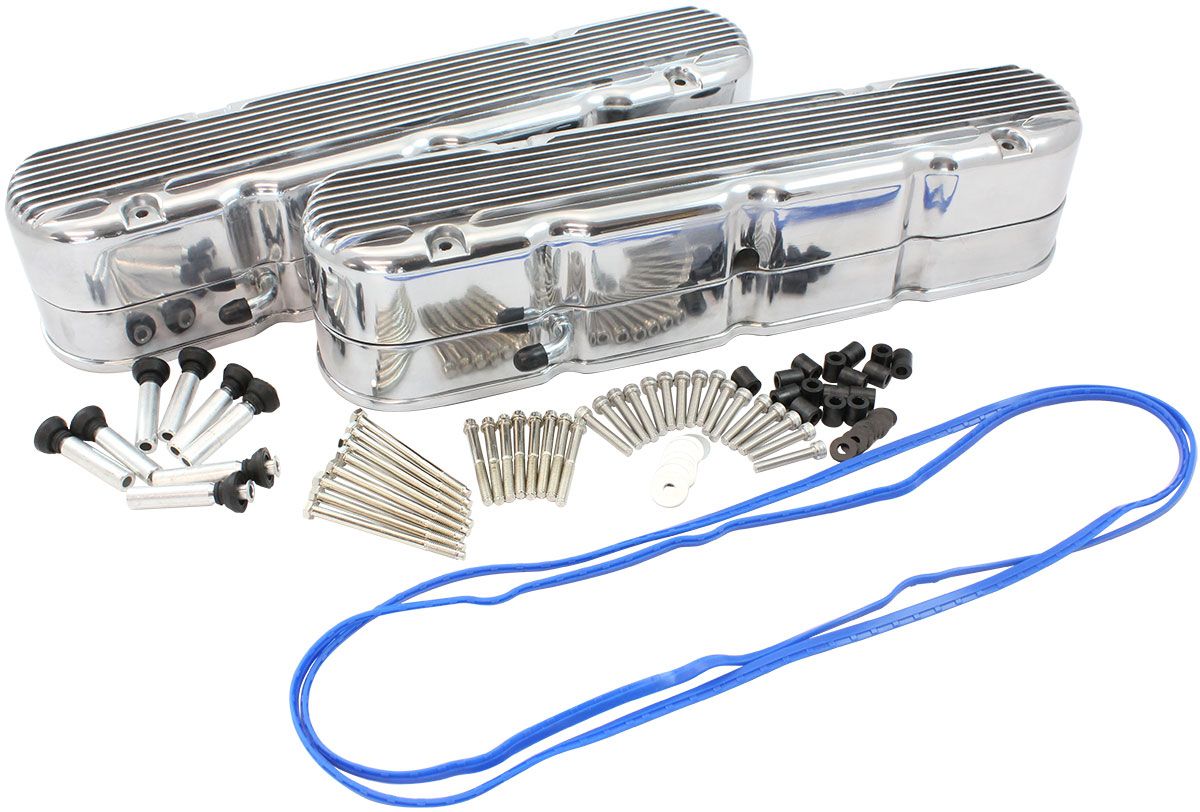

Valve Cover includes:
2 x Gm LS valve cover base with oil fill oil and 3/8" Barb
2 x GM LS valve cover over cover
2 x Cast oil fill cap with o-ring
8 x 12 point over cover dress up bolts (1/4-20" thread 55mm UHL)
8 x rubber grommets for over cover dress up bolts
16 x coil mounting socket cap screws M6 x 1.00 thread (1-35mm UHL)
16 x plastic coil spacers (12.4mm O.D, 6.5mm I.D, 14.7mm Height)
8 x Valve cover base mounting hex head screws (M6 x 1.00mm, 85mm UHL)
8 x Valve cover base stands and grommets
8 x Flat Washers
2 x rubber valve cover gaskets (AF1850-1013)
