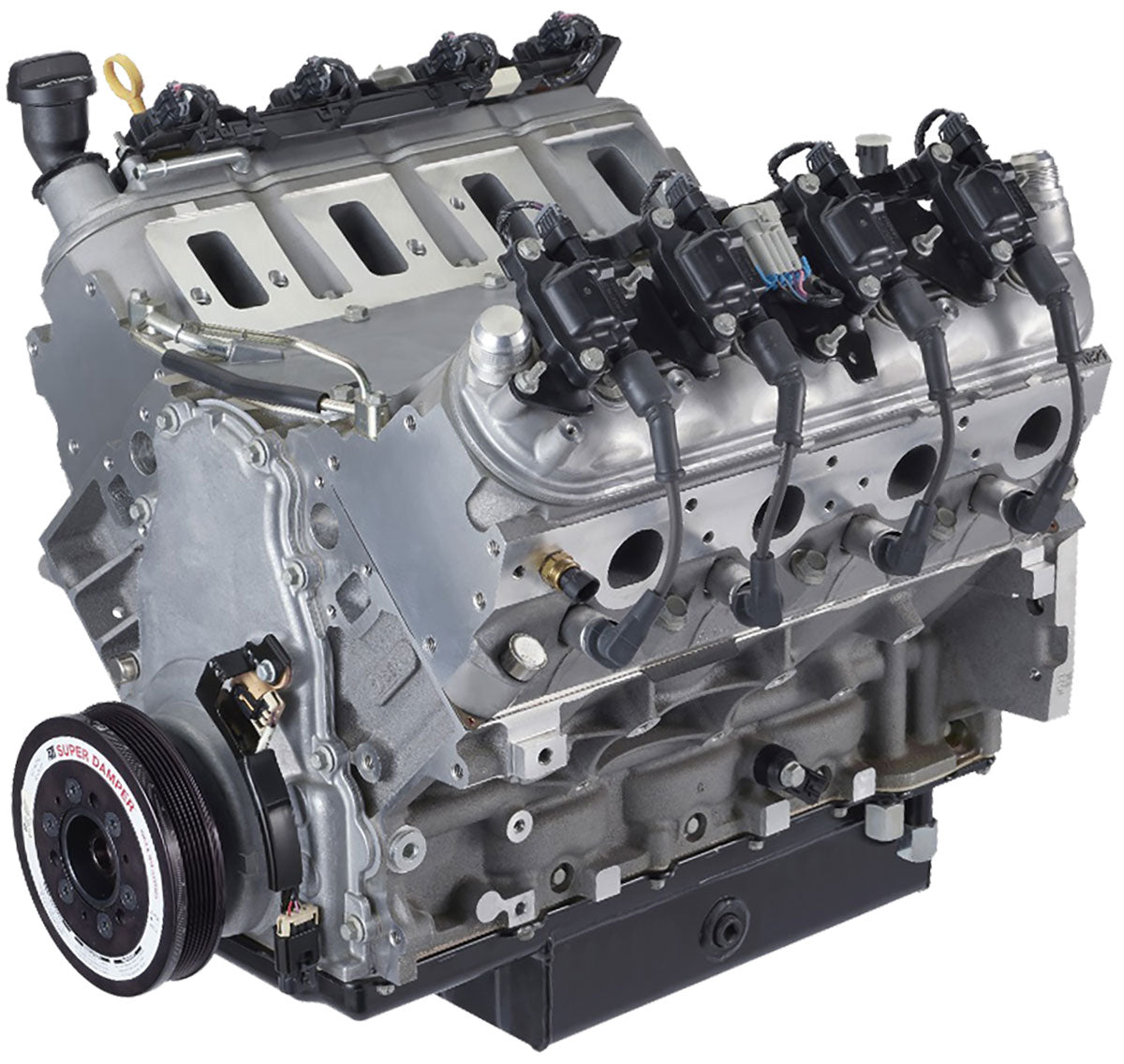

GM 6.2L 525 RLB Long Block Crate Engine - GM19435005
533 Horsepower, 477 ft. lbs. Torque
GM 6.2L 525 RLB Long Block Crate Engine - GM19435005
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
Description
Description
CRATE ENGINE 6.2L LS3 533HP
533 Horsepower, 477 ft. lbs. Torque
Part Number: GM19435005
Chevrolet Performance?s 525 RLB is based on the LS engine family and is like the 6.2L CT525 but sold as a sealed long block for universal racing sanctioning bodies.
The high-revving 525 RLB crate engine is assembled with strong forged pistons and heavy-duty connecting rod bolts designed to support its performance capability and enhance its durability. With its deep-breathing LS3 rectangular-port cylinder heads, it is a combination rated at 533 horsepower at 6,600 rpm and a strong 477 lb.-ft. of torque at 5,200 rpm, when used with a 4-barrel carburetor and intake manifold, per Chevrolet Performance testing.
The engine assembly comes with coil-near-plug ignition and an SFI-certified balancer, along with a 6-quart racing oil pan and more. All that?s needed to complete the assembly is an induction and ignition system ? and all those components are also available from Chevrolet Performance.
Specifications:
Engine Type: LS-Series Gen IV Small-Block V-8
Displacement (cu in): 376 (6.2L)
Bore x Stroke (in): 4.065 x 3.62 (103.25 x 92mm)
Block (P/N 12729604): Cast aluminum with 6-bolt, cross-bolted main caps
Crankshaft (P/N 12736809): Nodular iron
Connecting Rods (P/N 12649190): Powder metal with ARP bolts
Pistons (P/N 19418214): Forged aluminum
Camshaft Type (P/N 88958770): Hydraulic roller
Valve Lift (in): .525 intake / .525 exhaust
Camshaft Duration (@.050 in): 226? intake / 236? exhaust
Cylinder Heads (P/N 12675871): LS3 rectangular port; aluminum as-cast with 68cc chambers
Valve Size (in): 2.165 intake / 1.590 exhaust
Compression Ratio: 10.7:1
Rocker Arms (P/N 12696105 int): Investment-cast, roller trunnion
Rocker Arms (P/N 12681275 exh): Investment-cast, roller trunnion
Rocker Arm Ratio: 1.7:1
Recommended Fuel: Premium pump
Maximum Recommended rpm: 6,700
Reluctor Wheel: 58x
Balanced: Internal
Important Information:
Installation Notes
- Requires addition of induction and ignition control system, starter, fuel system, exhaust system and front accessory drive system
- The 6-quart racing oil pan is designed to clear most GM rear-steer chassis with stock engine location
- The long block is designed for universal racing sanctioning bodies. It is not intended for street use
- The 525RLB does not included water pump, intake manifold or factory exhaust manifolds
- Chevrolet Performance Racing Long Block engines include factory-installed anti-tampering seals
Mobil 1 is the recommended engine oil for all Chevrolet Performance Engines
