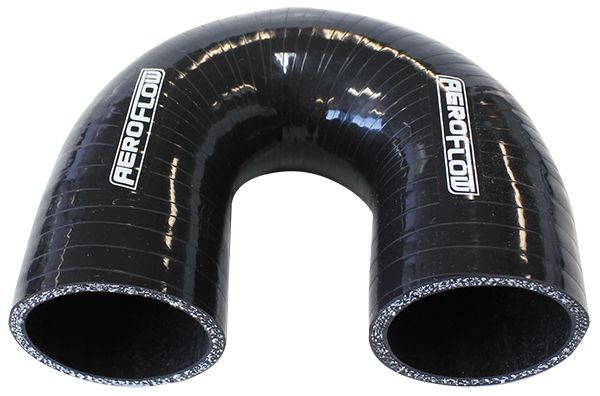

Aeroflow Gloss Black 180° Silicone Elbow Hose 4" (101mm) I.D (AF9206-400)

AF9206-400 - Silicone Hose 180 Deg; Black

4-Ply, 5.3mm Wall Thickness, 100mm Leg

Part Number: AF9206-400

Aeroflow designs and manufactures premium quality silicone hose for the Performance Automotive Industry, Transport Industry and Industrial applications. Whether it's silicone heater hose, vacuum or high temperature silicone turbo hose, Aeroflow has the right products for your demanding applications.
- 4 Ply hose with a wall thickness of 5.3mm (13/64")
- 100mm (3-15/16" Leg
- Working temperature -60 to +180° C (-75 to +350° F)
- Excellent ply adhesion from the inner core to the outer layers
- Bright gloss Black finish
- Not recommended for use with oil and fuel
- Weather resistance to harsh sunlight, dry conditions and rain water
Note:
Leg sizes are approximate and may vary.

Specifications: Internal Diameter: 102mm
Outside Diameter: 112.6mm
Leg Length: 100mm
Recommended Hose Clamp (Guide Only):
Worm Drive Clamp: AF23-9114
Constant Tension Clamp: AF28-1012 / AF28-1012BLK
T-Bolt Clamp: AF24-1412
