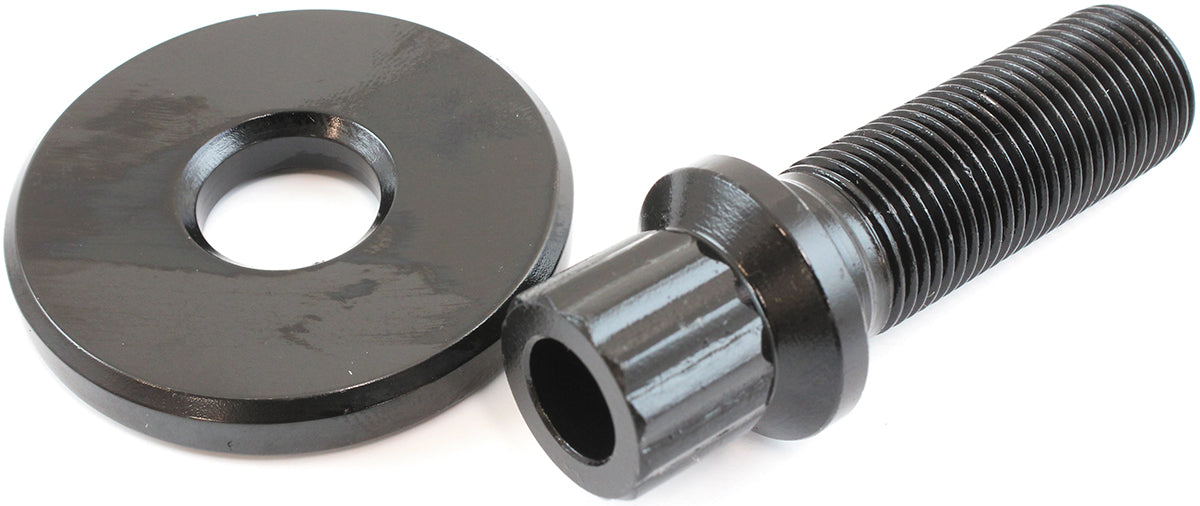

Aeroflow Ford Cleveland & Holden V8 Harmonic Balancer Bolt 12 Point Head, 5/8-18" Thread - AF37-1401
Aeroflow Ford Cleveland & Holden V8 Harmonic Balancer Bolt 12 Point Head, 5/8-18" Thread - AF37-1401
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
Description
Description
BALANCER BOLT 308 351C
Part Number: AF37-1401
The Aeroflow harmonic balancer bolt is designed to suit Ford 31 Cleveland and Holden V8 engines. Manufactured from aircraft quality 8740 high tensile strength chromoly steel and cold-forged to ensure molecular integrity within the stud. Meaning these are rated up to 190,000 psi making them stronger than Grade 8 and OEM fasteners. They feature a high hex head to prevent socket slippage while rotating the engine during assembly or routine service inspections. An extra thick ground washer is provided to allow for a more accurate, uniform torque.
Specifications:
Sold Individually.
Torque Setting : 110 ft. lbs (149Nm)
Bolt
Thread size : 5/8"-18
Spanner Size: 5/8
Overall Length: 65.95mm
Under Head Length: 45.90mm
Head Diameter: 23.60mm
Shank Diameter: 9.30mm
Shank Length: 8mm
Washer
Washer Outside Diameter: 49.8mm
Washer Inside Diameter: 16.1mm
Washer Thickness: 7.05mm
