Aeroflow  |  SKU: AF37-1403

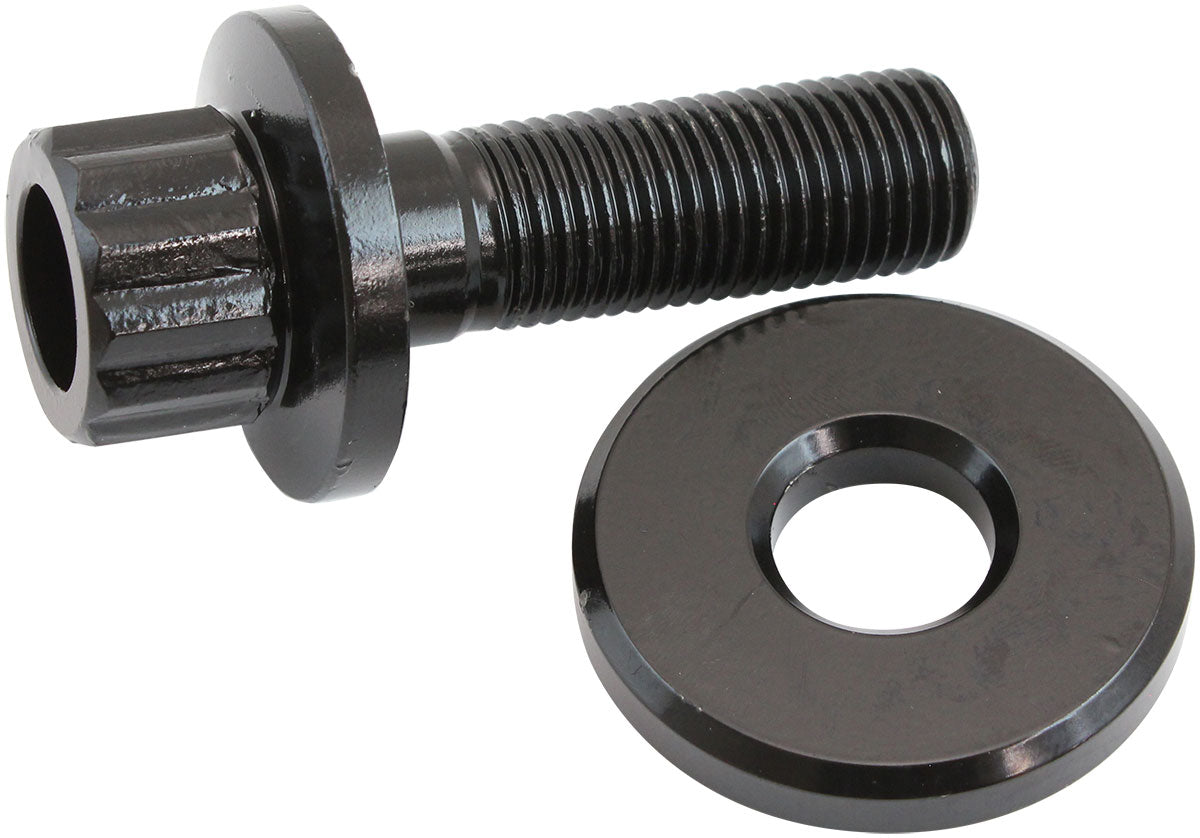

Aeroflow Ford BA-BF-FG Barra Harmonic Balancer Bolt - AF37-1403

12 Point Head, M14 x 1.5mm Thread

Regular price $50.50 NZD + GST
Shipping calculated at checkout.

Description

HARMONIC BALANCER BOLT FORD

12 Point Head, M14 x 1.5mm Thread

Part Number: AF37-1403

The Aeroflow harmonic balancer bolt is designed to suit Ford Falcon Barra. Manufactured from aircraft quality 8740 high tensile strength chromoly steel and cold-forged to ensure molecular integrity within the stud. Meaning these are rated up to 190,000 psi making them stronger than Grade 8 and OEM fasteners. They feature a high hex head to prevent socket slippage while rotating the engine during assembly or routine service inspections. An extra thick ground washer is provided to allow for a more accurate, uniform torque.

Specifications:

Sold Individually.

Torque Setting : 140 ft. lbs (189Nm)

Bolt
Thread size : M14 x 1.50mm
Spanner Size: 3/4
Overall Length: 62.60mm
Under Head Length: 44mm
Head Diameter: 32.05mm
Shank Diameter: 14mm
Shank Length: 6.50mm

Washer
Washer Outside Diameter: 39.75mm
Washer Inside Diameter: 14.25mm
Washer Thickness: 7.05mm
