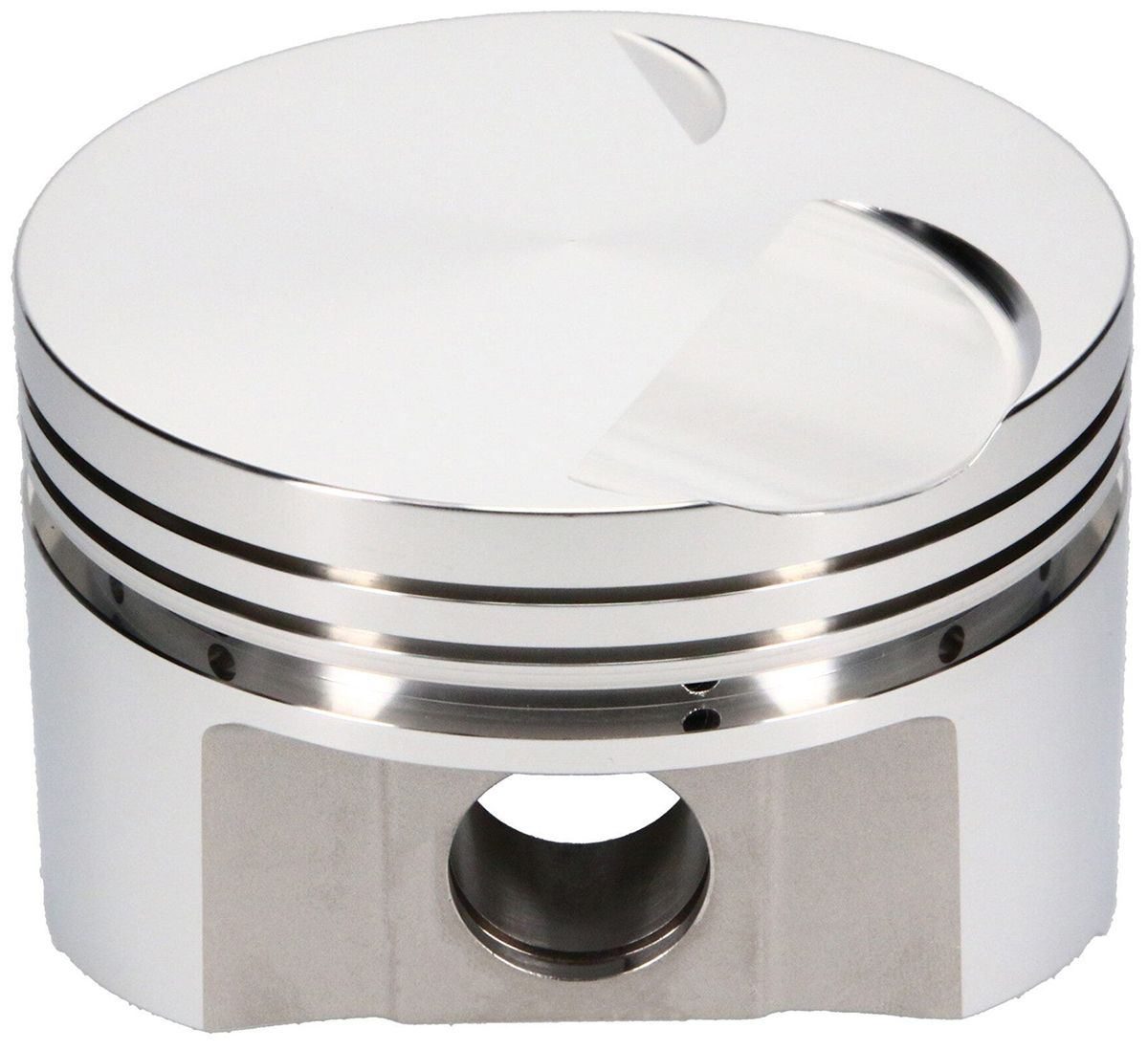

SRP Ford 351 Cleveland - Flat Top Forged Piston (SRP206045)

SRP206045 - 351C 4.030" PISTONS -3cc FLAT

357 c.i., 4.030" bore, 3.500" stroke, 6.000" rod length, -3.0cc dome volume

Part Number: SRP206045

JE Pistons SRP line is proud to offer huge performance for the price. Forged from strong, 4032 aluminium alloy material, SRP pistons blend strength with affordability, offering an excellent performance bargain for performance rebuild and street/strip applications. (some applications in 2618)
Features:
4032 low expansion high silicon aluminium alloy
Heat treated to SRP specifications
Pin fitting and double spiro locks included
Includes wrist pin see footnotes for diameter
.912 x 2.750 140 wall
Specifications:

Engine: FORD 351 CLEVELAND
Bore Diameter: 4.030
Compression Height: 1.440

Compression Ratio with 72cc chamber volume: 9.7

Compression Ratio with 80cc chamber volume: 9.0

Compression Ratio with 84cc chamber volume: 8.6

Piston Volume: -3
Cylinder Head: CLEVELAND

Piston Pin Outside Diameter: 0.927
Piston Pin Length: 2.750

Piston Pin Material: 5115
Ringset Included: No
Top Compression Ring Thickness: 1/16"
Second Compression Ring Thickness: 1/16"
Oil Ring Thickness: 3/16"
Piston Material: 4032
Forging Type: FSR
Piston Avg Weight: 507

Pin Wall Thickness: 0.150
Piston Type: Flat
Ring Set: S100S8-4030-5
