Flowmaster  |  SKU: 718188

Flowmaster Flow FX Cat-Back Exhaust System - 718188

Fits 1996-1999 GM 1500 trucks with 5.7L, Cat-Back, dual out same side exit, stainless steel exhaust system

Regular price $1,557.70 NZD + GST
Shipping calculated at checkout.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.

Description

Fits 1996-1999 GM 1500 trucks with 5.7L, Cat-Back, dual out same side exit, stainless steel exhaust system

Part Number: 718188

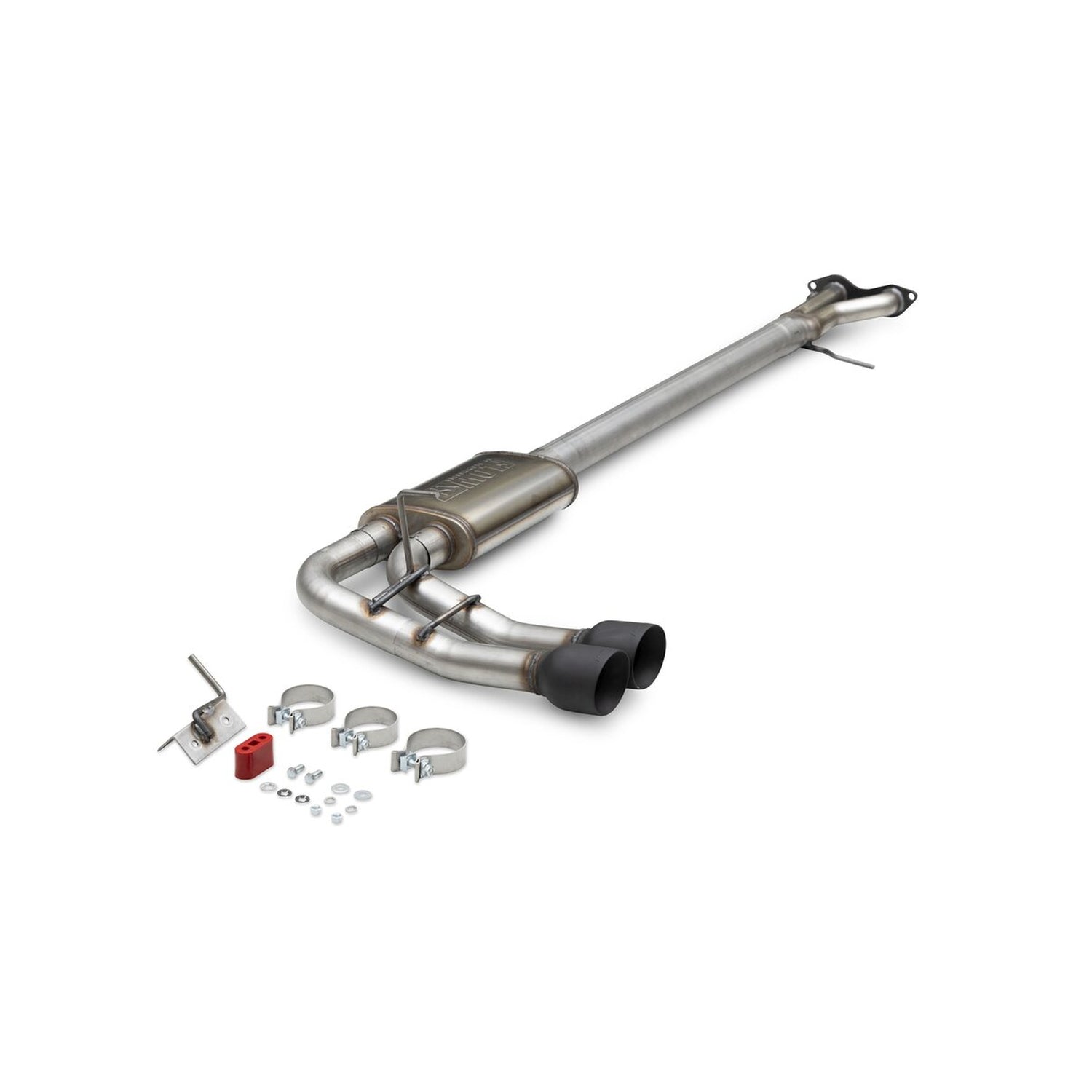

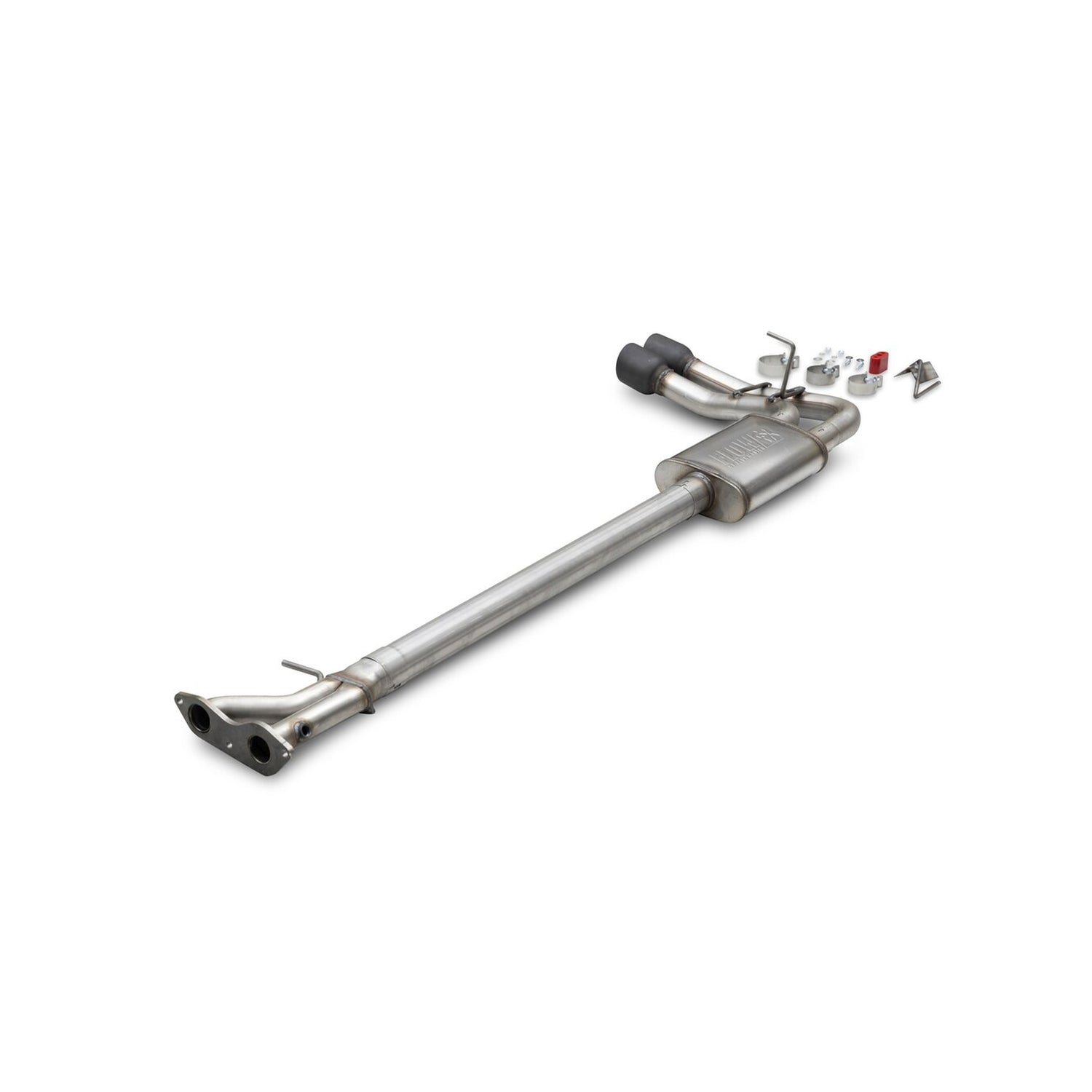

This Flowmaster® Flow FX cat-back exhaust system is for the 1996-1999 GM 1500 trucks with the 5.7-liter engine. This system is manufactured using durable 409 stainless steel tubing and is mandrel bent for better exhaust gas flow. A Flow FX Series muffler is used for an improved sound level and maximum performance. This system uses dual 4.0-inch black ceramic coated tips that exit on the passenger side of the truck, just in front of the rear wheel. The system uses all the existing factory hanger locations and includes installation instructions and all necessary hardware for an easy installation that you can do at home. This system fits all single cab and extended cab models in both 2 and 4 wheel drive. Backed by Flowmaster's Lifetime Limited Warranty.

Features and Benefits

• · 3.0 and 2.5-inch mandrel bent 16-gauge 409 stainless steel tubing maximizes exhaust flow and improves durability

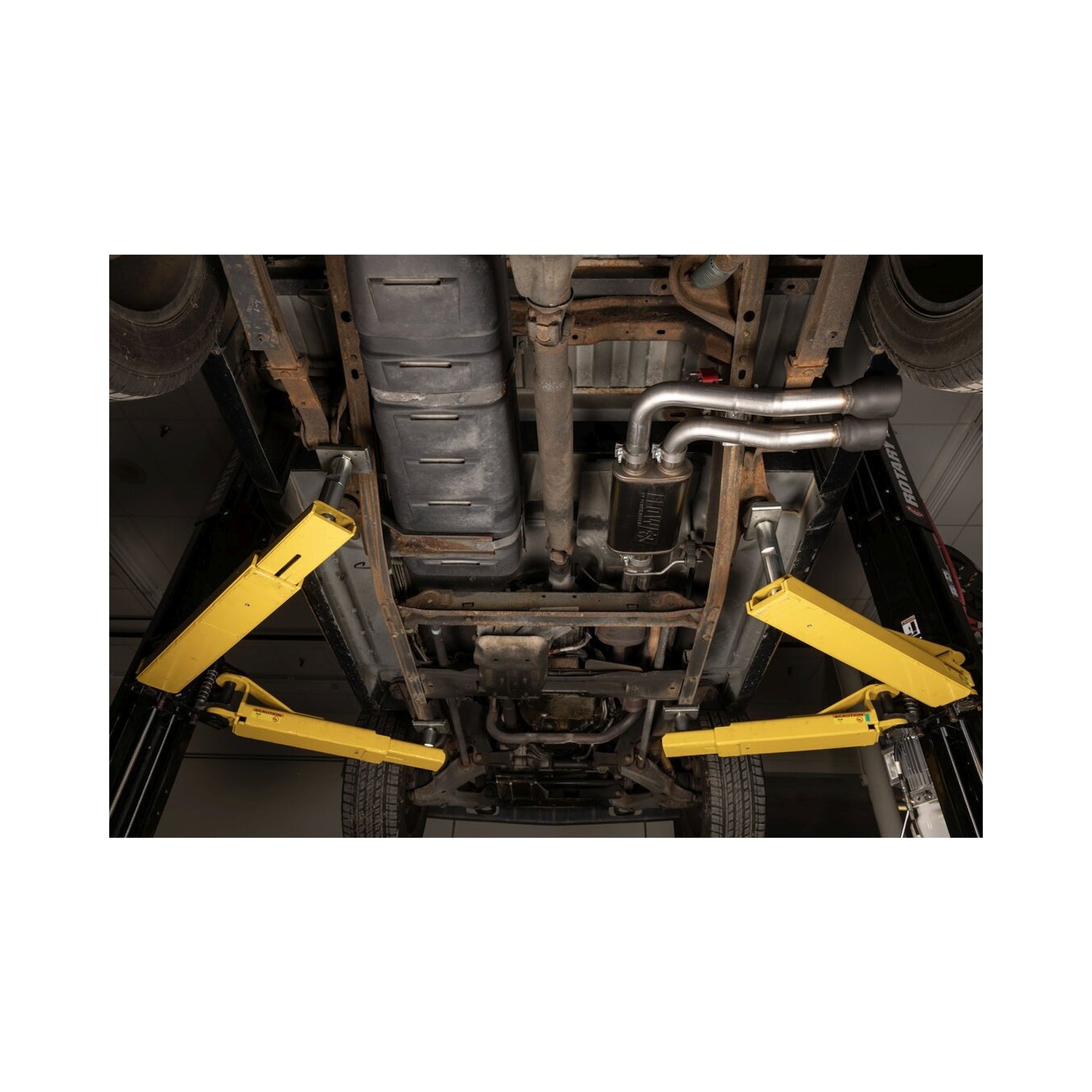

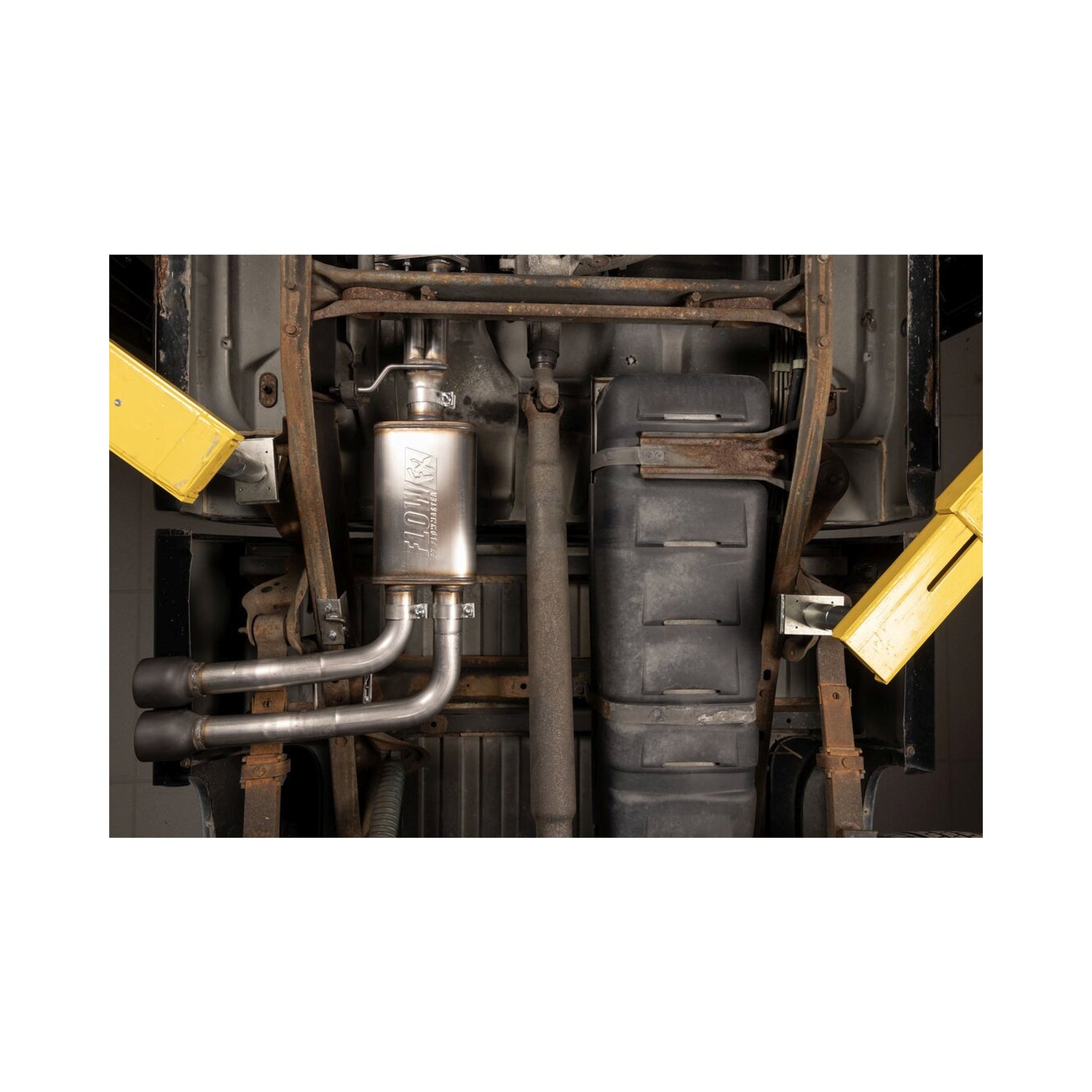

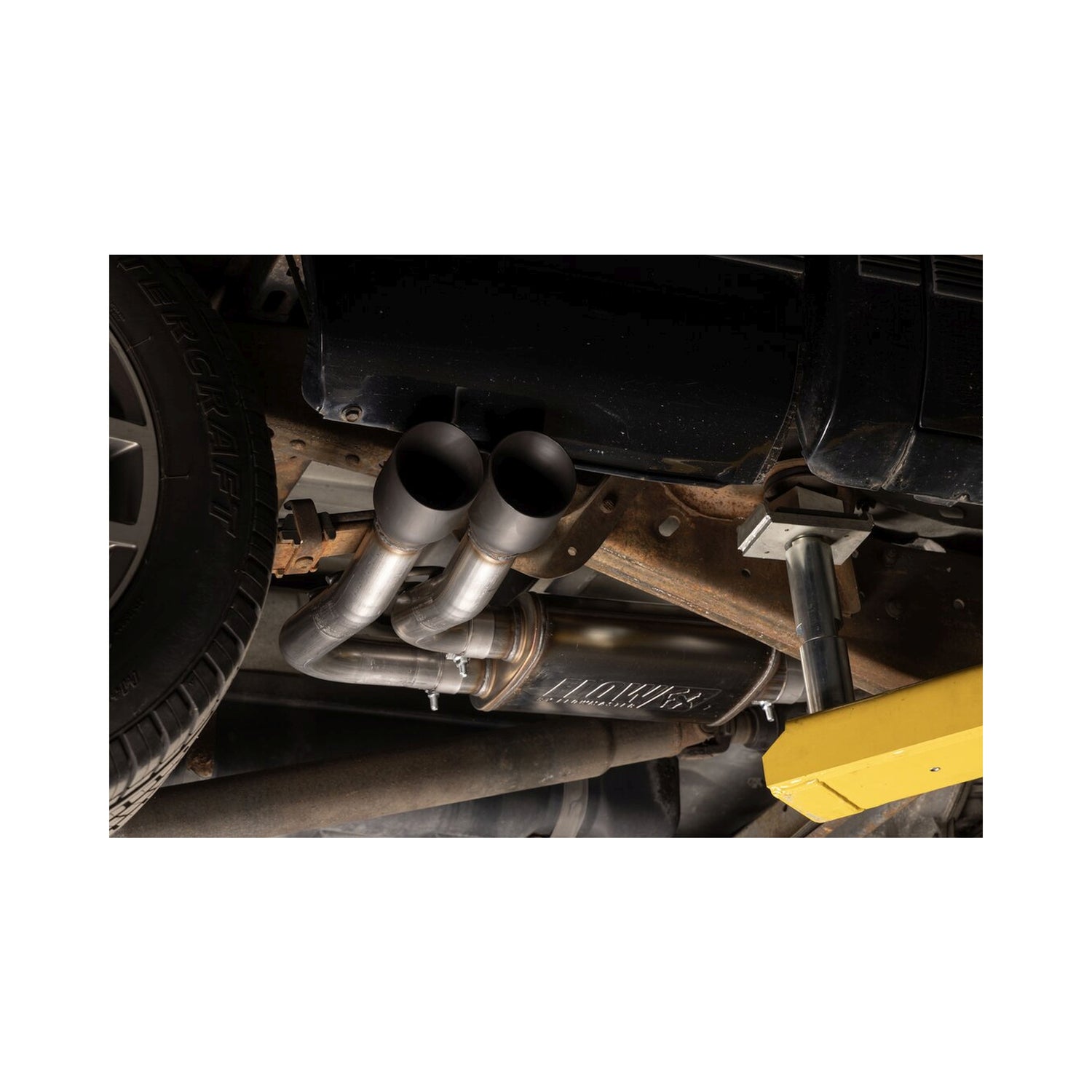

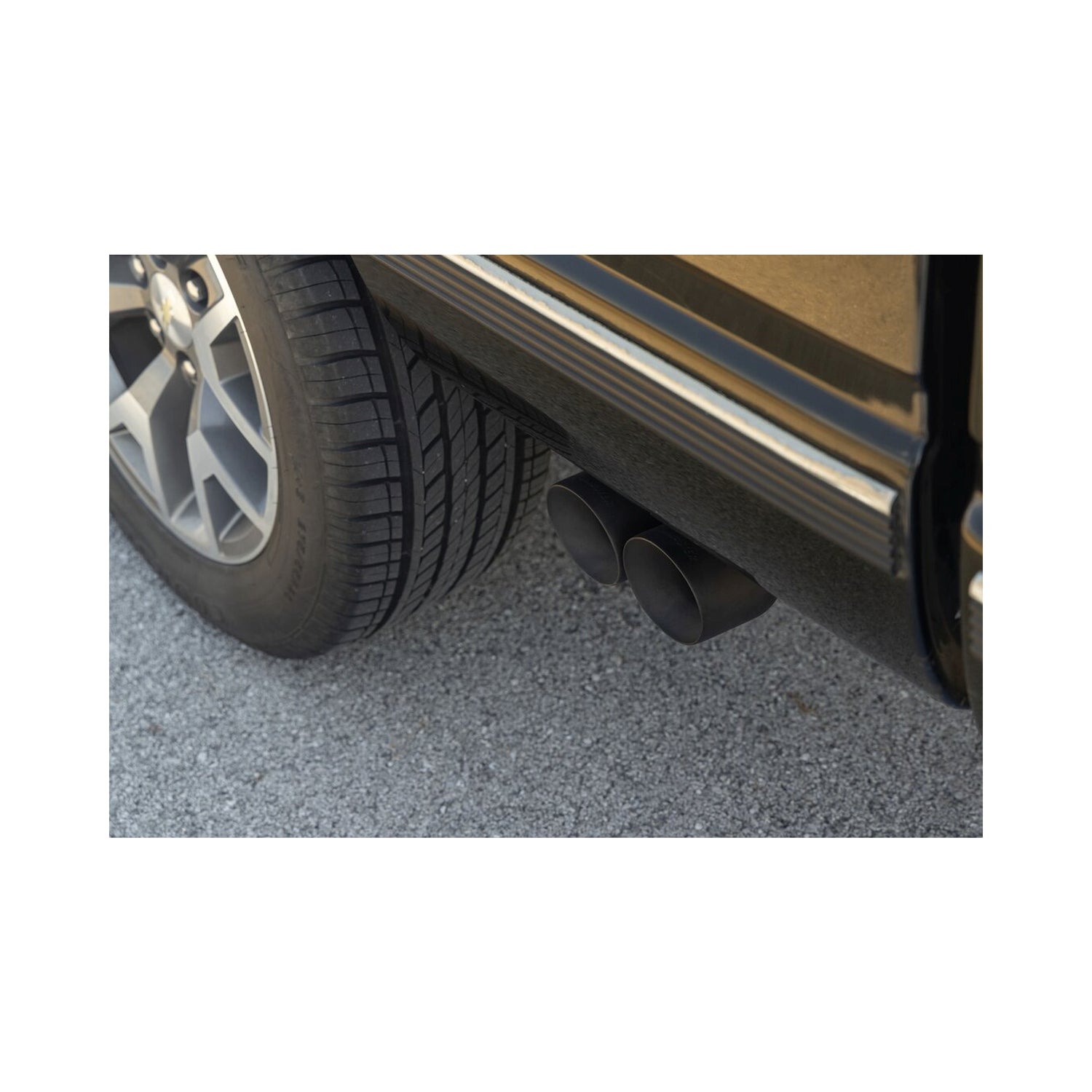

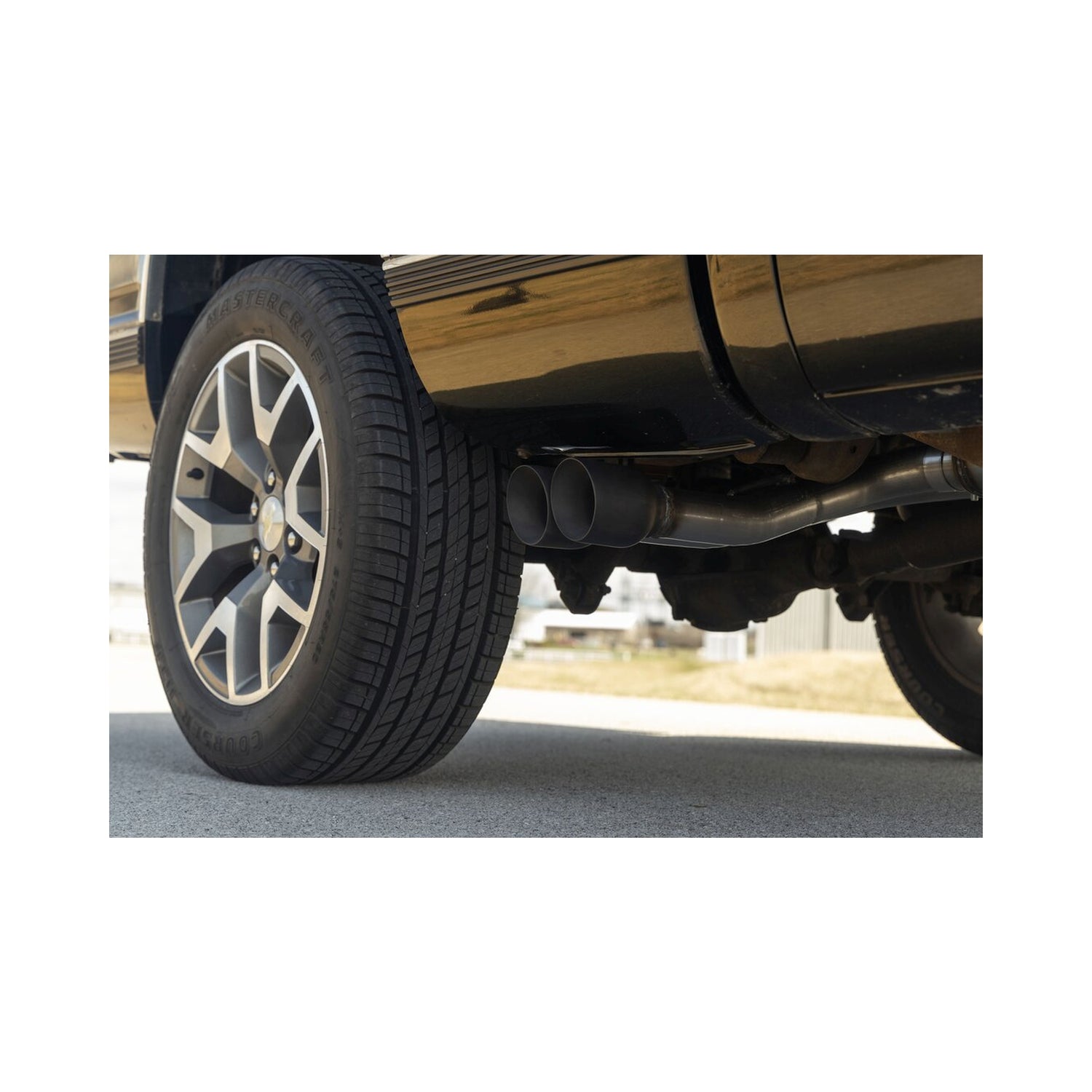

• · This kit exits on the passenger side, just before the rear tire for a unique performance look

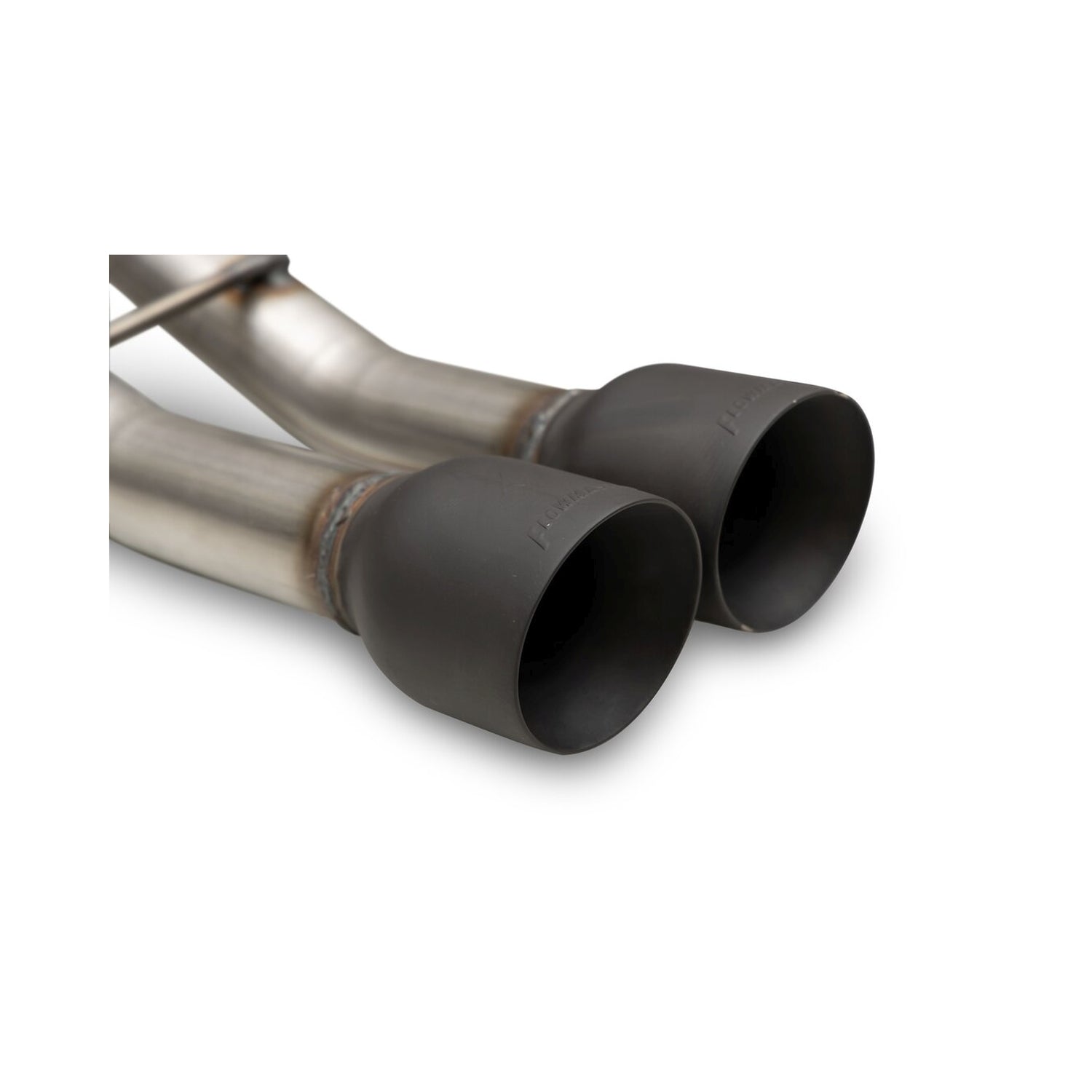

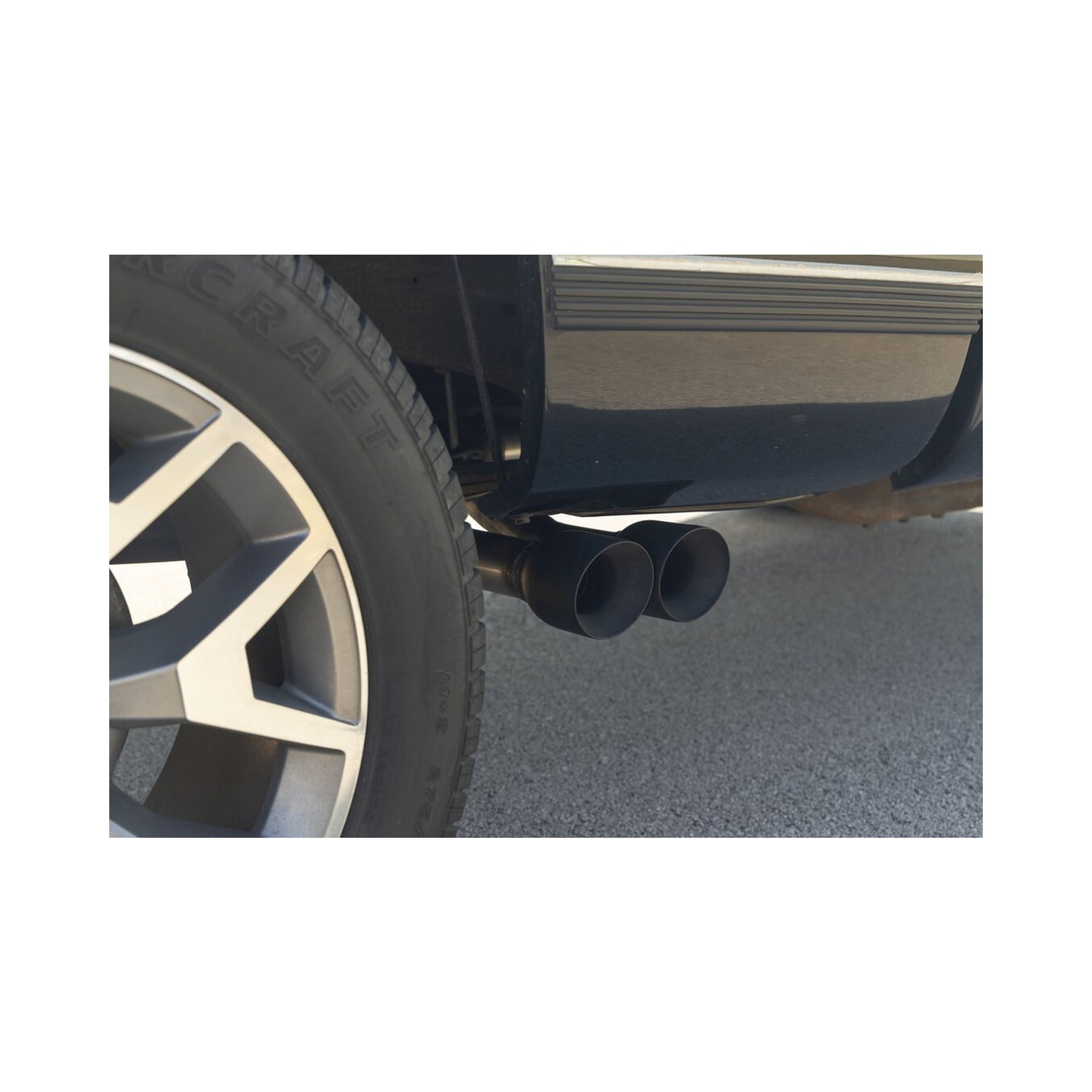

• · Dual 4.0-inch black ceramic coated stainless steal tips add a custom look to the vehicle

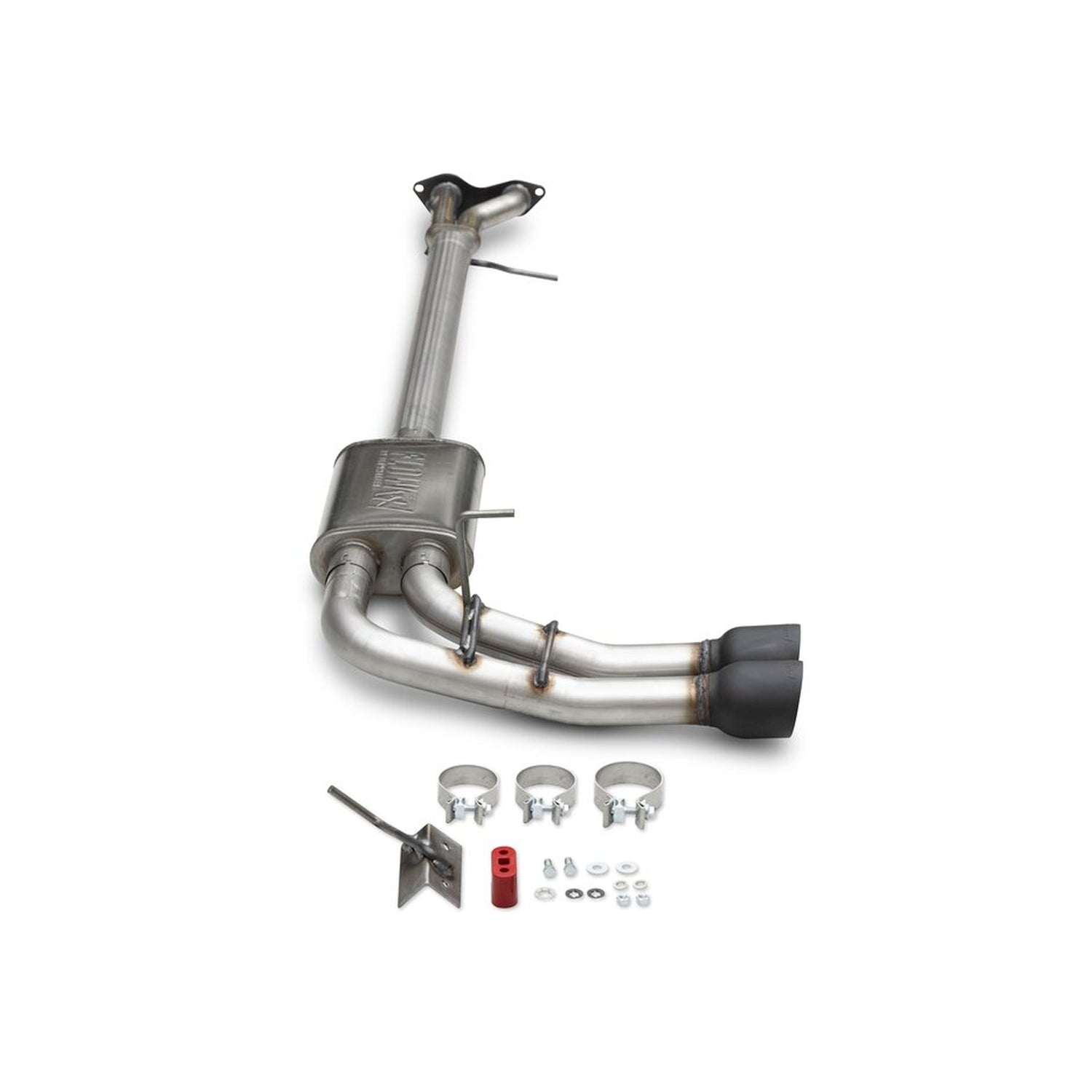

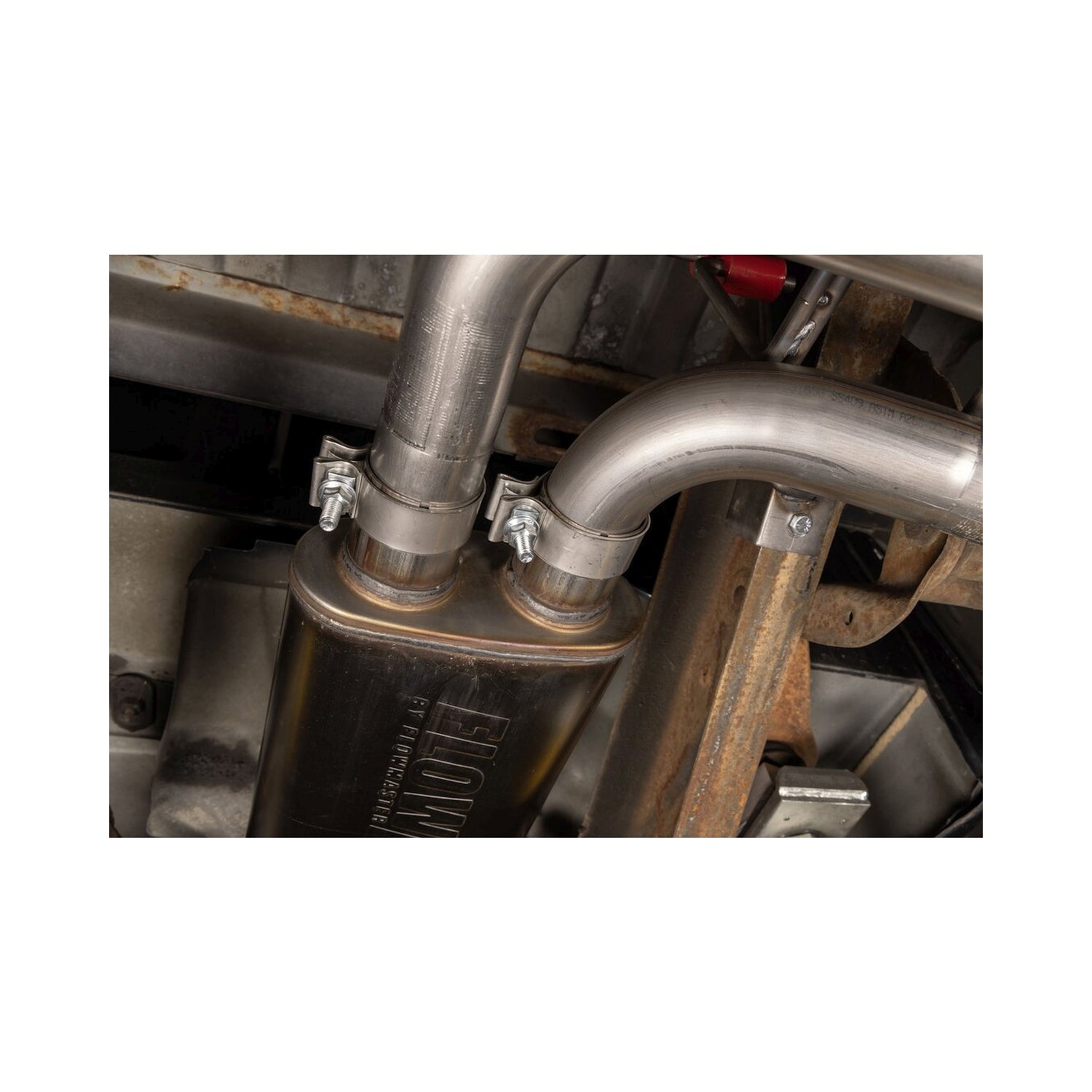

• · Kit includes complete hardware and factory styled hangers in the stock locations for an easy installation

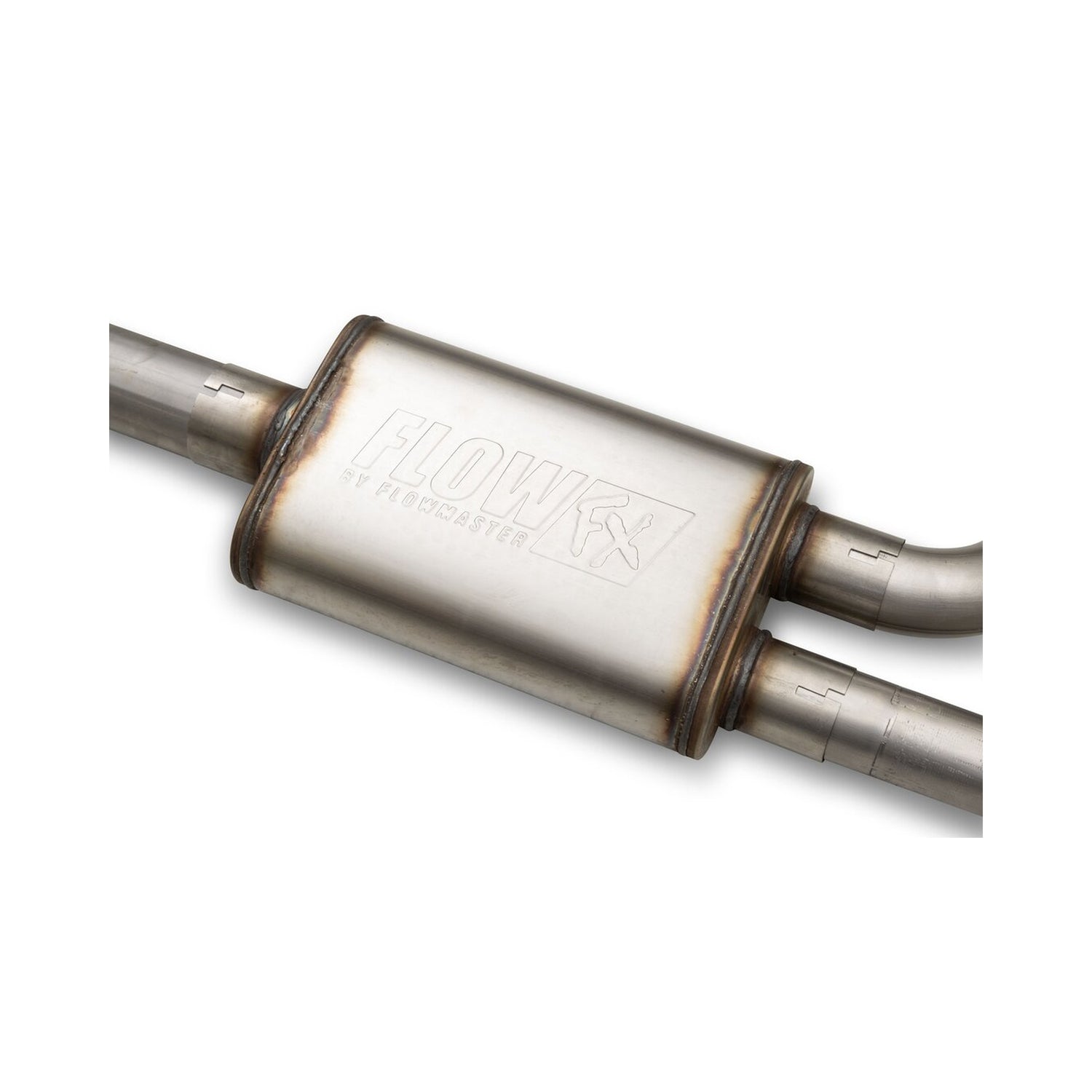

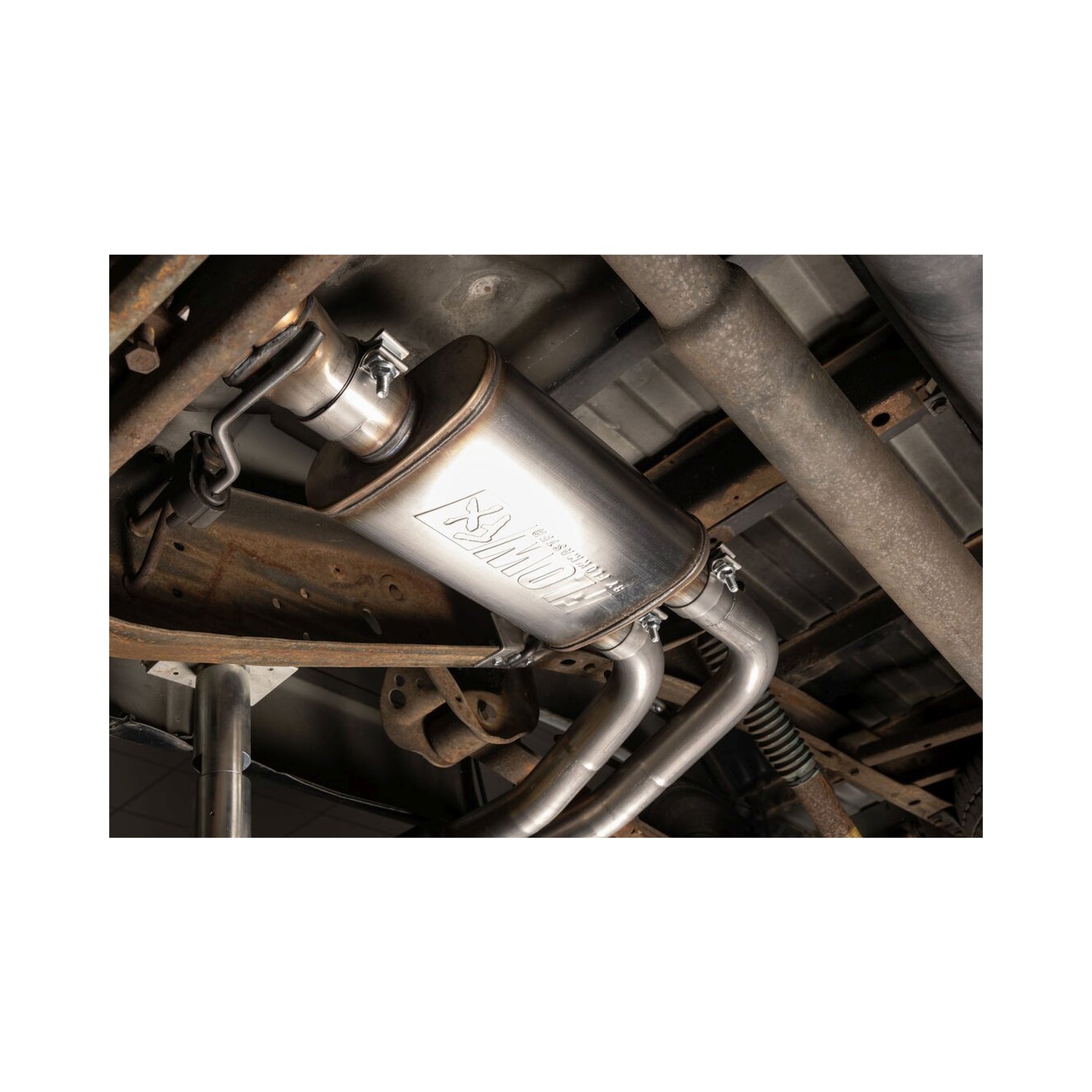

• · A Flow FX Series muffler delivers a deep performance tone and improve exhaust flow
• · Fits all single cab and extended cab models in both 2 and 4 wheel drive
• · Lifetime Limited Warranty

This exhaust kit is designed to fit 1500 and some 2500LD trucks with both left and right bank catalytic converters on the engine side of the 3-bolt flange of the down pipe. If your C/K 2500 truck has one catalytic converter on the engine side of the 3-bolt flange and one catalytic converter on the muffler side of the 3 bolt flange this kit will not work.

Specifications

  • Specifications
    BrandFlowmaster
    California Proposition 65Yes
    California Proposition 65 Chemical NameChromium (hexavalent compounds)
    California Proposition 65 Chemical NameNickel (Metallic)
    CARB (California) CompliantYes
    Catalytic Converter IncludedNo
    Catalytic Converter Quantity0
    CategoryExhaust
    Clamping TypeFlat Band
    Clamps IncludedYes
    Emission Code5
    Exhaust SeriesFlow FX
    Exhaust Tip ColorBlack
    Exhaust Tip ConnectionWelded
    Exhaust Tip CutAngled
    Exhaust Tip Diameter4.00
    Exhaust Tip EdgeAngle Cut
    Exhaust Tip FinishBlack Ceramic Coating
    Exhaust Tip IntercooledNo
    Exhaust Tip Length5.25
    Exhaust Tip Material304 Stainless Steel
    Exhaust Tip Quantity2
    Exhaust Tip ResonatedNo
    Exhaust Tip ShapeRound
    Exhaust Tip WallDouble Wall
    Exit StyleDual Out Same Side
    FinishNatural
    Gasket Or Seal IncludedNo
    Grade TypePerformance
    Hangers IncludedYes
    Inlet TypeFlanged
    Main Piping Diameter2.50
    Mount TypeUses factory hangers
    Mounting Bracket IncludedYes
    Muffler Body Height4.00
    Muffler Body Length14.00
    Muffler Body Material409 Stainless Steel
    Muffler Body ShapeOval
    Muffler Body Width9.00
    Muffler ColorSilver
    Muffler FinishNatural
    Muffler Flanged InletNo
    Muffler Flanged OutletNo
    Muffler IncludedYes
    Muffler Inlet ConnectionSlip-Fit
    Muffler Inlet Inside Diameter3.00
    Muffler Inlet LocationCenter
    Muffler Inlet Outside Diameter3.13
    Muffler Outlet ConnectionSlip-Fit
    Muffler Outlet Diameter2.50
    Muffler Outlet LocationDual
    Muffler Outlet Quantity2
    Muffler Overall Length20.00
    Muffler Part NumberKit Only
    Muffler Quantity1
    Muffler SeriesFlow FX
    Muffler TypeAbsorption
    part typeExhaust System
    Pipe ColorSilver
    Pipe Material409 Stainless Steel
    Product TypeExhaust System
    Sound LevelAggressive / Moderate
    Spring Bolt Kit IncludedNo
    Sub CategoryExhaust and Tail Pipes
    Tail Pipe Outlet Outside Diameter2.50
    Tail Pipe Quantity2
    Tail Pipe QuantityDual
    Tail Pipe Tapered OutletNo
    Tip LogoEmbossed
    TypeCat-Back
    Valve IncludedNo
    Valve TypeNot Applicable
    WarningCalifornia Proposition 65
