Flowmaster Flow FX Cat-Back Exhaust System - 717864
Fits 2009-2014 Ford F-150 with 3.5L Ecoboost, 4.6L, 5.0L, 5.4L engines. - Moderate sound
Flowmaster Flow FX Cat-Back Exhaust System - 717864 is not in stock at Fast Lane Spares and will ship direct from supplier
Description
Description
Part Number: 717864

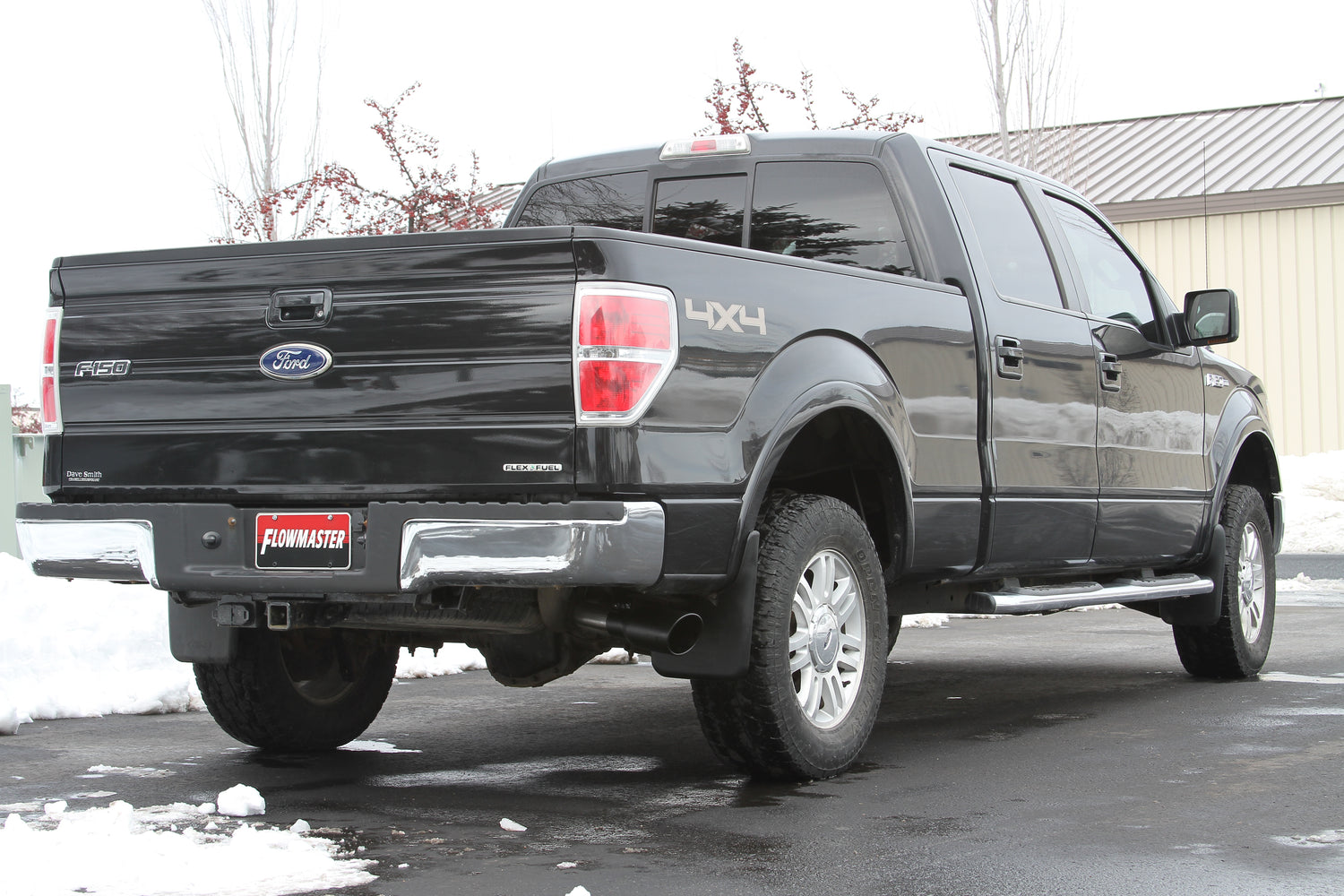

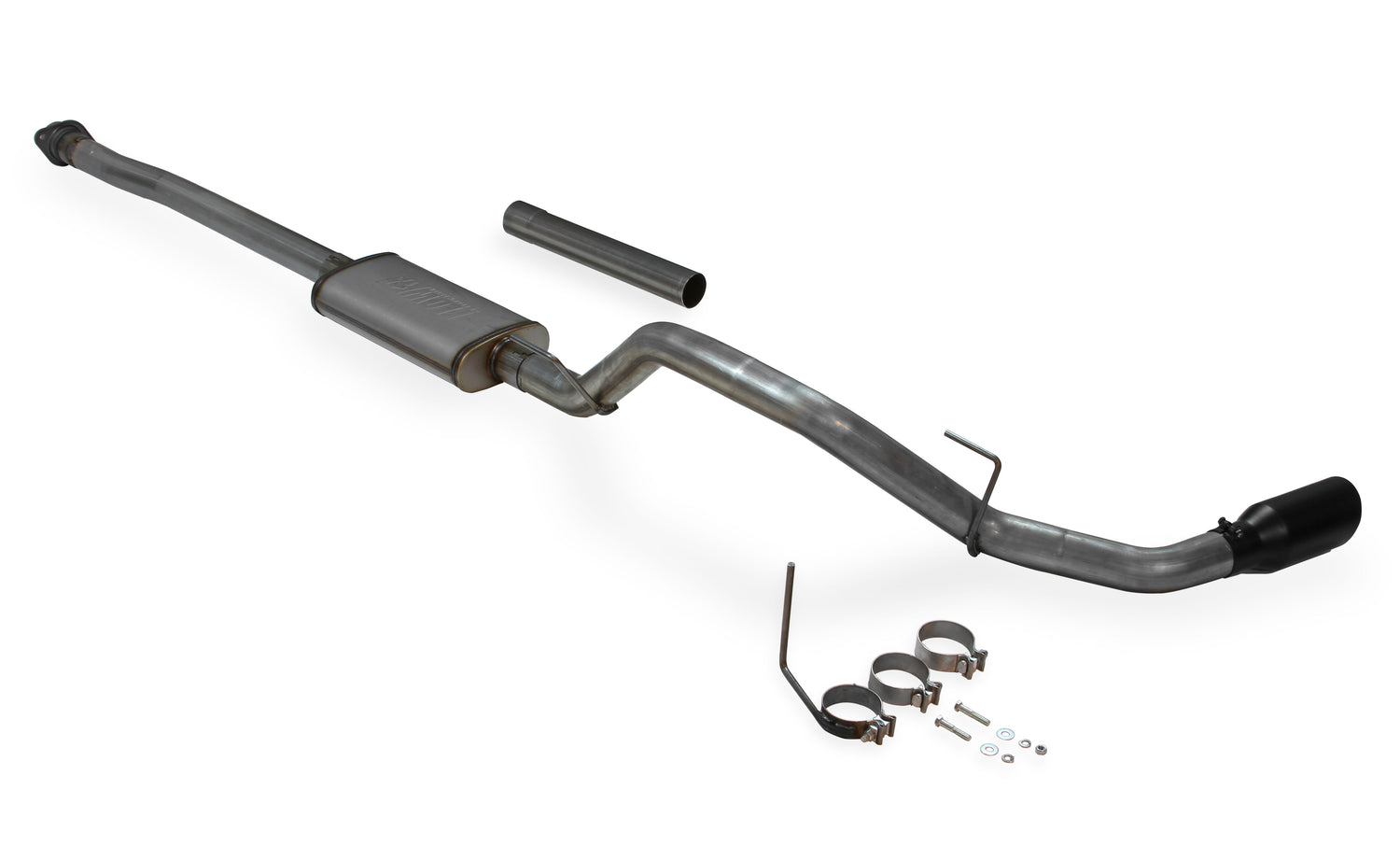

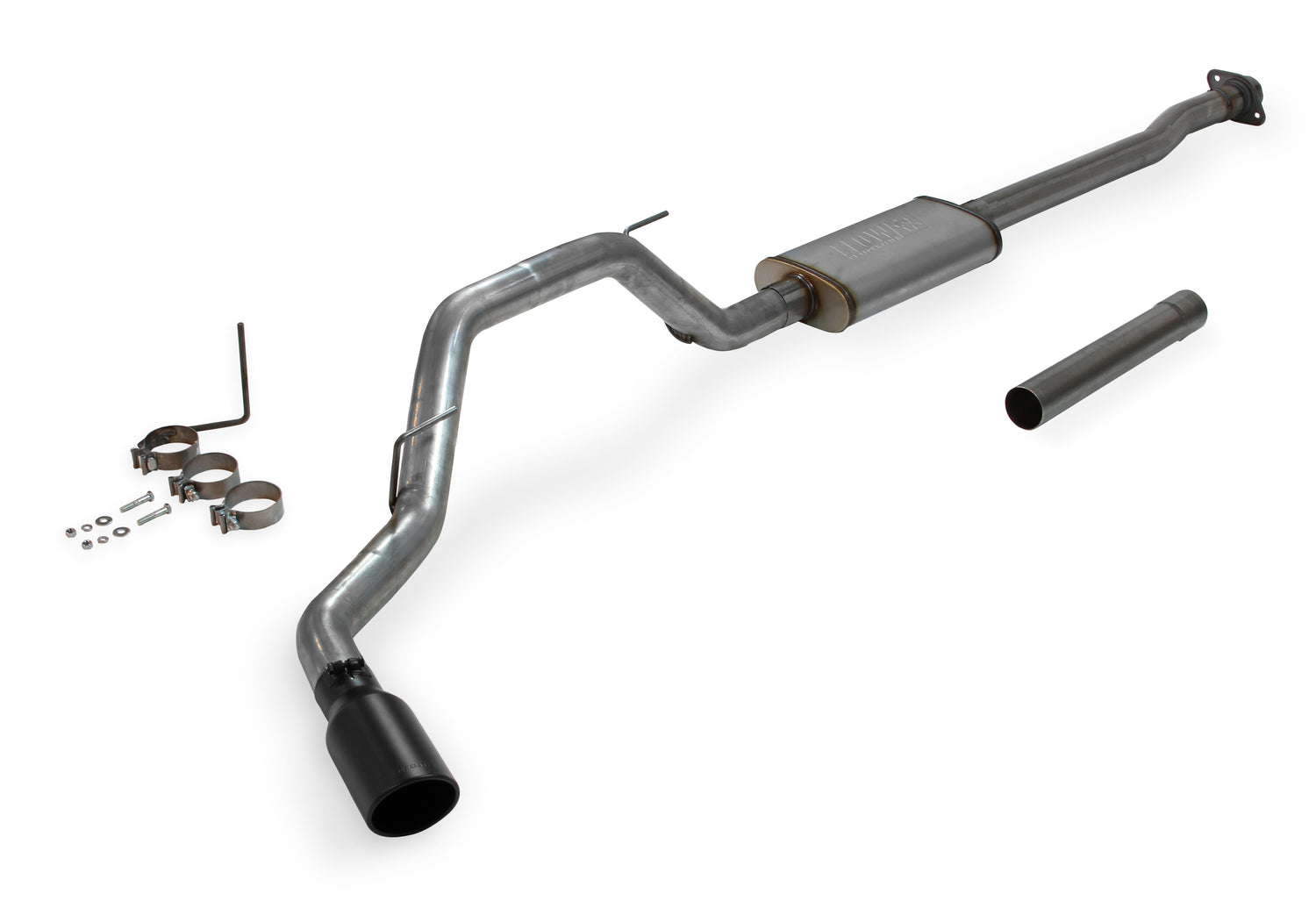

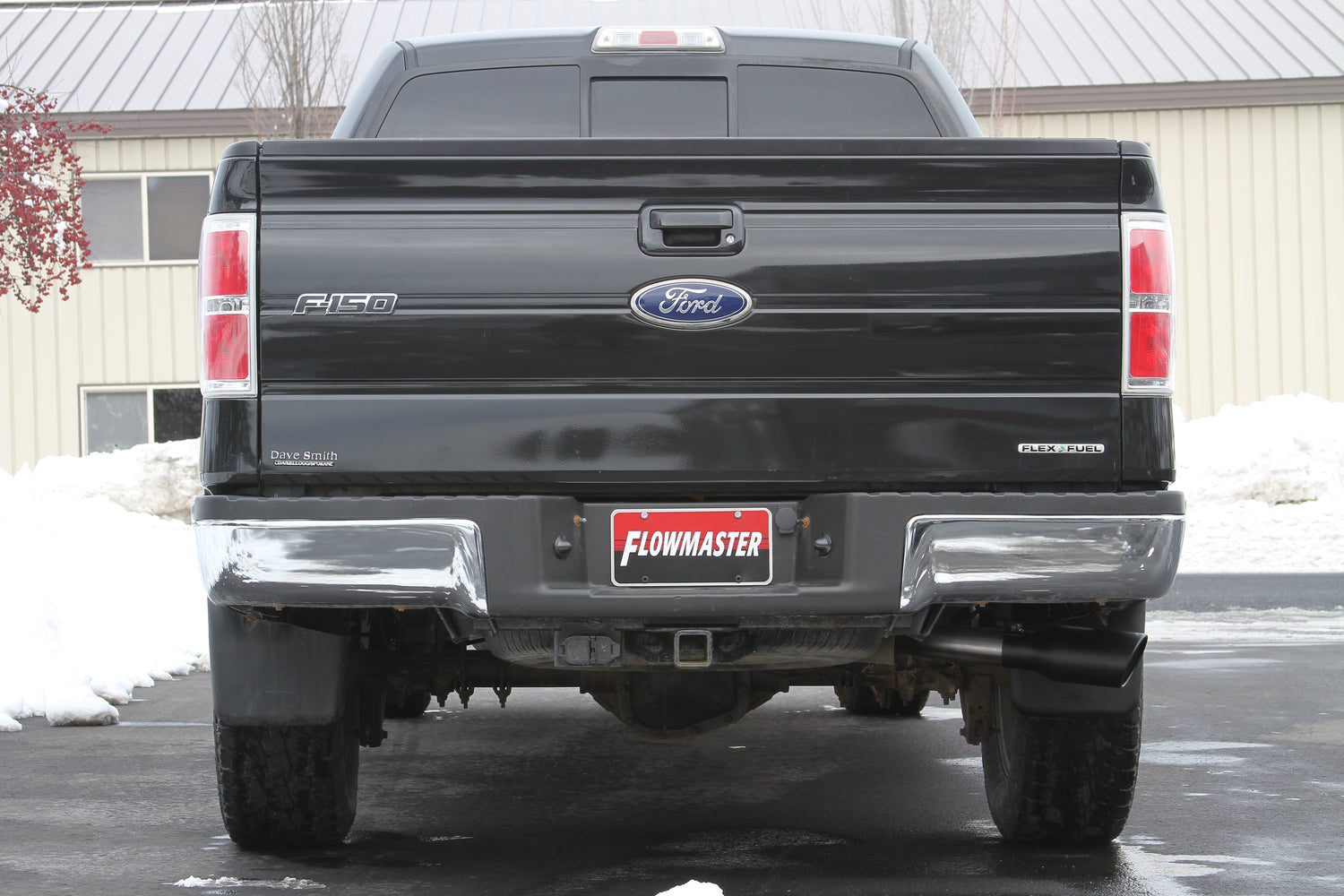

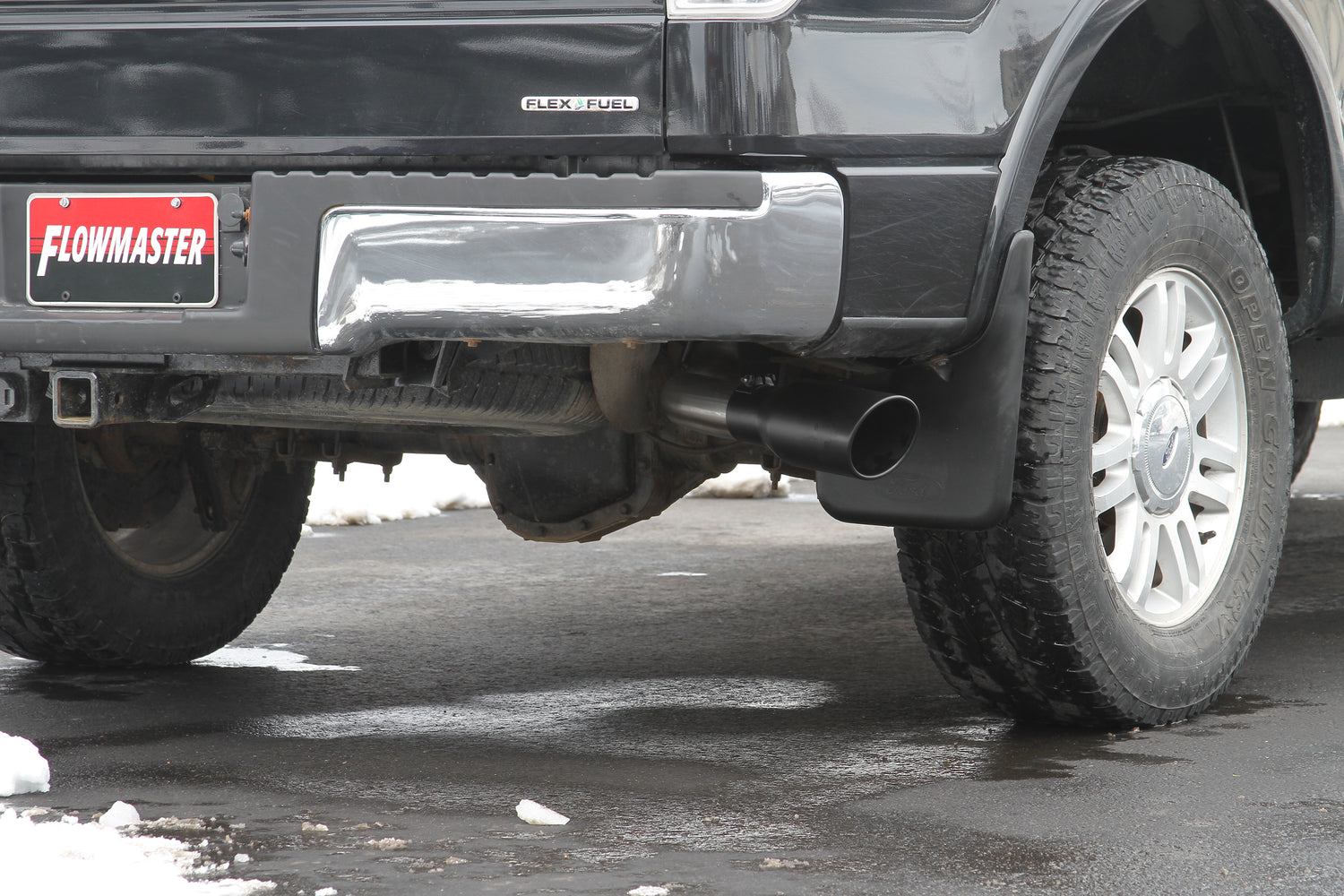

Introducing the Flow FX Cat-back exhaust system for the 2009-2014 Ford F-150 with 3.5L Ecoboost, 4.6L, 5.0L and 5.4L engines. This stainless steel performance single exhaust system bolts up to the factory catalytic converter flange with a large 3-inch mandrel-bent tubing flowing into the "straight-through" Flow FX performance muffler. The Flow FX muffler creates a deep powerful sound outside the vehicle with a moderate tone inside the cab. The mandrel-bent tailpipe exits behind the passenger side rear tire and is finished off with a large 4.50-inch black ceramic coated exhaust tip embossed with the Flowmaster name. The system utilizes the factory hanger locations and connections and includes all necessary parts, hardware and detailed instructions for an easy at home installation. Note: Fits 2/4 wheel drive and all wheelbases.
Features and Benefits

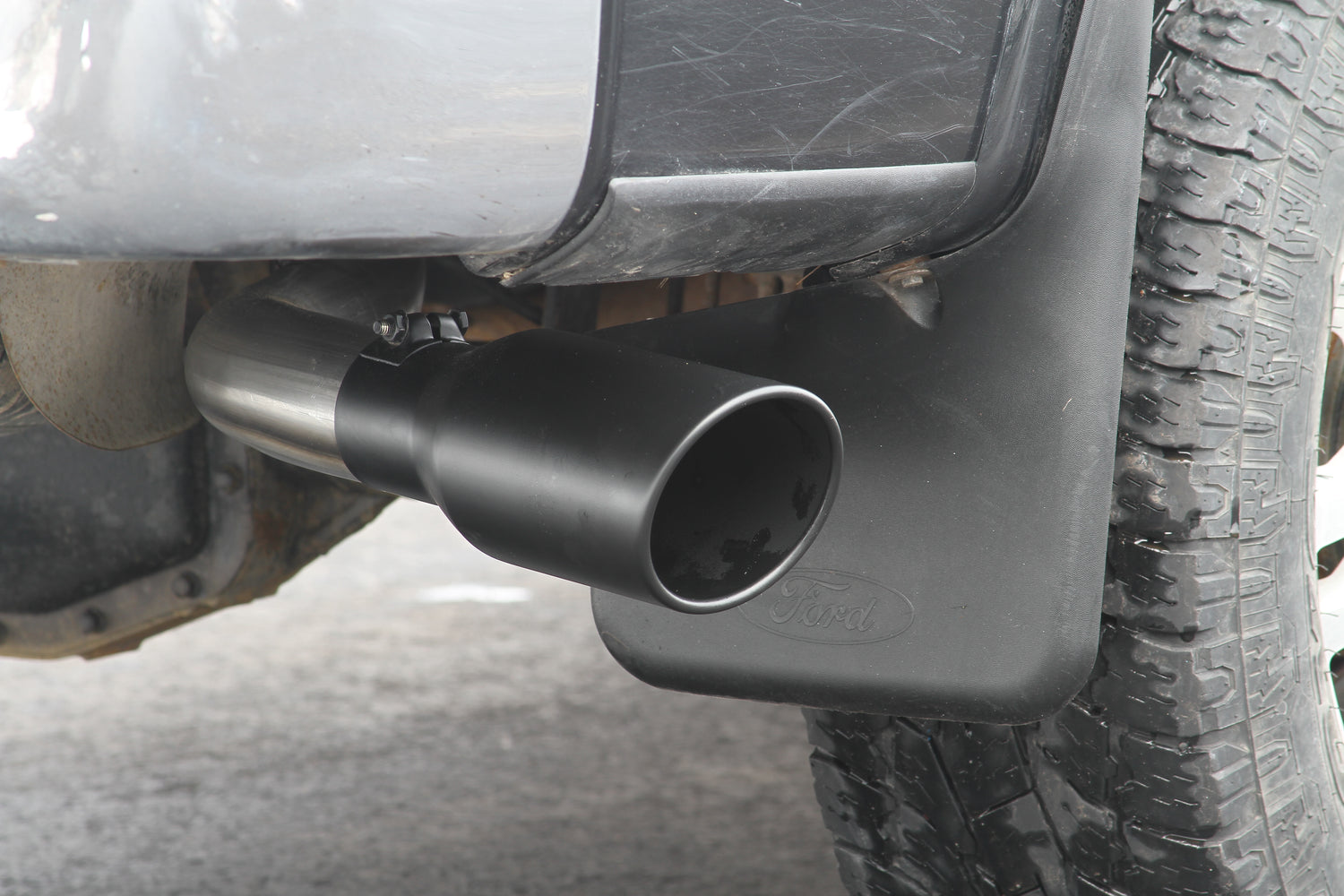

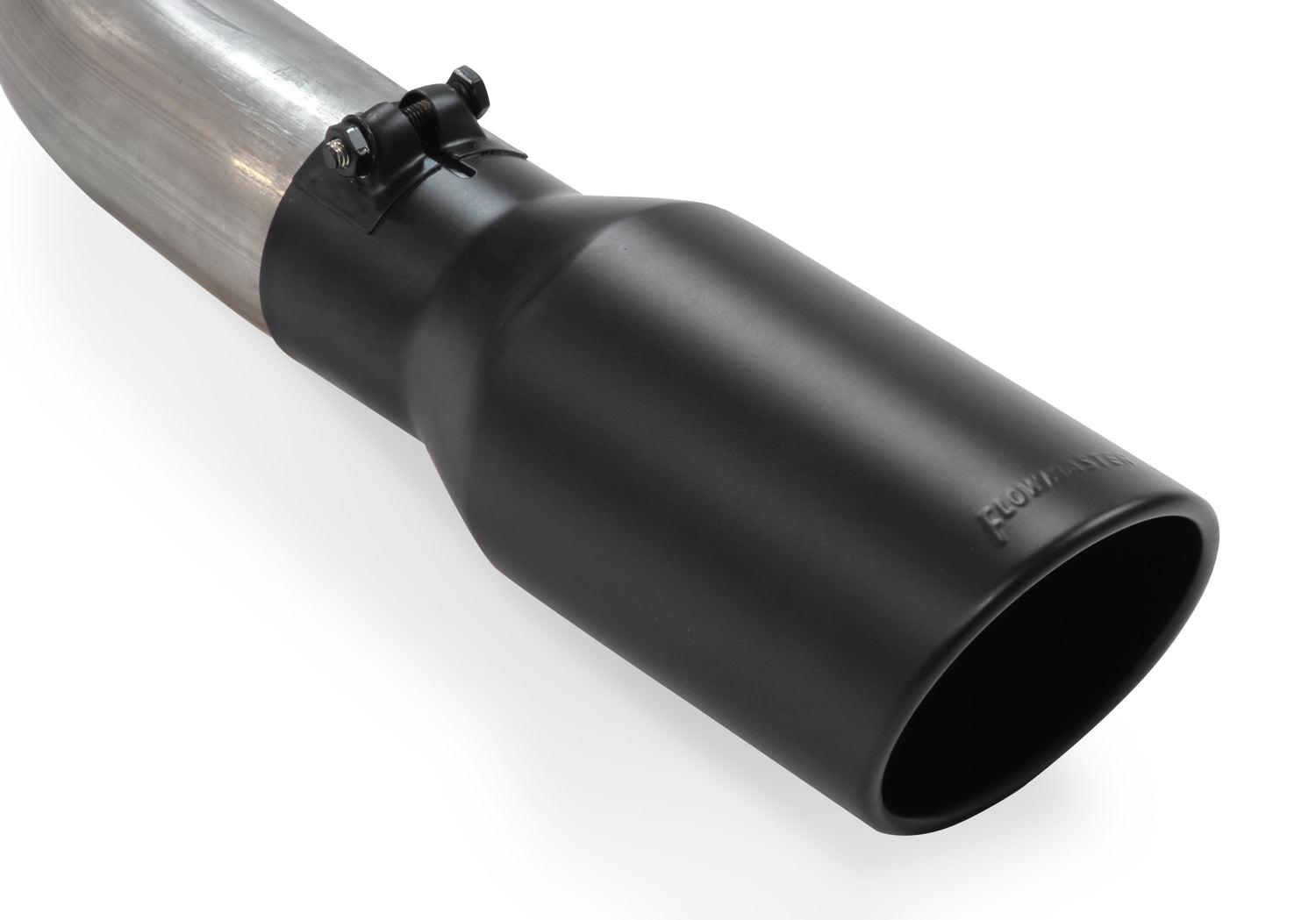

• Large 4.50-Inch Black Ceramic Coated Stainless Steel Tips
• Deep Powerful Tone Inside and Outside the Vehicle

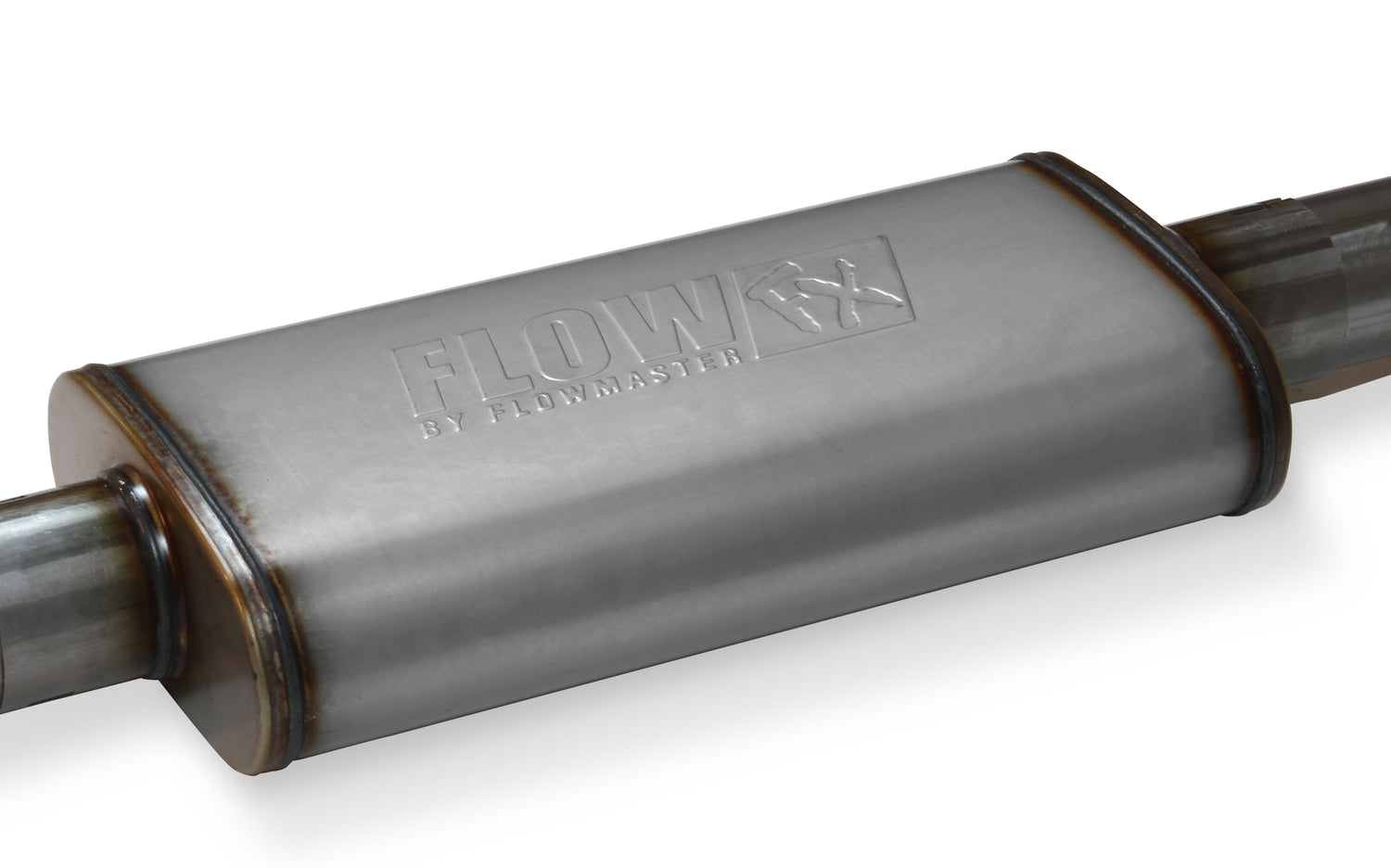

• Flow FX "Straight-through" Performance Muffler
• Mandrel-bent Stainless Steel Tubing

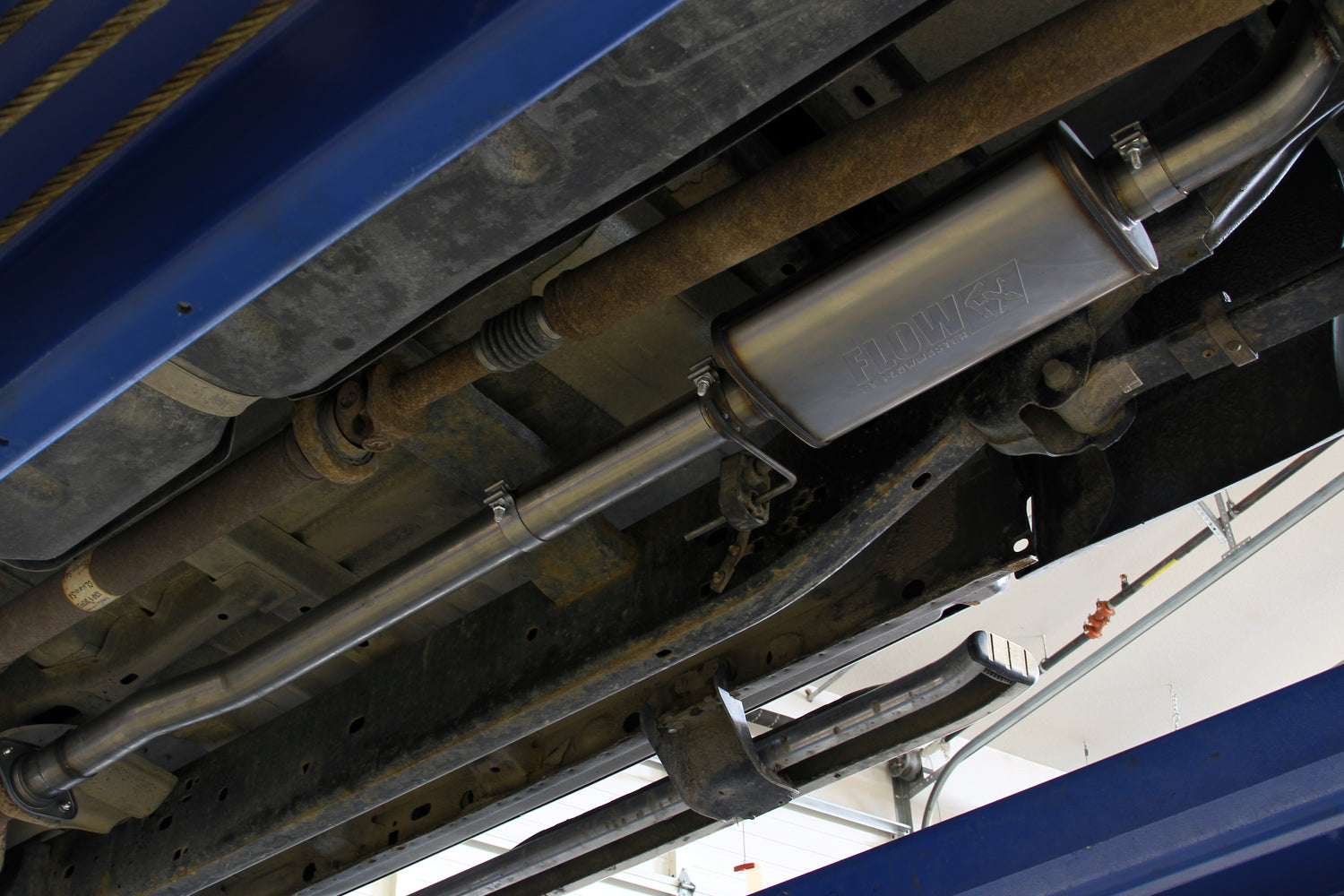

• Uses the Factory Hanger Locations
• Includes All Necessary Hardware
• Quick and Easy Installation
• Lifetime Limited Warranty
2009-2014 Ford F-150 with 3.5L Ecoboost, 4.6L, 5.0L, 5.4L engines, 2/4 wheel drive and all wheelbases.
Specifications
Specifications
-
Specifications
Brand Flowmaster California Proposition 65 Yes California Proposition 65 Chemical Name Nickel (Metallic) California Proposition 65 Chemical Name Chromium (hexavalent compounds) CARB (California) Compliant Yes Catalytic Converter Included No Catalytic Converter Quantity 0 Category Exhaust Clamping Type Flat Band Clamps Included Yes Emission Code 5 Exhaust Series Flow FX Exhaust Tip Color Black Exhaust Tip Connection Clamp-On Exhaust Tip Cut Angled Exhaust Tip Diameter 4.50 Exhaust Tip Edge Rolled Edge Angle Cut Exhaust Tip Finish Black Ceramic Coating Exhaust Tip Intercooled No Exhaust Tip Length 11.00 Exhaust Tip Material 304 Stainless Steel Exhaust Tip Quantity 1 Exhaust Tip Resonated No Exhaust Tip Shape Round Exhaust Tip Wall Single Wall Exit Style Single Out Side Finish Natural Gasket Or Seal Included No Grade Type Performance Hangers Included Yes Heat Shield Included No Inlet Type Flanged Main Piping Diameter 3.00 Mount Type Uses Factory Hangers Mounting Bracket Included No Muffler Body Height 4.00 Muffler Body Length 18.00 Muffler Body Material 409 Stainless Steel Muffler Body Shape Oval Muffler Body Width 9.00 Muffler Finish Natural Muffler Flanged Inlet No Muffler Flanged Outlet No Muffler Included Yes Muffler Inlet Connection Slip-Fit Muffler Inlet Inside Diameter 3.00 Muffler Inlet Outside Diameter 3.13 Muffler Outlet Connection Slip-Fit Muffler Outlet Quantity 1 Muffler Quantity 1 Muffler Series Flow FX Muffler Type Absorption part type Exhaust System Pipe Color Silver Pipe Material 409 Stainless Steel Product Type Exhaust System Sound Level Moderate Spring Bolt Kit Included No Sub Category Exhaust and Tail Pipes Tail Pipe Outlet Outside Diameter 3.00 Tail Pipe Quantity Single Tail Pipe Quantity 1 Tail Pipe Tapered Outlet No Tip Logo Embossed Type Cat-Back Valve Included No Valve Type Not Applicable Warning California Proposition 65 -
