Flowmaster | SKU:
817490

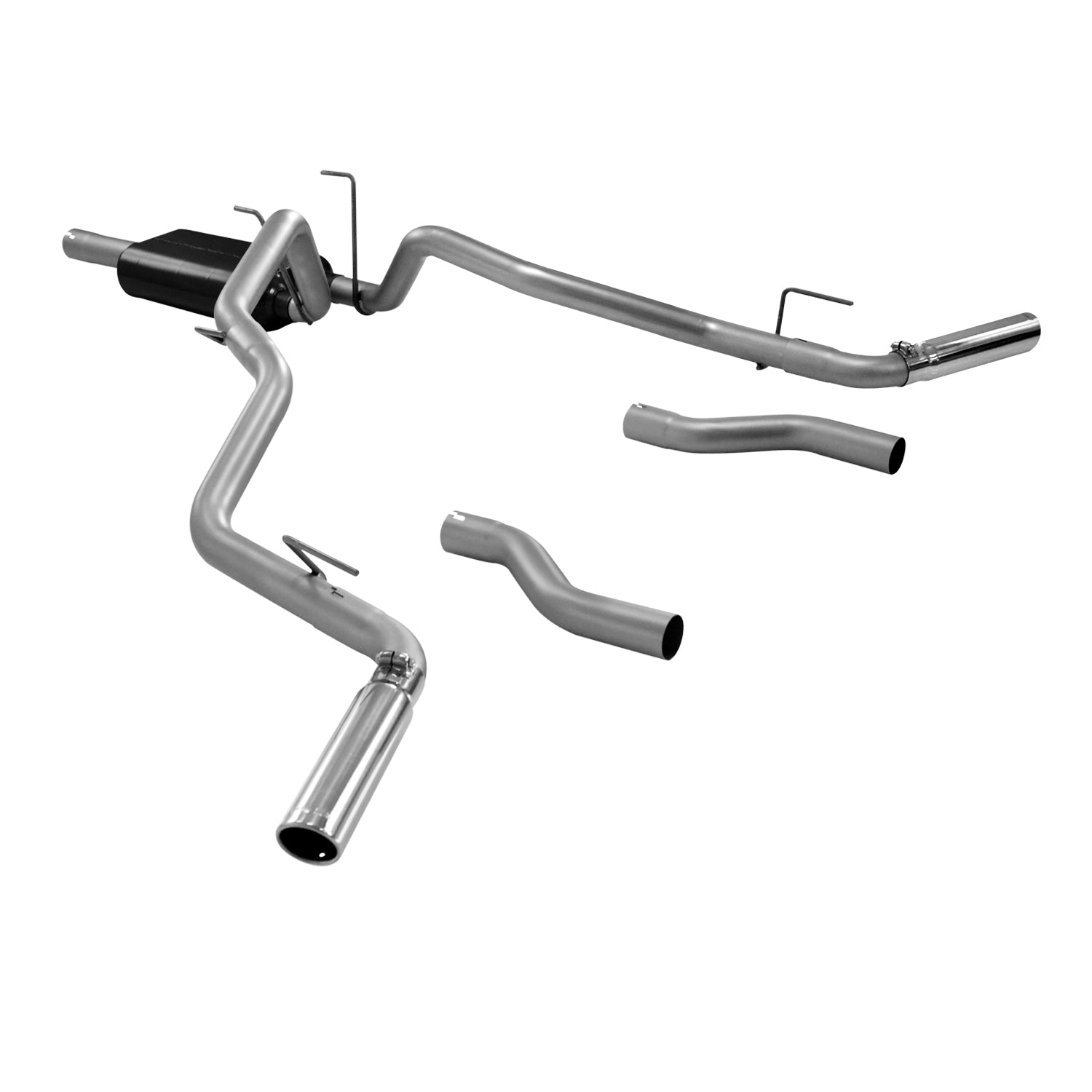

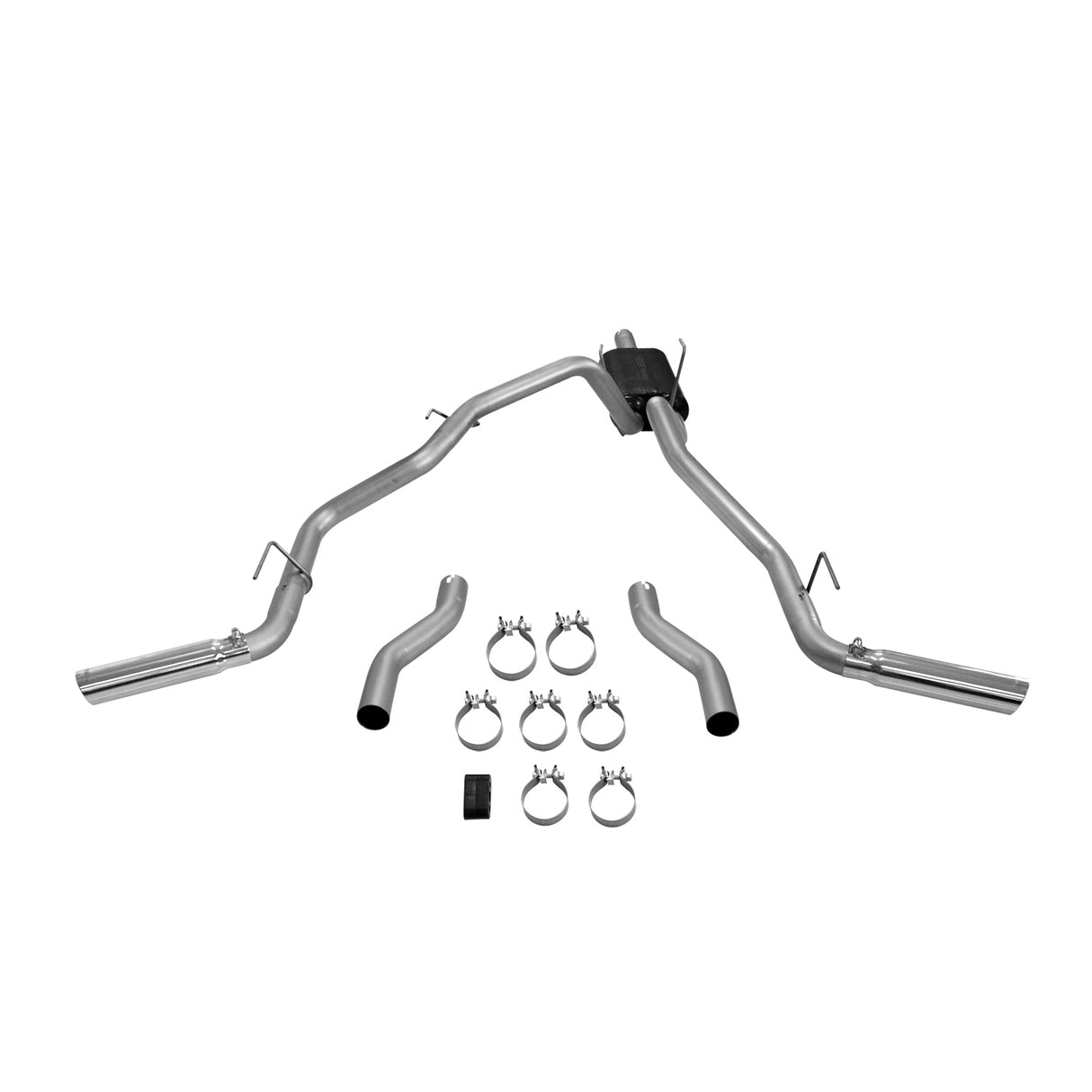

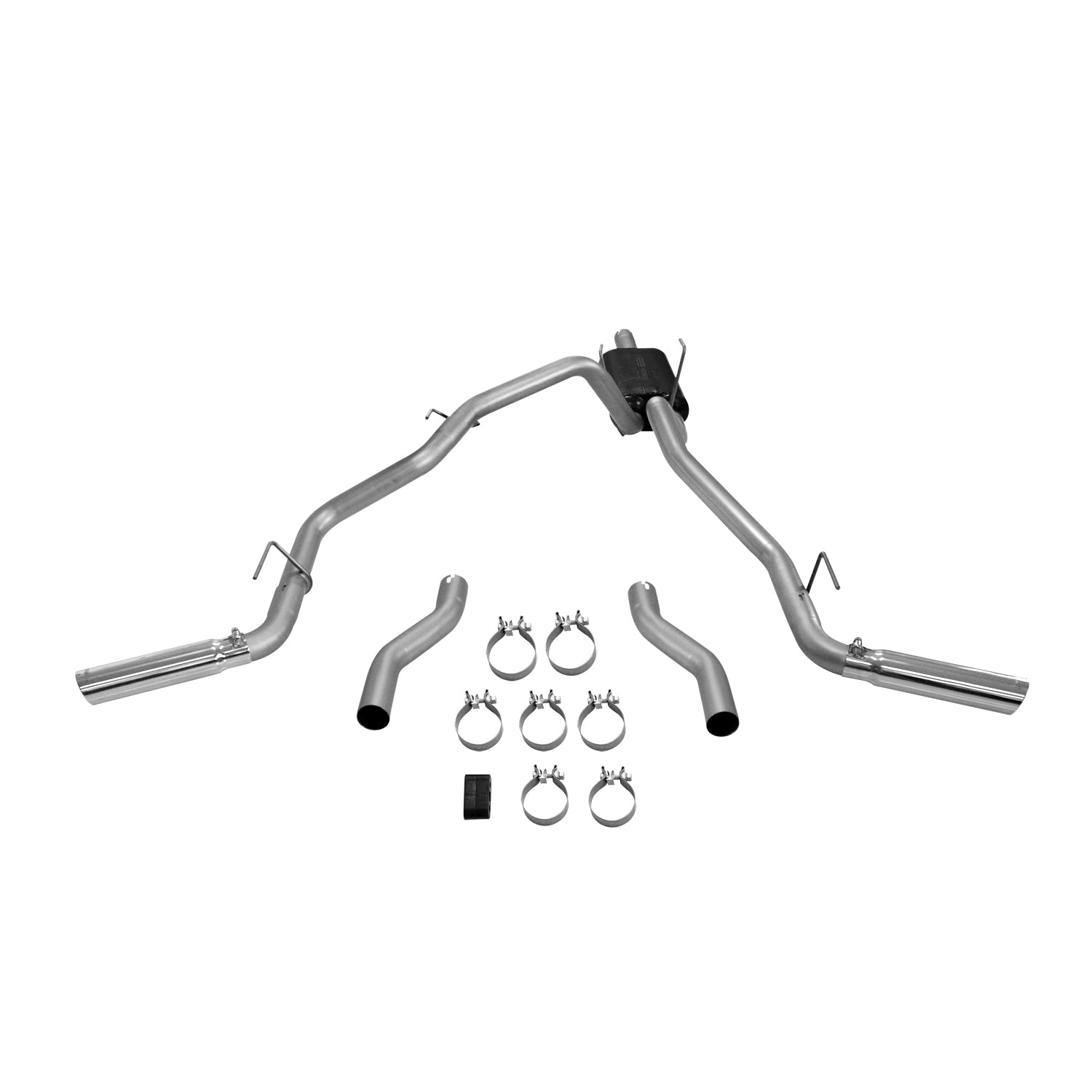

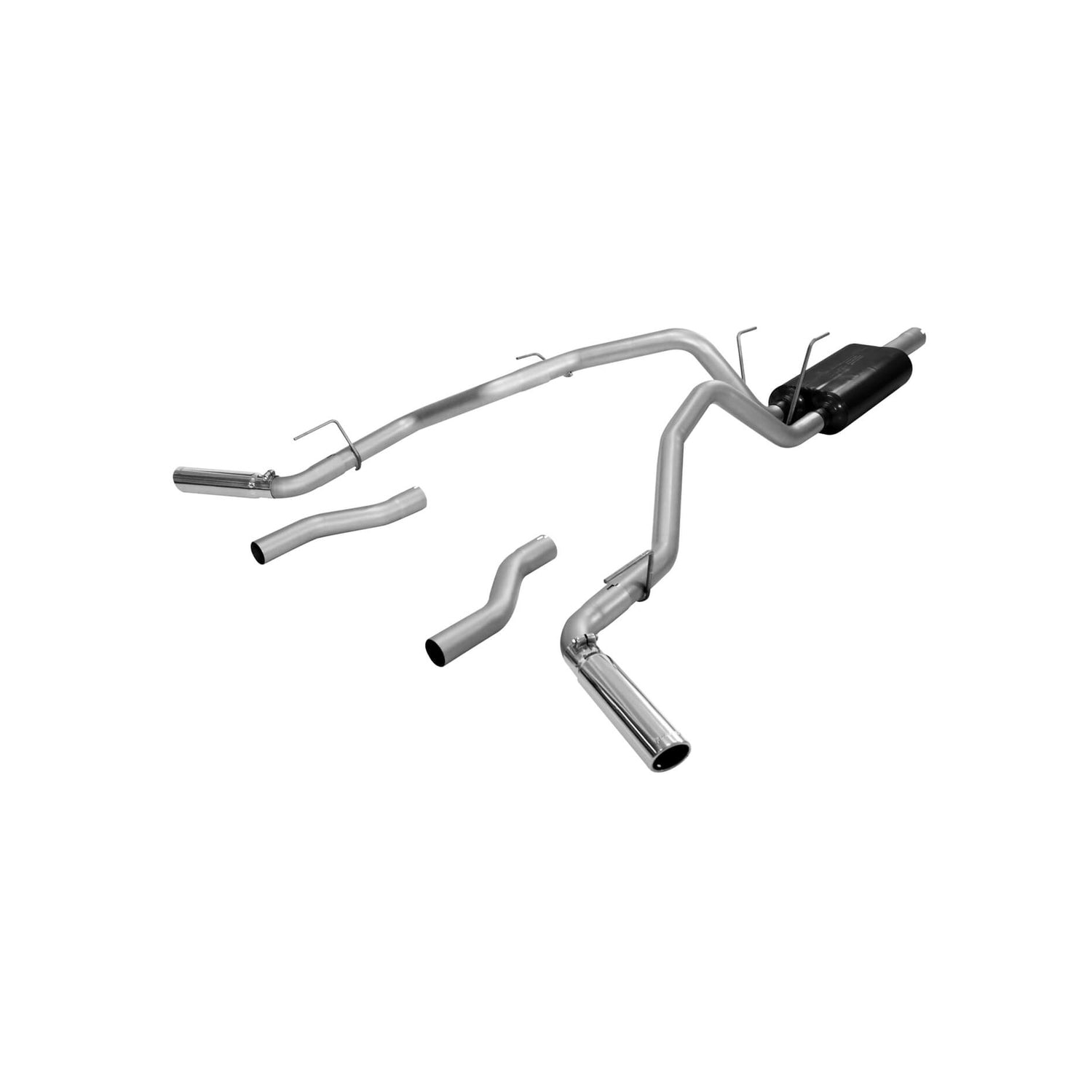

Flowmaster American Thunder Cat-back Exhaust System - 817490
2009-2024* (*Classic body) RAM 1500, 4.7L, 5.7L Hemi engine, with factory single tailpipe - Aggressive to moderate sound
Regular price
$2,200.10 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Flowmaster American Thunder Cat-back Exhaust System - 817490 is not in stock at Fast Lane Spares and will ship direct from supplier.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
2009-2024* (*Classic body) RAM 1500, 4.7L, 5.7L Hemi engine, with factory single tailpipe - Aggressive to moderate sound
Part Number: 817490

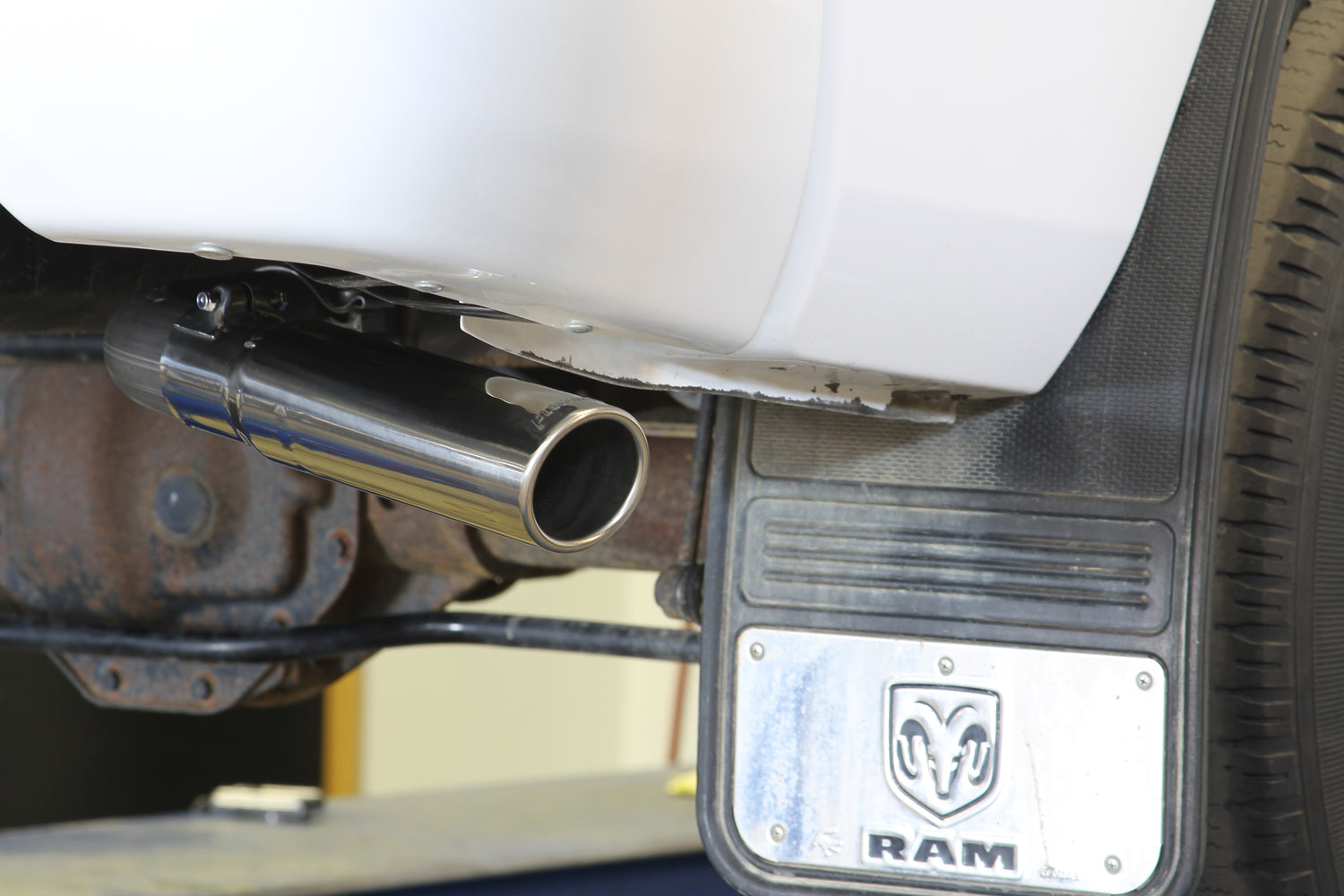

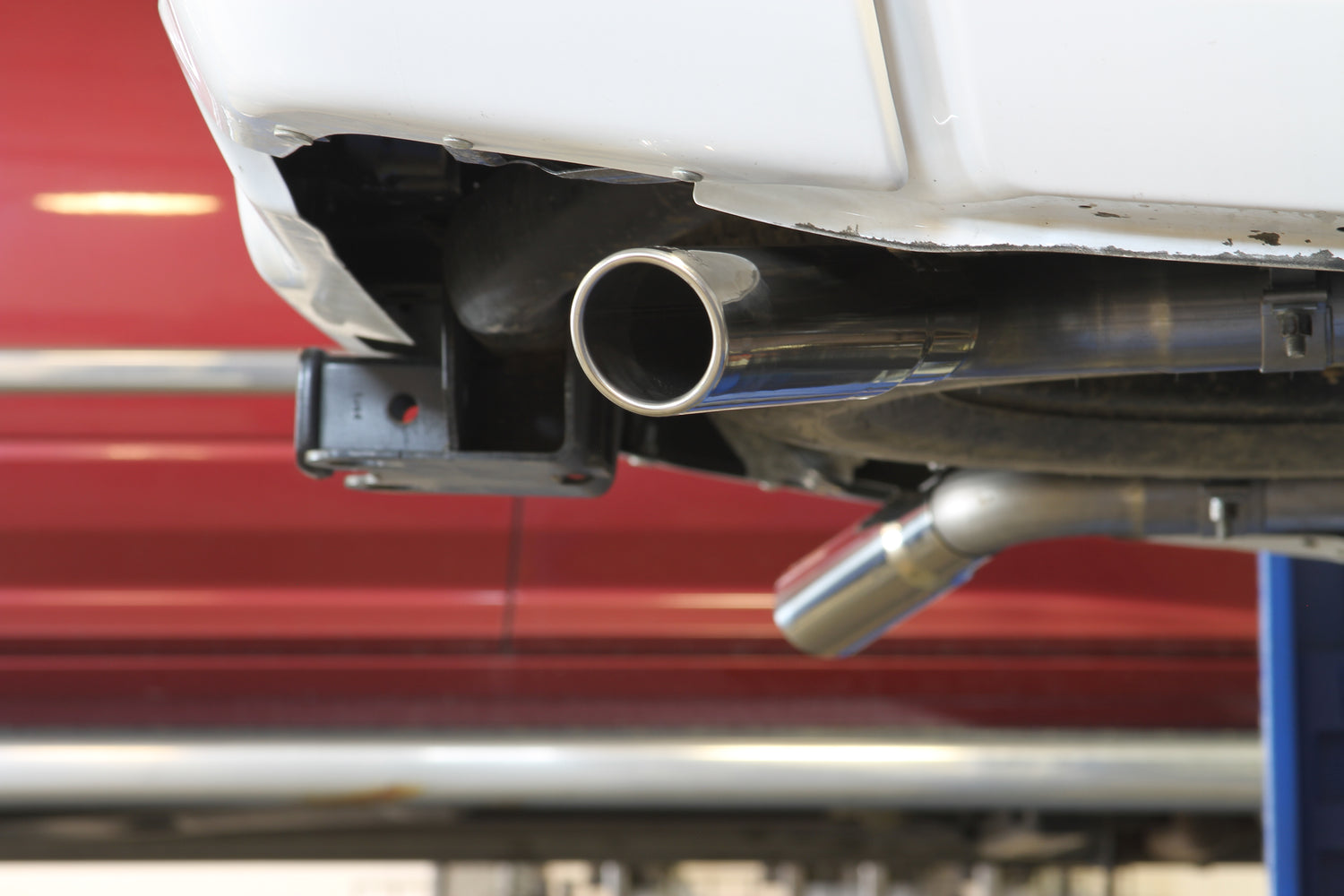

Wake up the power and performance of your 4.7L or 5.7L Hemi-powered 2009-2024* (classic body) RAM 1500 with this American Thunder Cat-back exhaust system. The system is fully constructed from 16-gauge mandrel-bent stainless steel tubing flowing into a 50 HD Series performance muffler with a single inlet/dual out for minimum drone in the cab, but with a moderately aggressive exterior tone. This custom system features dual 2.50-inch mandrel bent tailpipes with a pair of large 3.00-inch diameter polished stainless steel tips with your choice of exits, either dual out the side behind the wheels for towing, or exiting straight out the back under the rear bumper for a muscular look. The system includes all necessary parts and hardware required for an easy installation that you can do at home.
Features and Benefits
• Includes Hangers and Hardware for an Easy Installation
• Mandrel-bent 16-gauge Stainless Steel Tubing
• 3.00-inch Polished 304 Stainless Steel Tips
• Connects After Factory Catalytic Converter

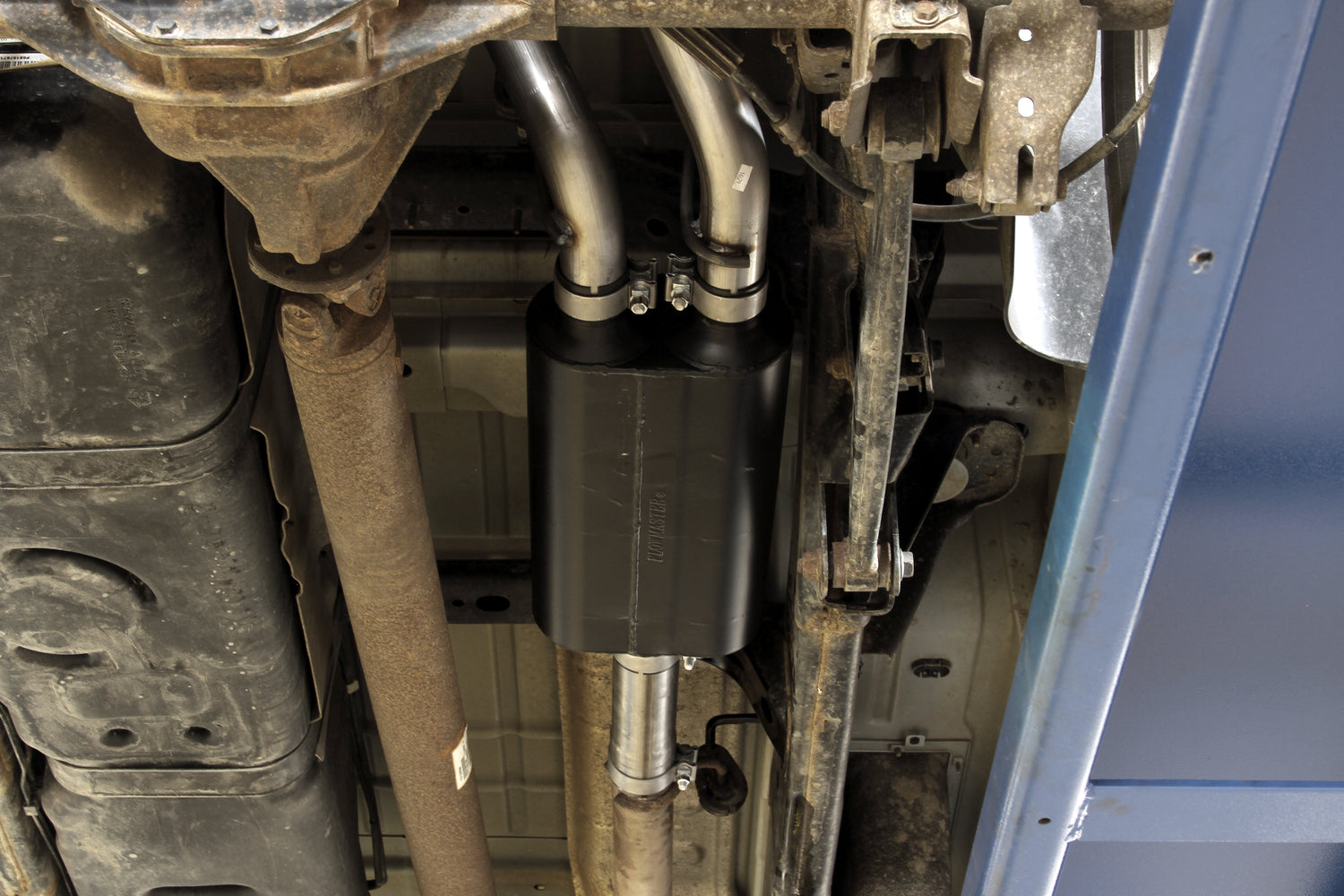

• 50 HD Series Performance Muffler
• Uses the Factory Hanger Locations
• Moderate Exterior Exhaust Tone
"Does NOT fit trucks with factory dual tailpipes.
Part Number: 817490
Wake up the power and performance of your 4.7L or 5.7L Hemi-powered 2009-2024* (classic body) RAM 1500 with this American Thunder Cat-back exhaust system. The system is fully constructed from 16-gauge mandrel-bent stainless steel tubing flowing into a 50 HD Series performance muffler with a single inlet/dual out for minimum drone in the cab, but with a moderately aggressive exterior tone. This custom system features dual 2.50-inch mandrel bent tailpipes with a pair of large 3.00-inch diameter polished stainless steel tips with your choice of exits, either dual out the side behind the wheels for towing, or exiting straight out the back under the rear bumper for a muscular look. The system includes all necessary parts and hardware required for an easy installation that you can do at home.
Features and Benefits
• Includes Hangers and Hardware for an Easy Installation
• Mandrel-bent 16-gauge Stainless Steel Tubing
• 3.00-inch Polished 304 Stainless Steel Tips
• Connects After Factory Catalytic Converter
• 50 HD Series Performance Muffler
• Uses the Factory Hanger Locations
• Moderate Exterior Exhaust Tone
"Does NOT fit trucks with factory dual tailpipes.
Specifications
Specifications
-
Specifications
Brand Flowmaster California Proposition 65 Yes California Proposition 65 Chemical Name Nickel (Metallic) California Proposition 65 Chemical Name Chromium (hexavalent compounds) CARB (California) Compliant Yes Catalytic Converter Included No Catalytic Converter Quantity 0 Category Exhaust Clamping Type Flat Band Clamps Included Yes Drive 2WD Drive 4WD Emission Code 5 Exhaust Series American Thunder Exhaust Tip Color Silver Exhaust Tip Connection Clamp-On Exhaust Tip Cut Angled Exhaust Tip Diameter 3.00 Exhaust Tip Edge Rolled Edge Angle Cut Exhaust Tip Finish Polished Exhaust Tip Intercooled No Exhaust Tip Length 13.00 Exhaust Tip Material 304 Stainless Steel Exhaust Tip Quantity 2 Exhaust Tip Resonated No Exhaust Tip Shape Round Exhaust Tip Wall Single Wall Exit Style Dual Out Side Exit Style Dual Out Rear Finish Natural Gasket Or Seal Included No Grade Type Performance Hangers Included Yes Heat Shield Included No Inlet Diameter 3.00 Inlet Type Clamp-On Main Piping Diameter 2.50 Mounting Bracket Included No Muffler Body Height 5.00 Muffler Body Length 18.00 Muffler Body Material 409 Stainless Steel Muffler Body Shape Oval Muffler Body Width 10.00 Muffler Finish Black High-Temperature Paint Finish Muffler Flanged Inlet No Muffler Flanged Outlet No Muffler Included Yes Muffler Inlet Connection Slip-Fit Muffler Inlet Inside Diameter 3.00 Muffler Inlet Outside Diameter 3.13 Muffler Outlet Connection Slip-Fit Muffler Outlet Quantity 2 Muffler Part Number Kit Only Muffler Quantity 1 Muffler Series 50 Series HD Muffler Type Chambered part type Exhaust System Pipe Color Silver Pipe Material 409 Stainless Steel Product Type Exhaust System Sound Level Aggressive / Moderate Spring Bolt Kit Included No Sub Category Exhaust and Tail Pipes Tail Pipe Outlet Outside Diameter 2.50 Tail Pipe Quantity 2 Tail Pipe Quantity Dual Tail Pipe Tapered Outlet No Type Cat-Back Valve Included No Valve Type Not Applicable Warning California Proposition 65 -
Instructions
