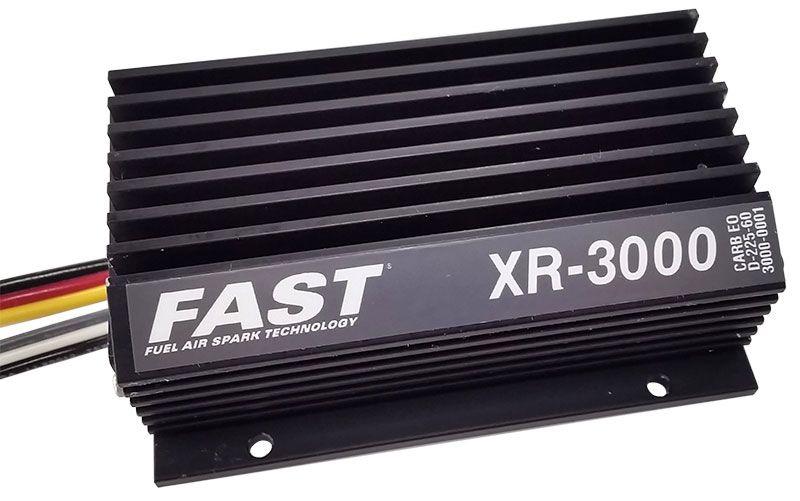

FAST XR3000 Ignition Module Only (FAST3000-0001)

Operating voltage

• 6 to 18 volts, reverse polarity protected,negative ground. Notcompatible with 6 volt electrical systems as these may drop below 4 volts during cranking.

Coil current limit

• 4.5 amps internal short circuit protection limit set at 7 amps.

RPM range

• 6,500 RPM

Primary voltage output

• 400volts (inductive discharge)

Primary energy output

• 90 millijoules with PS91 coil.

Peakspark gap current

• 100 milliamps with PS91 coil.

Spark duration

• 2800 microseconds at 2,000 RPM

Dimensions

• 5"L x 3"Wx 1-1/2"H, 1-1/2 lbs.
