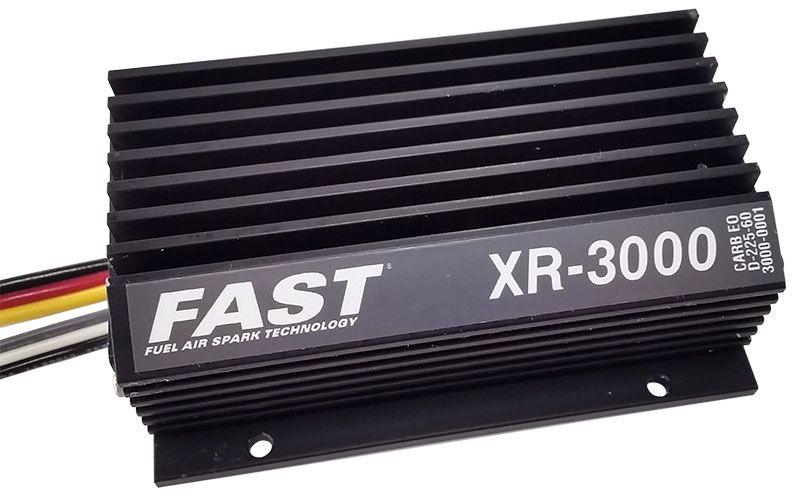

FAST XR3000 Ignition Conversion Kit (FAST3000-0226)

FAST3000-0226 - XR3000 IGNITION CONVERSION KIT

Suit Ford V8, Accel 34, Delco 4, 6 and 8 Cylinder and VW/Bosch "009" Distributor

Part Number: FAST3000-0226

Operating voltage
6 to 18 volts, reverse polarity protected,negative ground. Not compatible with 6 volt electrical systems as these may drop below 4 volts during cranking.
Coil current limit
4.5 amps internal short circuit protection limit set at 7 amps.
RPM range
6,500 RPM
Primary voltage output
400 volts (inductive discharge)
Primary energy output
90 millijoules with PS91 coil.
Peak spark gap current
100 milliamps with PS91 coil.
Spark duration
2800 microseconds at 2,000 RPM
Dimensions
5"L x 3"W x 1-1/2"H, 1-1/2 lbs.
