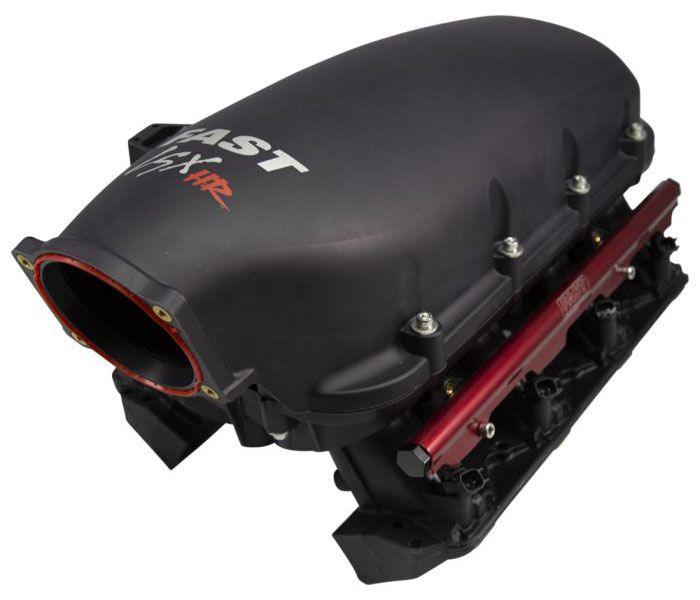

FAST LSXHR 103mm Tunnel Ram Intake Manifold (FAST146106)

FAST146106 - LSXHR 103mm TUNNEL RAM INTAKE

Suits GM LS3 Rectangle Port

Part Number: FAST146106

FAST has developed the industry's first polymer tunnel ram-style intake manifold, ideal for generating maximum power in boosted and naturally aspirated engines.
The LSXHR 103mm rectangular port LS3 intake manifold has a set of "tall" removable velocity stacks, however "medium" and "short" stack options can be purchased separately. This allows interchanging of the various runner lengths so racers can experiment with finding which combination makes the most power in their application. It's polymer construction is not only lightweight and high strength but also virtually eliminates power-robbing heat soak that occurs with commonly available aluminium intake manifolds. Testing has shown an average 30 horsepower gain between 5,000 and 7,500 RPM over competitor tunnel ram intake manifolds.
The FAST LSXHR 103mm intake manifold is designed specifically with boosted applications in mind and is rated for up to 45psi of continuous pressure. The compound fuel injector angle aims the spray pattern for ideal atomization. resulting in maximum power production and superior driveability.
A reversible top allows for forward or firewall facing throttle body installations. The intake manifold also features two nitrous nozzle bosses per runner for clean and easy direct port system installations. It's 103mm throttle body opening can be port matched to 105mm.
