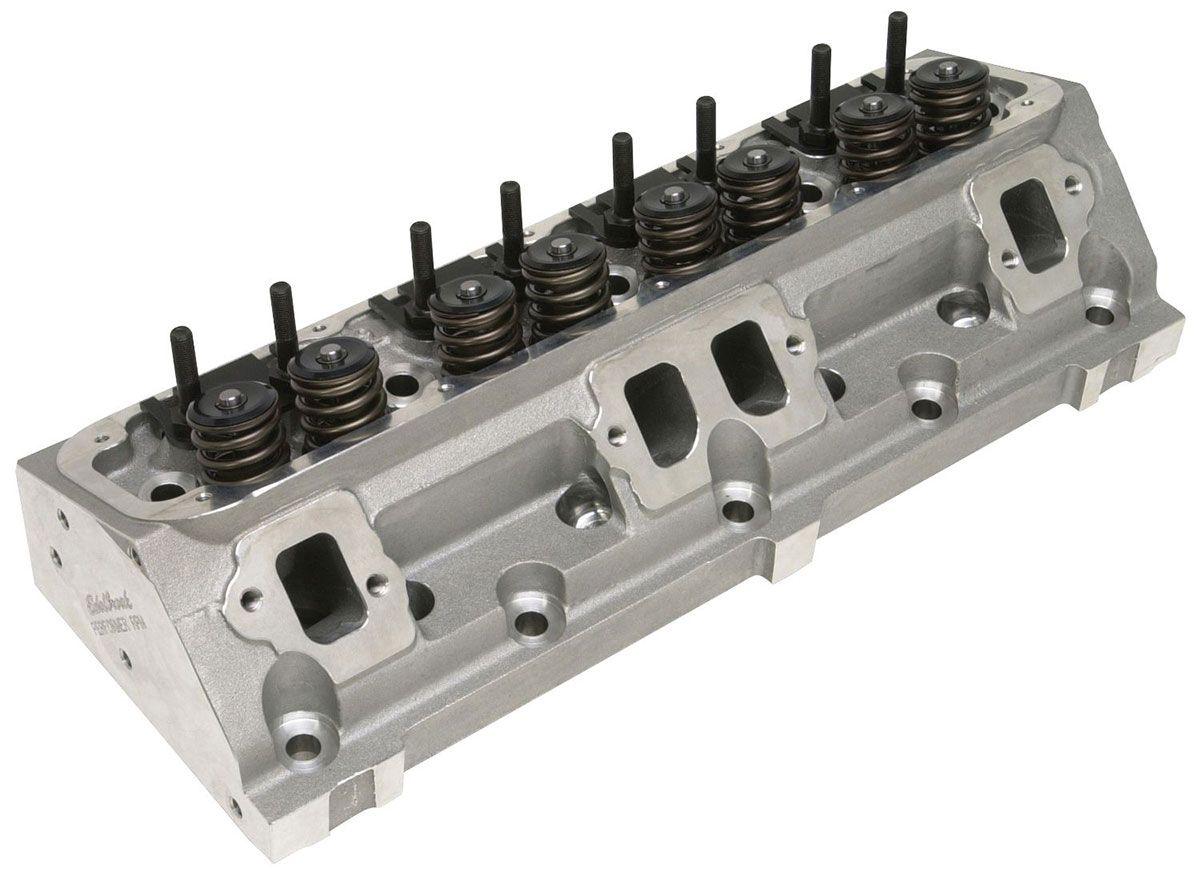

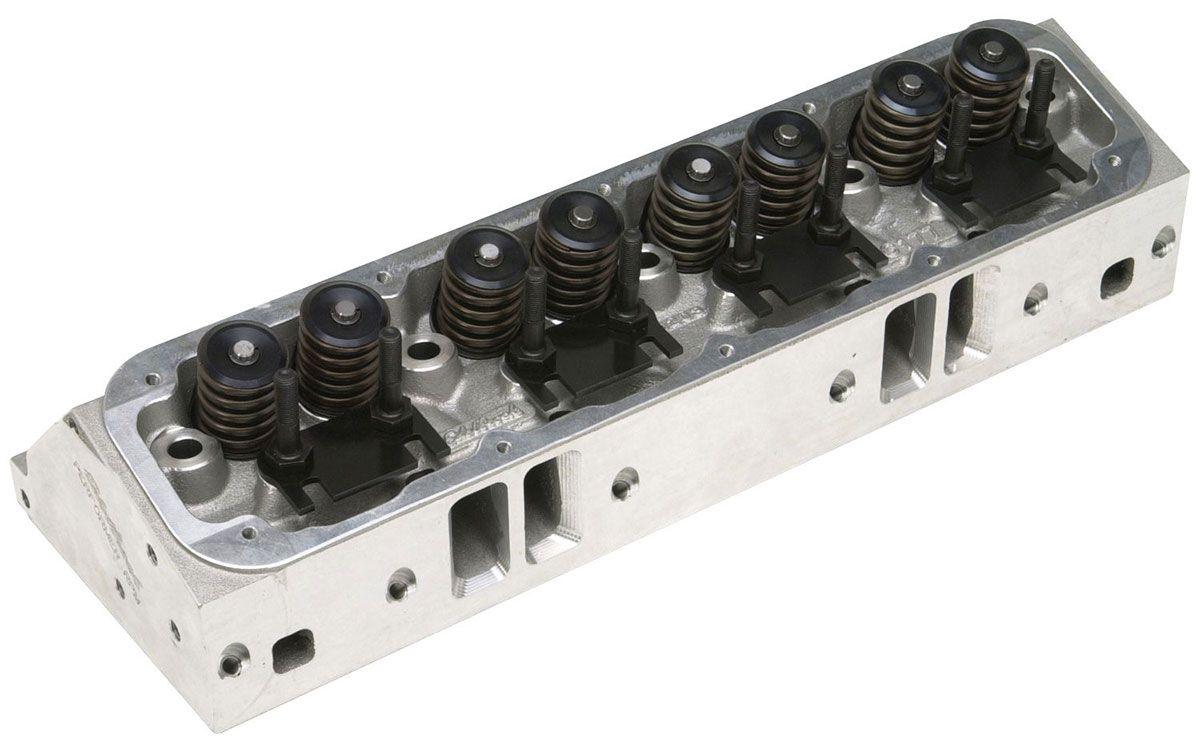

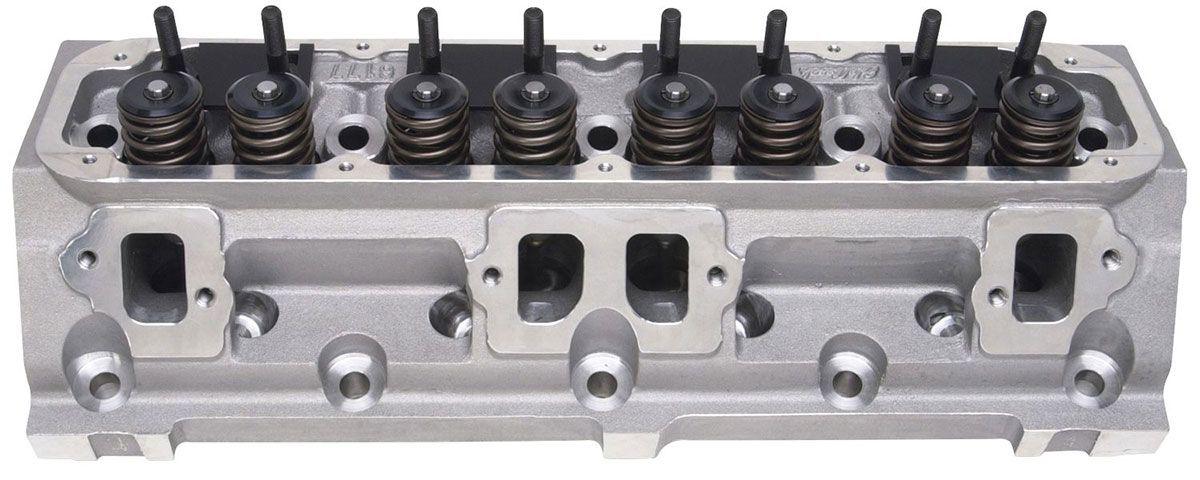

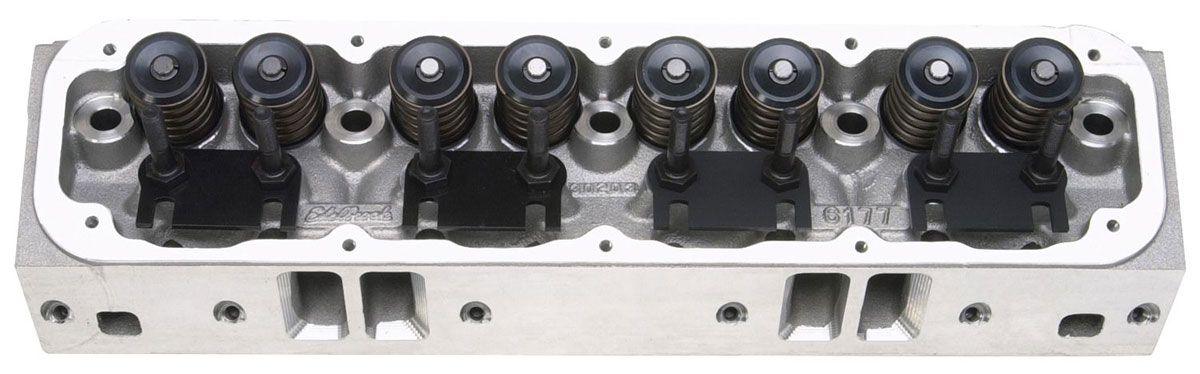

Edelbrock Performer RPM Cylinder Heads - Single - Complete (ED61779)
Chrysler Magnum 1992 & later 5.2L-1993 & later 5.9L, 58cc chambers, 176cc intakeED61779 - PERFORMER RPM CHRYS MAGNUM
Chrysler Magnum 1992 & later 5.2L-1993 & later 5.9L, 58cc chambers, 176cc intake
Part Number: ED61779
Performer RPM heads are perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. These heads give great torque and horsepower up to 6500 rpm.
Designed for 1992 & later 5.2L (318 c.i.d.) and 1993 & later 5.9L (360 c.i.d.) Chrysler Magnum style V8s
Match with the Edelbrock RPM Air-Gap Magnum manifold # ED7577 for maximum horsepower and torque.
Exhaust flanges in stock location to allow use of stock exhaust if desired.
Accepts widely available small-block Chevy adjustable rockers (1.6 ratio) and classic valve covers # ED4177 and # ED41773

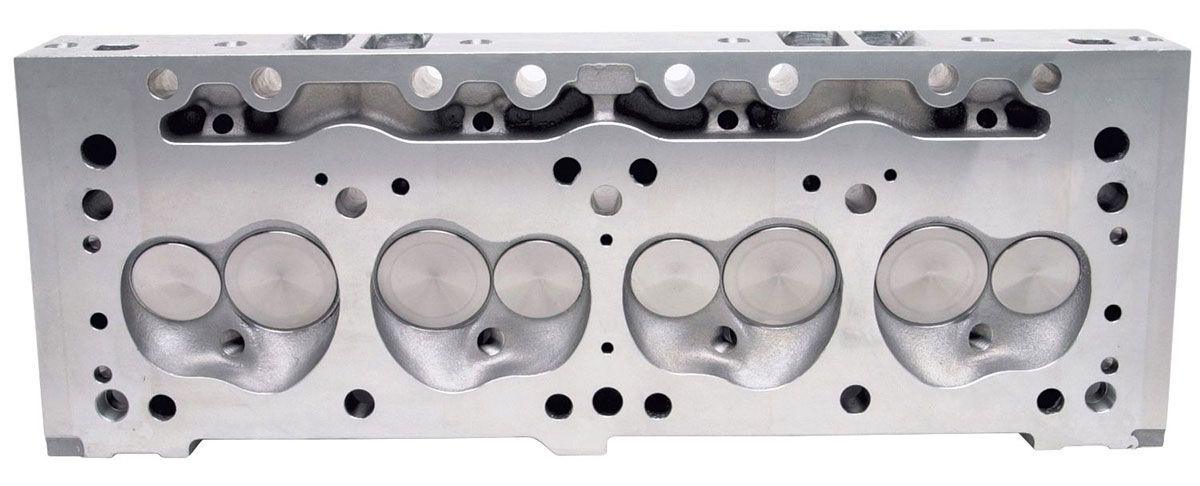

Combustion chamber volume:
58cc
Intake runner volume:
176cc
Exhaust runner volume:
75cc
Intake valve diameter:
2.02"
Exhaust valve diameter:
1.60"
Valve stem diameter:
11/32"
Valve guides:
Manganese bronze
Deck thickness:
5/8"
Valve spring diameter:
1.46"
Valve spring maximum lift:
.580"
Rocker stud:
3/8"
Guide plate:
Hardened Steel
Pushrod diameter:
5/16"
Valve angle:
18°
Exhaust port location:
Stock
Spark plug fitment:
14mm x 3/4" reach, gasket seat
Made In:
USA
