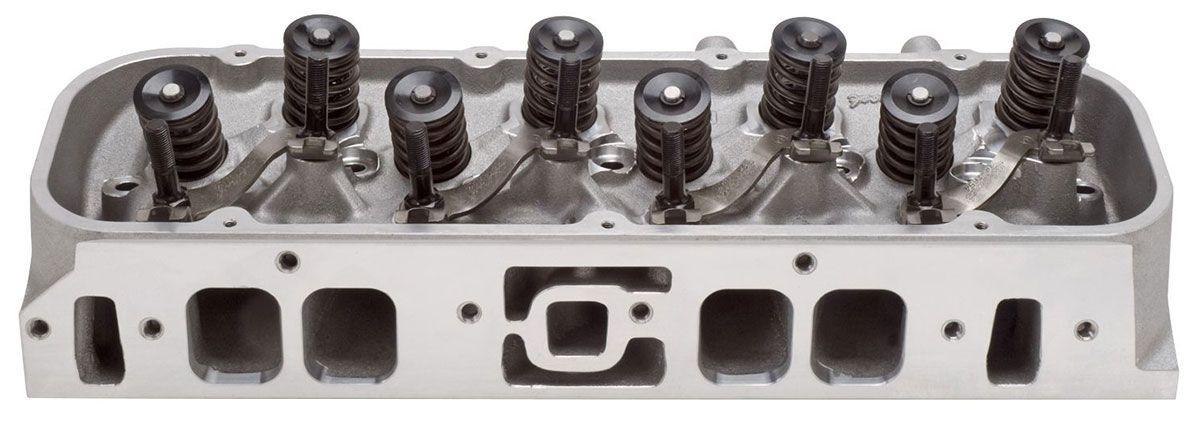

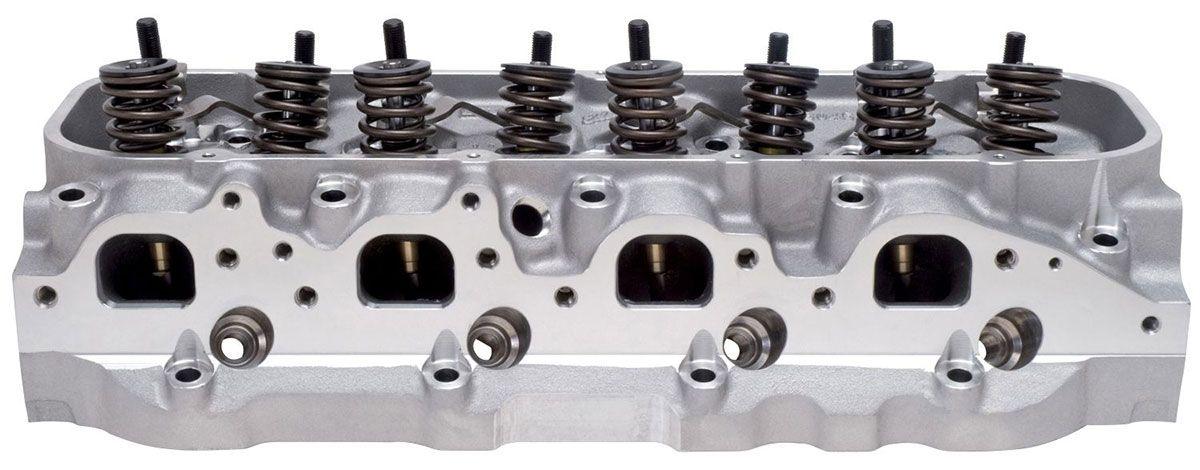

Edelbrock Performer RPM 454-O Cylinder Heads - Single - Complete (ED60459)
BB Chevy Oval Port, 110cc chambers, great torque and horsepower up to 6500 rpmED60459 - PERF.RPM CYLINDER HEADS,ASSEM.
BB Chevy Oval Port, 110cc chambers, great torque and horsepower up to 6500 rpm
Part Number: ED60459
Performer RPM heads are perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. These heads give great torque and horsepower up to 6500 rpm.
These oval port heads will support over 540 hp with 9.5:1 compression when used as part of the Total Power Package.
Unique oval intake port shape produces flow similar to rectangular ports, but the smaller port size provides excellent seat-of-the-pants performance and crisp throttle response.

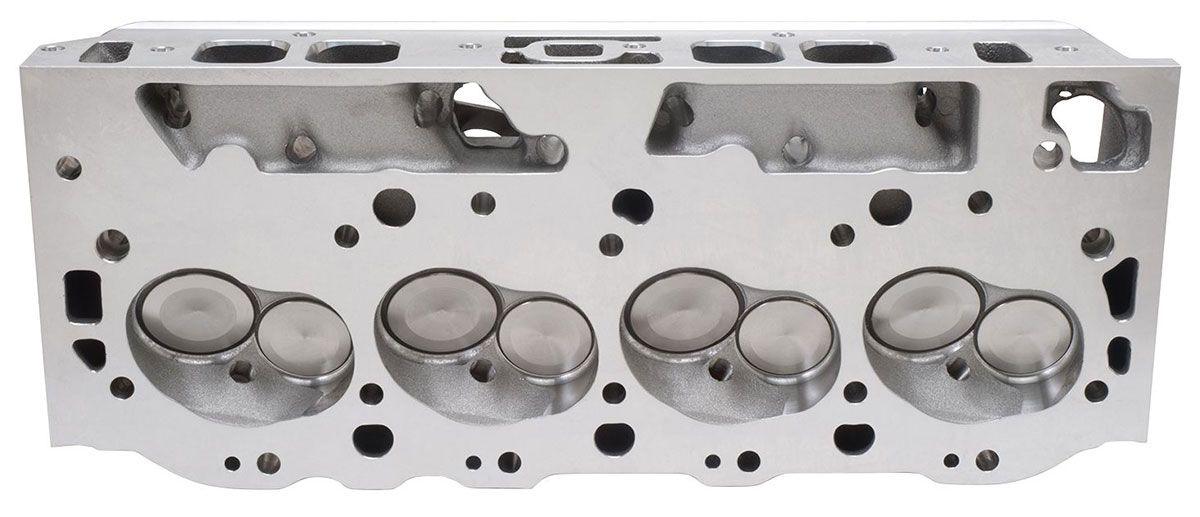

Semi-open chamber design maximises efficiency with streetable compression ratios.
Smaller-than-stock 11/32" valve stems promote excellent flow and lighter valve weight.
Combustion chamber volume:
110cc
Intake runner volume:
290cc
Exhaust unner volume:
110cc
Intake valve diameter:
2.19"
Exhaust valve diameter:
1.88"
Valve stem diameter:
11/32"
Valve guides:
Manganese bronze
Deck thickness:
9/16"
Valve spring diameter:
1.55"
Valve spring maximum lift:
.700"
Rocker stud:
7/16"
Guide plate:
Hardened Steel
Pushrod diameter:
3/8"
Valve Angle:
26°
Exhaust port location:
Stock
Spark plug fitment:
14mm x 3/4" reach, gasket seat
Made In:
USA
