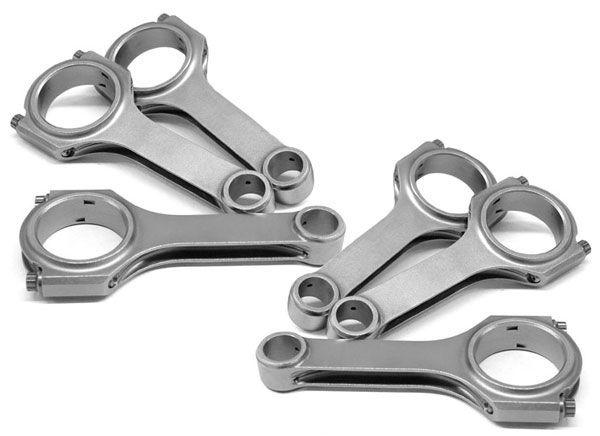

Eagle Toyota 2JZ & 2JZGTE Forged H-Beam Conrod Set (EACRS5590T3D)

EACRS5590T3D - EAGLE RODS TOYOTA SUPRA LATE

5.590" Length

Part Number: EACRS5590T3D

The Eagle ESP H-beam connecting rods are a 2-piece, forged, vacuum-degassed, 4340-certified steel construction that provides outstanding strength, while still weighing much less than stock rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined and then shot-peened to stress-relieve the metal. The rods have precision cap alignment sleeves to positively locate each rod cap, silicon bronze bushings for floating pin models and are available in stroker models that allow additional cam-to-rod clearance for large stroke combinations. They come standard with 190,000 psi rated ARP 8740 and 230,000 psi rated ARP 2000 rod bolts
Rod Specification

Bolt Type:
3/8" ARP 2000

Pin Fit:
Bushed
Maximum HP:
1500

Rod Length:
5.590"
Journal:
2.047"
Pin Size:
.866"
