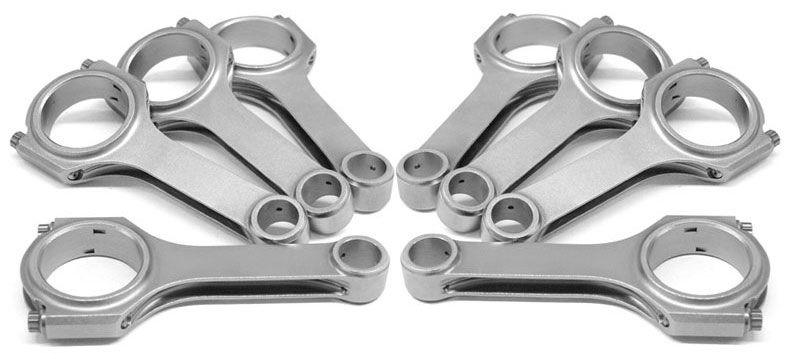

Eagle SB Chev L/J With ARP 2000 Bolts Forged H-Beam Conrod Set (EACRS6000BST200)
6.000" Length Clearanced For 4.000" StrokeEACRS6000BST200 - CHEV H-BEAM CONRODS 6.0LJ 2000
6.000" Length Clearanced For 4.000" Stroke
Part Number: EACRS6000BST200
The Eagle ESP H-beam connecting rods are a 2-piece, forged, vacuum-degassed, 4340-certified steel construction that provides outstanding strength, while still weighing much less than stock rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined and then shot-peened to stress-relieve the metal. The rods have precision cap alignment sleeves to positively locate each rod cap, silicon bronze bushings for floating pin models and are available in stroker models that allow additional cam-to-rod clearance for large stroke combinations. They come standard with 190,000 psi rated ARP 8740 and 230,000 psi rated ARP 2000 rod bolts.
SB Chev, CNC clearanced for up to 4" stroke.
Rod Specification
Bolt Type:
7/16" ARP 2000
Pin Fit:
Bushed
Maximum HP:
1200
Rod Length:
SB Chev 6.000"
Rod Journal:
SB Chev 2.100"
Pin Size:
SB Chev .927"
