![Diamond Toyota 2JZGTE Turbo Dish Top Forged Pistons (D37004-6)](http://fastlanespares.co.nz/cdn/shop/products/D37004-6_840x510.jpg?v=1688039771)

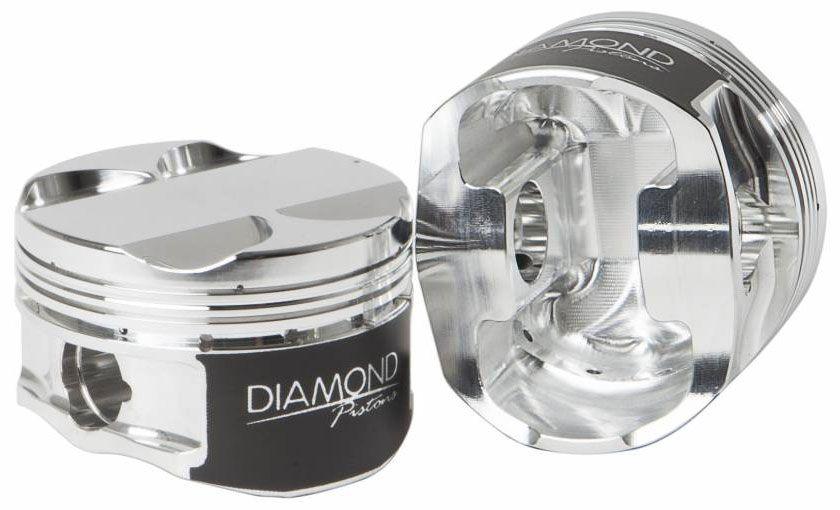

Diamond Toyota 2JZGTE Turbo Dish Top Forged Pistons (D37004-6)
86.5mm bore, 86mm stroke, 5.590" rod length, -10.4cc dome volumeD37004-6 - TOY 2JZGTE 86.5mm PISTON -10.4
86.5mm bore, 86mm stroke, 5.590" rod length, -10.4cc dome volume
Part Number: D37004-6
Piston Specifications:
Block: Toyota 2JZGTE
Bore: 86.5mm
Stroke: 86mm
Rod: 5.590"
Comp Heigh: 1.338"
Weight: N/A
Pin: .866 x 2.250"
CC's: Dish Top -10.4
Comp Ratio With 45cc Head: 9.1
Ring Set: 09513405
Piston Features:
3D milling on piston crowns for ready to install finish
Offset pins for quiet operation
Moly skirt coating for friction loss and skirt wear protection
Side gas ports for better ring seal
Ratios figured for 87mm x .040 head gasket @ 8.621 deck
Top ring down dimension: .300" 1.338cd - .280" 1.180cd
Premium 8620 .180W wrist pins chamfered for roundwire locks included
Premium 1.0mm x 1.2mm x 2.8mm ring package included
Oversized valve pockets - for larger than stock valve sizes
Valve pocket depth: 0.245" intake and .230" exhaust
2618 material for High HP/Boost applications
