Diamond  |  SKU: D1LSA-4070-R1-8

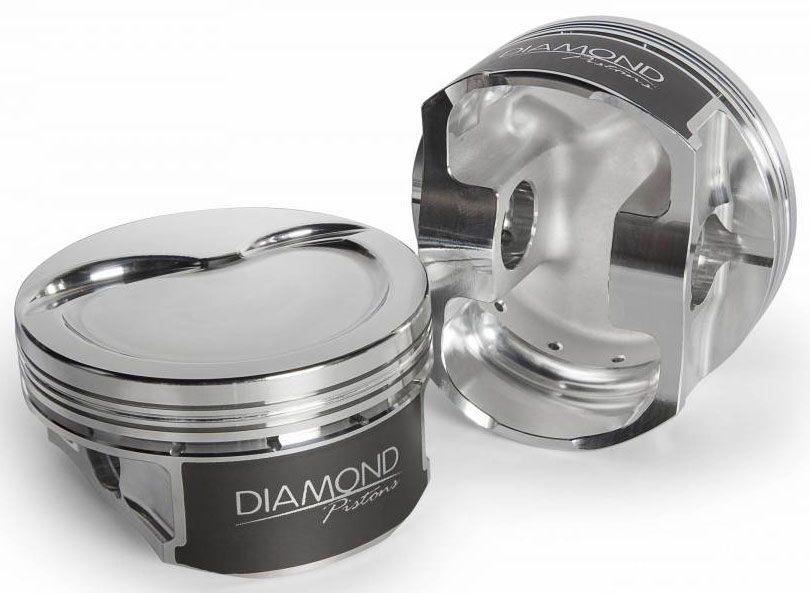

Diamond LSA Dish Top Forged Pistons With Rings (D1LSA-4070-R1-8)

4.070" bore, 4.000" stroke, 6.125" rod length, -15cc dome volume

$2,831.10 NZD + GST
Shipping calculated at checkout.

Description

DIAMOND LSA 4.070" BORE 4.00"

4.070" bore, 4.000" stroke, 6.125" rod length, -15cc dome volume

Part Number: D1LSA-4070-R1-8

  • 3D milling on piston crowns for ready to install finish
  • Valve pockets designed to work with most aftermarket cylinder heads
  • Offset pins for quiet operation
  • Moly skirt coating for friction loss and skirt wear protection
  • Top ring down dimension: .250"
  • Ratios figured for .040 head gasket
  • Premium 1.2mm x 1.2mm x 3.0mm ring package included
  • Premium 8620 .185W wrist pins included
  • Valve pocket depth: 0.178" intake and .108" exhaust
  • 2618 material for High HP-NOS-Boost applications
