Diamond | SKU:
D11520-R1-8

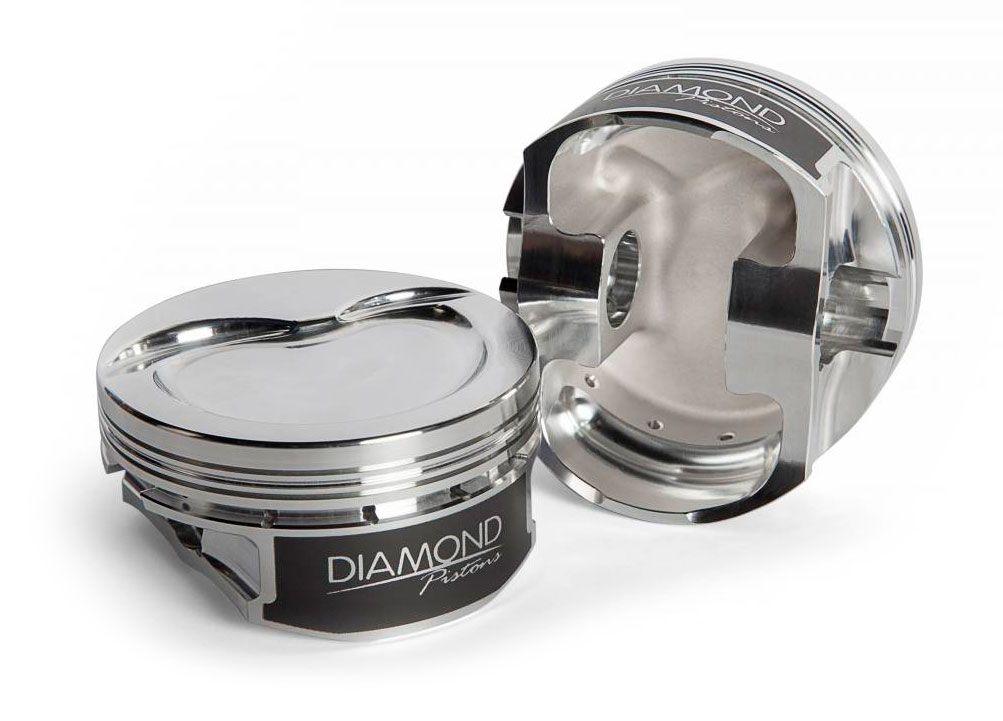

Diamond LS2 Dish Top Forged Pistons with Rings (D11520-R1-8)
4.000" Bore, 4.00" Stroke, 6.125"Rod Length, -15cc Dome Volume
Regular price
$2,549.30 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Diamond LS2 Dish Top Forged Pistons with Rings (D11520-R1-8) is not in stock at Fast Lane Spares and will ship direct from supplier
Stock Status:
Diamond LS2 Dish Top Forged Pistons with Rings (D11520-R1-8)
Regular price
$2,549.30 NZD
+ GST
Unit price
/
Unavailable
Description
Description
DIAMOND LS2 4.00"B -15cc DISH
4.000" Bore, 4.00" Stroke, 6.125"Rod Length, -15cc Dome Volume
Part Number: D11520-R1-8
Piston Specifications:
Piston Features:
- Block: LS2
- Bore: 4.000"
- Stroke: 4.000"
- Rod: 6.125"
- Comp Heigh: 1.115"
- Weight: 407
- Pin: .927 x 2.500"
- CC's: DishTop -15cc
- Comp Ratio With 62cc Head: 11.1
- Comp Ratio With 70cc Head: 10.1
- Comp Ratio With 76cc Head: 9.5
- Ring Set: 09454005
Piston Features:
- 3D milling on piston crowns for ready to install finish
- Valve pockets designed to work with most aftermarket cylinder heads
- Offset pins for quiet operation
- Moly skirt coating for friction loss and skirt wear protection
- Top ring down dimension: .250"
- Ratios figured for .040 head gasket
- Premium 1.2mm x1.2mm x 3.0mm ring package included
- Premium 8620 .185W wrist pins included
- Valve pocket depth: 0.176" intake and .105" exhaust
- 2618 material for High HP-NOS-Boost applications
