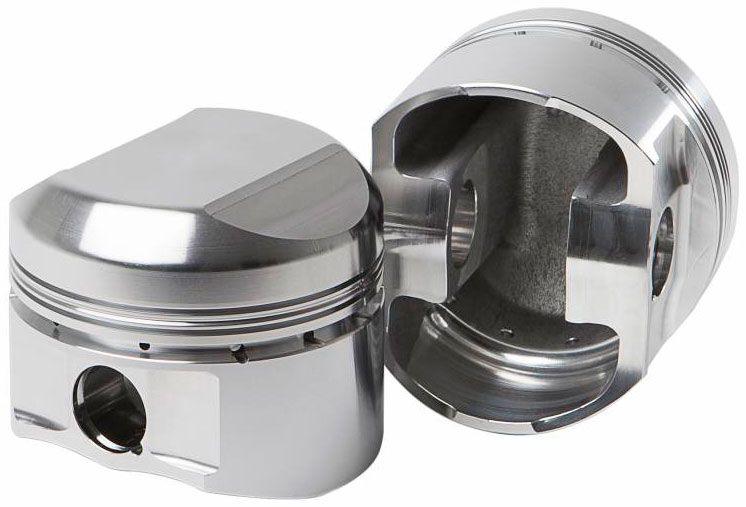

Diamond 572 Hemi Dome Top Forged Pistons With Rings (D52570-8)

Diamond 572 Hemi Dome Top Forged Pistons With Rings (D52570-8)

4.500" bore, 4.500" stroke, 7.100" rod length, +65cc dome volume
SKU: D52570-8
Contact for availability
$2,891.40 - $2,891.40
$2,891.40
$2,891.40 - $2,891.40
$2,891.40
+ GST
Availability:
Please contact for availability

D52570-8 - 572 HEMI PISTONS, 4.500" BORE

4.500" bore, 4.500" stroke, 7.100" rod length, +65cc dome volume

Part Number: D52570-8

3D milling on piston crowns for ready to install finish
Designed to work with most oem open and closed chamber cylinder heads
Top ring down dimension: .240"
Ratios figured for .040 head gasket @ 10.720 Deck
Standard 1/16 x 1/16 x 3/16 ring package
Premium 8620 .155W wrist pins included
Valve pocket depth: 0.225" intake and .191" exhaust
Will work with up to a intake valve size of 2.190" and exhaust valve size of 1.880"
Made from 4032 alloy
