Diamond  |  SKU: D52568-8

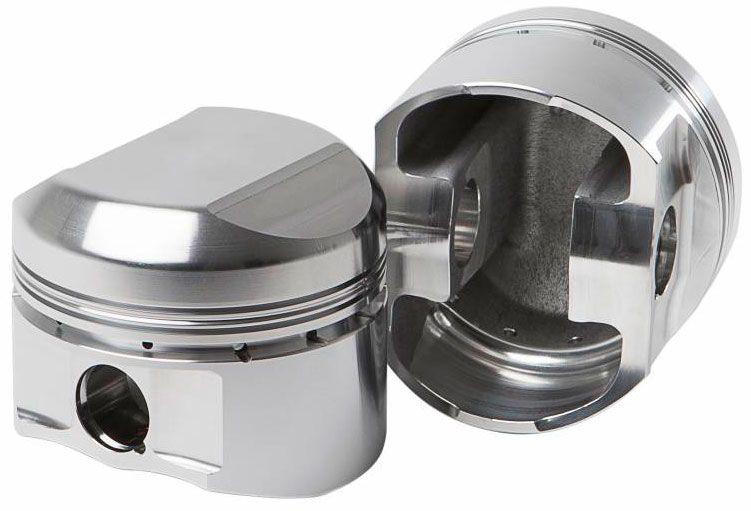

Diamond 540 Hemi Dome Top Forged Pistons With Rings (D52568-8)

4.500" bore, 4.250" stroke, 7.100" rod length, +72cc dome volume

$3,127.80 NZD + GST
Shipping calculated at checkout.

Description

540 HEMI PISTONS, 4.500" BORE

4.500" bore, 4.250" stroke, 7.100" rod length, +72cc dome volume

Part Number: D52568-8

  • 3D milling on piston crowns for ready to install finish
  • Designed to work with most oem open and closed chamber cylinder heads
  • Top ring down dimension: .240"
  • Ratios figured for .040 head gasket @ 10.720 Deck
  • Standard 1/16 x 1/16 x 3/16 ring package
  • Premium 8620 .155W wrist pins included
  • Valve pocket depth: 0.225" intake and .191" exhaust
  • Will work with up to a intake valve size of 2.190" and exhaust valve size of 1.880"
  • Made from 4032 alloy
