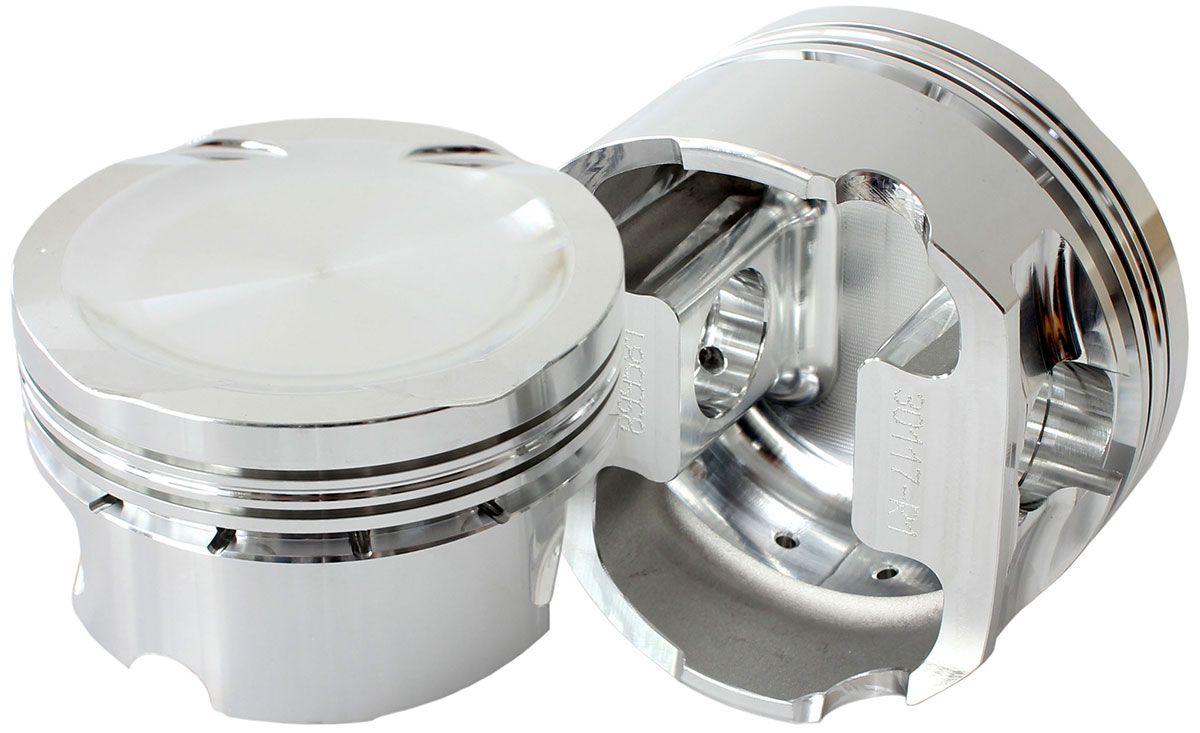

Diamond 5.0L Coyote Dome Top Forged Pistons With Rings (D30101-8)

D30101-8 - FORD 5.0L COYOTE 3.640" B +8cc

3.640" bore, 3.650" stroke, 5.933" rod length, +8.0cc dome volume

Part Number: D30101-8

Piston Specifications:
Block: 5.0L Coyote
Bore: 3.640
Stroke: 3.650
Rod: 5.933
Comp Heigh: 1.169"
Weight: 388
Pin: .866 x 2.500"
CC's: Dome Top 8.0
Comp Ratio With 57cc Head: 11.6
Ring Set: 09053640
Piston Features:
Designed to be used with 2011-17 5.0L Coyote cylinder heads
3D milling on piston crowns for ready to install finish
Offset pins for quiet operation
Top ring down dimension: .300"
Ratios figured for .040 head gasket @ 8.937 Deck
Premium 1.5mm x 1.5mm x 3.0mm ring package
Premium 8620 .155W wrist pins included
Oversized valve pockets - for larger than stock valve sizes
Valve pocket depth: 0.075" intake and 0.075" exhaust
Made from 2618 alloy
