DiabloSport Trinity 2 EX Platinum with PCM Swap - 9321-R

Fits 2015-2017 Ram 1500 - 5.7L - 8-Speed Transmission

Part Number: 9321-R

The all-new Trinity (T2) Platinum PCM Swap is the most advanced performance programmer and monitoring setup of its kind for 2015+ Dodge/Ram/Chrysler/Jeep applications. Featuring a high resolution, 5 capacitive touch screen, full swipe functionality, industry-leading gauge designs, jaw dropping power potential and powerful, yet simple, user interface. The T2 is unlike anything else on the market. Taking advantage of DiabloSport's cutting-edge PCM Swap program allows you to focus on the sleek, new look with T2, while enjoying power and improved drivability. The PCM Swap process is seamless, affordable, and best-in-class. The Trinity T2 Platinum PCM Swap is designed for those who want the best of both worlds, pre-loaded, high-performance tunes in addition to custom tuning capability. The T2 Platinum is already equipped with some of the best tuning right out of the box but we know our customers like to bolt-on upgrades and extract every bit of horsepower out of their vehicles. That is where CMR custom tuning comes in. Our nationwide network of CMR custom tuning dealers can build tunes for your specific ride on a dyno or by using the built-in data logging features of the Trinity. Now you can have great tunes for now, and custom tunes for when you take your ride to the next level with the Trinity T2 Platinum. This PCM Swap kit includes a DiabloSport Trinity and a one-time unlocked PCM cross shipment.

Features and Benefits

• 25-30 rwhp on premium fuel
• 2015-2017 Ram 1500 5.7
• PCM swap included!
• Adjust throttle response
• Calibrate speedo for taller tires
• Disable Traction Control/ESP
• Raise or Lower Idle Speed by +/- 400 RPM
• Speed Limiter On/Off enabling increased top speed
• Target Cooling Fan temps can be set from 150°-230° for use with cooler t-stat
• Tire Size Adjustment 20”-44”, allows for correcting speedometer for different tires
• WOT Fuel Adjustment – 1-7K RPM +/- 20%, allows for fine tuning Air/Fuel Ratio
• WOT MBT Spark 1-7K RPM +/- 10
• WOT Spark – 1-7k RPM +/- 10
• Adjust idle RPM
• Disable MDS
• Remove top speed limiter
• Adjust idle speed

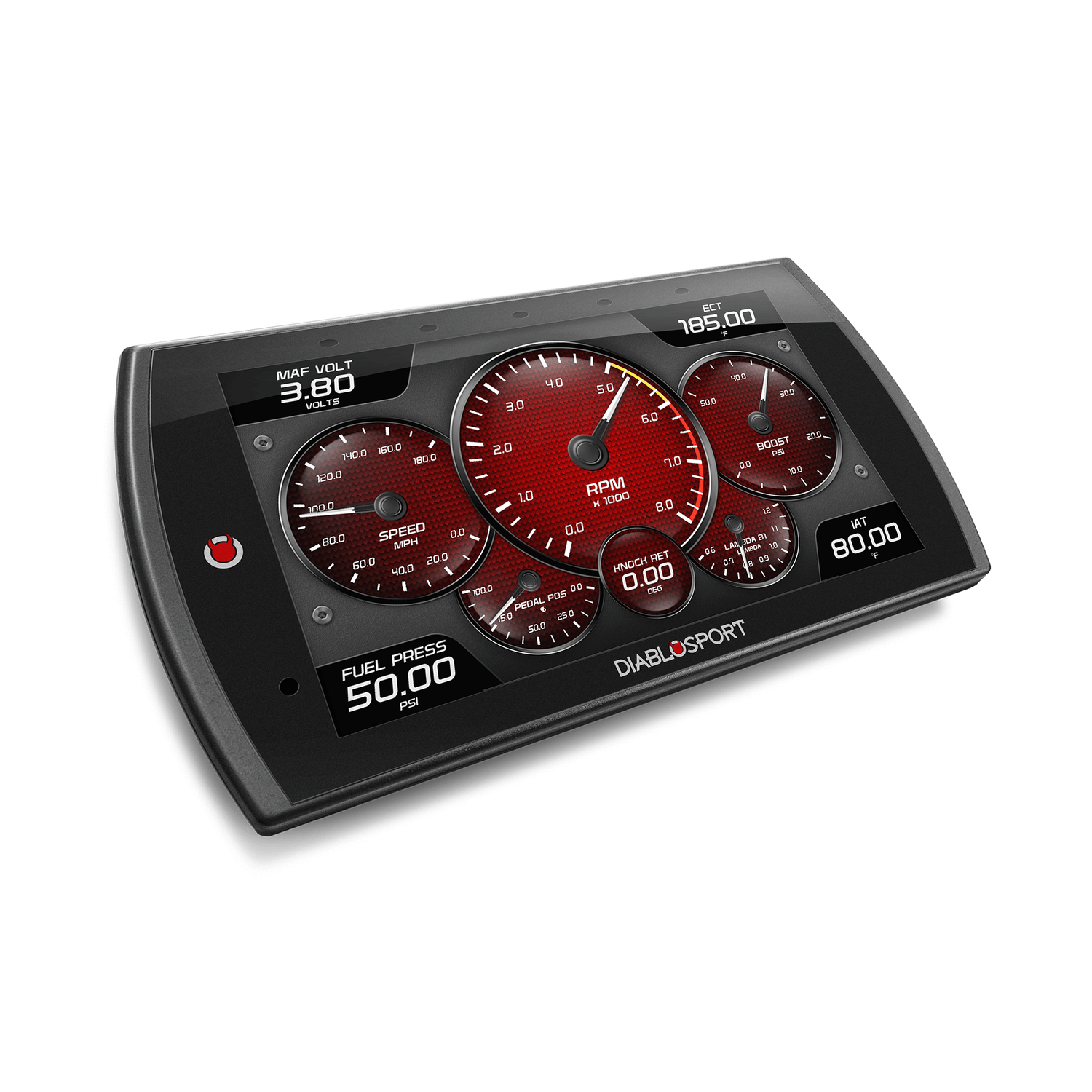

• Full color, 5" touch screen display
• Customizable Gauge layouts
• Preloaded tunes for increased performance
• Tons of end user based adjustable parameters
• Upload your own background images
• Built in performance tests (0-60, 1/4 mile, etc)
• Includes windshield mount
