DiabloSport PKITHCHAR22-i3 inTune i3 with Modified PCM - PKITHCHAR22-I3

Compatible with 2022-2023 Dodge Charger and Challenger Hellcat and Redeye - 6.2L V8

Part Number: PKITHCHAR22-I3

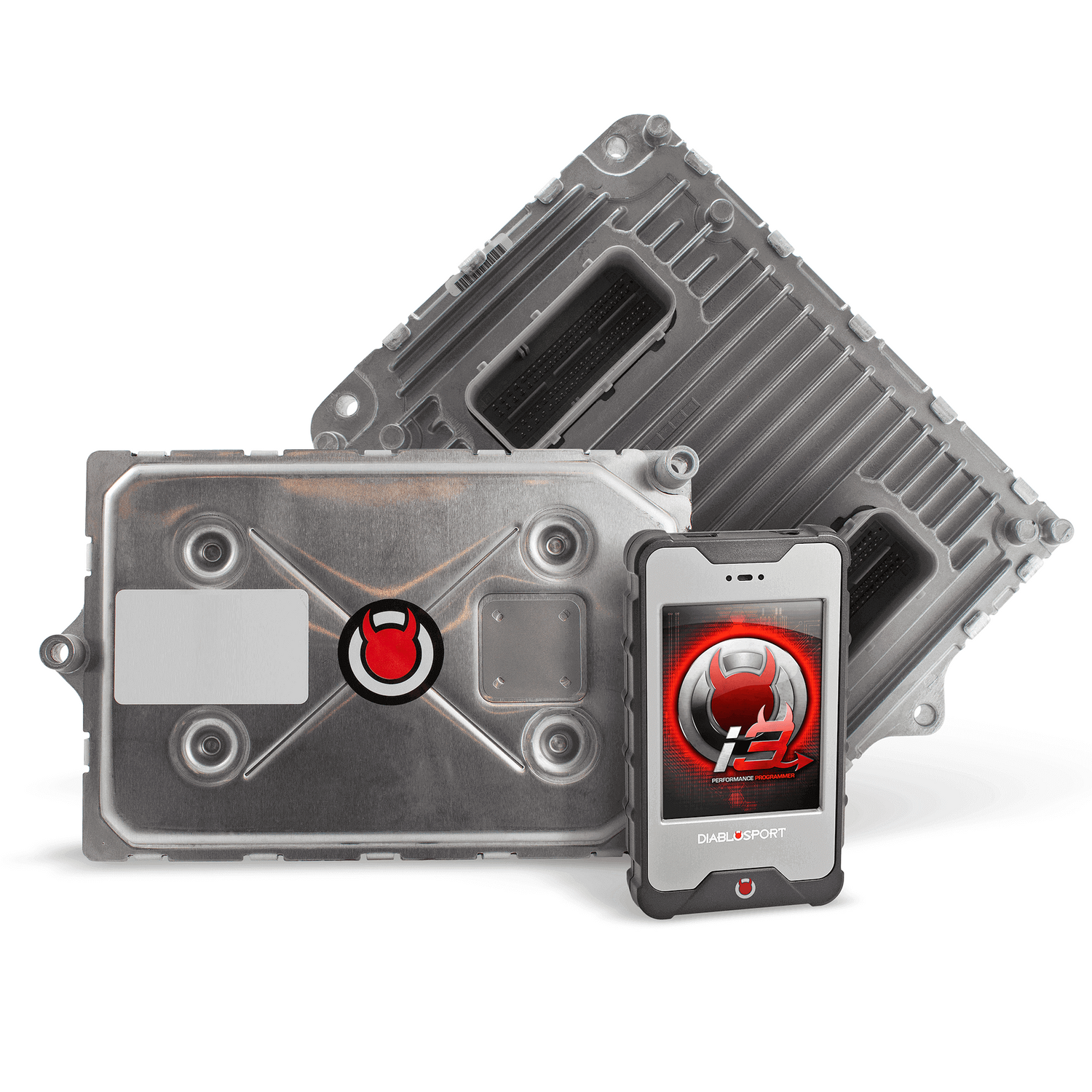

The DiabloSport inTune i3 Platinum + Unlocked PCM Kit is the all-in-one tuning solution for the 2022–2023 Dodge Charger Hellcat. From the factory, these supercharged HEMIs are locked against performance tuning—but this kit provides everything you need, including a DiabloSport Modified PCM and the inTune i3 Platinum handheld programmer (PN 8345), to safely unlock your Charger’s full performance potential. Preloaded with dyno-proven calibrations, the inTune i3 Platinum delivers up to 30 rear-wheel horsepower gains, stronger torque, sharper throttle response, and refined 8-speed automatic transmission performance for faster, smoother acceleration. The result is a Charger that reacts quicker, pulls harder, and drives sharper—on the street or at the track. For enthusiasts planning bolt-ons or advanced modifications, the Platinum i3 supports CMR custom tuning, connecting you with DiabloSport’s nationwide tuner network for dyno-proven custom calibrations tailored to your build. With built-in data logging and diagnostics, you’ll be able to monitor, track, and fine-tune your Hellcat’s performance with precision. ⚠️ Important Note: On 2022+ models, you must save your stock calibration with your tuning device before removing the factory PCM. Instructions are included to guide you through a seamless installation. For 2022–2023 Charger Hellcat owners who want maximum horsepower gains, sharper acceleration, and full tuning flexibility, the inTune i3 Platinum + Unlocked PCM Kit is the ultimate upgrade.

Features and Benefits

• 2022 Charger Hellcat 6.2
• 2023 Charger Hellcat 6.2
• Up to 30 hp and 30 ft/lbs torque on Hellcat
• Up to 54 hp & 42 torque for Redeye/Superstock/JailBreak editions
• Tire Size Adjustment 20”-44”, allows for correcting speedometer for different tires
• Speed Limiter On/Off enabling increased top speed
• Target Cooling Fan temps can be set from 150°-230° for use with cooler t-stat
• Raise or Lower Idle Speed by +/- 400 RPM
• Adjust Rev Limiter in Drive/Neutral by +/- 500 RPM
• WOT Fuel Adjustment – 1-7K RPM +/- 20%, allows for fine tuning Air/Fuel Ratio
• WOT MBT Spark 1-7K RPM +/- 10
• WOT Spark – 1-7k RPM +/- 10
• Disable Traction Control/ESP
• Required bypass module or cable is included
• inTune 3 packed with preloaded tunes and end user adjustments

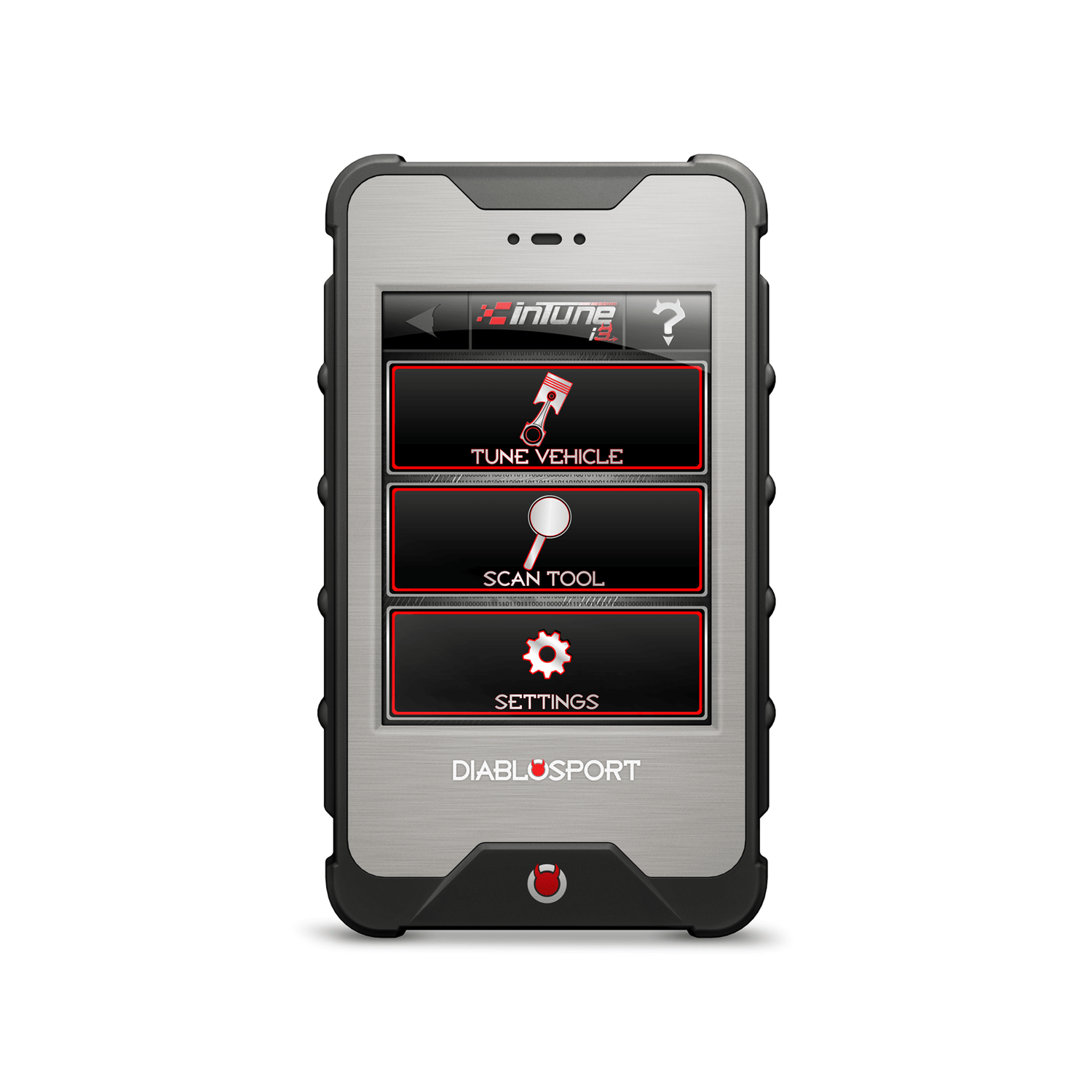

• Full color touch screen device
• WiFi update capability
• Multi-license capability
• Datalogs
• Reads/clears DTCs

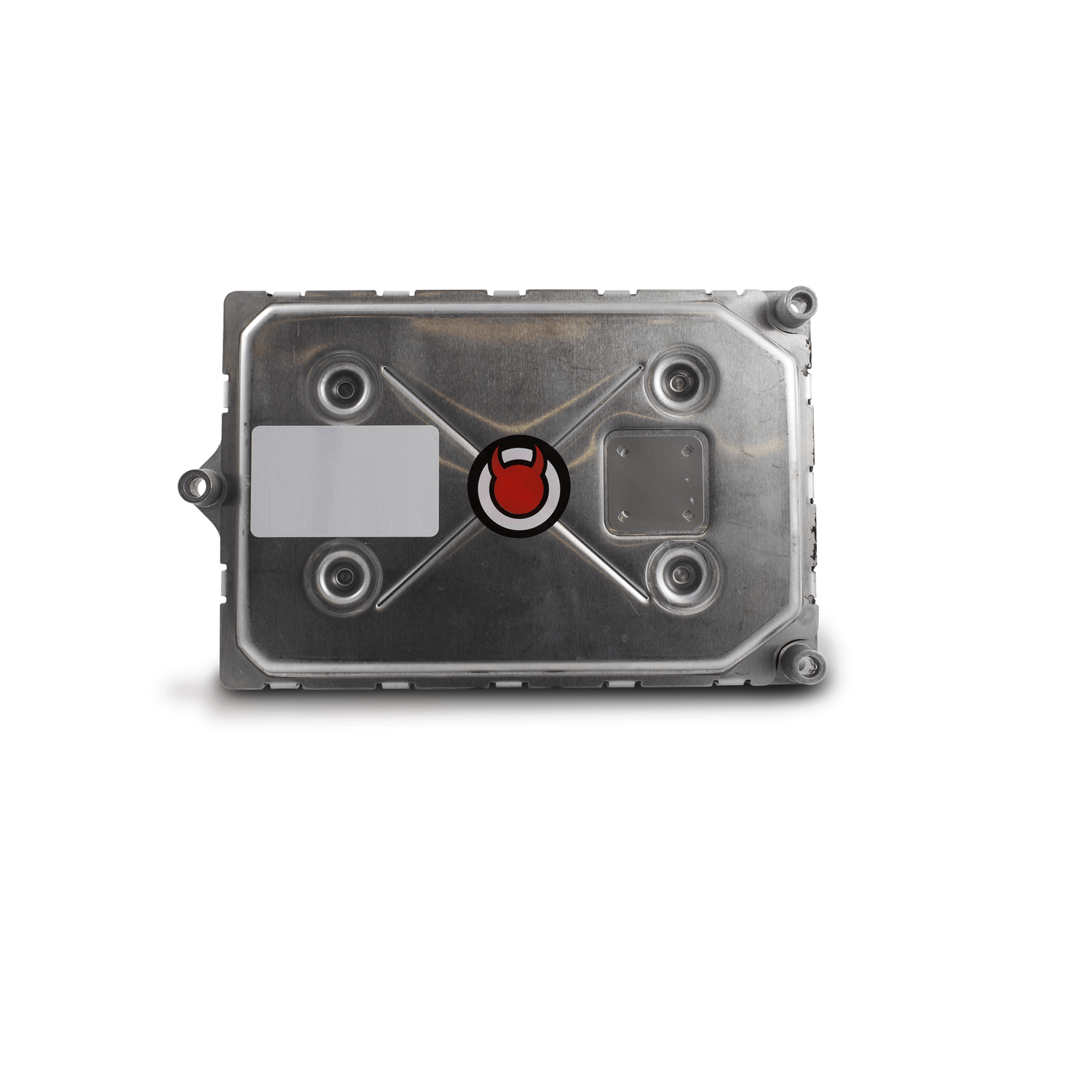

• Includes PCM Preprogrammed for your vehicle
• Unlocked for use with DabloSport devices
• OEM replacement
• Removal/Installation videos available on our YouTube channel
