DiabloSport PKITDR578S22-i3 Modified PCM & inTune i3 Combo - PKITDR578S22-I3

Compatible with 2022 5.7L Ram® 1500 with 8-Speed Transmission.

Part Number: PKITDR578S22-I3

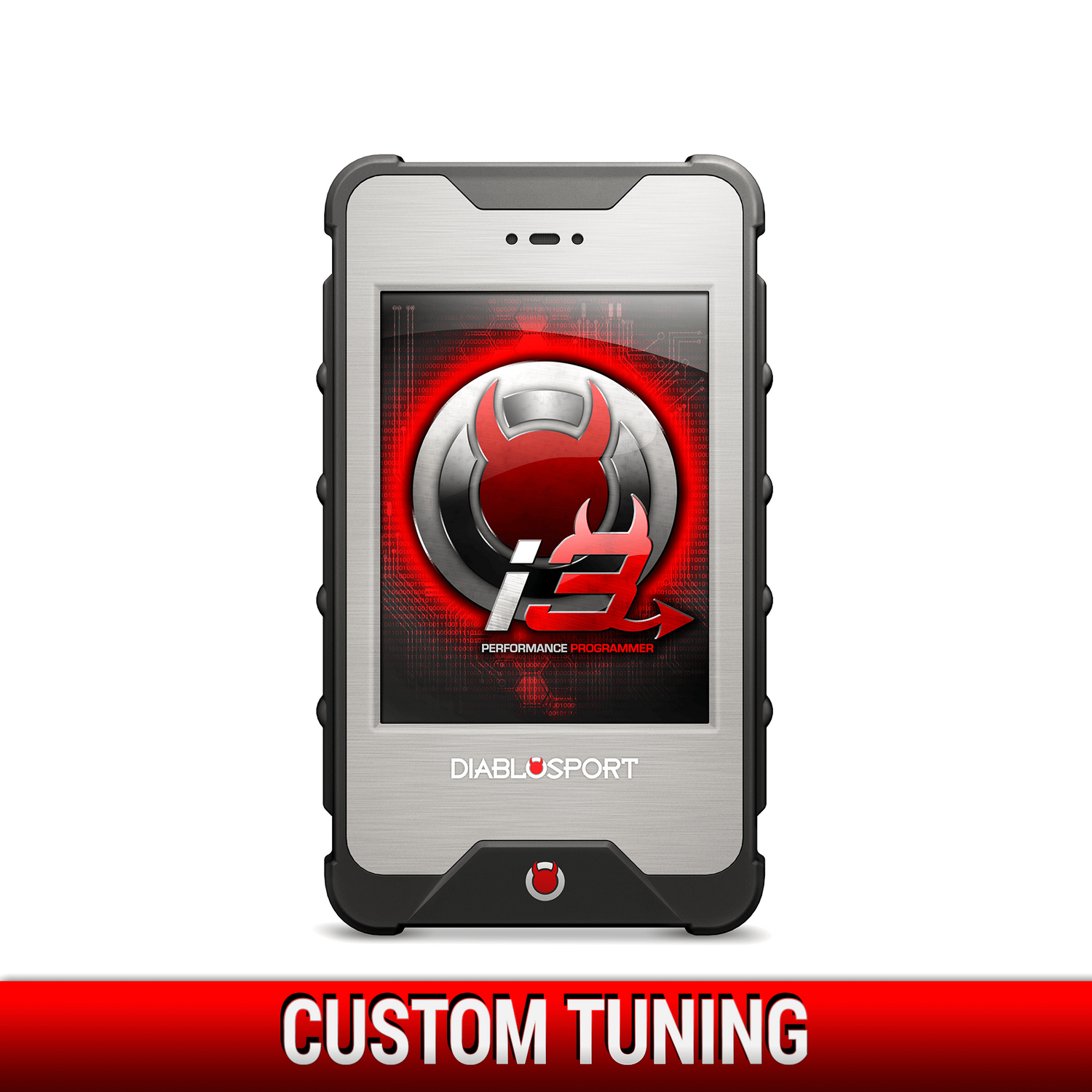

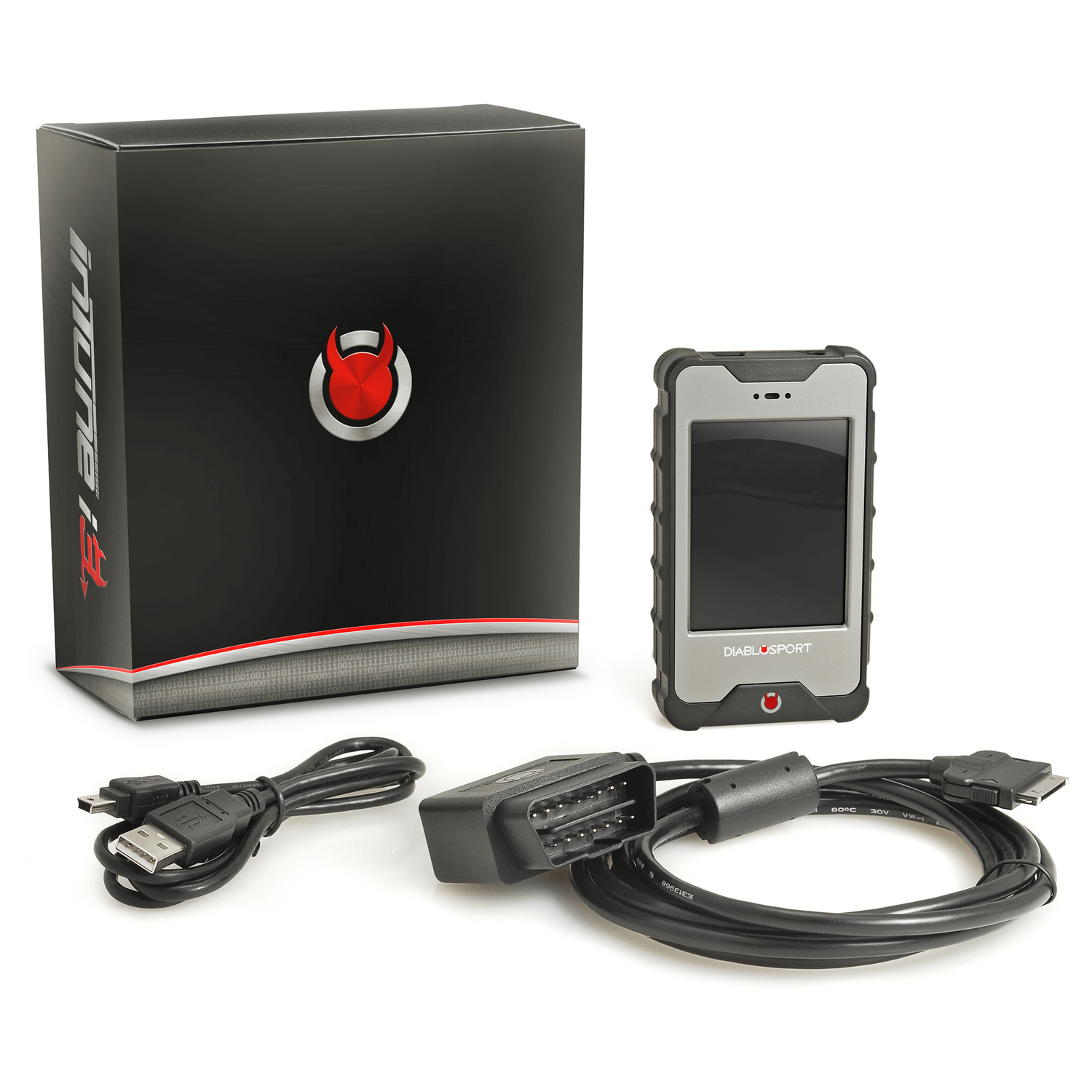

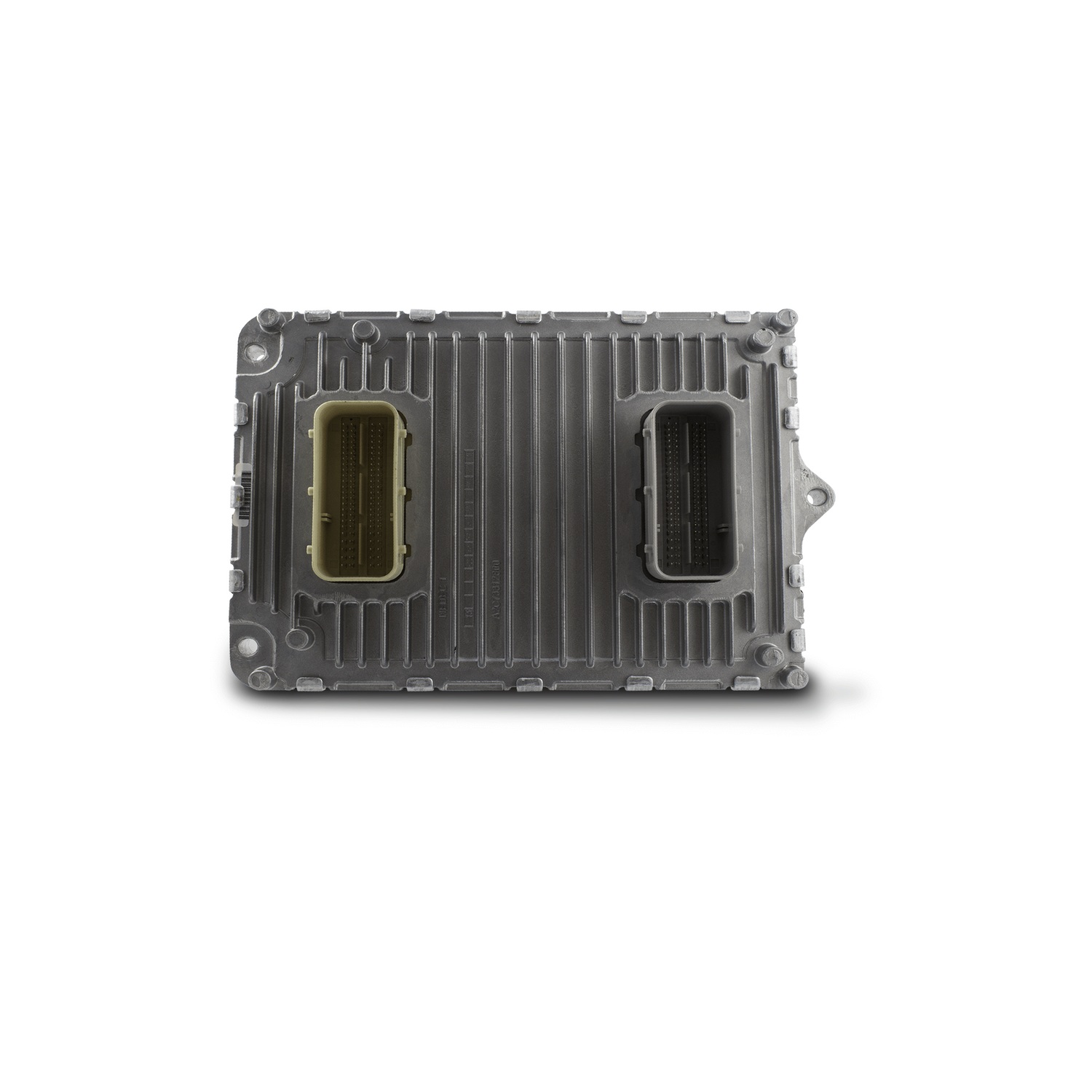

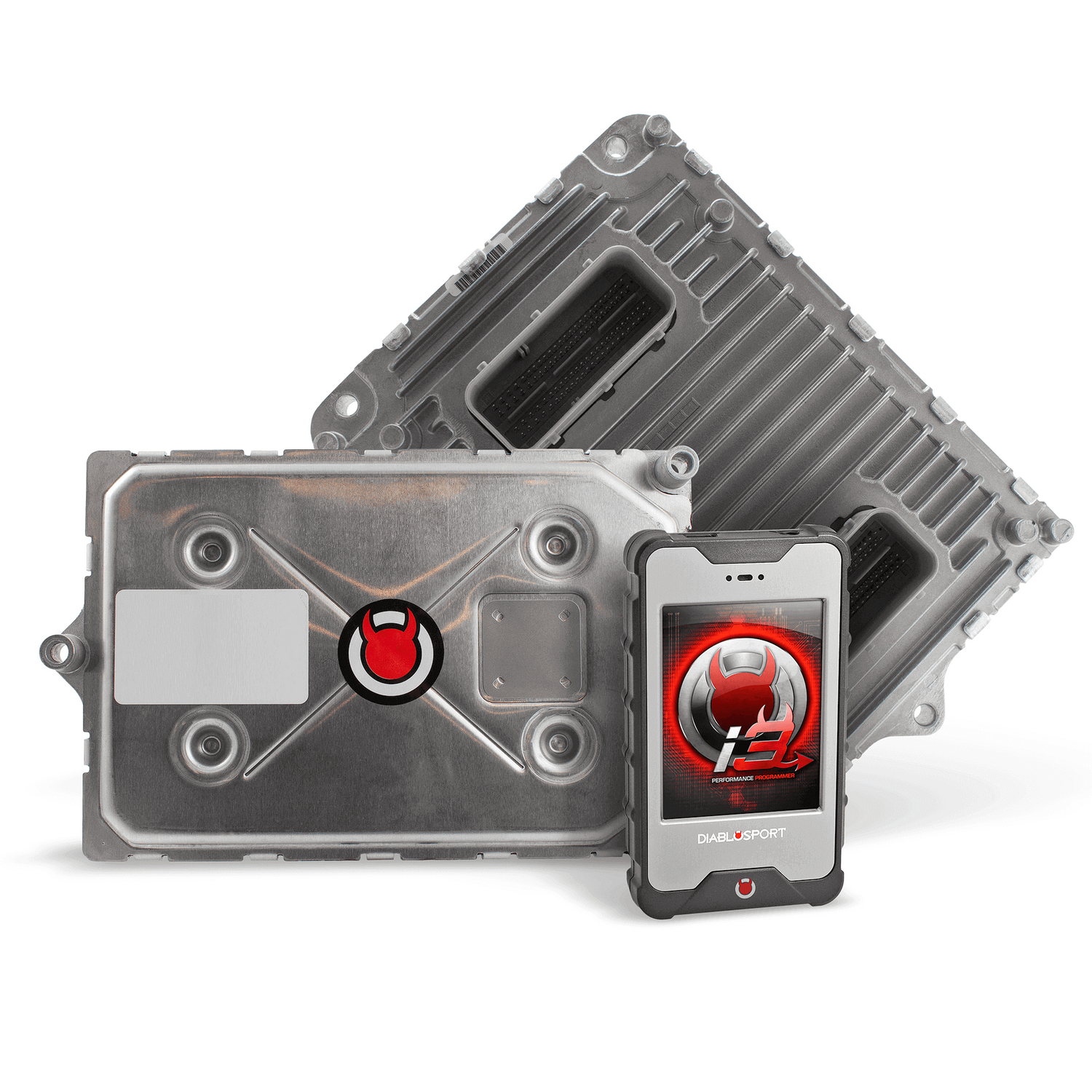

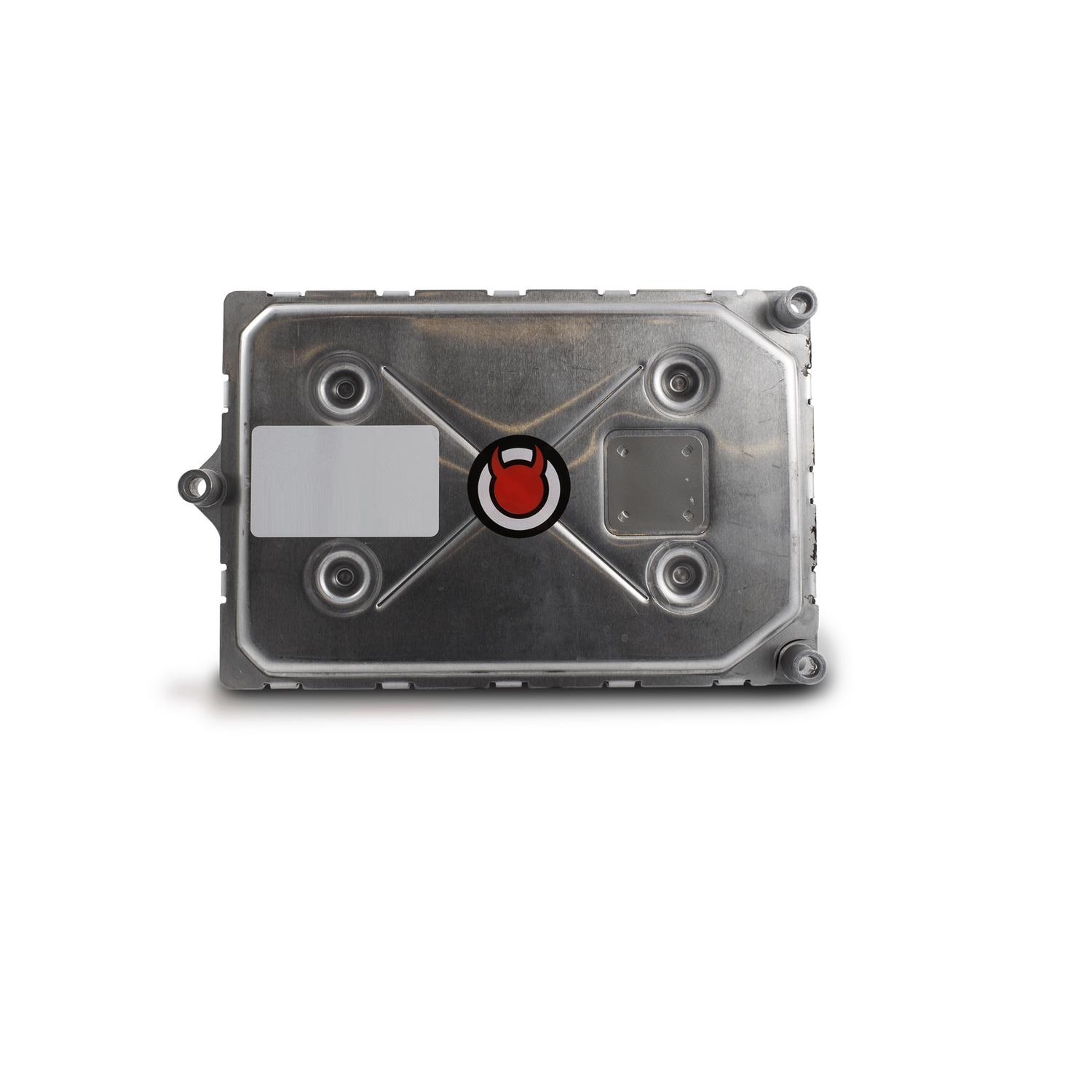

The DiabloSport inTune i3 Platinum + Unlocked PCM Kit is the complete tuning solution for the 2022 Ram 1500 5.7L HEMI. From the factory, these trucks ship with locked PCMs that prevent tuning. This package includes a DiabloSport Modified PCM and the inTune i3 Platinum handheld programmer (PN 8345), giving you everything you need to safely unleash your Ram’s full potential. Preloaded with dyno-tested performance calibrations, the inTune i3 Platinum delivers up to 30 rear-wheel horsepower gains, stronger torque, quicker throttle response, and refined 8-speed transmission behavior for faster, smoother shifts. These improvements provide more confident acceleration, towing strength, and daily drivability. The kit also allows for MDS (Multi-Displacement System) disable, keeping your HEMI in full V8 mode whenever you want maximum performance. For enthusiasts adding bolt-ons or advanced upgrades, the Platinum i3 supports CMR custom tuning, giving you access to DiabloSport’s nationwide network of tuners for dyno-proven calibrations tailored to your build. Built-in data logging and diagnostics make it simple to monitor and fine-tune your Ram’s performance. ⚠️ Important Note: On 2022+ models, you must save your stock calibration with your tuner before removing the factory PCM. Instructions are included for a smooth installation. For 2022 Ram 1500 5.7L HEMI owners who want real horsepower gains, MDS disable, and sharper drivability, the inTune i3 Platinum + Unlocked PCM Kit is the ultimate performance upgrade.

Features and Benefits

• 2022 Ram 1500 5.7 8 Speed
• Add 25-30 rwhp on premium fuel
• Disable MDS
• Supports custom tuning from our network of CMR tuners
• Adjust throttle response for optimal pedal feel
• Remove vehicle top speed limiter
• Adjust idle RPM
• Tunes for 87, 91 and 93 octane fuel included
• Performance TCM tune for 8 speed transmission included
• Includes PCM programmed to your vehicle and inTune 3!
• No vehicle downtime for tuning!
• Preloaded with multiple performance tunes
• Read/clear DTC codes
• Disable MDS for full time V8 operation!
• Adjust Rev Limiter in Drive/Neutral by +/- 500 RPM
• Disable Traction Control/ESP
• Raise or Lower Idle Speed by +/- 400 RPM
• Required bypass module or cable is included
• Speed Limiter On/Off enabling increased top speed
• Target Cooling Fan temps can be set from 150°-230° for use with cooler t-stat
• Tire Size Adjustment 20”-44”, allows for correcting speedometer for different tires
• WOT Fuel Adjustment – 1-7K RPM +/- 20%, allows for fine tuning Air/Fuel Ratio
• WOT MBT Spark 1-7K RPM +/- 10
• WOT Spark – 1-7k RPM +/- 10

NOTE: ON 2019+ MODEL YEAR VEHICLES, YOU MUST SAVE YOUR STOCK CALIBRATION WITH YOUR TUNING DEVICE BEFORE REMOVING THE STOCK PCM FROM THE VEHICLE. PLEASE REFER TO THE INSTRUCTIONS THAT COME WITH YOUR UNLOCKED PCM.
