Derale Remote Transmission Cooler & Fan Kit -6AN (DP13900)

DP13900 - REMOTE TRANS COOLER & FAN KIT

15-3/4"W x 11-1/2"H x 5"D

Part Number: DP13900

With it's own air supply, the Electra-Cool Remote Transcooler can literally be mounted wherever space permits, making it a popular addition for performance compacts, hot rods, muscle cars and trucks. An efficient 16 pass tube and fin cooler coupled with a Tornado fan and aluminum brackets, this kit comes with a complete installation kit to install easily on all vehicles with 5/16" or 3/8" transmission cooler lines. Also included is an 180°F in-line thermostat for activating the electric fan. This is a durable, trouble-free way to add years to the life of your transmission, and perfect for medium to heavy-duty towing and hauling.
Specifications
Cooler style: 16 pass Tube & Fin
Inlet size: -6AN
Fan size: 10"
CFM: 650
Amp draw: 5.3
Width: 15-3/4"
Height: 11-1/2"
Depth: 5"
Inlet dim: 8-3/4"
Mounting: 14-3/4" x 5-1/4"
Cooler Fluid Capacity: 19.6 oz
Hose size: 3/8"
Hose length: 10'
Airflow: Puller (reversible)
Features
Mounts anywhere space permits
Electric fan supplies optimum airflow
Dramatically extends engine and transmission life
16 pass Tube & Fin cooler
Clear anodized aluminium shroud
650 CFM reversible Tornado electric fan
-6AN inlet size
Derale coolers are rated at 250psi working pressure and 300psi burst strength

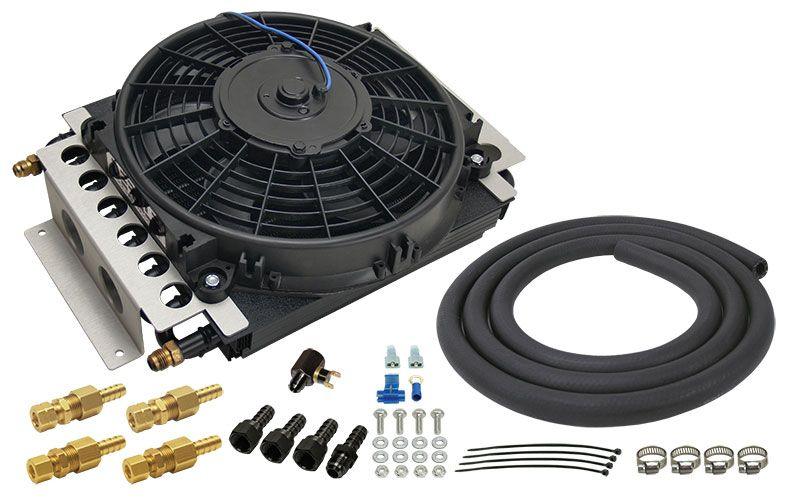

Transmission cooler kit includes fan mounted cooler, two -8AN fittings and four -6AN x 3/8" hose barb fittings, 180°F In-line thermostat, 10 ft. of OEM spec hose, 5/16" Insta-dapt radiator fitting, 5/16" and 3/8" compression fittings, and hardware
