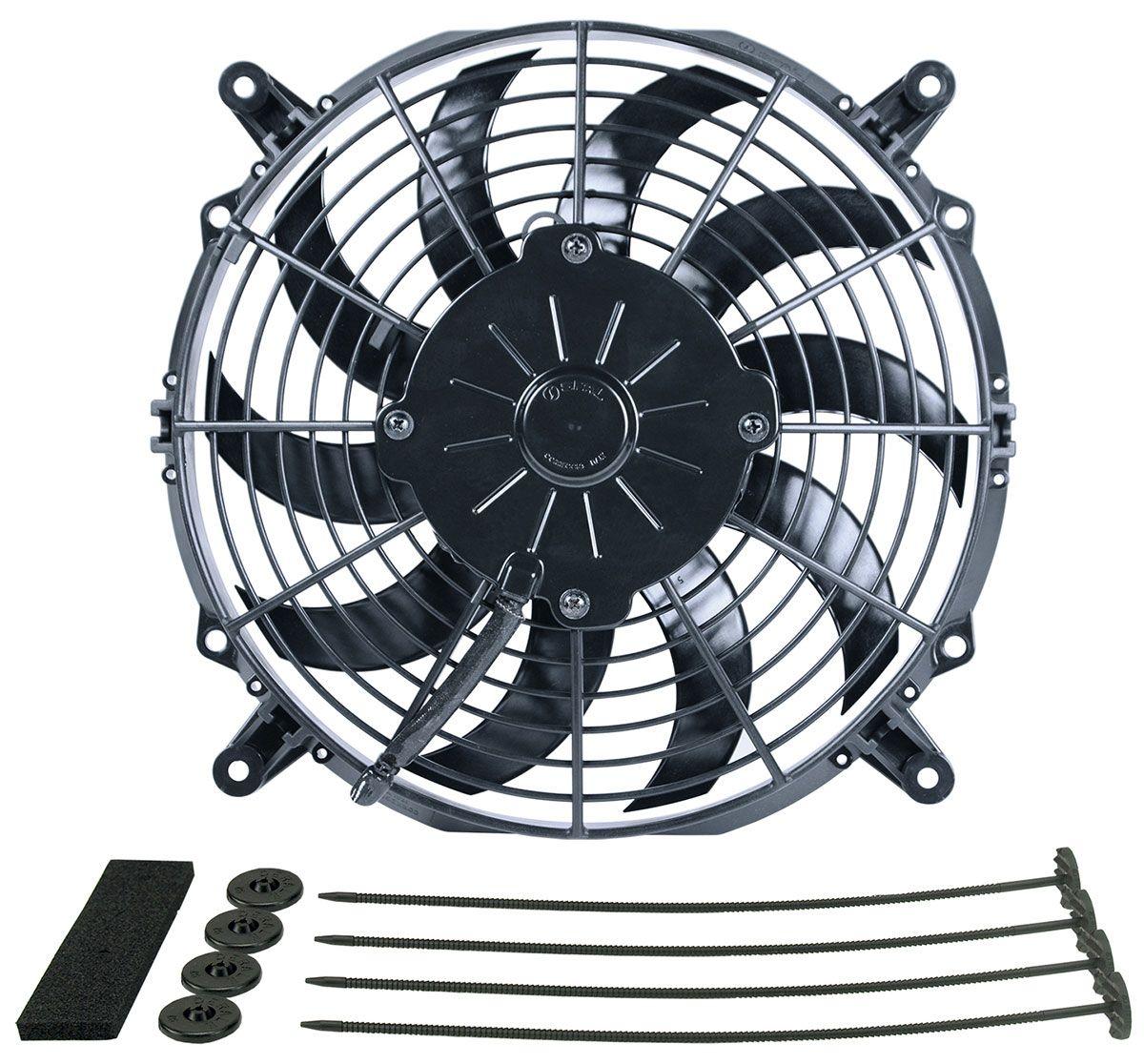

Derale 10" High Output Electric Thermo Fan (DP16110)

A 10" Diameter version of our high performance H.O. Extreme series of electric fans, this powerful unit uses 10 thin, curved blades to provide a low profile (only 2 1/16" at widest point) for limited space applications. Using a sealed IP68 certified waterproof & dustproof motor that lasts up to 3 timeslonger than normal electric fan motors, this puller fan isdesigned to provide maximum performance at high static pressure loads. Mounting kit and installation instructions included.

Features

• Primary cooling fan eliminatesfuel and horsepower robbing belt driven fans
• 10 thin curved blades allow ultralow profile design for limitedspace applications
• Sealed waterproof/dustproof IP68 certified motors
• Ultraquiet S-blade designs
• Designed for maximum performance at high static pressure loads for moreeffective cooling
• Longlasting, sealed IP68 certifiedwaterproof & dustproof motor
• 825 CFM
• Includes mounting kit and illustrated installation instructions
• Puller only (engine side)

Specifications

• CFM fan: 825
• Amp draw: 9.2
• Width: 10-9/16"
• Height: 11-1/8"
• Depth: 1-1/8"
• Overall Depth: 2-1/16"
• Mounting: 9-11/16" x 5-13/16"
