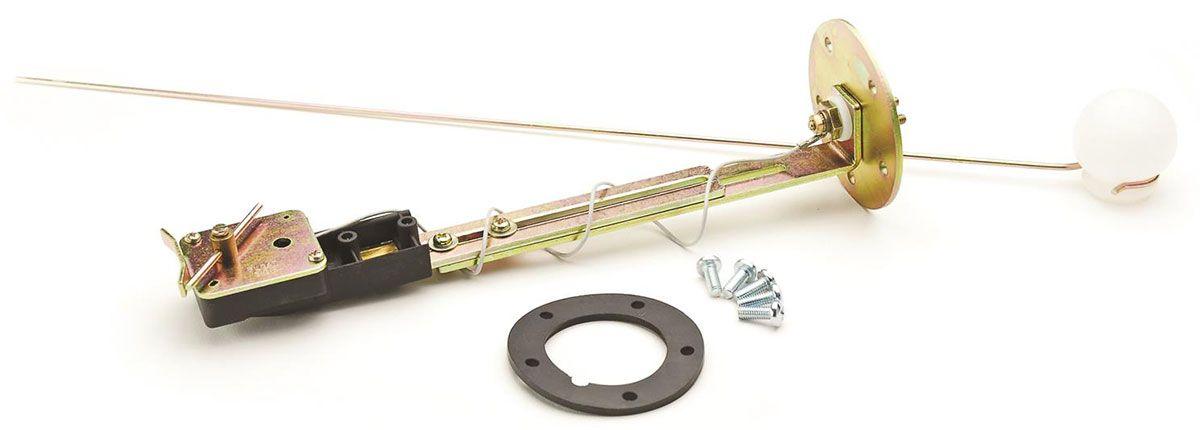

Dakota Digital Universal Fuel Level Sender (DAKSEN-06-1)

Universal Automotive Fuel Level Sender with an adjustable float will accommodate many aftermarket fuel cells.

• Resistance range: 10 ohms empty -180 ohms full (VDO style)
• GM Style 5-bolt mounting pattern: 2.8” overall flange size,  2.125" bolt circle, 1.7" hole size
• 5x 10-32 x ½” mounting screws and gasket included
• Adjustable to tank depths of 6-23"
• Top-mount applications only; without fuel pickup or return line
• Compatible with all Dakota Digital Automotive gauges (not compatible with Motorcycle or UTV)
